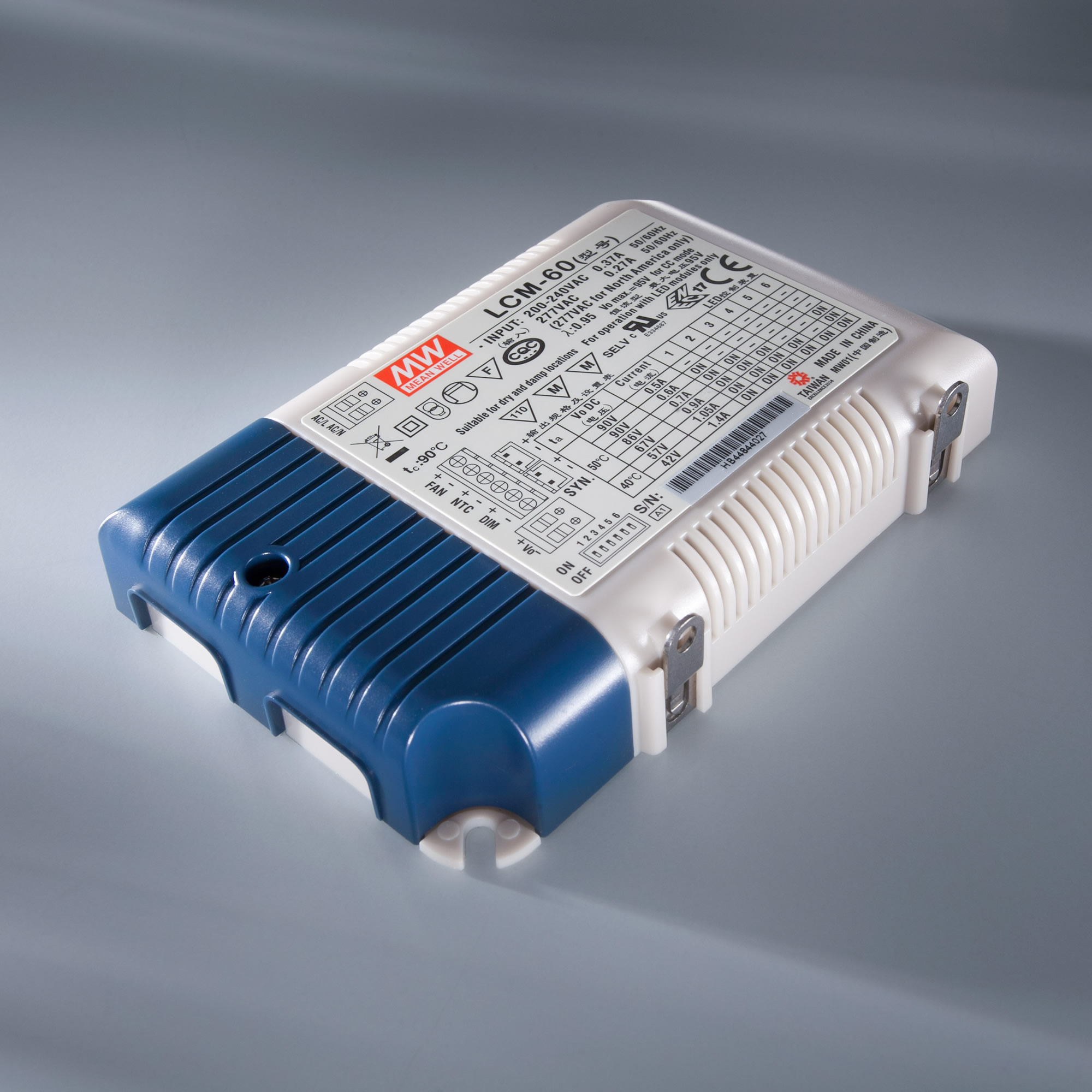

Constant Current LED Driver Mean Well LCM-60 230V to 2-90V 500 > 1400mA DIM

Constant Current LED Driver Mean Well LCM-60 230V to 2-90V 500 > 1400mA DIM

Constant Current LED Driver Mean Well LCM-60 230V to 2-90V 500 > 1400mA DIM
Constant Current LED Driver Mean Well LCM-60 230V to 2-90V 500 > 1400mA DIM

Constant Current LED Driver Mean Well LCM-60 230V to 2-90V 500 > 1400mA DIM

€39.95
Low Stock, only 5 pcs.
SKU
95236

Constant current LED driver Mean Well LCM-60 230V la 2-90V 500 > 1400mA DIM

MeanWell LCM constant current LED driver is recommended for use with LumiBar LED modules, LED strips or discreet LEDs (High Power, COB and so on) that require 500 to 1400mA current. The components must be connected in series, so the voltage of the chain is in the output VDC interval of the driver.

Features:

  • 180~295VAC input for 60W
  • Output voltage: 2 V - 90 V (depending on the set constant current also higher, see data sheet)
  • Output current: 500/600/700/900/1050/1400 mA adjustable via DIP switch
  • Recommended for all LumiBar LED strips, including LumiBar3098+, LumiBar3090, Lumibar3080
  • Constant current mode
  • Built-in active PFC function
  • Multiple-stage output current level selectable by DIP switch
  • Built-in 3 in 1 dimming function for non DA type (0~10VDC, PWM signal or resistance, dim-to-off)
  • Suitable for indoor LED lighting applications
  • Protection class: IP20
  • Short-circuit, overvoltage and overheating protection
  • SELV
  • Compact size, dimensions (mm) 123.5*81.5*23mm
  • 5 years warranty
Technical Data
SKU 95236
Weight brut (g) 240.000000
Output Current (Fixed) 1400mA
Driver Voltage Range (V) 2 to 90
Output Current (Range) 500 to 1400
Dimmable Dimmable
Dimensions 123.5x81.5x23mm
Brand Mean Well
Manufacturer Product Code LCM-60
Product Family LCM
Availability beyond shown stock: YES
Dimensions: Length (cm) 12.35
Dimensions: Width (mm) 81.5
Dimensions: Height (mm) 23
