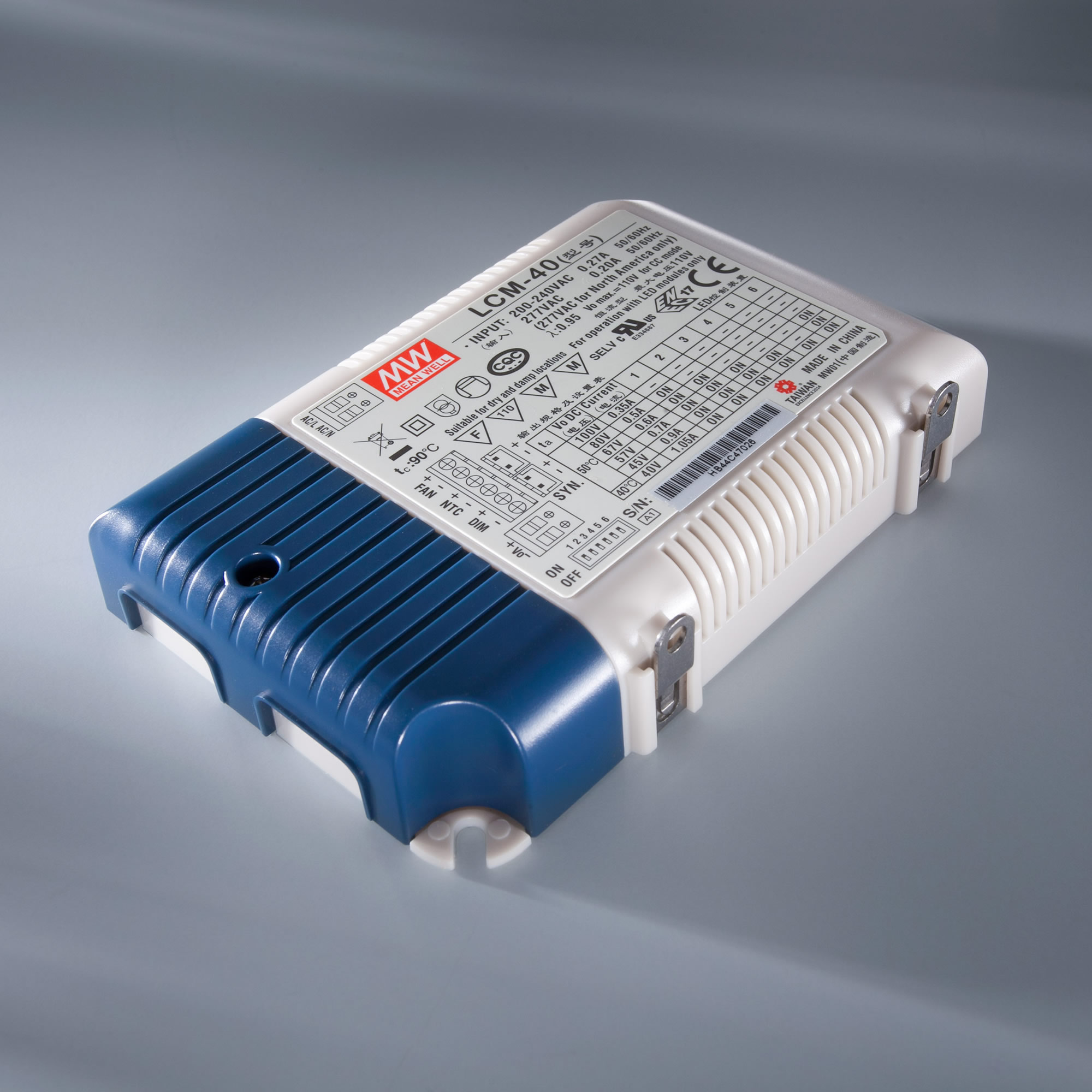

Constant Current LED Driver Mean Well LCM-40 IP20 350 > 1050 mA 230V to 2 > 100VDC DIM

Constant Current LED Driver Mean Well LCM-40 IP20 350 > 1050 mA 230V to 2 > 100VDC DIM

Constant Current LED Driver Mean Well LCM-40 IP20 350 > 1050 mA 230V to 2 > 100VDC DIM
Constant Current LED Driver Mean Well LCM-40 IP20 350 > 1050 mA 230V to 2 > 100VDC DIM

Constant Current LED Driver Mean Well LCM-40 IP20 350 > 1050 mA 230V to 2 > 100VDC DIM

€38.52
Stock >10 pcs
SKU
95235

Constant Current LED Driver Mean Well LCM-40 IP20 350 > 1050 mA 230V to 2 > 100VDC DIM

MeanWell LCM constant current LED driver is recommended for use with LumiBar LED modules, LED strips or discreet LEDs (High Power, COB and so on) that require 350 > 1050 mA current. The output current can be set in this interval. The components must be connected in series, so the voltage of the chain is in the interval 2 > 100 VDC.


Features:

  • Input voltage :180-295 VAC / 254-417 VDC
  • Output voltage: 2 V - 100 V (depending on the set constant current also higher, see data sheet)
  • Output current: 350/500/600/700/900/1050mA adjustable via DIP switch
  • Recommended for all LumiBar LED strips, including LumiBar3098+, LumiBar3090, Lumibar3080
  • Constant current mode
  • Built-in active PFC function
  • Multiple-stage output current level selectable by DIP switch
  • Built-in 3 in 1 dimming function for non DA type (0~10VDC, PWM signal or resistance, dim-to-off)
  • Suitable for indoor LED lighting applications
  • Protection class: IP20
  • Short-circuit, overvoltage and overheating protection
  • SELV
  • Compact size, dimensions (mm) 123.5*81.5*23mm
  • 5 years warranty
Technical Data
SKU 95235
Weight brut (g) 240.000000
Driver Voltage Range (V) 2 to 100
Output Current (Range) 350 to 1050
Dimmable Dimmable
Dimensions 123,5x81,5x23
Brand Lumistrips
Manufacturer Product Code LCM-40
Product Family LCM
Availability beyond shown stock: YES
Dimensions: Length (cm) 12.35
Dimensions: Width (mm) 81.5
Dimensions: Height (mm) 23
