MiniController Bluetooth Light Control Unit Tunable White via Casambi App for IOS and Android, 150W 12-24VDC

MiniController Bluetooth Light Control Unit Tunable White via Casambi App for IOS and Android, 150W 12-24VDC

Smart tunable white controller in smallest format for integration in luminaires or compact installations

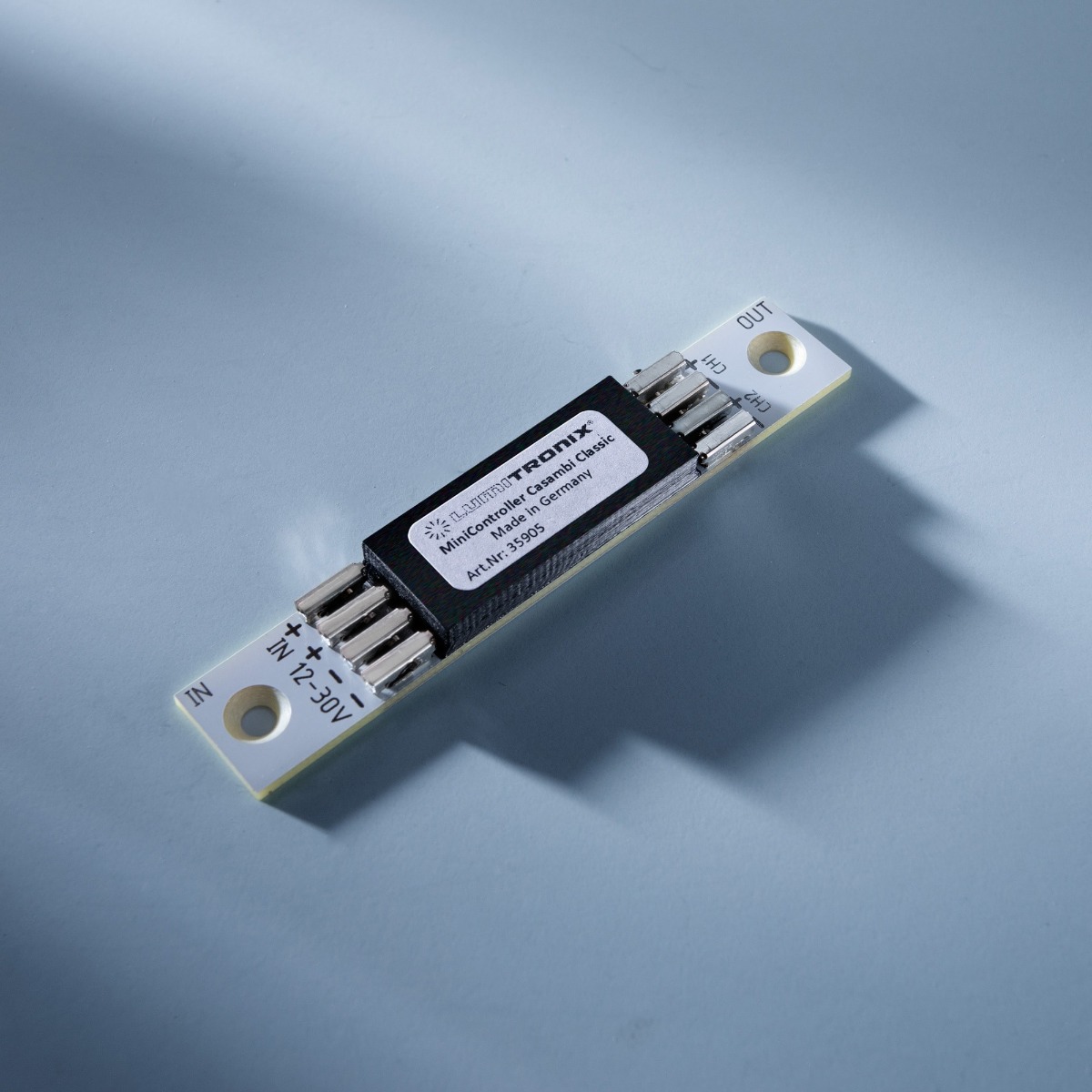

The MiniController Casambi Classic is a very compact yet powerfull control unit for LED strips or modules with Tunable White technology. With only 8 cm length and 1.4 cm width, the integrated Casambi-ready module brings convenient light control in the narrowest of places, via smartphone or tablet using the Casambi App.

Two channels can be used to control either one tunable white module or two monochrome modules with a constant voltage of 12 to 24 V. The controller supports up to 3.5 A per channel. The standby power is approx. 150 mW at a voltage of 24 V. With the help of the app from the Finnish technology company Casambi, which is available free of charge for iOS and Android devices, the brightness and colour temperature of the LED strips or modules connected to the MiniController can be individually controlled. A Dim2Warm mode can also be implemented. The app can also be used to specify whether the last selected brightness and colour temperature values are to be retained after a power interruption.

Features of the MiniController Casambi Classic

• Compact control unit for Tunable White or 2x dimming or Dim2Warm (selection in Casambi App)
• For constant voltage LED modules
• Control via Casambi App
• High current carrying capacity of up to 3.5 A per channel (84W)
• Input/Output 12-24VDC (230V transformer required for mains voltage operation of LED strips)
• High output power of up to 170 W in total
• Four terminals at the input for looping through the supply voltage
• WAGO PCB terminal blocks for quick connection without tools
• Stanby power consumption (55mW at 12V, 110mW at 24V)
• Control frequency 2000 Hz
• Cable size: 18 - 24 AWG (0.75 - 0.2)
• Size 80x14x5.4 mm
• Made in Germany

New at Lumistrips: Remote Casambi support for network lighting creation and configuration

The Casambi enabled controllers and control buttons require configuration in the Casambi app, so they meet the control demands of your lighting project.

Casambi is a highly flexible system that can meet the widest array of lighting control needs from all the smart light systems on the market. While how-to videos and an instructions manual exist, the flexibility of the system can create some complexity in the initial configuration.

Lumistrips now offers remote support for the initial configuration of the Casambi control network for your order. Support can be offered for free or for a fee, depending on the project value and complexity.

A mobile phone with Bluetooth, the Casambi app and Wireless internet connection is required. The customer has to be present during the remote configuration and provide feedback on the status of the lighting that is controled. Button pressing or power switching of the lights might be required. Communication is usually made via e-mail or WhatsApp.

Support can be given only for projects with LED strips, drivers and Casambi control systems purchased from Ledrise, during regular business hours. Support for 3-rd party Casambi products is not offered.

For details, please contact us.
