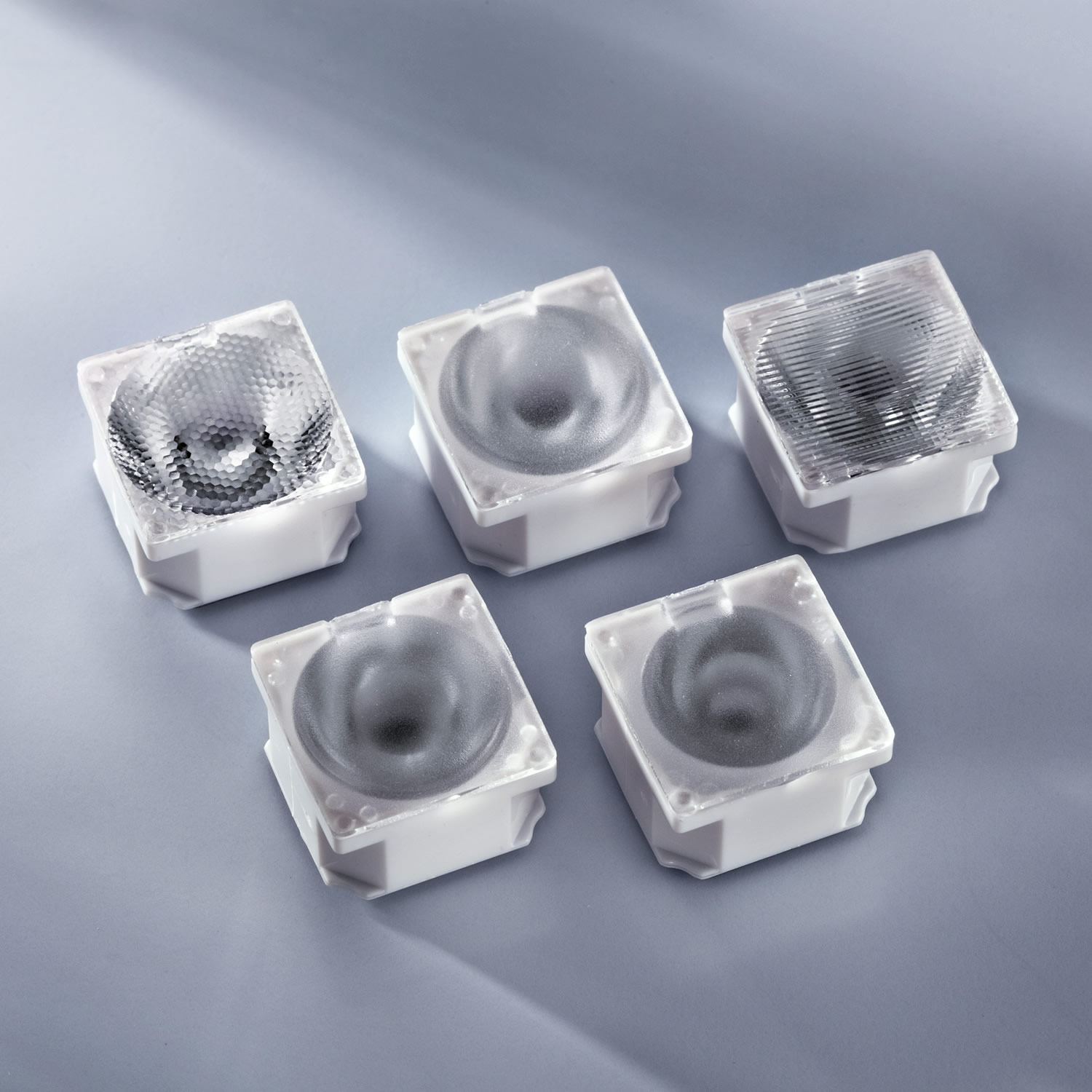

Ledil lens 21.6x21.6mm for Nichia UV NCSU033B 10 deg
€17.66
Ask for time
SKU
60257
The Ledil company is the expert for the development and production of LED optics. The versatile standard range of products comprises more than 1,000 lenses, reflectors and their combinations. This innovative manufacturer provides the appropriate optics for every lighting application.
Select your optic in due consideration of its radiation parameters and compatibility with LEDs.
Features- Designed & optimised for the 033 series by Nichia
- Fast attachment to PCBs thanks to self-adhesive backside
- Integrated holder
- High UV and temperature resistance
- Dimensions(DxH): 21.6x21.6x14,2mm
- 60257: Spot, radiation angle 10°
- 60258: Medium, radiation angle 25°
- 60259: Wide, radiation angle 40°
- Nichia 033 UV series
Further technical details can be found in the data sheet.
SKU | 60257 |
---|---|
Weight brut (g) | 1.000000 |
Availability beyond shown stock: | YES |
Lens Compatibility | Nichia UV |
Lens Viewing Angle | 10 |
Brand | Ledil |
Manufacturer Product Code | FCA14011_G2-NIS033U-S |
Dimensions: Height (mm) | 2.16 |
Dimensions: Width (mm) | 1.42 |
Dimensions: Length (cm) | 2.16 |
