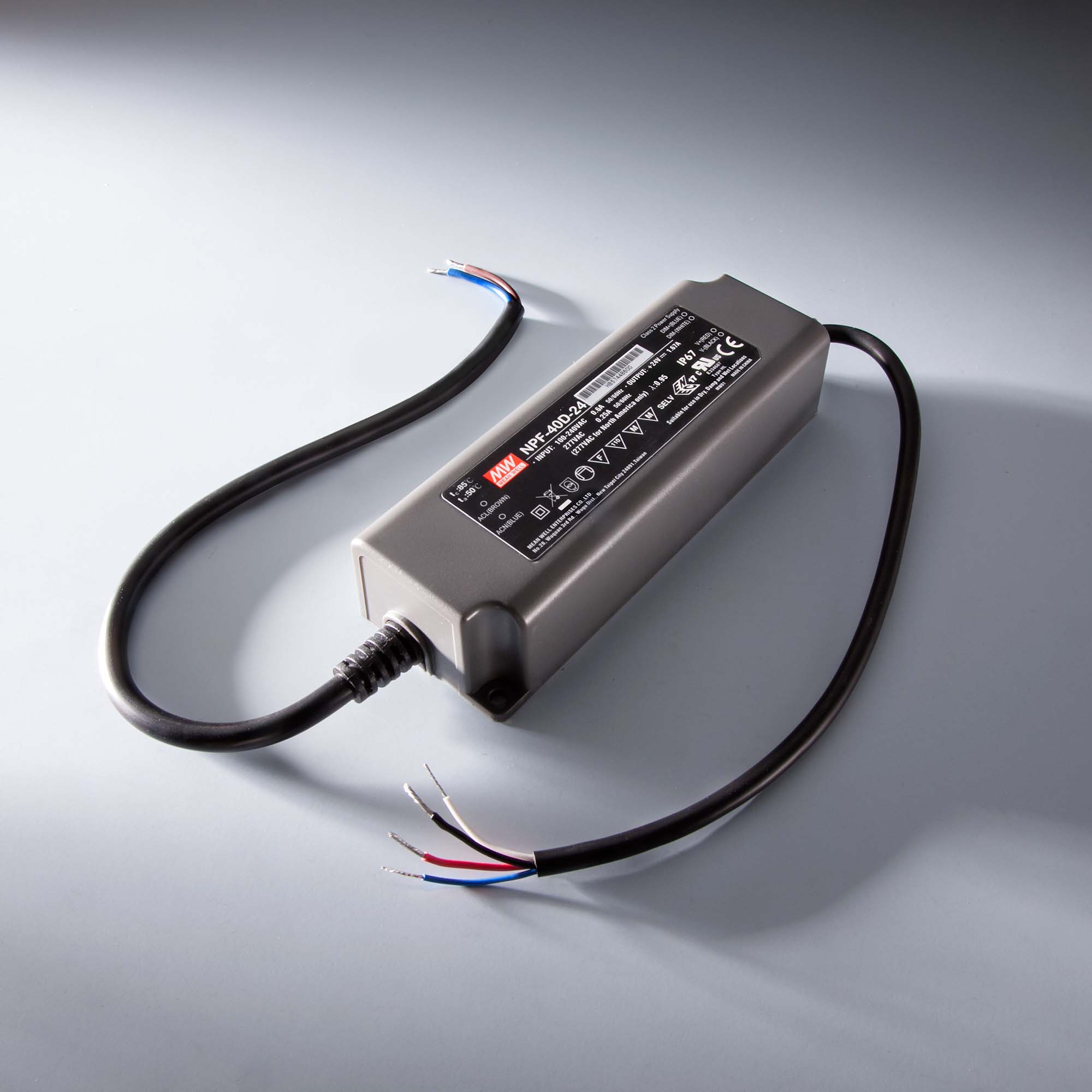

Constant Voltage Power Supply Mean Well NPF-60D-24 IP67 230V to 24V 2.5A 60W

Constant Voltage Power Supply Mean Well NPF-60D-24 IP67 230V to 24V 2.5A 60W

Mean Well constant voltage LED transformer for use with LED modules and strips that require 24VDC voltage. The components can be connected in parallel so the total power of the chain is max 2500mA or 60 W. Compact size, dimensions(mm): 150*53*35mm .

Features:

• Fully encapsulated with IP67 level
• Protections: Short circuit/ Over Current/ Over voltage/ Over temperature
• Built-in 3 in 1 dimming function (0~10VDC, PWM signal or resistance, dim-to-off )
• 90~305VAC input, built-in active PFC function
• High efficiency up to 90.5%
• Cooling by free air convection
• Built-in active PFC function
• Fully isolated plastic case
• Class II power unit, no FG
• Suitable for dry, damp, wet location
• No load power consumption <0.15W
• 5 years warranty
