RGB & TW LEDs
Multi-Channel LED Strips & Modules for RGBW, Tunable White, Dynasolis or Multicolour applications
Our range of multi-channel LED modules and strips is designed to meet the needs of dynamic lighting applications, such as RGB-White or Multi-Color setups. These versatile LED modules utilize the performance leading Nichia 757 LEDs or the innovative Direct Mountable Chip LEDs, both of which feature cutting-edge technologies like Nichia Optisolis, Vitasolis, and H6 (Highest Efficacy CRI90 LEDs).
Nichia 757 LEDs are renowned as the industry-leading 3030 mid-power LED, offering the highest luminous efficacy of up to 222 lm/w and outstanding reliability, with a lifespan of up to 100,000 hours (L70). Each LED consumes just 0.2W at 65mA, producing up to 45 lumens of luminous flux. Nichia’s Direct Mountable Chip technology takes LED innovation a step further by making the LED package size equal to the light-emitting surface, resulting in the highest possible luminous flux density for compact luminaires.
Cutting-edge LED lighting
Multi-Channel Nichia 757 LED modules can be made with the latest high-tech LED lighting technology from Nichia, for creating outstanding lighting fixtures:
1. Nichia Optisolis Full Spectrum CRI99 (READ MORE)
2. Nichia H6, the highest efficacy CRI90 & CRI95 LEDs (READ MORE)
3. Nichia Vitasolis, special lighting for a vibrant life (READ MORE)
4. Nichia HPS, special lighting for road and outdoor lighting (READ MORE)
5. Nichia Rs060 Hortisolis, lighting with ideal spectrum for Horticulture (READ MORE)
6. Nichia Special Color Rendition: Light that brings out the best in the products (READ MORE)
Tunable White lighting
Tunable white LED modules and strips are designed to accurately replicate the dynamic color shifts of natural sunlight by combining two different types of white LEDs. This 2-channel control allows precise control over the light's color temperature, which is scientifically measured in degrees Kelvin (K). For instance, natural light at sunrise or sunset typically falls between 2000-3500K, known as warm white. As the day progresses, morning light shifts to pure white with a color temperature of 3500-4500K, and at noon, it transitions to a cold white in the range of 5500-6500K.
Nichia Dynasolis
Nichia's Dynasolis™ represents a groundbreaking LED tuning technology designed to regulate circadian rhythms by simultaneously adjusting melanopic illuminance and color temperature while maintaining high CRI and efficiency. Unlike conventional human-centric lighting systems that only shift correlated color temperature (CCT), Dynasolis™ also focuses on non-visual effects, such as those influencing the body's circadian rhythms. The system leverages Azure LEDs to provide 480nm light, a wavelength abundant in morning sunlight that promotes serotonin production, increasing alertness and overall well-being. By controlling light exposure throughout the day, Dynasolis™ enhances melatonin secretion in the evening, aiding in sleep regulation and supporting circadian health.
For a Dynasolis LED module, we offer customizable 2-channel modules where Channel 1 features Azure LEDs and Channel 2 includes warm white LEDs, enabling precise control over circadian lighting environments.
RGB lighting
RGB lighting is created by combining three colors—Red, Green, and Blue—to produce a full spectrum of colors, including white. RGB LED strips or modules have 3-channel that either use individual Red, Green, and Blue LEDs placed closely together or a 3-in-1 LED that incorporates Red, Green, and Blue chips into a single diode.
Individual color LEDs offer a higher luminous flux, making them ideal for brighter applications, but they may struggle to deliver pure combined colors in narrow light fixtures, such as linear lights or slim LED panels. On the other hand, 3-in-1 RGB LEDs provide more consistent combined colors but have a lower luminous flux, limiting their use to architectural or display lighting where precision in color output is more important than brightness. Both configurations require 3-channel LED modules or strips, and our customizable solutions allow you to select the system that best fits your RGB lighting needs, ensuring the perfect balance between brightness and color purity.
RGB-White lighting
By incorporating a White LED alongside the RGB LEDs, RGB-White lighting can deliver white light with a high-quality spectrum, significantly improving the overall color rendering and brightness. This 4-channel setup allows for a more natural and complete lighting solution, with the added flexibility of dynamic color control.
RGB-Tunable White lighting
By adding a Warm White LED and a Cold White LED to the combination of RGB LEDs or chips, white light with a high-quality spectrum can be obtained, at all the color temperature of daylight
5-channel LED light control is required for this purpose, so the LED modules allow the selection of color and also the color temperature of white LEDs, from 1800K to 7800K.
Multi-Color Lighting
Special Multi-Color LED modules offer a unique configuration for applications that require a wider range of color tones and customization. These modules can be configured with various combinations, such as warm white for morning light, pure white and cold white for daytime lighting, and red for night lighting or emergency scenarios.
In horticulture lighting, enhanced LED modules can combine Nichia’s Hortisolis LEDs with Blue and Red LEDs, providing the specific light spectrum needed for optimal plant growth. These advanced horticultural lighting setups support photosynthesis and other essential plant processes in controlled environments, ensuring healthy and vigorous growth.
Our customizable multi-channel LED modules allow you the flexibility to design the ideal multicolor lighting system, tailored to the specific needs of your project, whether for architectural lighting, dynamic RGB-White lighting, or specialized applications like horticulture.
Why Multi-Channel Custom LED Modules from Lumistrips?
Manufacturing a custom LED module with Lumistrips means getting the best fit for your project, with a design that meets your exact specifications for light intensity, size, shape, connections, installation, and power and control systems—along with many other tailored details.
Our custom solutions take advantage of the very latest in LED technology, including lenses, light control systems, and power supplies, not to mention contemporary design principles. Often, standard, off-the-shelf LED products lag behind the current technological curve by several years.
So why settle for outdated LED systems when you can have the latest and best performing, crafted precisely to your needs?
Our Expertise Shines Bright
Since 2004, we have been a dedicated specialist in LED lighting solutions. We’ve been part of the LED success story from the beginning, acquiring specialized expertise in developing and producing custom LED modules for a diverse array of industries.

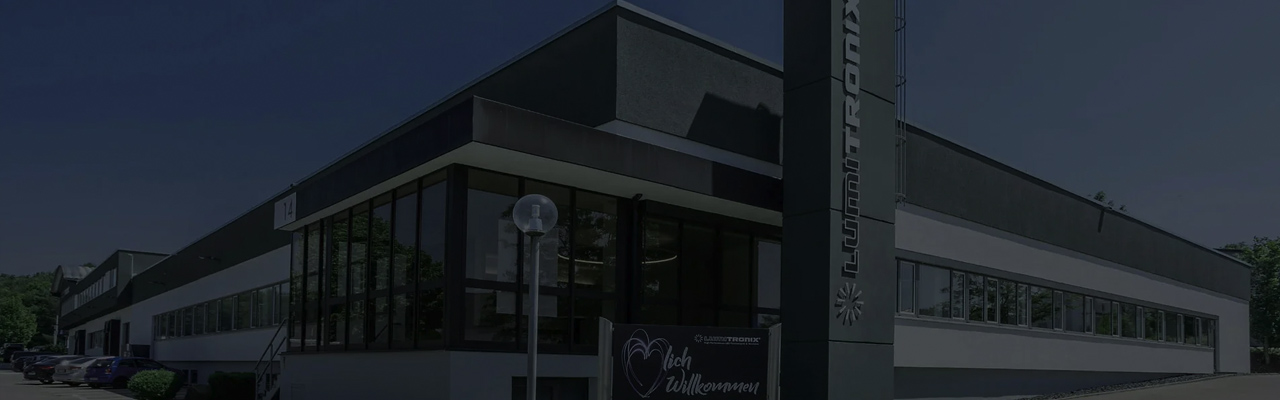

Our in-house manufacturing center in Hechingen, Germany, is where we bring your ideas to light (discover more here). Equipped with FLEX and SMT manufacturing lines, featuring state-of-the-art machines and cutting-edge technology, we bring precision and innovation to every product.
Lumistrips and the Lumitronix group
Lumistrips is the specialized division of the Lumitronix group, focusing on custom high-performance LED strips and modules, all meticulously built at our own facility in Germany. Our German-made quality promises precision and durability, right from our production line to global delivery. Founded in 2005, we have been a key player in the LED industry's evolution, accumulating a wealth of experience across various industries.
Our dedicated team, from offices in Germany, Romania and Hong Kong, numbers over 70 experts—all working together to bring your custom LED lighting projects to life. From the drawing board to final production, we offer comprehensive support to ensure high-efficiency LED solutions that meet your exact standards.
