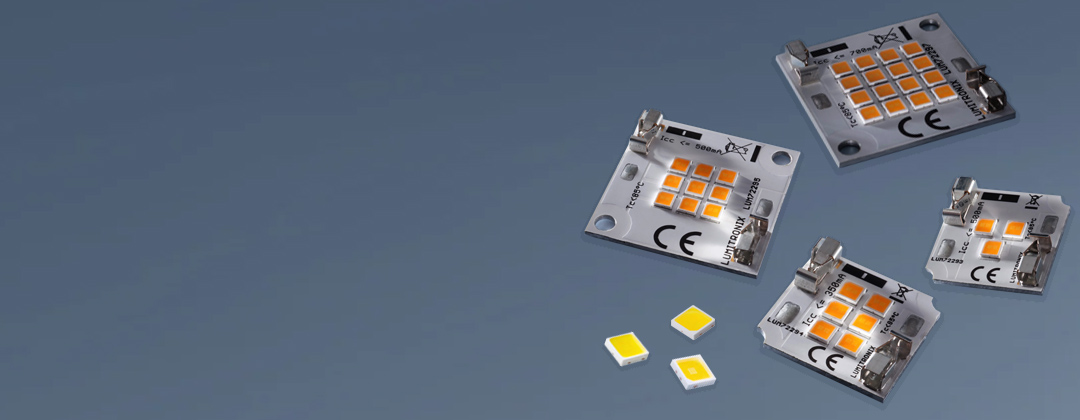

3 to 36 x Nichia 757 0.2W LED
1800-7800K with CRI70-99, up to 1,400 lm
19x19 / 28x28 / 50x48 mm
Aluminum PCB with Plug & Play system
SmartArray Compact Nichia LED modules, 1800-7800K, CRI70-99 (up to 3,200lm)
SmartArray Compact LED Modules Nichia, for luminaire production, Nichia LEDs, CRI 70-99, 1800-7800K
Nichia SmartArray LED Modules: Compact and Bright High-Tech LED Lighting
SmartArray modules are compact yet powerful, designed for use in bright luminaires for detailed illumination, such as spotlights, table lamps, or ceiling lights. Thanks to their flat design, SmartArray modules can be easily integrated into almost any luminaire shape. The unparalleled performance of SmartArray modules comes from the use of the newest Nichia LEDs, offering the best light efficacy and a lifetime of over 100,000 hours.
Advanced LED Technology
SmartArray LED modules utilize Nichia 757 LEDs or direct mountable, packageless, Direct Mountable Chip LEDs:
- Nichia 757 LEDs: These industry-leading 3030 mid-power LEDs boast the highest luminous efficacy (up to 222 lm/w) and reliability (up to 100,000 hours L70 lifetime). Each LED typically consumes 0.2W at 65mA, providing a luminous flux of up to 45 lm.
- Nichia Direct Mountable Chip: Developed through Nichia's expertise in phosphors and LEDs, this chip scale LED achieves the largest class of luminous flux density in a limited space within a luminaire by making the LED package size equal to the light-emitting surface size.
Designed and produced in Germany, SmartArray modules are available in many forms and with innovative technologies such as Nichia Optisolis, Vitasolis, or H6 (Highest Efficacy CRI90 LEDs), offering great freedom in lighting design.
1. Nichia Optisolis Full Spectrum CRI99 (READ MORE)
2. Nichia H6, the highest efficacy CRI90 & CRI95 LEDs (READ MORE)
3. Nichia Vitasolis, special lighting for a vibrant life (READ MORE)
4. Nichia HPS, special lighting for road and outdoor lighting (READ MORE)
5. Nichia Rs060 Hortisolis, lighting with ideal spectrum for Horticulture (READ MORE)
6. Nichia Special Color Rendition: Light that brings out the best in the products (READ MORE)
SmartArray: A Feature-Packed LED Lighting System
In addition to the latest LED lighting technology, the SmartArray offers numerous features, making it our recommended choice for the most demanding spot-lighting applications:
- Plug & Play Connection System: Say goodbye to cumbersome installation processes. The Nichia SmartArray 757 LED modules have connectors designed for quick setup, ensuring a hassle-free experience.
- Power-Packed Performance: One SmartArray CSP LED module provides a high light output of 3000lm at 5000K, CRI80, from only a 19x19mm/0.75x0.75" LED module, sufficient for compact lighting in industrial, horticulture, or other light-intensive applications.
- Incredible Longevity: Designed to last, the SmartArray boasts a lifespan of over 100,000 hours.
- Maintenance Ease: Gone are the days of soldering guns and tangled cables. With the SmartArray 757 Modules, you are guaranteed an easy maintenance experience.
- Value for Money: The 5-year warranty coupled with energy efficiency ensures a quick return on investment. Not only do you save on maintenance, but you also witness a notable reduction in energy bills.
Applications
Nichia SmartArray LED modules aren't just another lighting solution; they represent the latest in LED technology paired with compact dimensions. Whether for commercial success or productive factories, choosing SmartArray ensures that your space is not only well-lit but also exudes an ambiance of quality and sophistication:
- Retail Brilliance: Attract attention or convey a message with high-brightness compact spotlights.
- Industrial Efficiency: Illuminate workspaces with spotlight fixtures, ensuring clarity while adding a touch of sophistication.
- Full Spectrum Light for Home, Office, Hospitality, Healthcare, or Schools: Ideal for creating linear spotlights at home or energetic light fixtures in offices, healthcare facilities, or schools.
- Professional Settings: Perfect for environments demanding consistent and durable lighting, such as warehouses, TV studios, clinics, theaters, and more.
- Horticulture Mastery: Illuminate plants with SmartArray using Hortisolis Nichia LEDs for record-breaking harvests.
Nichia SmartArray LED modules provide a powerful, versatile, and efficient solution for various lighting applications, ensuring bright and reliable illumination in a compact form.
Customizable SmartArray LED Modules, Made in Germany
3 to 36 x Nichia 757 1W LED
1800-7800K with CRI70-99, up to 3,000 lm
19x19 / 28x28 / 50x48 mm
Aluminum PCB with Plug & Play system

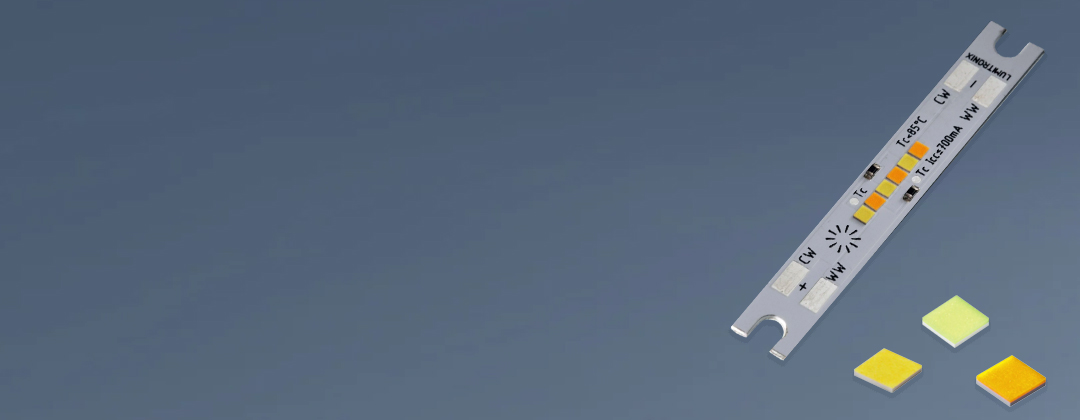

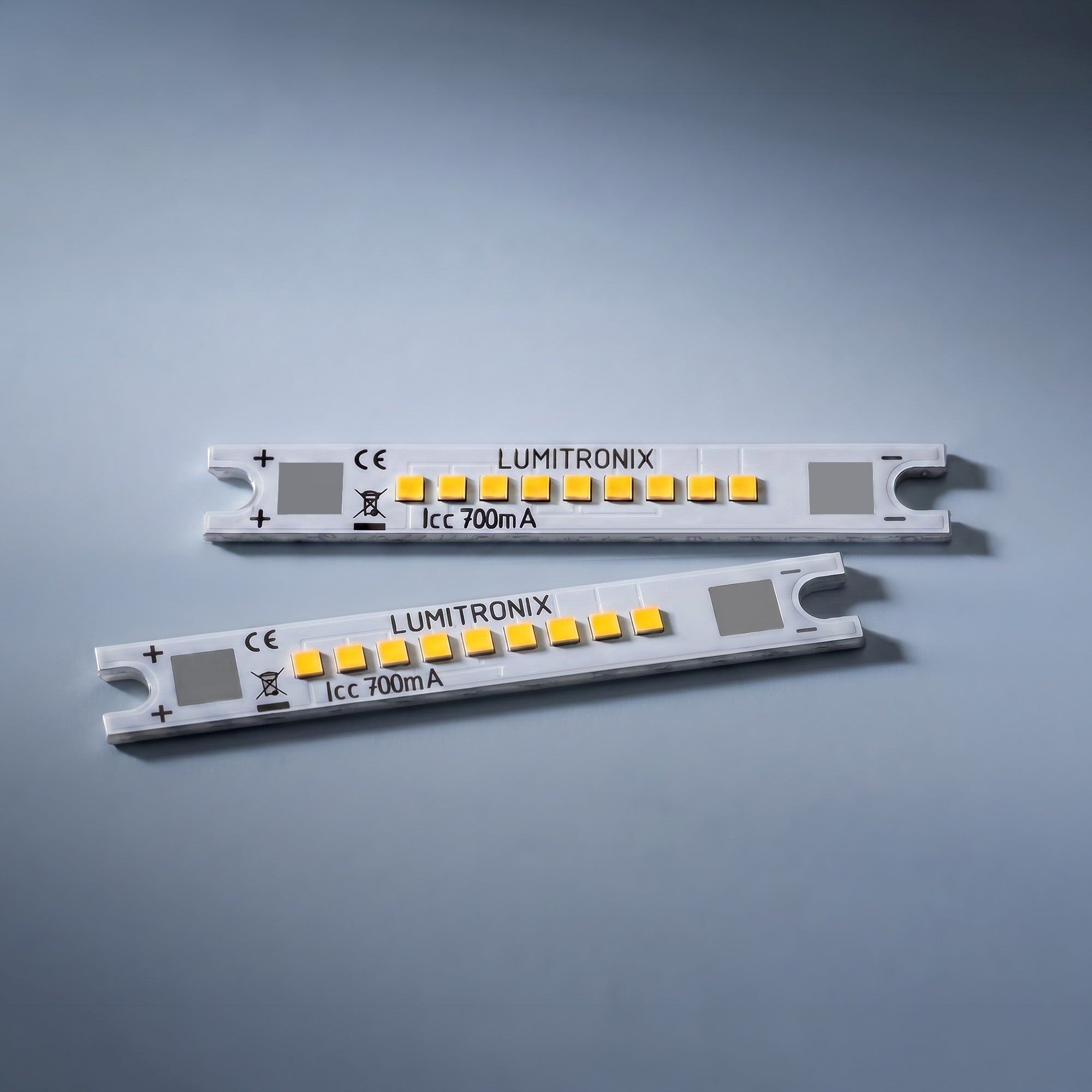

6 x Nichia 757 1W LED
Aluminum PCB, 50x5mm with optional Lens System
1800-7800K with CRI70-99, up to 1,200 lm
Constant Current

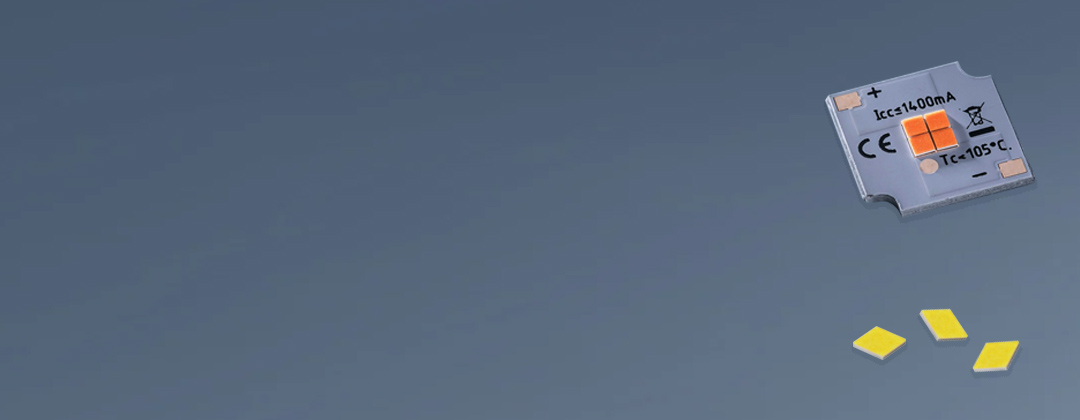

4 x Nichia CSP 1W LED
1800-6500K with CRI70-90, up to 1,000 lm
Aluminum PCB, 13x13mm Square, optional COB holder
Constant current 700-1400mA

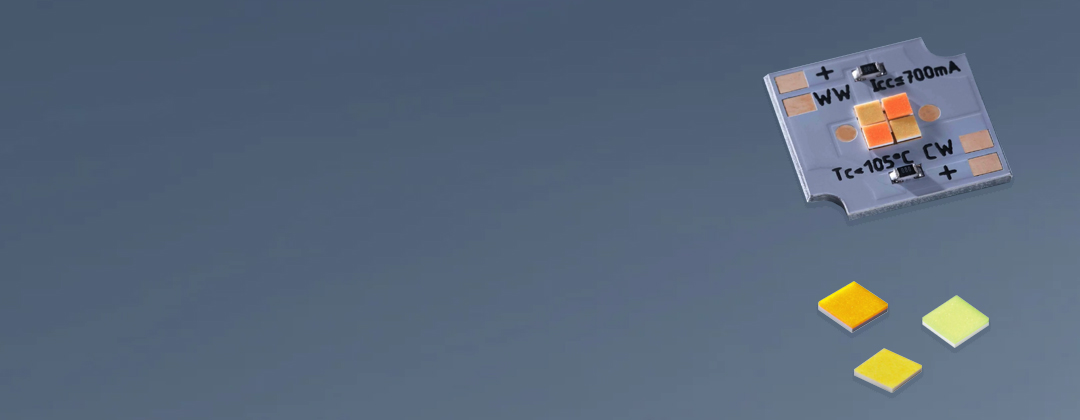

(2 + 2) x Nichia CSP 1W LED, up to 450 lm / channel
White 1800-6500K with CRI80-90 & Color LEDs
Aluminum PCB, 13x13mm Square, optional COB holder
Constant current 300-700mA

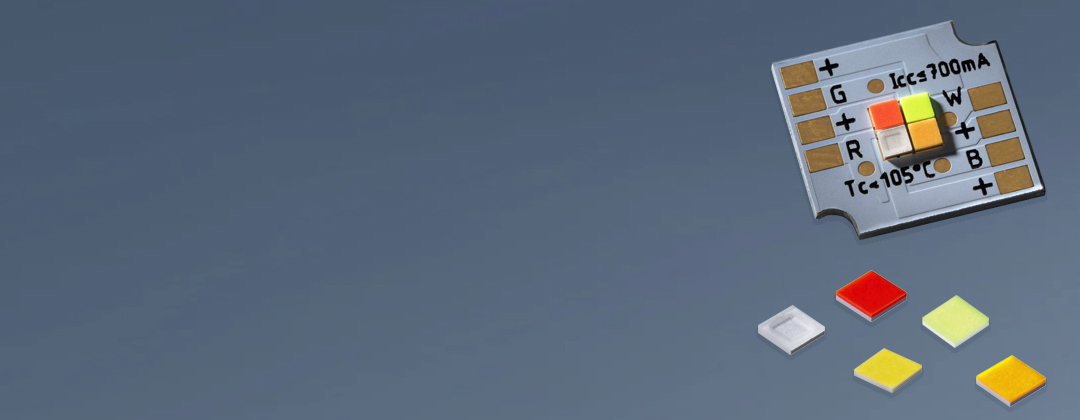

(1 + 1 + 1 + 1) x Nichia CSP 1W LED, up to 225 lm / channel
White 1800-6500K with CRI80-90 & Color LEDs
Aluminum PCB, 13x13mm Square, optional COB holder
Constant current 300-700mA
(3 + 3) x Nichia CSP 1W LED, up to 675 lm / channel
White 1800-6500K with CRI80-90 & Color LEDs
Aluminum PCB, 50x7mm
Constant current 300-700mA
12 x Nichia CSP 1W LED
1800-6500K with CRI70-90, up to 3,200 lm
Aluminum PCB, 19x19mm Square, optional COB holder
Constant current 1400-2800mA

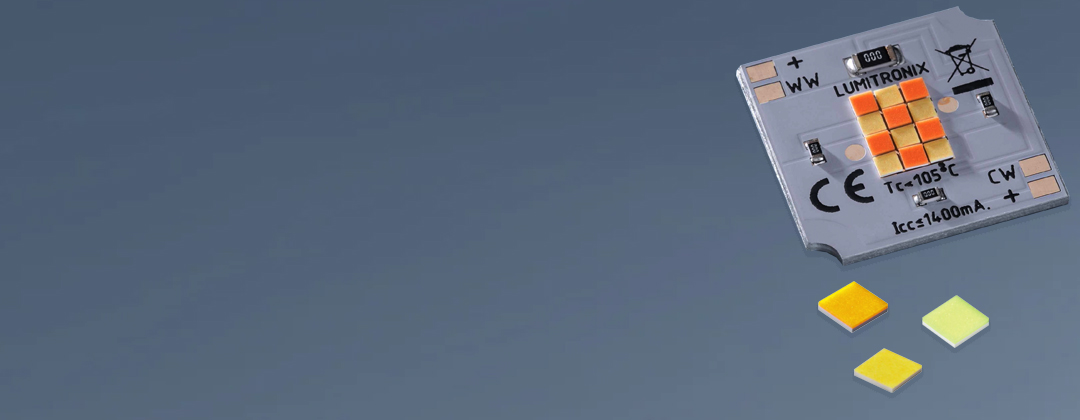

(6 + 6) x Nichia CSP 1W LED, up to 1350 lm / channel
White 1800-6500K with CRI80-90 & Color LEDs
Aluminum PCB, 19x19mm Square, optional COB holder
Constant current 700-1400mA
Ready-made SmartArray LED modules, Made in Germany
For sample evaluation, prototypes or small-scale projects, our ready-made SmartArray LED modules are available in several configurations, including technologies such as Dim2Warm, Tunable White or CSP LED. In all cases, the light quality is good, with the CRI rendering index being at least 80, so the colors are naturally illuminated.
You can choose from the following SmartArray versions, the right one for your project:

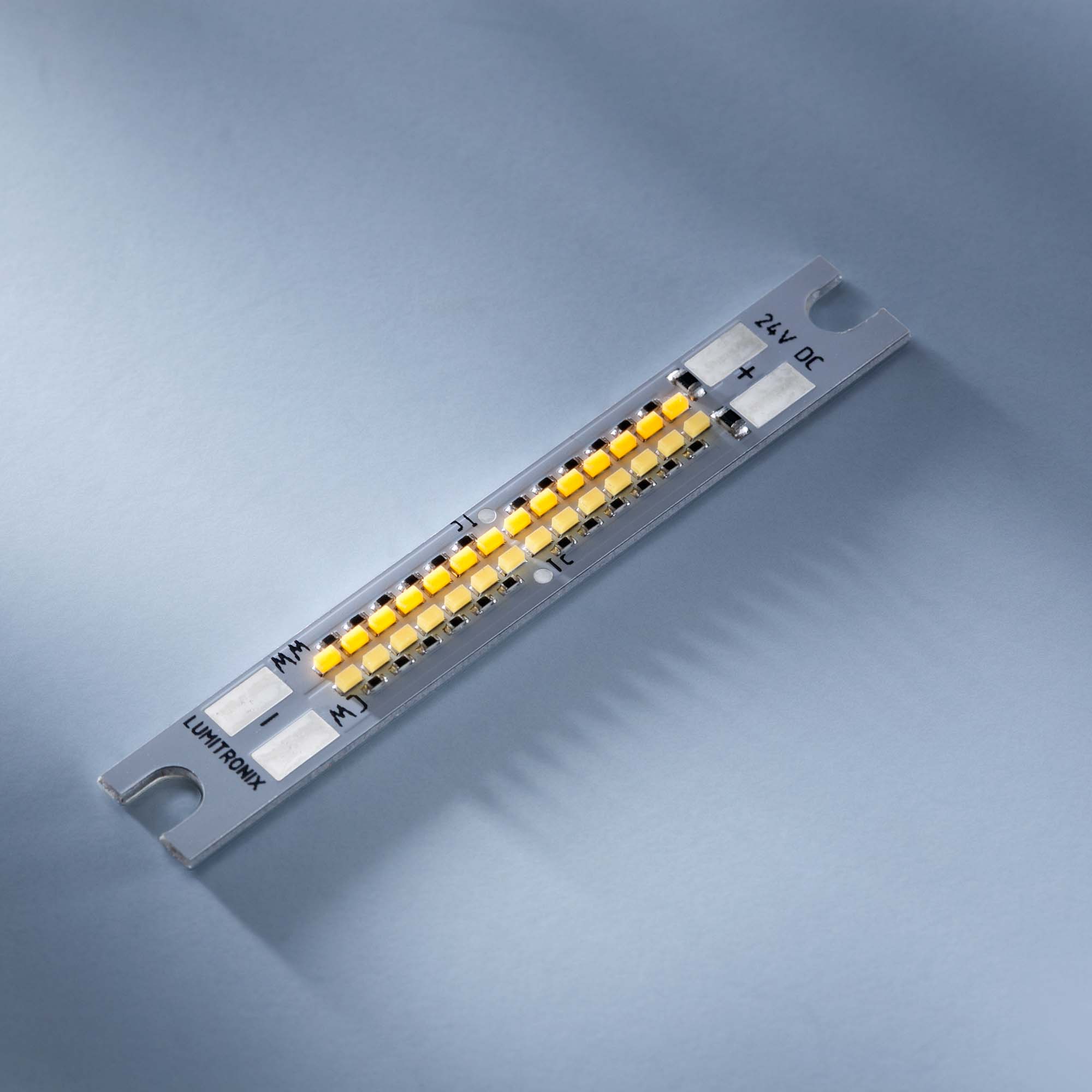

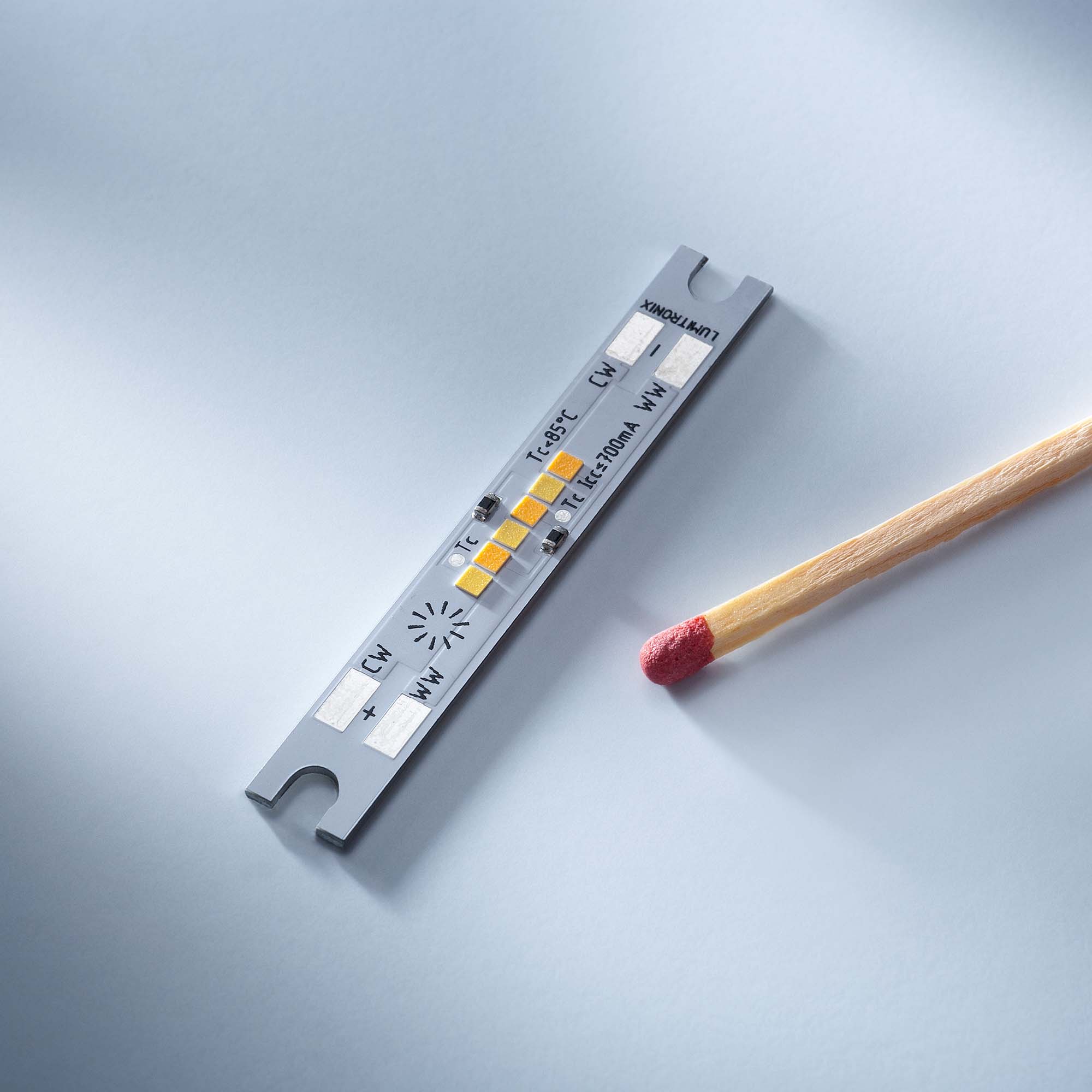

- SmartArray Tunable White CSP: square or rectangular, with white and warm White Nichia LEDs on the same module, to get any shade of white between 2000K and 6500K.

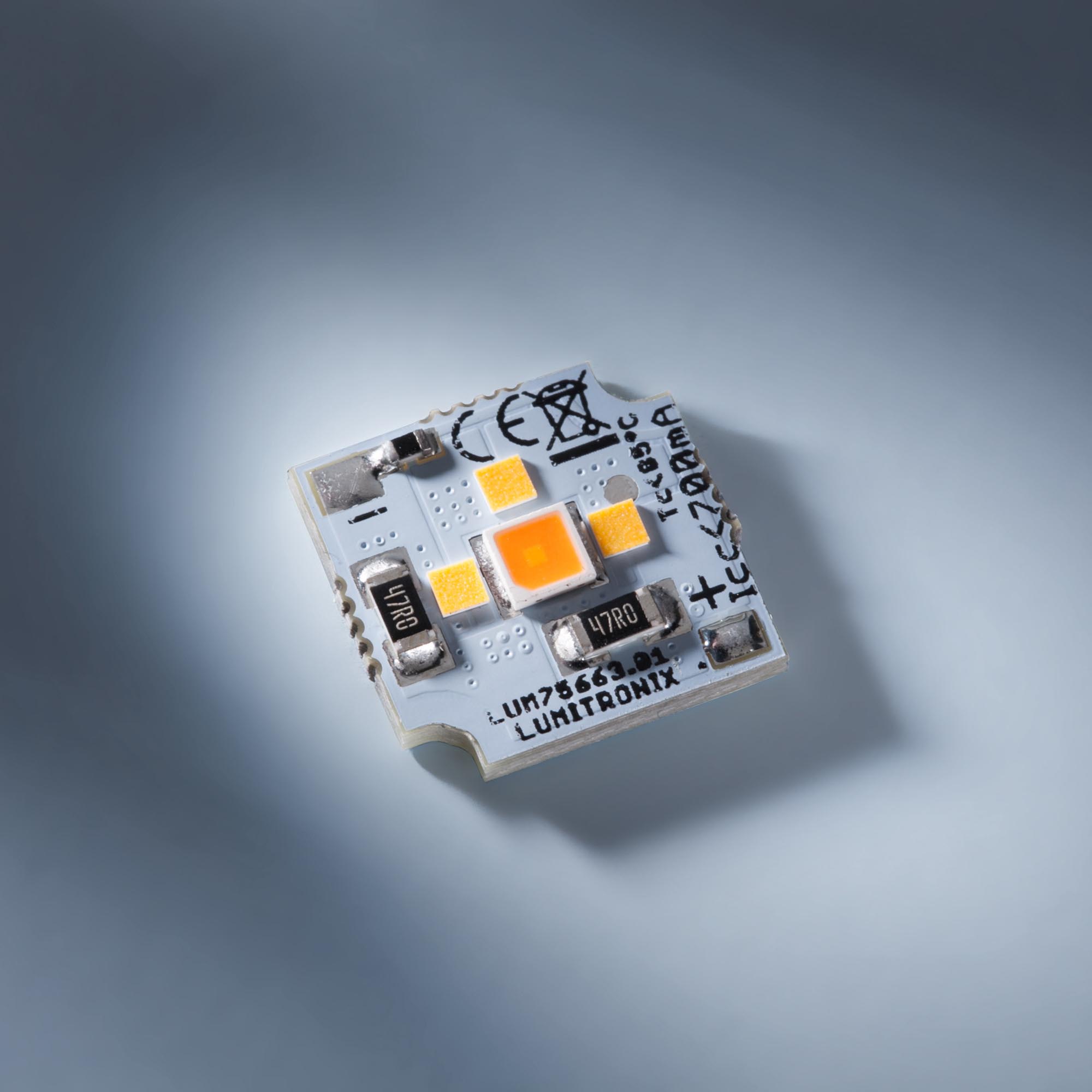

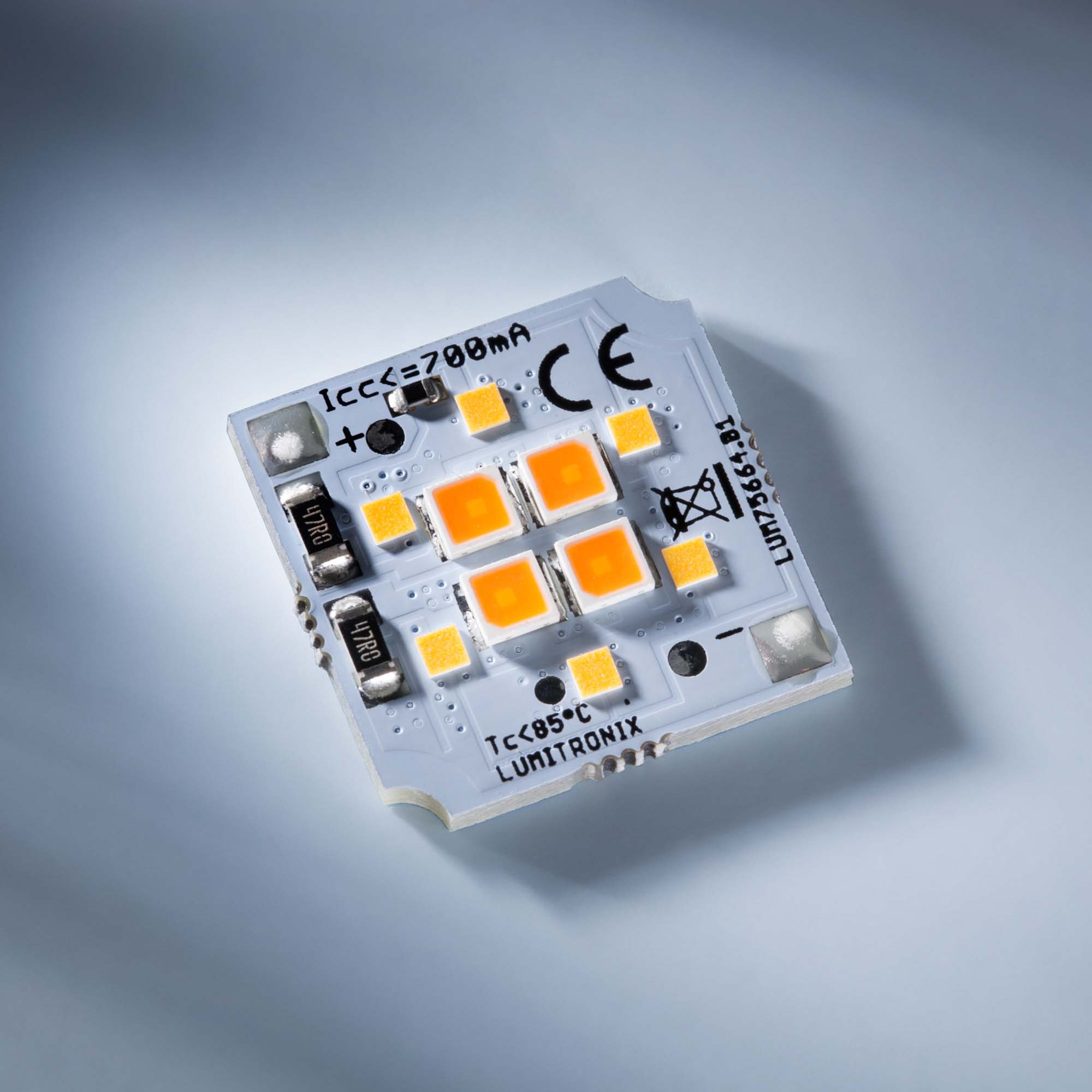

- SmartArray Dim2Warm: square, LED White 3000K or 2700K warm white and 2000K on the same module plus special dimming circuitry that mimics the warm glow effect of the incandescent bulb when set at low intensity.

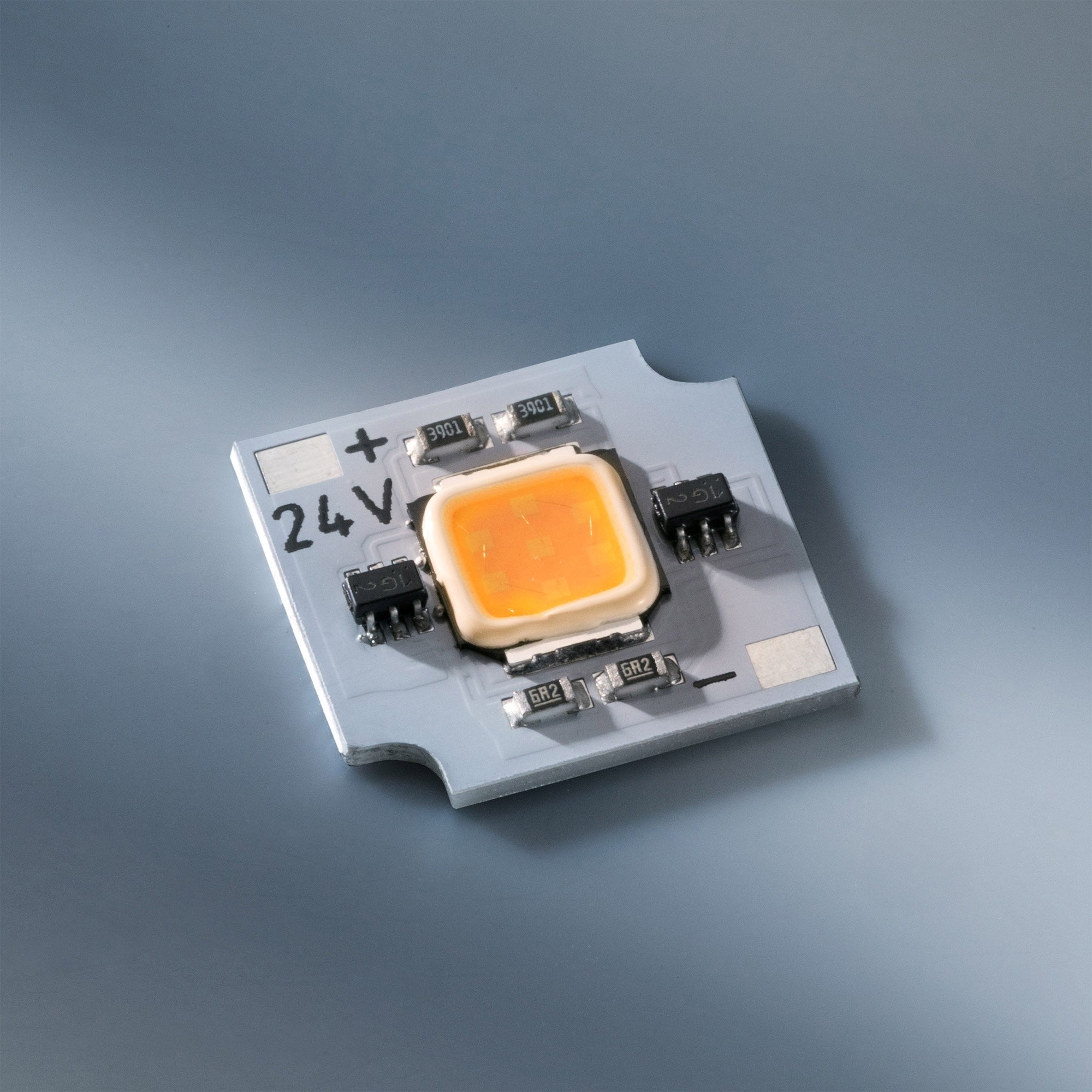

- SmartArray Q1 24V: Module 1 LED functioning at 24V
- SmartArray CSP: Module with 4 or 12 Nichia CSP LEDs at 2700/4000K, CRI80
Applications for SmartArray LED modules:
- Construction of light fixtures
- Illumination in detail (spot lighting)
- Illuminated showcases
- General lighting with a very long service life in shops, offices or theaters
-
SmartArray Q4 Tunable White LED Module square 13mm 2000K-6500K 270lm 2W€2.46Low Stock, only 10 pcs.
The Nichia LED quality
The Japanese company Nichia, our recommended choice for the LEDs used on SmartArray strips or modules, is the world leader in the LED market, with a market share of over 25% and the longest experience in the field. Nichia is the inventor of the white LED production technology, receiving the Nobel Prize for this invention.
The very long life of Nichia 757 LEDs (minimum 100,000 hours), exceptional luminous efficacy, superior light output and spectrum qualify our LED strips for long-term use even for the most demanding applications.
The difference between the quality and performance of the SmartArray strip with Nichia LEDs and a low-cost LED strip, is evident from the first light, and in time the gap increases even more.
1. Longest-lasting light: Nichia LEDs last 90% longer
After 10,000 hours of operation, a Nichia 757 LED keeps 97% of the initial luminous flux, under high operating conditions, shining like in the beginning, while 90% is maintained even after 60.000 hours.
In most applications, this translates into an effective 100,000 hours lifetime or 10 years of continuous operation in a shopping center, decades of operation in a home.
In contrast, a low-cost LED loses up to 60% of the initial value in less than 10,000 hours, approximately one year of operation. It becomes too weak for the initial purpose in just 1,000-3,000 hours.
The evolution of light output for the Nichia 757 LEDs is demonstrated by 10,000 hours of testing, according to the LM-80 standard. Lifetime (light at 70%, 80% and 90%) is calculated using TM-21, both internationally recognized standards and used by all major manufacturers.
Click here to download the 10000 hours, Nichia 757 LED L80 lifetime test.
2. More light for less power: Nichia LEDs are 65% more energy efficient
The design and material quality influence the luminous efficacy and the LED light output. Nichia 757 LEDs have the highest luminous efficacy on the market, more than 230 lumens per watt, compared to a low-cost LED that has less than 80 lumens per watt.
The difference of more than 65% in luminous efficacy is outstanding when seen in practice. After a cove light retrofit from low-cost LED strips to Nichia LED strips, the illumination increased by three to five times for the same power consumption:
3. Uniform white light: Nichia 757 LEDs are color temperature sorted
By implementing the 3 Macadam Elipse sorting standard in our manufacturing, ensures that Nichia LED strips for a project will have the same white color temperature. Uniformity is also be maintained for future projects.
In contrast, low-cost LED strips are not manufactured with the Macadam Elipse sorting standard, being delivered with many different color temperatures of white. Often, differences are even on the same reel. Moreover, after just a few thousand hours, the low-cost LEDs change their color temperature, resulting in a rainbow effect with yellow and blue hues.
After a cove-light retrofit from low-cost LED strips to Nichia LED strips, the importance of the 3 Macadam Elipse sorting standard is clear.
4. Natural light spectrum: Nichia 757 LEDs have CRI up to 99
Nichia LEDs, with CRI up to 99, reproduce colors as naturally as possible, closely matching the spectrum of sunlight. This capability ensures that colors are rendered accurately and vividly, enhancing the visual experience in any application
Low-cost LEDs only have a maximum CRI of 80, their light distorting color shades, especially warm colors, such as red, orange or brown.
Lumistrips and the Lumitronix group
Lumistrips is the specialized division of the Lumitronix group, focusing on custom high-performance LED strips and modules, all expertly built at our own facility in Germany. Our German-made quality promises precision and durability, right from our production line to global delivery. Founded in 2005, our headquarters in Germany has been a key player in the LED industry's evolution, accumulating a wealth of experience across various industries.
Our dedicated team, from offices in Germany, Romania and Hong Kong, numbers over 70 experts—all working together to bring your custom LED lighting projects to life. From the drawing board to final production, we offer comprehensive support to ensure high-efficiency LED solutions that meet your exact standards.
