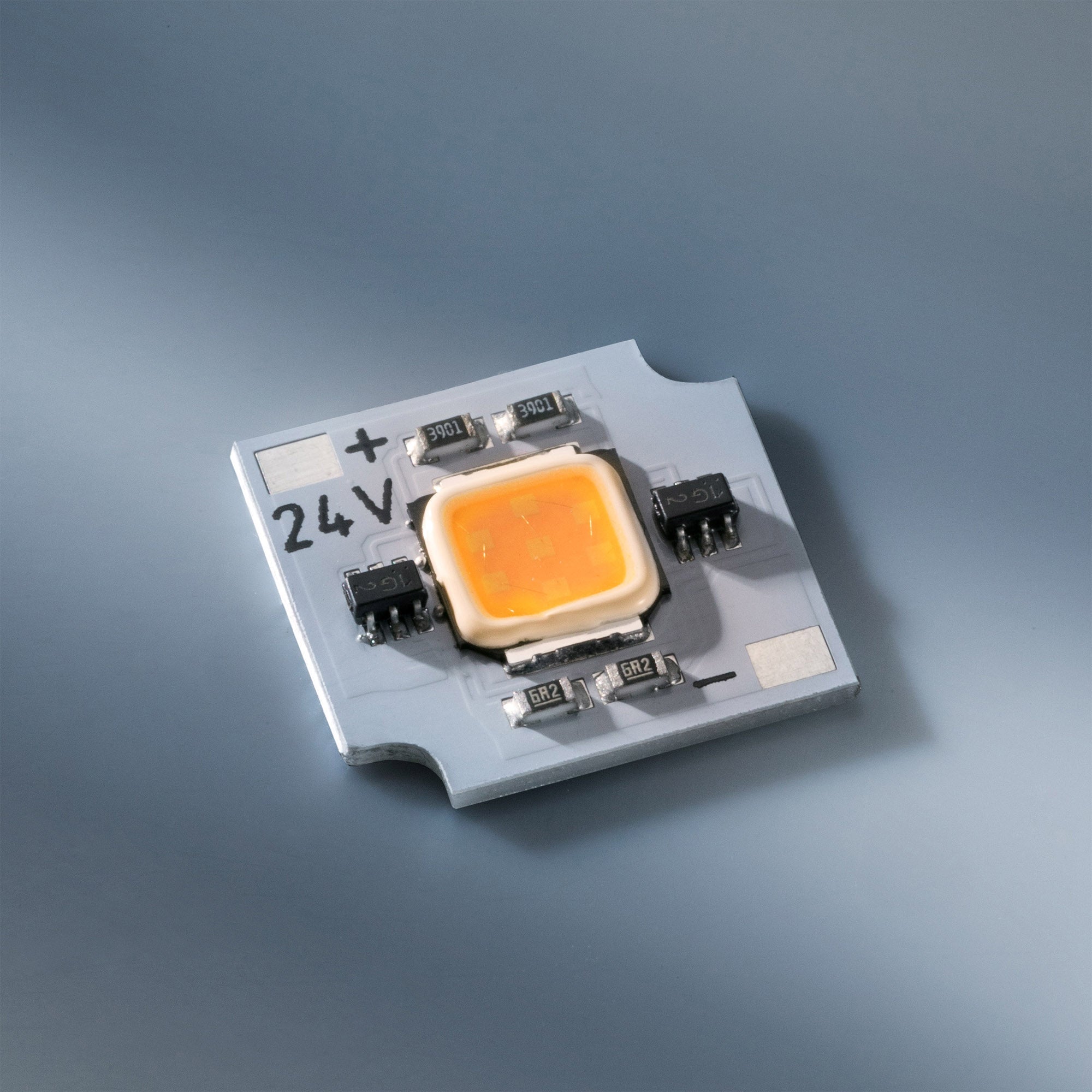

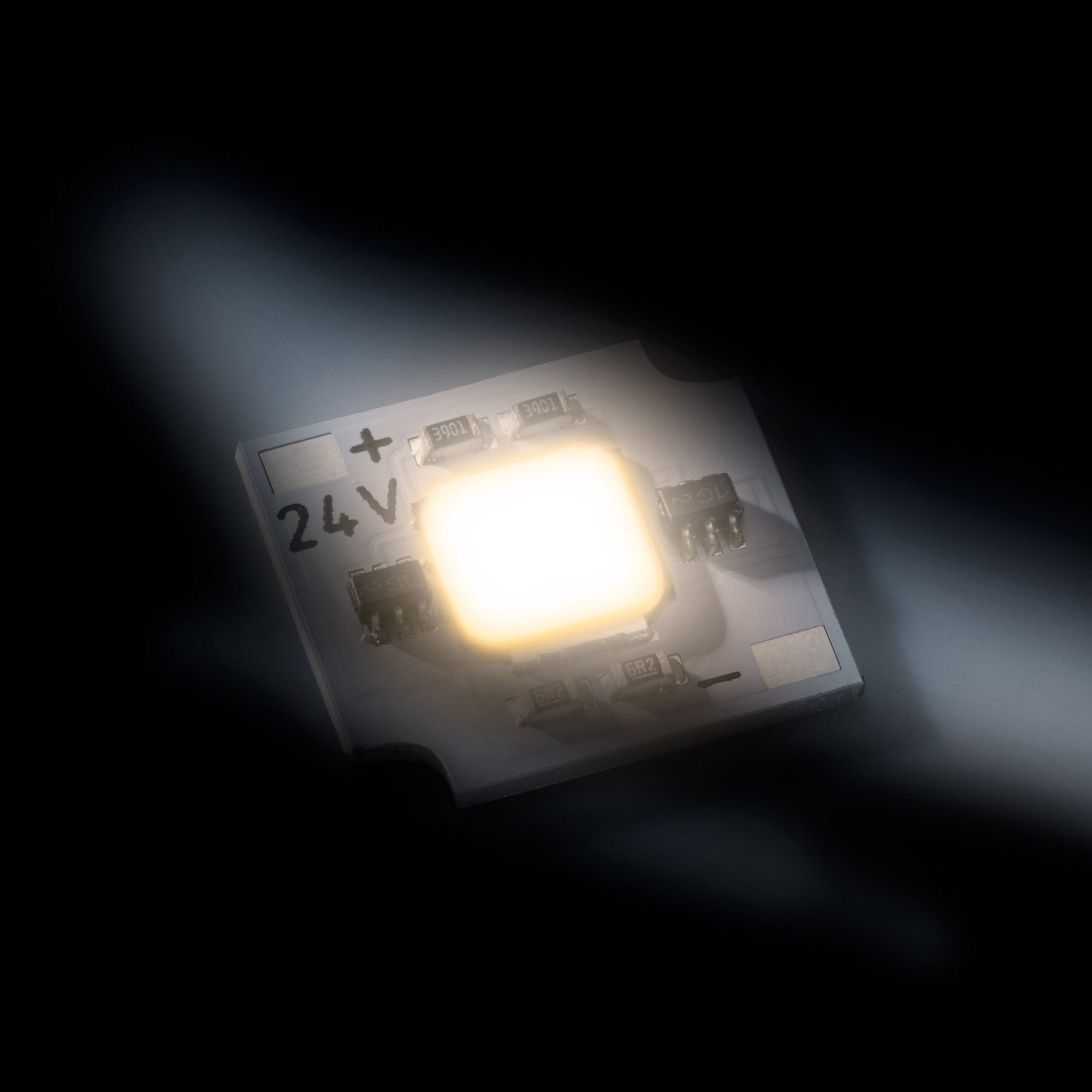

Nichia LED Module SmartArray Q1 Warm White 3000K CRI90 530lm 200mA 24V 4.8W 13mm
- Compact Nichia LED module designed as a flexible alternative to conventional COB light sources
- 120° beam angle
- Approximately 110 lm/W module efficacy
- 530 lm luminous flux
- 3-Step MacAdam colour consistency
- 24 V DC constant-voltage operation
- Made in Germany with a 5-year commercial warranty
The SmartArray Q1 is a compact high-output Nichia LED module designed to replace larger COB-style light sources in bulbs, downlights, spotlights and other small luminaires. This 3000 K version measures only 13 × 13.5 mm yet delivers 530 lm from a single Nichia LED with integrated 24 V electronics.
The Q1 format is especially useful when the luminaire designer wants a simple constant-voltage architecture. Instead of matching a separate constant-current driver to a bare high-power LED, the module can be connected directly to a regulated 24 V DC supply and dimmed by PWM.
Features of the SmartArray Q1 LED module
- Ultra-compact 13 × 13.5 × 1.8 mm module
- One high-output Nichia white LED
- 3000 K white light
- CRI 90+
- 530 lm luminous flux
- Approximately 110 lm/W module efficacy
- 24 V DC constant-voltage operation
- Nominal current: 200 mA
- Power consumption: 4.8 W
- PWM dimmable
- 120° beam angle
- 3-Step MacAdam colour consistency
- Rated lifetime greater than 60,000 h L80B10C1
- CE, RoHS and REACH compliant
- EN 62471 photobiological classification: RG2
- 5-year commercial warranty, subject to current warranty conditions
- Made in Germany
Compact light engine for bulbs, downlights, spotlights and floodlights
SmartArray modules are designed for compact luminaires where high output must come from a very small source area. They are particularly well suited to LED bulb manufacturing, downlights, spotlights and floodlights.
The compact PCB makes SmartArray a practical alternative to COB modules when the designer prefers discrete Nichia LEDs, a defined board geometry and more flexibility in the electrical architecture. The square point-source geometry also makes it straightforward to combine the module with reflectors, lenses and compact optical holders.
24 V integration for compact luminaires
The Q1 includes onboard electronics and is intended for parallel connection to a regulated 24 V DC supply. Each module draws approximately 200 mA, so the total supply current is the sum of the connected Q1 modules.
For dimming, use a compatible PWM controller on the 24 V system. Series operation is not the standard configuration for this version.
White-light quality for the application
The warm-neutral white tone works well in hospitality, retail and general interior lighting where a comfortable but clear white light is preferred. CRI 90+ improves the rendering of merchandise, skin tones and interior finishes when colour quality is especially important.
For more background, see our colour temperature guide and CRI guide.
Nichia LED quality in a miniature module
The use of a specified Nichia LED and 3-Step MacAdam colour sorting gives luminaire designers predictable output and colour consistency from batch to batch. This is especially valuable in product families where several fixtures must produce the same visible white light.
Designed and manufactured in Germany
We develop and manufacture professional LED modules in Germany, combining more than 20 years of LED application experience with controlled SMT production and application engineering. SmartArray modules are designed as compact light engines for luminaire manufacturers who need defined optical, electrical and thermal behaviour from a very small PCB.
For OEM and project customers, we can also support LED selection, PCB adaptation, optics integration, thermal design, prototyping and series production. This allows the module to be matched to the fixture and optical system instead of forcing the luminaire around a generic COB or anonymous LED board.
Learn more about Lumistrips and our LED manufacturing capabilities.
| SKU | 43974 |
|---|---|
| Weight brut (g) | 1.000000 |
| Color | Warm White |
| Color Temperature | 3000K |
| Color Rendering Index | 90 |
| Bright like (W) | 36 |
| Luminous Flux Typ (lm) | 530 |
| Efficacy (lm per W) | 110 |
| Energy Class 2022 | E |
| Power (W) | 4.8 |
| Dimmable | Dimmable |
| Viewing Angle | 120° |
| Warranty (months) | 60 |
| Lifetime for residential, 3h daily (yrs) | 55 |
| Product lifetime (h) | 60000 |
| Lifetime for commercial, 12h daily (yrs) | 14 |
| Manufacturer Product Code | 43974 |
| Product Family | Smart Array LED strip |
| Strip Type | Rigid |
| LEDs number per sales unit | 1 |
| Dimensions | 13.5 x 13 x 1.8 mm |
| Dimensions: Length (cm) | 1.35 |
| Dimensions: Width (mm) | 13 |
| Dimensions: Height (mm) | 1.8 |
| Brand | Lumistrips |
| Manufacturer Part Number | 4260127457286 |
| Forward Voltage Typ (V) | 24 |
