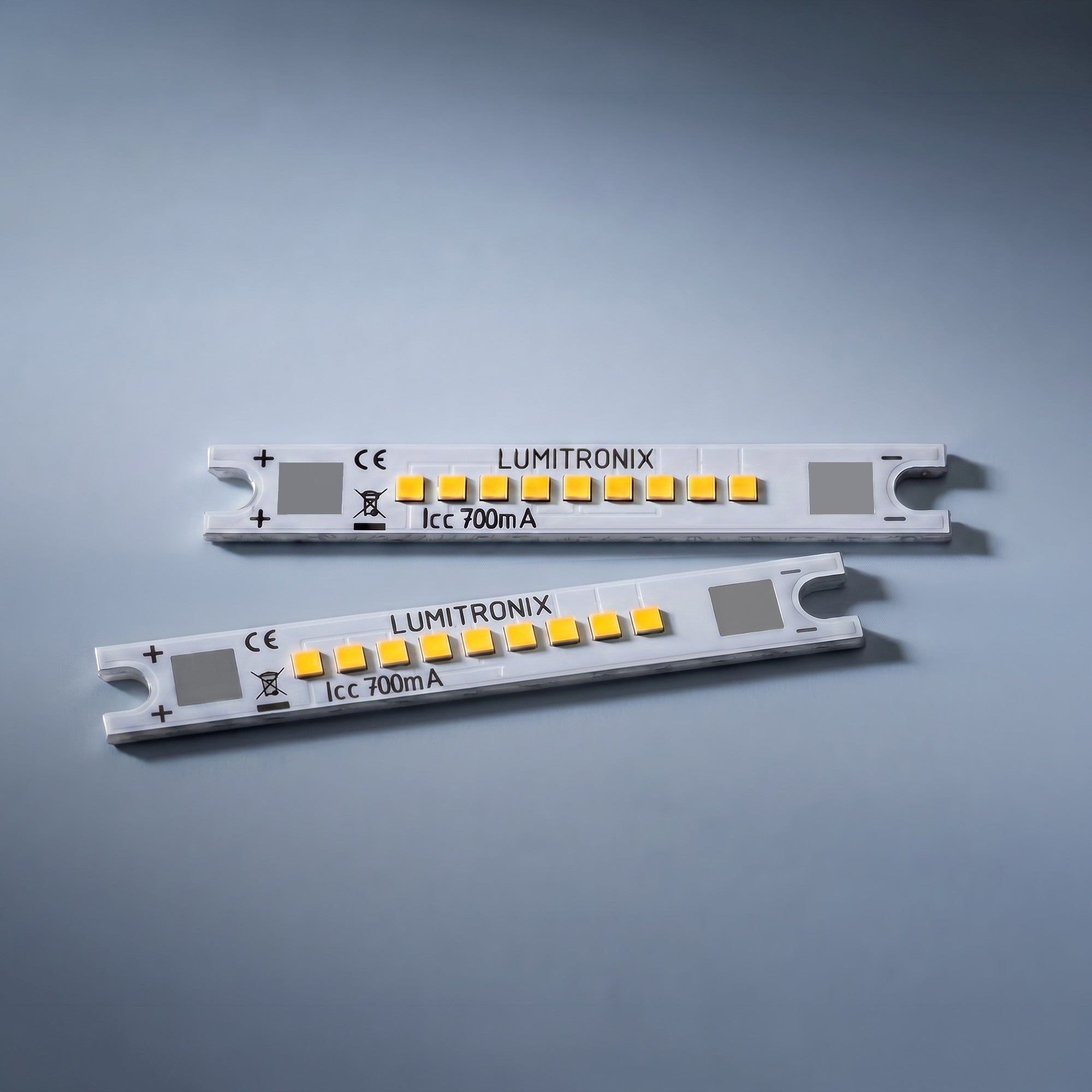

Nichia LED Module SmartArray L9V2 Cold White 5000K CRI90 788lm 700mA 8.25V 5.75W 5cm
- Compact Nichia LED module designed as a flexible alternative to conventional COB light sources
- 120° beam angle
- Approximately 137 lm/W module efficacy
- 788 lm luminous flux
- 3-Step MacAdam colour consistency
- 700 mA constant-current operation
- Made in Germany with a 5-year commercial warranty
The SmartArray L9V2 is a slim 50 mm rigid LED module that combines nine Nichia LEDs in a PCB only 7 mm wide. This 5000 K, CRI 90+ version delivers 788 lm from 5.75 W, making it a compact and efficient light engine for narrow downlights, spotlights, bulbs and small floodlight housings.
Unlike the 24 V Q1 modules, L9V2 is a constant-current light engine. It is designed for 700 mA operation and can be connected in series with additional compatible modules when the LED driver's voltage range is sufficient.
Features of the SmartArray L9V2 LED module
- Compact linear module: 50 × 7 × 1.84 mm
- Nine Nichia white LEDs
- 5000 K white light
- CRI 90+
- 788 lm luminous flux
- Approximately 137 lm/W module efficacy
- 700 mA constant-current operation
- Reference forward voltage: approximately 8.25 V
- Power consumption: approximately 5.75 W
- 120° beam angle
- 3-Step MacAdam colour consistency
- Rated lifetime greater than 60,000 h L80B10C1
- EN 62471 photobiological safety classification: RG0
- CE, RoHS and REACH compliant
- 5-year commercial warranty, subject to current warranty conditions
- Made in Germany
Compact light engine for bulbs, downlights, spotlights and floodlights
SmartArray modules are designed for compact luminaires where high output must come from a very small source area. They are particularly well suited to LED bulb manufacturing, downlights, spotlights and floodlights.
The compact PCB makes SmartArray a practical alternative to COB modules when the designer prefers discrete Nichia LEDs, a defined board geometry and more flexibility in the electrical architecture. The slim 50 × 7 mm geometry is particularly useful when the optical system is elongated or when the LED source must fit into a narrow reflector or luminaire body.
Constant-current driver integration
Use a regulated 700 mA constant-current LED driver whose output-voltage range accommodates the connected module or series string. One L9V2 module has a reference forward voltage of approximately 8.25 V.
Series connection is useful when several modules are used in one luminaire because the same regulated current passes through every module. Parallel connection should only be used with validated current sharing or separate regulated branches.
White-light quality for the application
The cooler white tone is useful in task-oriented, technical and display lighting where a crisp daylight-like appearance is preferred. CRI 90+ improves the rendering of merchandise, skin tones and interior finishes when colour quality is especially important.
For more background, see our colour temperature guide and CRI guide.
Choose CRI 83 for maximum output or CRI 90 for higher colour quality
The L9V2 family is available in both CRI 83 and CRI 90 versions. The CRI 83 variants provide higher luminous flux and are well suited to general lighting, while the CRI 90 versions sacrifice some lumen output in exchange for more accurate rendering of colours, materials and skin tones.
Designed and manufactured in Germany
We develop and manufacture professional LED modules in Germany, combining more than 20 years of LED application experience with controlled SMT production and application engineering. SmartArray modules are designed as compact light engines for luminaire manufacturers who need defined optical, electrical and thermal behaviour from a very small PCB.
For OEM and project customers, we can also support LED selection, PCB adaptation, optics integration, thermal design, prototyping and series production. This allows the module to be matched to the fixture and optical system instead of forcing the luminaire around a generic COB or anonymous LED board.
Learn more about Lumistrips and our LED manufacturing capabilities.
| SKU | 45075 |
|---|---|
| Weight brut (g) | 8.000000 |
| Color | Cold White |
| Color Temperature | 5000K |
| Color Rendering Index | 90 |
| Bright like (W) | 53 |
| Luminous Flux Typ (lm) | 788 |
| Efficacy (lm per W) | 136 |
| Energy Class 2022 | E |
| Power (W) | 5.75 |
| Dimmable | Dimmable |
| Viewing Angle | 120° |
| Warranty (months) | 60 |
| Lifetime for residential, 3h daily (yrs) | 55 |
| Product lifetime (h) | 60000 |
| Lifetime for commercial, 12h daily (yrs) | 14 |
| Manufacturer Product Code | 45075 |
| Product Family | Smart Array LED strip |
| Strip Type | Rigid |
| LEDs number per sales unit | 9 |
| Dimensions | 50 x 7 x 2 mm |
| Dimensions: Length (cm) | 5 |
| Dimensions: Width (mm) | 7 |
| Dimensions: Height (mm) | 2 |
| Brand | Lumistrips |
| Manufacturer Part Number | 4062986000371 |
| Forward Voltage Typ (V) | 8.25 |
