Build Your Own BackMatrix-49 Ultra-Wide Light Distribution Nichia LED Module

High-Performance LED Module for Uniform and Soft Backlighting

The BackMatrix-49 Ultra-Wide Light Distribution LED Module is designed to provide exceptional horizontal light distribution using Nichia Cube Direct Mountable LED Chips. Ideal for illuminating large surfaces such as luminous ceilings, walls, or 3D elements, this module delivers uniform and high-quality backlighting. The special Nichia LEDs feature an ultra-wide light distribution of 180°, ensuring even illumination across expansive areas.

Exceptional Brightness and Efficiency

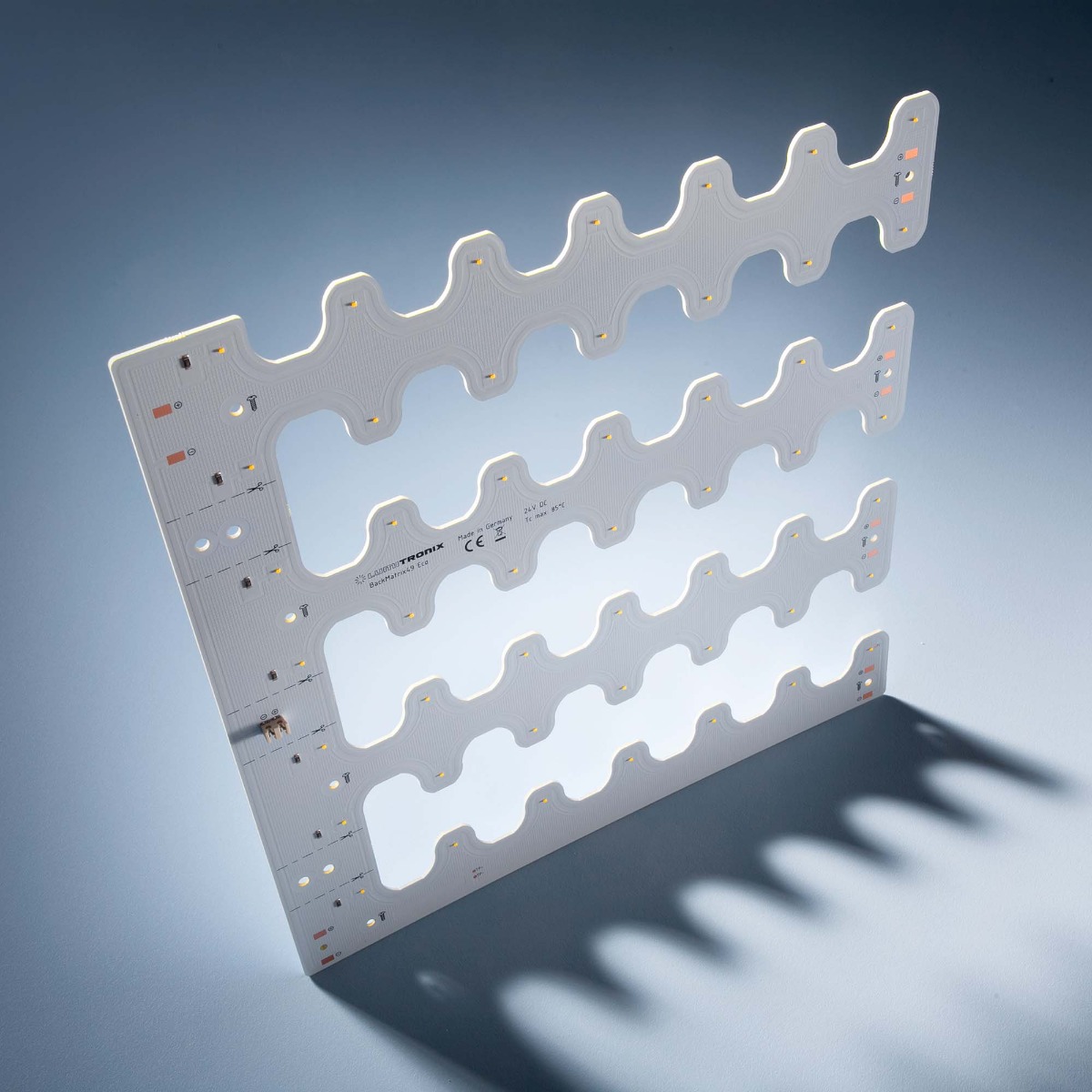

With up to 20,000 lm/m² at 5000 K, the BackMatrix-49 offers impressive brightness for large-scale applications. The module consists of 49 Cube LEDs arranged in a 28 cm × 28 cm square, operating at 24 V DC. Available in CRI 80–90 and color temperatures ranging from 1800 K to 6500 K, it provides high-quality light suitable for various environments.

Features of Ultra-Wide Light Distribution LEDs

Traditional LEDs are known for their directional light output, often requiring secondary optics to manage light distribution. This can lead to uneven lighting and necessitate thicker or less transparent fixtures. The BackMatrix-49 module's horizontal light distribution reduces the need for such adjustments, enabling:

Uniform and Soft Light: The 180° light distribution creates a homogeneous and glare-free illumination.
Thinner Fixtures: Allows for the design of slim and lightweight fixtures without the need for bulky light guide plates.
Energy Efficiency: High luminous efficacy reduces energy consumption while maintaining excellent light quality.

Advantages of Nichia Cube Direct Mountable Chips (Cube LEDs)

Nichia's Cube Direct Mountable Chips are innovative LEDs that offer horizontal light distribution without the need for additional optics. By leveraging Nichia's expertise in phosphors and LED technology, these chips can be arranged freely to match any lighting fixture design.

Ultra-Wide Light Distribution: Ensures even illumination across large surfaces.
Compact Design: Enables the creation of thin and lightweight fixtures.
Easy Integration: Simplifies fixture design by eliminating the need for secondary optics.

Installation and Design Flexibility

The BackMatrix-49 module is designed for easy installation:

Plug & Play Connectors: Features connectors with insulation displacement for solderless installation.
Modular Design: The module can be divided into four linear segments to accommodate various luminaire sizes.
No Cooling Required: Efficient thermal management eliminates the need for additional cooling components.
Standard Cabling: Multiple modules can be connected using a single standard cable, simplifying wiring.

Ideal Applications

Luminous Ceilings and Walls: Create expansive, evenly lit surfaces.
Backlighting for Billboards and Signs: Provide bright and uniform illumination for advertising displays.
Architectural Lighting: Enhance building aesthetics with seamless light integration.
Trade Fair Construction: Design impactful exhibition stands with dynamic lighting.

Quality and Reliability Made in Germany

Manufactured in Germany with a lifetime exceeding 100,000 hours, the BackMatrix-49 LED module is a reliable and professional product designed for long-term use. Its robust construction ensures consistent performance even in demanding environments.

Custom LED Solutions: Tailored Lighting Excellence

Don't settle for generic LED solutions when our customization service can precisely match your unique needs, avoiding the compromises associated with off-the-shelf products. With over 20 years of industry expertise, we manufacture innovative, high-quality, and high-performance LED solutions in Germany, tailored to your specifications.

Begin Your Custom LED Project

Ready to transform your vision into reality with the perfect LED module? Order now and let us illuminate your path to innovation, ensuring your project shines brighter than ever.

Custom BackMatrix LED Module Order Process Explained & Technical details:

Build Your Own BackMatrix-49 LED module, Made in Germany, with Nichia Cube LED series.

Step 1: Order Quantity (pcs)

How many modules do you need. While there is no MOQ, we recommend at least 60 pcs.

Step 2: LED Color temperature

Different color temperatures create different visual effects and are appropriate for different environments. Color temperature is measured in Kelvin (K) on a scale from 'warm' to 'cool': The 'warmer' the light, the lower the number of Kelvin. The 'cooler' the light, the higher the number of Kelvin. You can read more about the recommended color temperature for a project in our blog.

Step 3: Nichia CUBE LED CRI

The LED module will be built with the latest generation Nichia CUBE LED, with Ultra-Wide Light Distribution. Each LED has a typical consumption of 0.18W at 65mA, for a luminous flux up to 32 lm.

Click here for more info about the Nichia Cube LEDs.

Not all color temperatures are available for every LED CRI. The datasheet will specify Nichia LED part number.

Step 3: Samples Required?

You may request to receive samples, when you order or receive the datasheet. This option has extra cost and adds to the total delivery time of your order. Details will be provided at the time we receive your request. Maximum number of samples is 5 pcs.

Step 4: Scope of Delivery

The order process and online payment can be made for the full Order Quantity (pcs) or for drawing, design or samples. Based on your choice, the scope of delivery and the payment will be:

Order Quantity (pcs): the full quantity entered at step 1, including drawing, design and samples.
Design and Samples Only: Design, datasheet and 5 samples, for the LED module with the specifications from the order.

The datasheet will include:

- Dimensional drawing, with position of the LEDs, solder pads, current regulation components, printed information on the PCB.

- Summary of the main characteristics (technical data of the cutting unit), including dimensions, operation mode, voltage, current, power, color temperature, luminous flux, efficiency, CRI, LED type.

BackMatrix Ultra-Wide light distribution Technical Specifications:

49 Nichia Cube LEDs per module
Dimensions: 280x280mm
FR4 rigid PCB
Constant voltage design 24VDC
Plug & Play connection system via surface connectors, for 18AWG...24AWG cable. One Tool Bit for installation of the LED modules (SKU 95402, as pictured) is delivered with each order
High brightness, up to 1500lm per module (20,000lm per square meter) for CRI80 at 5000K
60.000h lifetime
CRI options: 80, 90
Color temperature options: 1800K to 6500K
Rated output up to 12W
Optimized for office and residential spaces
Easy to install
Dimmable, with onboard switch for three levels of brightness
5-year warranty
3-step MacAdam ellipse
Made in Germany
LEDs Made in Japan
CE, ROSH, REACH

Applications for BackMatrix:

Slim light fixtures, with one-third the thickness compared to those with conventional LED modules
Backlighting of translucent surfaces such as Barrisol stretch ceiling, Plexiglas, stone, marble etc
Illuminated showcases
Construction of light bodies or LED panels
General lighting with a long service life in shops, offices, clinics, clinics or private homes

Technical Data
SKU	backmatrix_cube_led
Viewing Angle	180°
Warranty (months)	60
Product lifetime (h)	60000
Product Family	BackMatrix2080
Dimensions	280x280x7
Dimensions: Length (cm)	28
Dimensions: Width (mm)	280
Brand	Lumistrips
Forward Voltage Typ (V)	24
