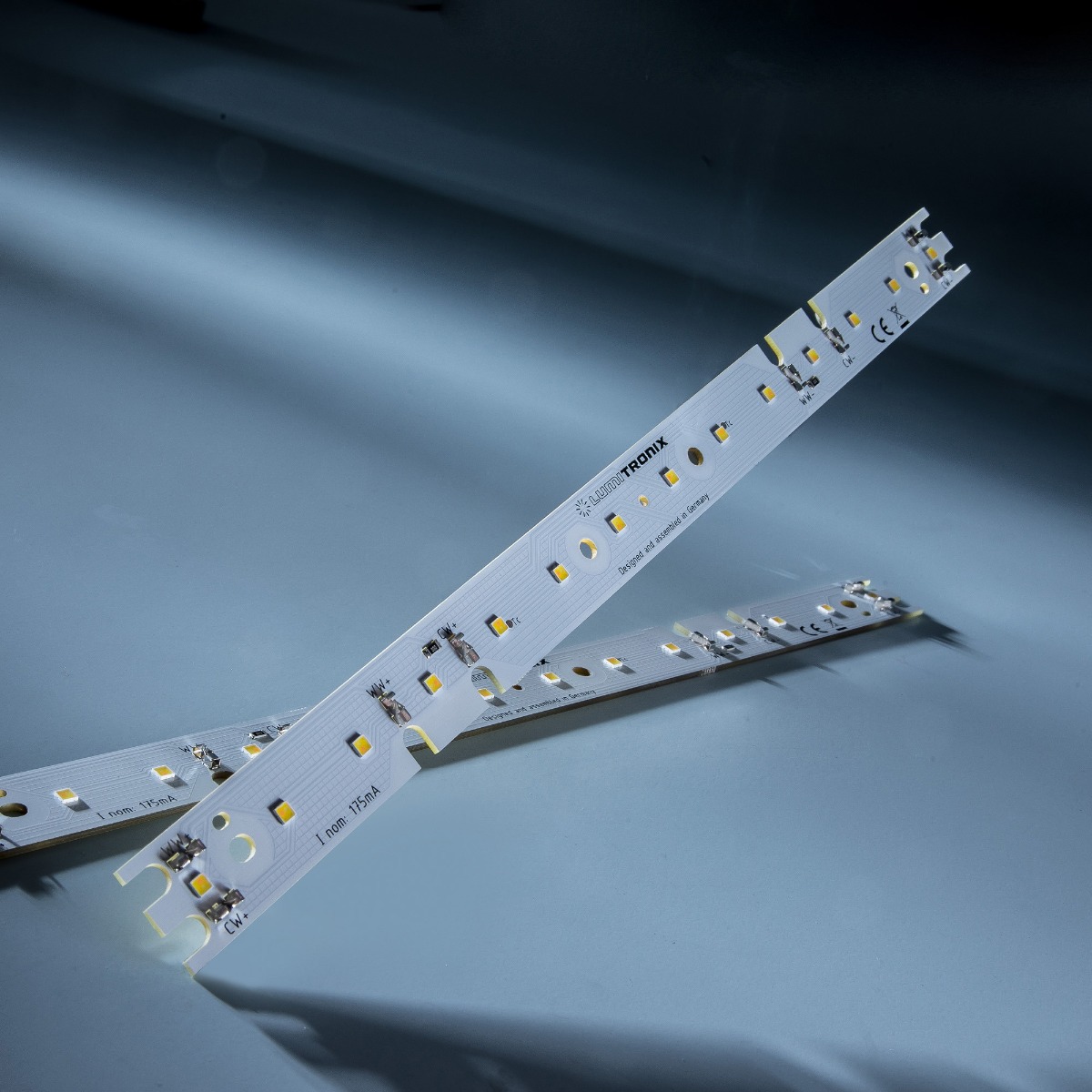

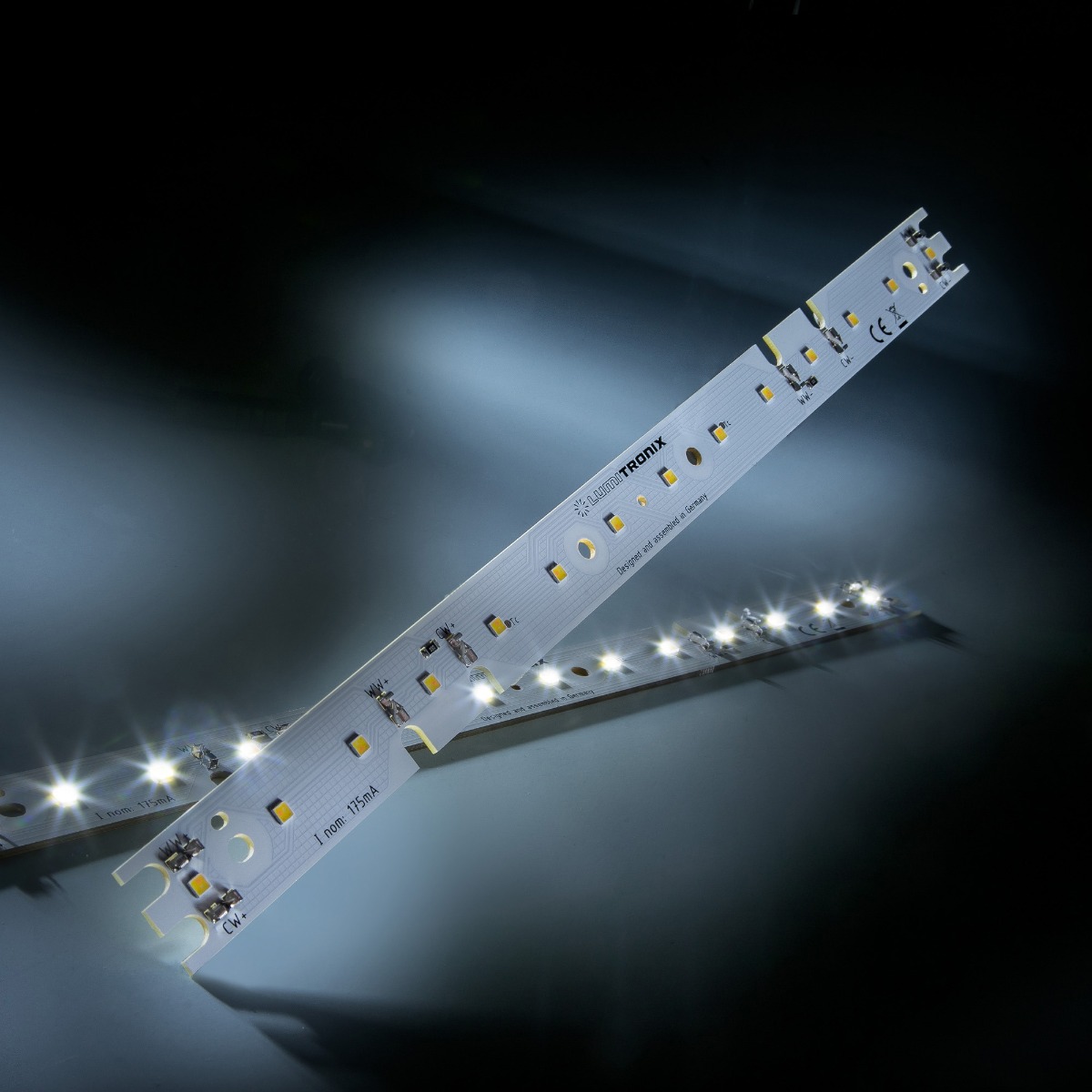

Daisy 14 Nichia NF2W757G-MT LED Strip 2 in 1 Tunable White 2700-6500K 290+300lm 175mA 19.9V 14 LEDs 28cm module (up to 1071lm/m)
- Specially designed LED module developed in collaboration with Ledil for use with their Daisy-Mini rod lenses.
- Equipped with 14 highly efficient 2-in-1 Tunable White LEDs from world market leader Nichia.
- The first tunable white LEDs with one light emitting surface, allowing for finer color matching and mixing.
- The slimmest darklight optics in the world, with Ledil's Daisy-Mini rod lenses measuring only 21mm wide.
- Provides homogeneous light and has a CRI of over 80, with a dimmable function and life expectancy of over 60,000 hours.
- Compatible with rod lenses FN17035_DAISY-MINI-M, FN17036_DAISY-MINI-W and FN17037_DAISY-MINI-WW, making it an excellent choice for a variety of applications.
- Ideal for creating compact and glare-free dark light luminaires with a UGR of less than 19, making it a perfect solution for workplace and office lighting, accent lighting, restaurants, and shops.
Our MiniDaisy LED module is a high-quality, cutting-edge solution developed in collaboration with Finnish optics manufacturer Ledil. Specifically designed to work with Ledil's Daisy-Mini rod lenses, this LED module features 14 efficient 2-in-1 Tunable White LEDs from industry-leading company Nichia, offering a total output of 290+300lm. With a length of 279.65 mm and suitable holes to accommodate the rod lenses, the LED-strip is perfectly tailored to be used with the linear Daisy optics. This makes the MiniDaisy module an excellent choice for workplace and office luminaires, among other applications.
Nichia's innovation in the MiniDaisy LED module is the world's first tunable white LED with a colour temperature range of 2700 - 6500 K under a single phosphor layer. Known as NF2W757G-MT, this unique feature enables finer colour matching and mixing, as all colour temperatures are under one emitting surface. In addition, the 2-in-1 shape of the LEDs allows for more creativity in the design of new luminaire models and more possibilities for optics, while also providing a higher colour rendering index (CRI 90).
Moreover, Ledil's Daisy-Mini rod lenses are the slimmest darklight optics in the world, measuring only 21 mm in width. This enables the production of compact and glare-free dark light luminaires with a UGR of less than 19, which means that the light source is invisible unless viewed from directly underneath it. This creates a more natural mood, making the MiniDaisy module an ideal solution for a wide range of applications such as workplace and office lighting, accent lighting, restaurants, and shops.
The MiniDaisy LED module is equipped with 26 2-in-1 Tunable White LEDs, with a homogeneous light output and a CRI of over 80. The module is also dimmable and has a life expectancy of over 60,000 hours. With a dimension of 279.65 x 20 x 3.55 mm, the MiniDaisy LED module is an excellent choice for those who want to achieve a high-quality, efficient, and innovative lighting solution for their space. Whether you are looking to upgrade your office or restaurant lighting, or create a unique lighting design, the MiniDaisy LED module is an excellent option to consider.
Features of the LED module NF2W757G-MT MiniDaisy 2in1 Tunable White
- Compatible with the rod lenses FN17035_DAISY-MINI-M, FN17036_DAISY-MINI-W and FN17037_DAISY-MINI-WW
- Colour temperature: 2700 - 6500 K
- Equipped with 26 2-in-1 Tunable White LEDs (NF2W757G-MT)
- Colour temperature change under one LES (Light Emitting Surface)
- Homogeneous light
- Dimmable
- Equipped with 14 2-in-1 Tunable White LEDs (NF2W757G-MT)
- CRI: >80
- Life expectancy: >60,000 hours
- Dimensions (L x W x H): 279.65 x 20 x 3.55 mm
LED module applications
- Workplace lighting
- Office lighting
- Restaurants
- Shops
- Accent lighting
SKU | 35783 |
---|---|
Color | Tunable White |
Color Rendering Index | 80 |
Luminous Flux per meter | 1071 |
Bright like (W) | 90 |
Luminous Flux Typ (lm) | 300 |
Efficacy (lm per W) | 167 |
Energy Class 2022 | C |
Power (W) | 2 |
Dimmable | Tunable White |
Viewing Angle | 120° |
Warranty (months) | 60 |
Product lifetime (h) | 60000 |
Forward Current Max | 100 |
Manufacturer Product Code | 4062986001729 |
Strip Type | Rigid |
Strip LEDs per meter | 50 |
LEDs number per sales unit | 14 |
Dimensions | 28 |
Dimensions: Length (cm) | 280 |
Dimensions: Width (mm) | 20 |
Dimensions: Height (mm) | 3.55 |
Brand | Lumistrips |
Forward Voltage Typ (V) | 20 |
