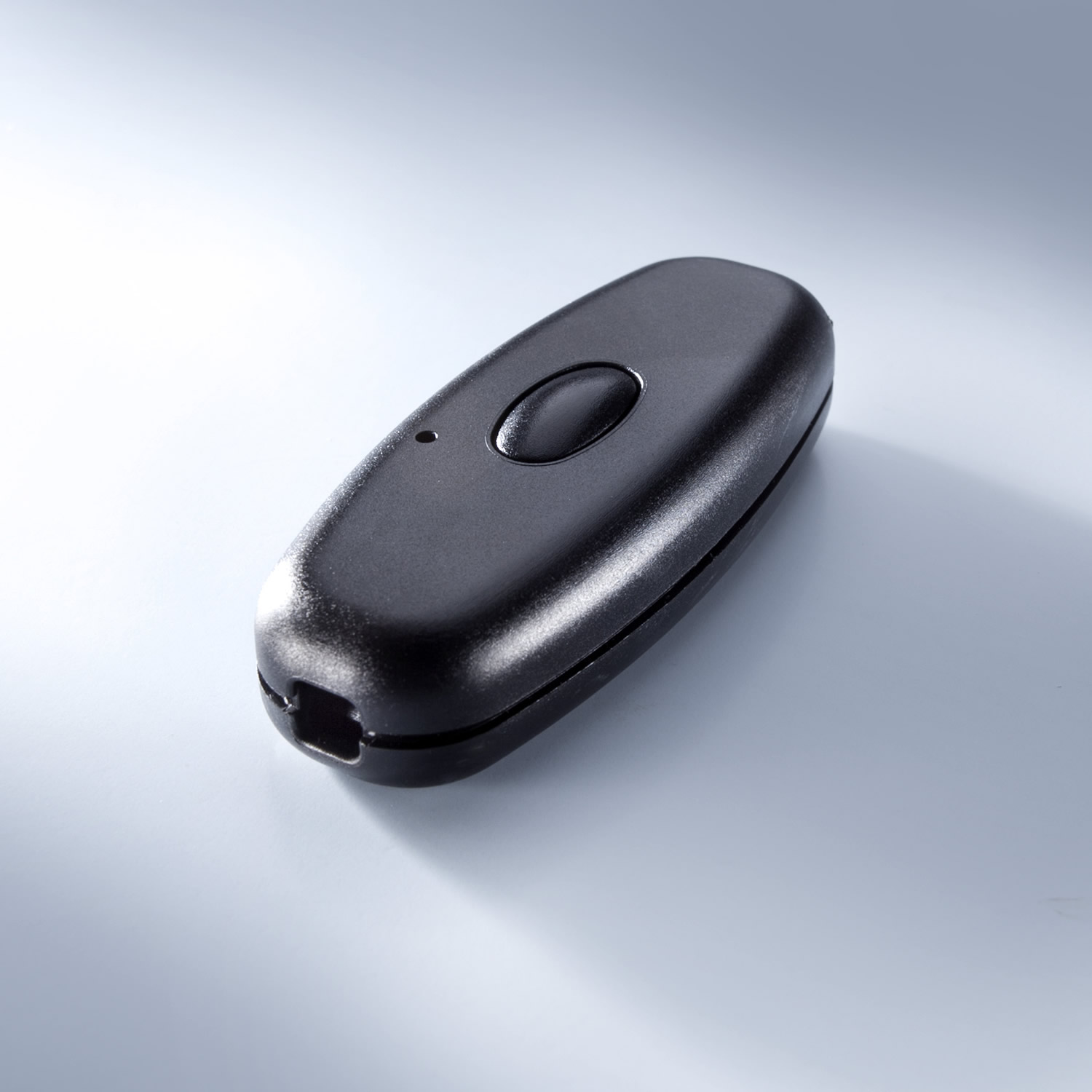

Constant Current Dimmer for LEDs 700mA

Constant Current Dimmer for LEDs 700mA

Constant Current Dimmer for LEDs 700mA
Constant Current Dimmer for LEDs 700mA

Constant Current Dimmer for LEDs 700mA

€21.02
Stock >10 pcs
SKU
95122

The dimmer developed by Ledrise combines a constant current source and comfortable dimming in one device. Screw connections within the dimmer allow for an easy and trouble-free installation. By constantly pressing the button you continuously dim the connected LEDs up or down. With one single push you turn the LEDs off or on to the predefined value.

Features
  • intuitive one touch operation
  • hidden connections, functional design
  • constant current: 350mA / 700mA
  • voltage: 12-24VDC
  • Output: max. 8.4W (350ma), max. 16.8W (700mA)
  • Drop: 0,4V (350mA), 0,65V (700mA)
  • Measures (LxBxH): 7 x 3 x 1,5cm
Technical Data
SKU 95122
Weight brut (g) 40.000000
Brand Lumistrips
Manufacturer Product Code DIMMER 1002-MONO-700I
Output Current (Range) 700
IP Protection IP20
Dimensions 70.0x28.8x16.5
Dimensions: Length (cm) 7
Dimensions: Width (mm) 20
Dimensions: Height (mm) 30
Availability beyond shown stock: YES
