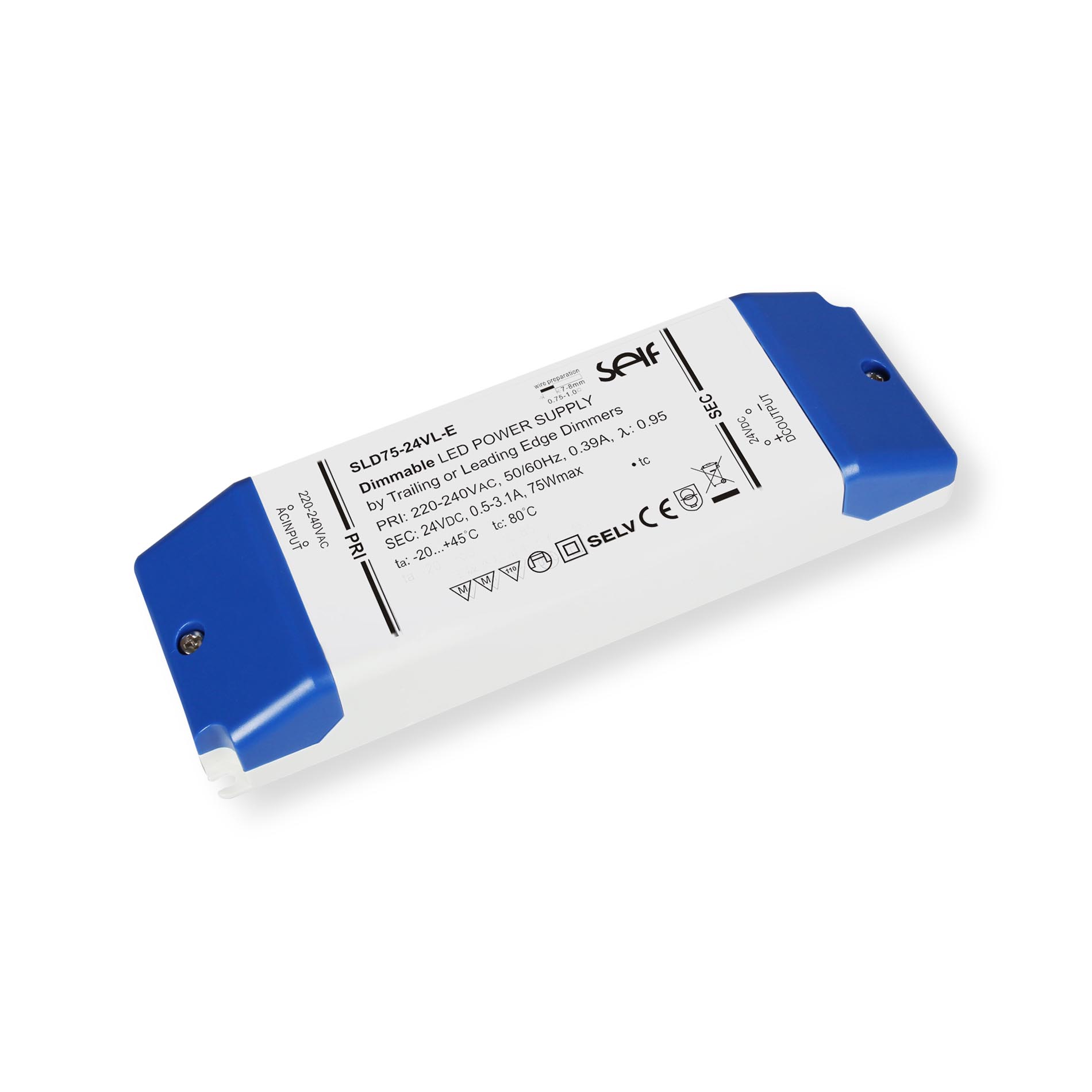

Self SLD75-24VL-E (24 V - 75 W), Power supply
€76.38
Ships in 1-6 weeks
SKU
32146
This type of dimmable power supply is an exclusively designed stabilized power supply for LED lamp. With constant voltage (CV) technology, it is suitable for constant voltage lamps(12/24Vdc) connected in parallel. The output current of the converter could be dimmed between 5%-100% by trailing or leading edge dimmers. The built-in protection circuit will shut down the power supply in case of such faults as: open circuit, short circuit, over load or over temperature. The power supply will restart automatically after fault correction.
Features
- Input power: 86 W
- Input voltage: 220-240 VAC
- Input frequency: 50/60 Hz
- Input current: 0.39 A
- Constant output voltage: 24 V
- Output current: 0.5-3.1 A
- Rated power: 12-75 W
- Independent power supply for constant voltage LED lamp Terminal block for quick connection
- Class II protection against electric shock from direct and indirect contact
- SELV output
- Open circuit, short circuit, over load and over temperature protection
- Auto restart after fault conditions removal
- The output current of the power supply could be dimmed between 5%-100% by trailing edge or leading edge dimmers.
- Efficiency: 86.5 % (AC230 V full load)
| SKU | 32146 |
|---|---|
| Weight brut (g) | 340.000000 |
| Brand | SELF Electronics Co.,Ltd. |
| Manufacturer Part Number | 4021087039727 |
| Manufacturer Product Code | SLD75-24VL-E |
| Transformer Output Voltage | 24V |
| Power (W) | 75 |
| IP Protection | IP20 |
| Dimmable | Dimmable |
| Dimensions: Length (cm) | 18.5 |
| Dimensions: Width (mm) | 60 |
| Dimensions: Height (mm) | 31 |
| Availability beyond shown stock: | YES |
