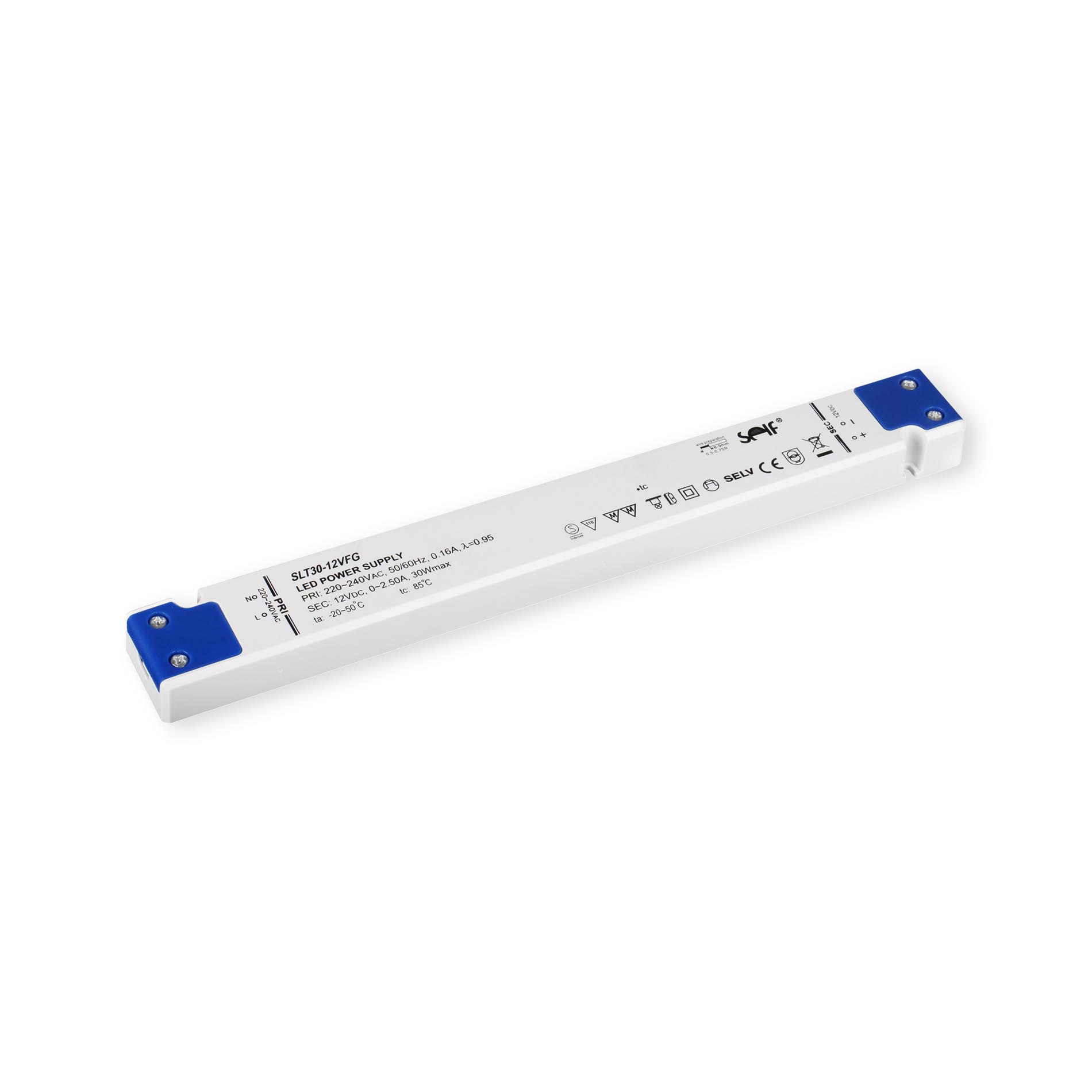

Self SLT30-12VFG (12 V - 30 W), Power supply
€25.18
Low Stock, only 1 pcs.
SKU
32141
This type of power supply is an exclusively designed stabilized power supply for LED lamp. With constant voltage (CV) technology, it is suitable for constant voltage lamps (12/24VDC) connected in parallels. As an advantage of constant voltage (CV) technology, a switch can be installed between secondary side and lamps. The built-in protection circuit will shut down the power supply in case of such faults as: open circuit, short circuit, over load or over temperature. The power supply will restart automatically after fault correction.
Features
- Input voltage: 220-240 VAC
- Input frequency: 50/60 Hz
- Input current: 0.16 A
- Constant output voltage: 12 VDC
- Output current: 0-2.5 A
- Rated power: 0-30 W
- Independent power supply for constant voltage LED lamp
- Class II protection against electric shock from direct and indirect contact
- Super thin
- SELV outputn
- Open circuit,short circuit,over load and over temperature protection
- Auto restart after fault conditions removal
- No load power consumption =0.3W
- Efficiency:84% (AC230V,full load)
SKU | 32141 |
---|---|
Weight brut (g) | 135.000000 |
Brand | SELF Electronics Co.,Ltd. |
Manufacturer Product Code | SLT30-12VFG |
Transformer Output Voltage | 12V |
Power (W) | 30 |
IP Protection | IP20 |
Dimmable | Not Dimmable |
Dimensions: Length (cm) | 24.6 |
Dimensions: Width (mm) | 30 |
Dimensions: Height (mm) | 16 |
Availability beyond shown stock: | YES |
