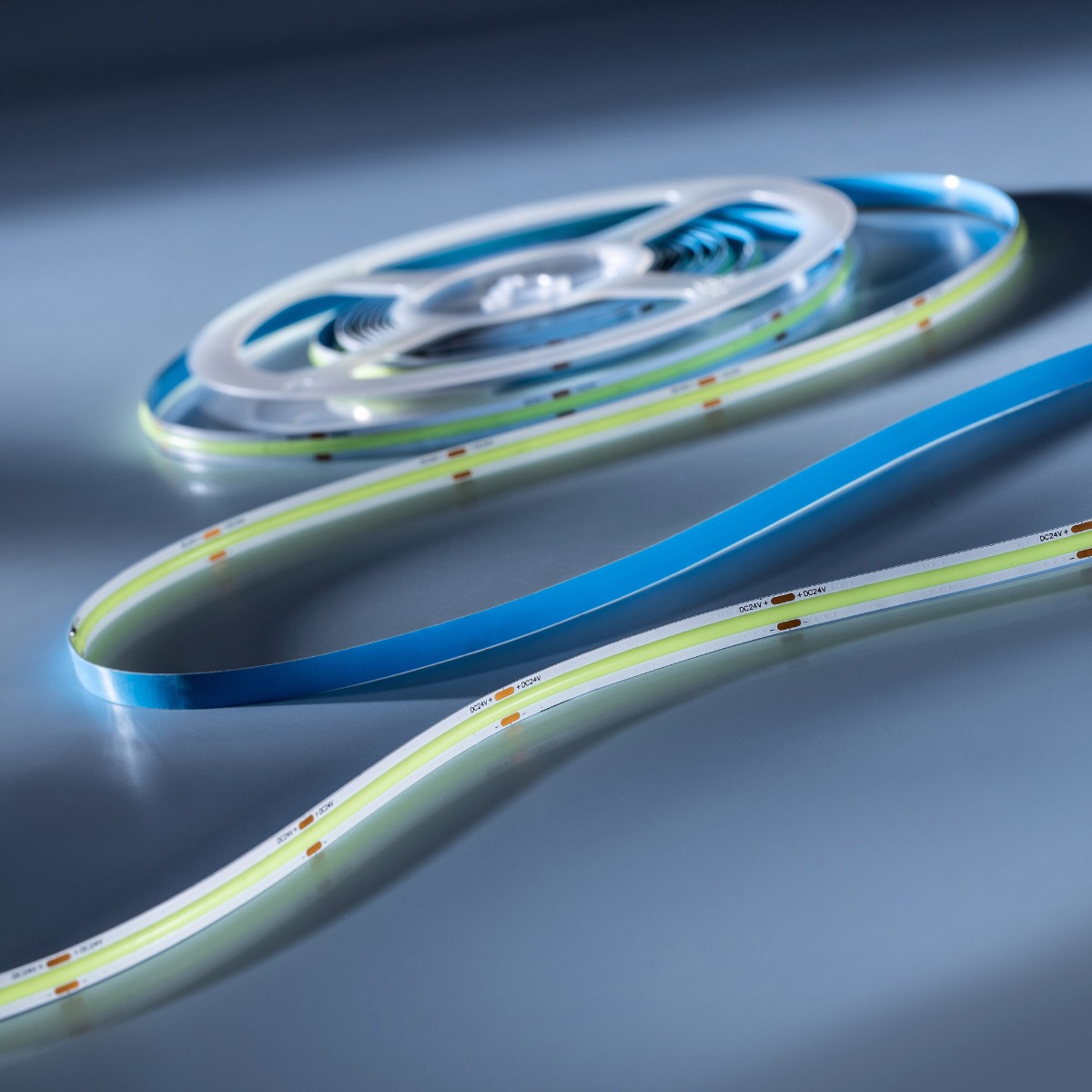

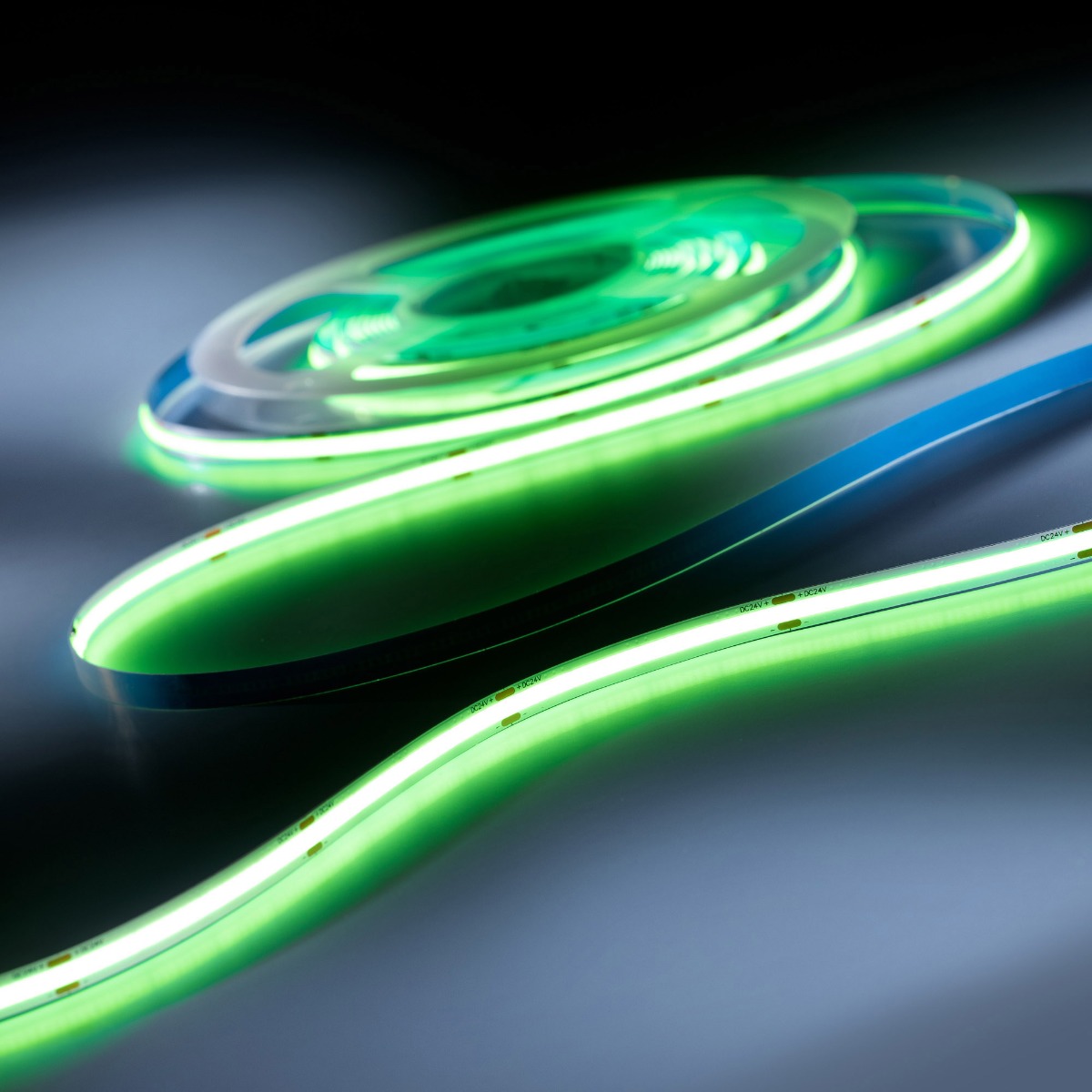

LumiFlex COB LED Strip with continuous light Green 4950lm 24V 5m roll (998lm/m and 8.4W/m)
- Professional flexible COB LED strip for a continuous, dot-free line of light
- 180° beam angle
- Peak wavelength: 520 nm
- 4950 lm per 5 m reel / 998 lm per metre
- 24 V DC constant-voltage operation
- Dimensions: 5040 x 8 x 1.5 mm
- Developed and manufactured in Germany
The LumiFlex COB Green LED strip is designed to create a continuous, visually uniform line of coloured light without the pronounced individual LED points typical of conventional flexible strips. Its Chip-on-Board construction uses 576 LED chips per metre under a continuous light-emitting surface and provides an ultra-wide 180° beam.
This green version operates at 520 nm and delivers 998 lm/m. The 5 m strip is particularly suited to slim profiles, recessed details and decorative architectural lighting where the colour line itself should appear smooth and uninterrupted.
Features of the LumiFlex COB Green LED strip
- Continuous COB line of green light
- Peak wavelength: 520 nm
- 4950 lm per 5 m reel / 998 lm per metre
- 576 LED chips per metre
- 24 V DC constant-voltage operation
- Power consumption: 8.4 W/m
- 180° beam angle
- Cut interval: 62.5 mm
- Dimmable with a compatible 24 V system
- Double-sided thermally conductive adhesive backing
- IP20 for dry indoor installations
- Dimensions: 5040 x 8 x 1.5 mm
- Lifetime: more than 15,000 hours
- Made in Germany
Continuous coloured light for slim architectural profiles
The main advantage of COB construction is the smooth illuminated line. This allows the strip to be used in shallow or minimalist profiles where a conventional low-density strip could show visible points through the diffuser.
The green output is suitable for retail and exhibition accents, themed interiors, entertainment spaces and vivid decorative green lines. It can also be used to emphasise architectural edges, furniture details and display structures where a single saturated colour is part of the visual identity.
Designed for cove and indirect lighting
This product is particularly well suited to cove and indirect lighting, where the LED strip is hidden from direct view and the illuminated wall or ceiling becomes part of the optical system. A continuous COB source works especially well in concealed coves because the broad 180° emission spreads light onto the reflecting surface and reduces visible point-source structure.
For the most uniform result, the strip should be positioned so the individual LEDs are not directly visible from normal viewing angles. Mounting distance, profile depth, diffuser transmission and the reflectance of the illuminated surface all influence the final appearance.
Installation and dimming
The strip operates from a regulated 24 V DC constant-voltage power supply and can be cut every 62.5 mm at the designated points. The thermally conductive adhesive backing supports installation on a clean, stable surface.
A compatible single-channel 24 V dimmer can be used when brightness adjustment is required. For long installations, plan conductor size and feed points to minimise voltage drop and maintain consistent brightness along the full run.
Our manufacturing and quality promise
We develop and manufacture professional LED strips and modules in Germany, combining more than 20 years of LED application experience with automated production and application engineering. Our focus is on repeatable performance, carefully selected components and products that can be integrated reliably into professional lighting systems.
For project customers, we can also support custom development, PCB adaptation, LED selection, thermal design, prototyping and series production. This allows the light engine to be matched to the luminaire or architectural application instead of forcing the project around a generic LED tape.
Learn more about Lumistrips and our LED manufacturing capabilities.
| SKU | 37924 |
|---|---|
| Weight brut (g) | 1.000000 |
| Color | Green |
| Luminous Flux per meter | 998 |
| Bright like (W) | 84 |
| Luminous Flux Typ (lm) | 4950 |
| Efficacy (lm per W) | 118 |
| Energy Class 2022 | E |
| Power (W) | 33.4 |
| Viewing Angle | 180° |
| Warranty (months) | 36 |
| Lifetime for residential, 3h daily (yrs) | 12 |
| Product lifetime (h) | 15000 |
| Lifetime for commercial, 12h daily (yrs) | 4 |
| Manufacturer Product Code | 37209 |
| Product Family | LumiFlex COB |
| Strip Type | Flexible |
| Dimensions | 5040x8x1.5 |
| Dimensions: Length (cm) | 504 |
| Dimensions: Width (mm) | 8 |
| Dimensions: Height (mm) | 1.5 |
| Can be cut at (mm) | 62.5 |
| Brand | Lumistrips |
| Manufacturer Part Number | 4062986002290 |
| Forward Voltage Typ (V) | 24 |
