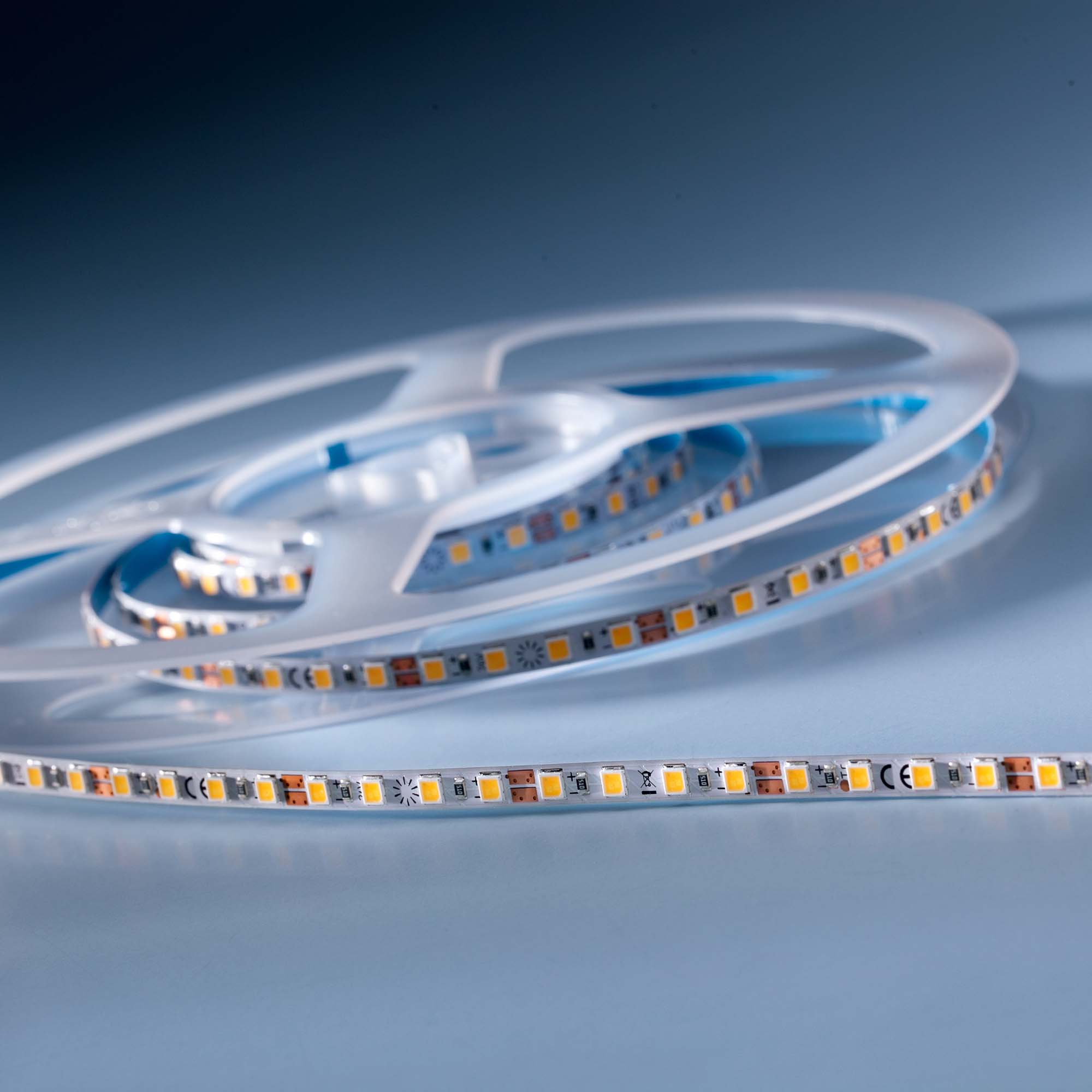

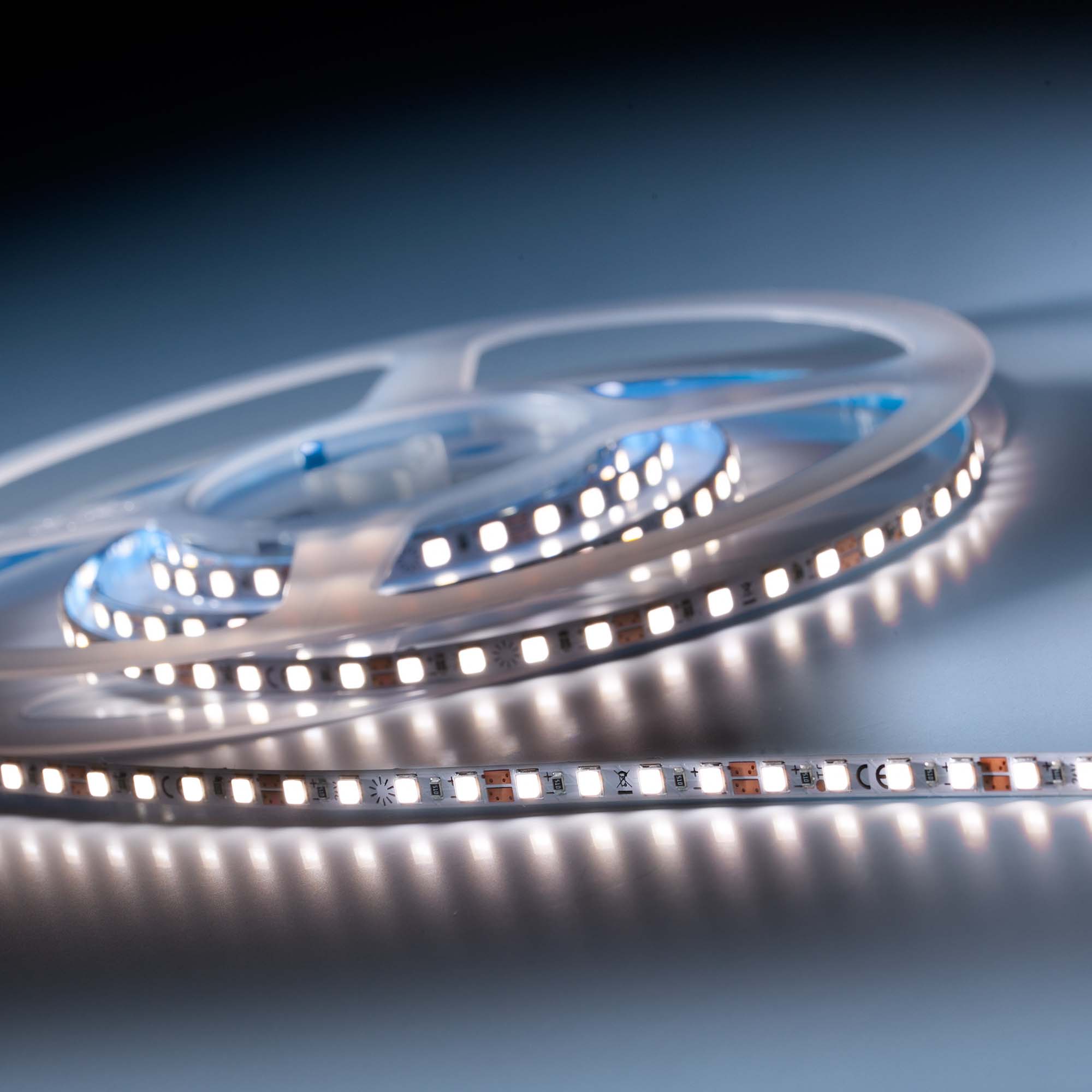

SlimFlex3090 Nichia LED Strip 5mm wide pure white CRI90 4000K 4240lm 24V 120 LEDs/m 2m reel (2120lm/m 18W/m )
- Ultra-narrow professional flexible LED strip for space-constrained profiles and luminaires
- 4240 lm per 2 m reel / 2120 lm per metre
- 120 Nichia 757G series LEDs per metre / 240 LEDs per reel
- 3-Step MacAdam binning for consistent white light
- 24 V DC constant-voltage operation
- Made in Germany with a 5-year commercial warranty
The SlimFlex3090 is a high-output professional LED strip for applications where strong white light must fit into an exceptionally narrow installation space. Its flexible PCB is only 5 mm wide, yet the strip delivers 2120 lm/m from 120 Nichia LEDs per metre with CRI 90+.
This 4000 K version is supplied as a 2 m reel with 4240 lm total output and approximately 18 W/m power density. The combination of a very narrow PCB, high luminous flux and good colour rendering makes it particularly suitable for slim linear luminaires, narrow architectural profiles, high-output coves and compact commercial lighting.
Features of the SlimFlex3090 LED strip
- Ultra-slim 5 mm flexible PCB
- 4000 K white light
- High colour rendering: CRI 90+
- 4240 lm per 2 m reel / 2120 lm per metre
- Approximately 18 W per metre
- 120 Nichia 757G series LEDs per metre / 240 LEDs per reel
- 24 V DC constant-voltage operation
- 33 mm segmentation for precise length adaptation
- 3-Step MacAdam binning for consistent white light
- Self-adhesive backing for straightforward installation
- Maximum recommended length per supply feed: 2 m
- 5-year commercial warranty, subject to current warranty conditions
- Made in Germany
Ultra-slim linear lighting for narrow profiles
The 5 mm PCB makes the SlimFlex3090 particularly useful for linear luminaires and architectural profiles where a conventional 8–10 mm LED strip will not fit. Its high output means the narrow form factor does not have to be limited to decorative light: with 2120 lm/m, the strip can contribute meaningful general and task illumination when integrated into a suitable optical and thermal system.
The short 33 mm segmentation also helps luminaire designers match the LED length closely to custom profiles, shelves, cabinets and recessed architectural details. For additional design guidance, see our linear fixture design guide.
High-output cove and indirect lighting
The SlimFlex3090 is well suited to cove and indirect lighting where the available channel is narrow but the reflected wall or ceiling must provide more than a decorative glow. Its high linear output can create a strong indirect-lighting effect from compact recesses, provided the installation offers appropriate heat dissipation.
The 4000 K neutral white tone is particularly suitable for offices, studios, retail, clinics and other functional interiors where a clean white appearance and strong illumination are required.
Suitable for troffers and diffuse luminaires
The high luminous flux and narrow profile also make the SlimFlex3090 suitable for troffer and diffuse luminaire designs. Multiple strips can be positioned behind a diffuser, with strip spacing and optical distance selected according to the required uniformity, diffuser transmission and target illuminance.
Colour quality for professional interiors
CRI 90+ supports more natural rendering of surfaces, furniture, merchandise, skin tones and materials than lower-CRI general lighting. This is useful in retail, hospitality, residential interiors, studios, medical environments and other applications where the appearance of colours matters.
For further guidance on white-light selection, see our articles about colour temperature and colour rendering index.
Installation and electrical integration
The strip operates from a regulated 24 V DC constant-voltage power supply. It can be shortened every 33 mm and is designed for a maximum 2 m length per supply feed. Longer continuous installations should therefore use additional power feeds rather than extending one electrically supplied section beyond 2 m.
At approximately 18 W/m, thermal management is important. Install the strip on a stable heat-dissipating surface or suitable aluminium profile, especially in continuous high-output operation. Select conductor sizes and the power supply with adequate reserve for the connected load.
Our manufacturing and quality promise
We develop and manufacture professional LED strips and modules in Germany, combining more than 20 years of LED application experience with automated production and application engineering. Our focus is on repeatable performance, carefully selected components and products that can be integrated reliably into professional lighting systems.
For project customers, we can also support custom development, PCB adaptation, LED selection, thermal design, prototyping and series production. This allows the light engine to be matched to the luminaire or architectural application instead of forcing the project around a generic LED tape.
Learn more about Lumistrips and our LED manufacturing capabilities.
| SKU | 56026 |
|---|---|
| Weight brut (g) | 1.000000 |
| Color | Neutral White |
| Color Temperature | 4000K |
| Color Rendering Index | 90 |
| Luminous Flux per meter | 2120 |
| Bright like (W) | 177 |
| Luminous Flux Typ (lm) | 4240 |
| Efficacy (lm per W) | 118 |
| Energy Class 2022 | E |
| Power (W) | 36 |
| Viewing Angle | 120° |
| Warranty (months) | 60 |
| Lifetime for residential, 3h daily (yrs) | 92 |
| Product lifetime (h) | 100000 |
| Lifetime for commercial, 12h daily (yrs) | 23 |
| Forward Current Max | 1500 |
| Manufacturer Product Code | 56026 |
| Product Family | SlimFlex3090 |
| Strip Type | Flexible |
| Strip LEDs per meter | 48 |
| LEDs number per sales unit | 240 |
| Dimensions | 2000x5x1 |
| Dimensions: Length (cm) | 200 |
| Dimensions: Width (mm) | 5 |
| Dimensions: Height (mm) | 1 |
| Can be cut at (mm) | 33 |
| Brand | Lumistrips |
| Manufacturer Part Number | 4260127455565 |
| Forward Voltage Typ (V) | 24 |
| Availability beyond shown stock: | NO |
