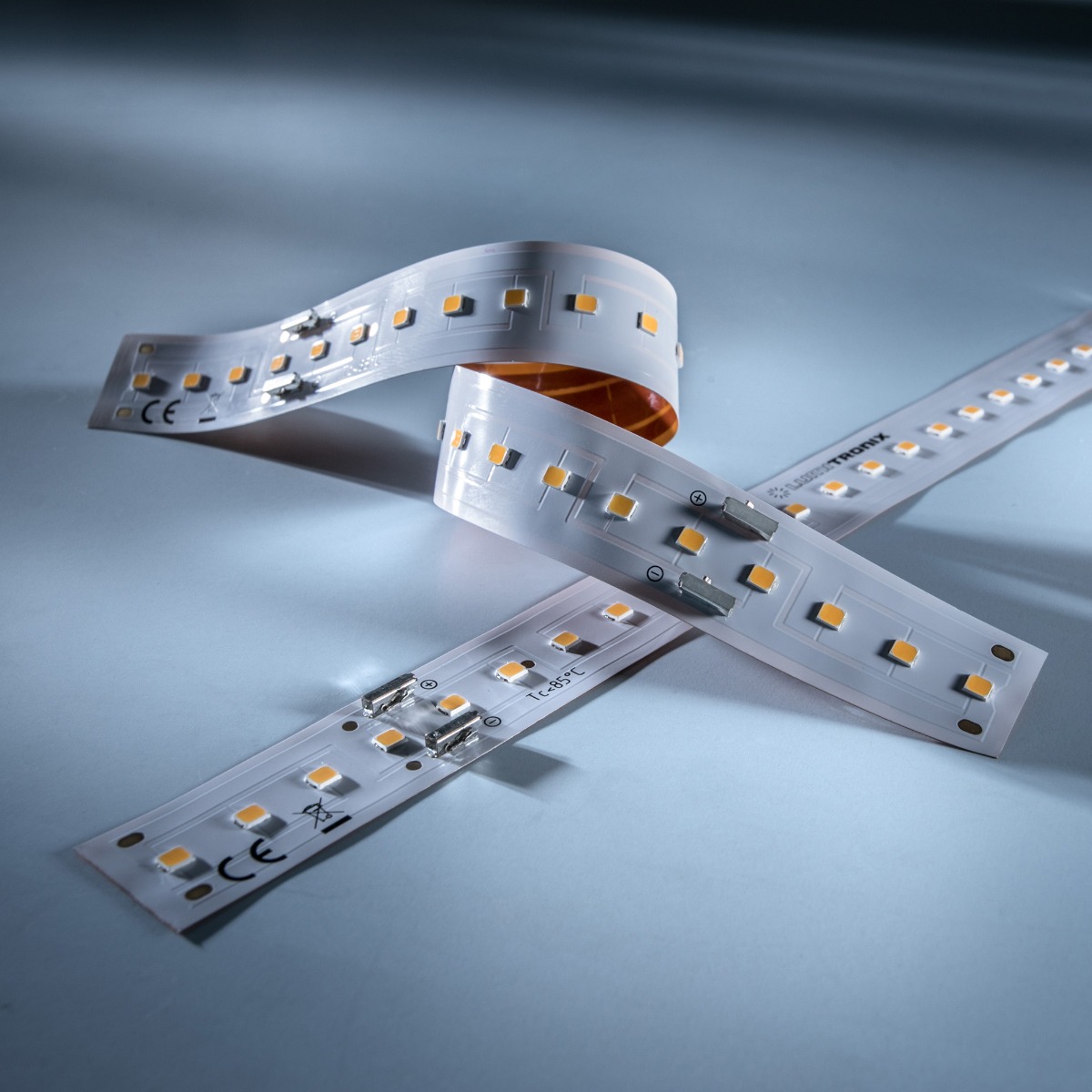

LumiFlex4080 Seoul LED Strip warm white 3000K CRI80 27600lm 900mA 96 LEDs/m 5.6m reel (4928lm/m and 26W/m)
- Professional flexible LED strip manufactured in Germany for reliable linear lighting
- 120° beam angle
- Efficiency up to approximately 187 lm/W
- 27600 lm per 5.6 m reel / 4928 lm per metre
- Plug-and-play connectors on each segment
- 900 mA constant-current operation
- Made in Germany with a 5-year commercial warranty
The LumiFlex4080 is an ultra-high-output flexible LED module system designed for professional luminaires and general lighting. This 3000 K version delivers 27600 lm from the 5.6 m reel, equivalent to 4928 lm/m, while using approximately 26 W/m.
Unlike conventional 24 V LED tape, the LumiFlex4080 is built as a constant-current modular system. The reel consists of twenty 280 mm sections, each with 27 Seoul Semiconductor 3528 LEDs and plug-and-play connections, allowing the product to be integrated efficiently into linear luminaires and other high-output lighting assemblies.
Features of the LumiFlex4080 LED strip
- 3000 K white light
- CRI 80
- 27600 lm per 5.6 m reel / 4928 lm per metre
- Approximately 26 W per metre
- Efficiency up to approximately 187 lm/W
- 540 Seoul Semiconductor LEDs per reel
- 20 segments of 280 mm
- 27 LEDs per 280 mm segment
- 900 mA constant-current operation
- Plug-and-play connectors on each segment
- Double-sided thermally conductive adhesive backing
- Zhaga-compatible segment concept for linear-luminaire integration
- 120° beam angle
- 5-year commercial warranty, subject to current warranty conditions
- Made in Germany using Reel-to-Reel production
High-output linear luminaires and light lines
The LumiFlex4080 is particularly well suited to linear luminaires that need several thousand lumens per metre from a compact light engine. Its 280 mm modular structure can simplify assembly compared with installing and wiring many separate rigid boards.
The 3000 K version provides a warm-neutral balance for commercial interiors, hospitality, retail and high-output architectural luminaires. For additional integration guidance, see our linear fixture design guide.
Bright cove and indirect lighting
With more than 4,800 lm/m, the LumiFlex4080 can be used for cove lighting where the reflected ceiling or wall is expected to contribute meaningful general illumination rather than only a decorative glow.
Because of the high power density, thermal integration and mounting surface are especially important. The strip should be installed on a suitable heat-dissipating surface and the luminaire or cove geometry should be designed so operating temperatures remain within the intended range.
Troffers and diffuse commercial luminaires
The combination of very high flux and modular construction also makes the LumiFlex4080 suitable for troffer and diffuse panel luminaires. Multiple strips can be arranged behind a diffuser, with spacing and optical distance selected according to the required uniformity and luminance.
Constant-current electrical integration
Each 280 mm section is designed for 900 mA constant-current operation. Up to five sections can be operated in one row from a suitable driver, corresponding to a maximum continuous row of 1.4 m per feed. The complete 5.6 m reel must therefore be divided across multiple driver feeds rather than powered as one continuous chain from a single driver.
The plug-and-play connections reduce soldering effort during luminaire assembly. Driver selection, wiring and thermal design should be based on the number of 280 mm sections used in each row and the required installation architecture.
Our manufacturing and quality promise
We develop and manufacture professional LED strips and modules in Germany, combining more than 20 years of LED application experience with automated production and application engineering. Our focus is on repeatable performance, carefully selected components and products that can be integrated reliably into professional lighting systems.
For project customers, we can also support custom development, PCB adaptation, LED selection, thermal design, prototyping and series production. This allows the light engine to be matched to the luminaire or architectural application instead of forcing the project around a generic LED tape.
Learn more about Lumistrips and our LED manufacturing capabilities.
| SKU | 35931.01 |
|---|---|
| Weight brut (g) | 1.000000 |
| Color | Warm White |
| Color Temperature | 3000K |
| Color Rendering Index | 80 |
| Luminous Flux per meter | 4928 |
| Bright like (W) | 411 |
| Luminous Flux Typ (lm) | 27600 |
| Efficacy (lm per W) | 187 |
| Energy Class 2022 | B |
| Power (W) | 146 |
| Viewing Angle | 120° |
| Warranty (months) | 60 |
| Lifetime for residential, 3h daily (yrs) | 50 |
| Product lifetime (h) | 54000 |
| Lifetime for commercial, 12h daily (yrs) | 12 |
| Manufacturer Product Code | 35931.01 |
| Product Family | LumiFlex4080 |
| Strip Type | Flexible |
| LEDs number per sales unit | 540 |
| Dimensions | 5600x20x2.8 |
| Dimensions: Length (cm) | 560 |
| Dimensions: Width (mm) | 20 |
| Dimensions: Height (mm) | 2.8 |
| Can be cut at (mm) | 280 |
| Brand | Lumistrips |
| Manufacturer Part Number | 4062986001521 |
| Forward Voltage Typ (V) | 8.25 |
| Availability beyond shown stock: | YES |
