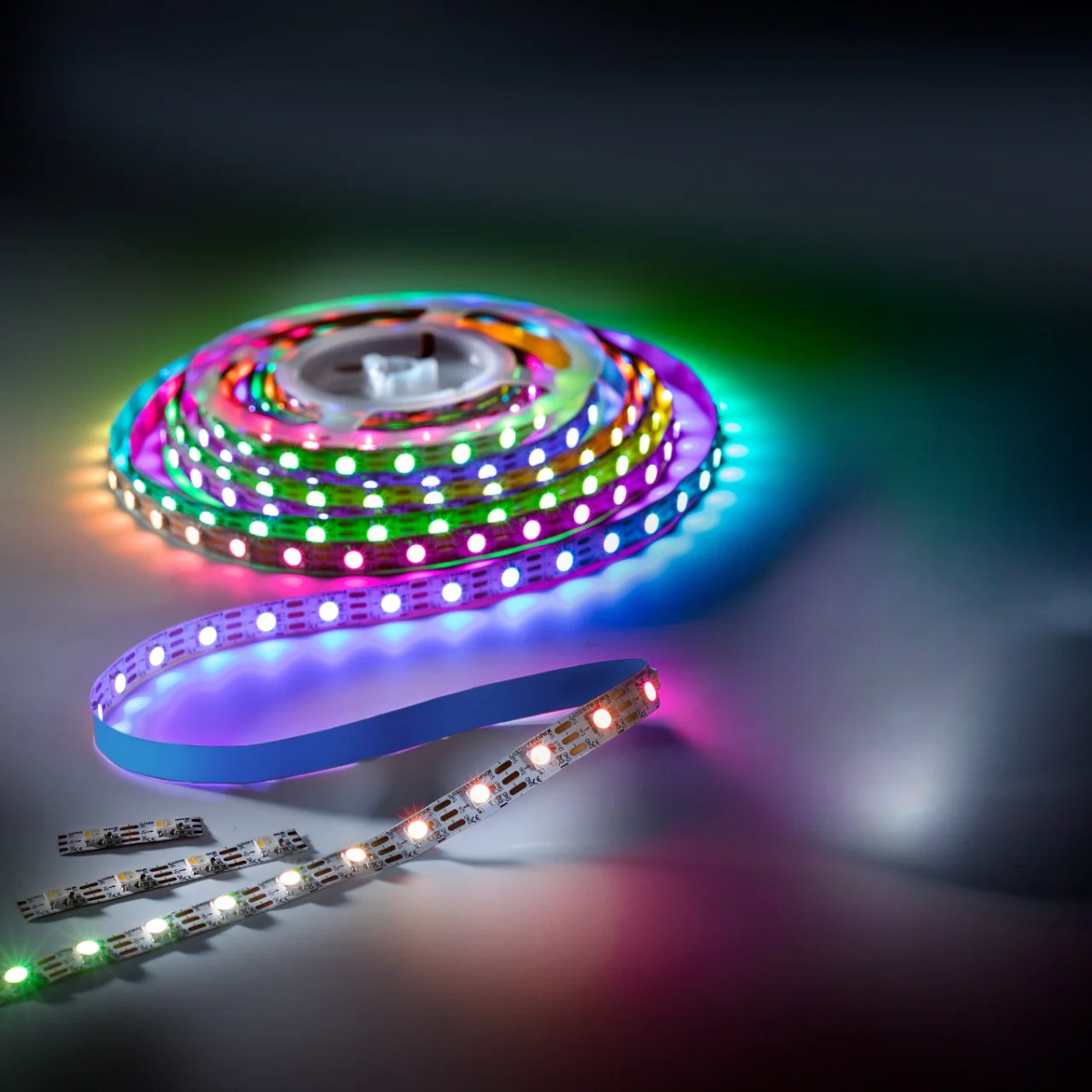

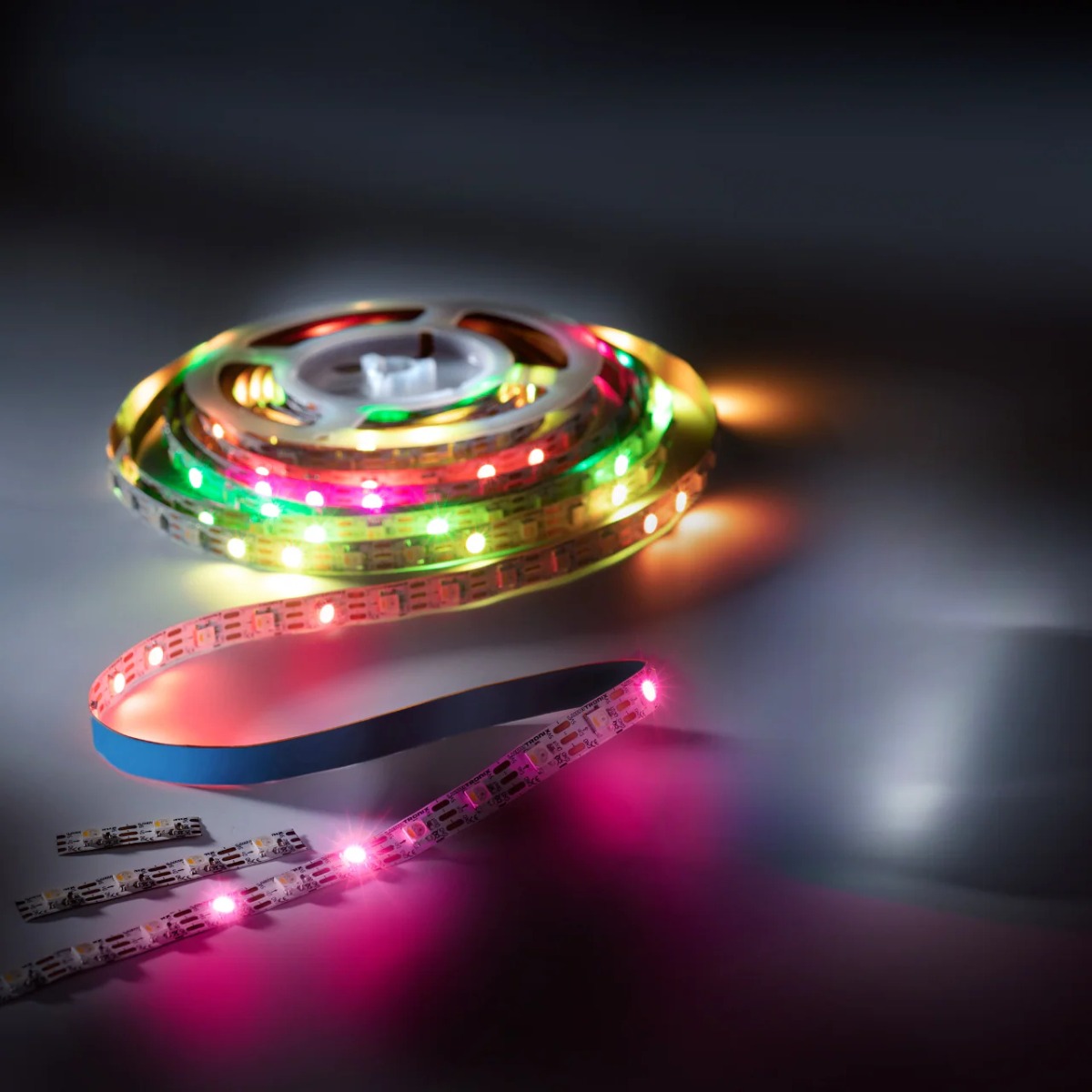

iFlex-RGBW-1080 LED Strip RGB-White CRI80 3000K 1180lm 5V 60 individually controllable LEDs/m 5m reel
- Professional flexible LED strip manufactured in Germany for reliable linear lighting
- 300 individually controllable RGBW LEDs per 5 m reel
- 60 individually controllable LEDs per metre
- Dimensions: 5000 x 10 x 1.72 mm
- Dimmable through the compatible control system
- Developed and manufactured in Germany
The iFlex-RGBW-1080 is an individually addressable RGBW LED strip for creative lighting effects where each LED must be controlled separately. The 5 m reel contains 300 RGBW LEDs, equivalent to 60 LEDs per metre, and combines red, green, blue and a dedicated 3000 K white channel in each controllable lighting point.
Unlike a conventional analogue RGBW strip, individual addressing allows moving effects, gradients, chases, patterns and position-specific colours to be programmed along the strip. This makes the product particularly suitable for entertainment, events, displays, gaming environments, interactive furniture and dynamic architectural lighting.
Features of the iFlex-RGBW-1080 LED strip
- 300 individually controllable RGBW LEDs per 5 m reel
- 60 individually controllable LEDs per metre
- Dedicated 3000 K white channel with CRI 80
- 5 V operation
- Divisible after each LED
- Power per channel: 5 W
- Self-adhesive backing
- Dimmable through the compatible control system
- Dimensions: 5000 x 10 x 1.72 mm
- Manufactured in Germany using Reel-to-Reel production
Individually addressable RGBW for dynamic effects
The iFlex-RGBW-1080 extends the possibilities of RGBW lighting by allowing each LED position to receive its own colour and brightness command. Instead of changing the complete strip at once, the installation can create movement and spatial effects along its length.
The dedicated 3000 K white channel is useful when the same installation must provide a warmer white scene in addition to dynamic RGB effects.
Designed for cove and indirect lighting
This product is particularly well suited to cove and indirect lighting, where the LED strip is hidden from direct view and the illuminated wall or ceiling becomes part of the optical system. In cove applications, individually addressable control can create moving gradients and animated colour transitions that travel along the wall or ceiling rather than changing the entire cove simultaneously.
For the most uniform result, the strip should be positioned so the individual LEDs are not directly visible from normal viewing angles. Mounting distance, profile depth, diffuser transmission and the reflectance of the illuminated surface all influence the final appearance.
For custom pixel-control systems
This version is supplied as the LED strip itself and is intended for integration into a compatible individually addressable RGBW control system. The controller and power architecture must support the strip's 5 V operation and the required data/control method.
Installation and 5 V power distribution
The strip can be shortened after each LED, allowing unusually precise length adaptation. Because it operates at 5 V, voltage drop becomes important over longer distances; power-feed positions and conductor sizes should therefore be planned carefully for the actual installation and effect pattern.
The self-adhesive backing simplifies positioning, but the strip should be mounted on a clean, stable surface and protected from repeated mechanical flexing after installation.
Our manufacturing and quality promise
We develop and manufacture professional LED strips and modules in Germany, combining more than 20 years of LED application experience with automated production and application engineering. Our focus is on repeatable performance, carefully selected components and products that can be integrated reliably into professional lighting systems.
For project customers, we can also support custom development, PCB adaptation, LED selection, thermal design, prototyping and series production. This allows the light engine to be matched to the luminaire or architectural application instead of forcing the project around a generic LED tape.
Learn more about Lumistrips and our LED manufacturing capabilities.
| SKU | 40595 |
|---|---|
| Weight brut (g) | 80.000000 |
| Color | RGBW |
| Color Temperature | 3000K |
| Color Rendering Index | 80 |
| Luminous Flux per meter | 88 |
| Luminous Flux Typ (lm) | 1100 |
| Power (W) | 5 |
| Dimmable | Tunable White, Dimmable, Adjustable color |
| Viewing Angle | 120° |
| Warranty (months) | 60 |
| Product lifetime (h) | 40000 |
| Forward Current Max | 1000 |
| Product Family | LumiFlex1080 |
| Strip Type | Flexible |
| Strip LEDs per meter | 60 |
| LEDs number per sales unit | 300 |
| Dimensions | 5000x10x1.72 |
| Dimensions: Length (cm) | 500 |
| Dimensions: Width (mm) | 10 |
| Dimensions: Height (mm) | 1.72 |
| Can be cut at (mm) | 16.67 |
| Brand | Lumistrips |
| Manufacturer Part Number | 40595 |
| Forward Voltage Typ (V) | 5 |
