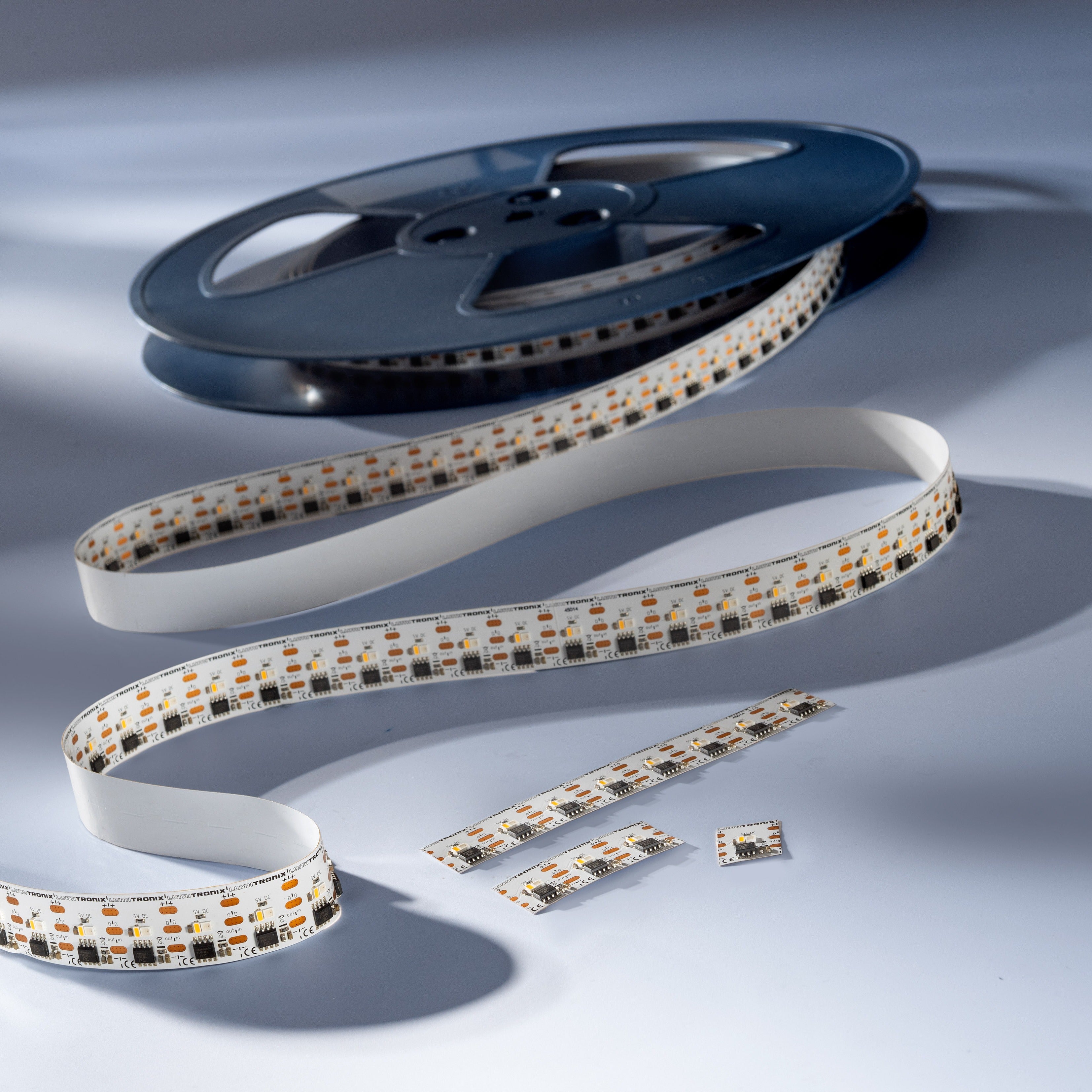

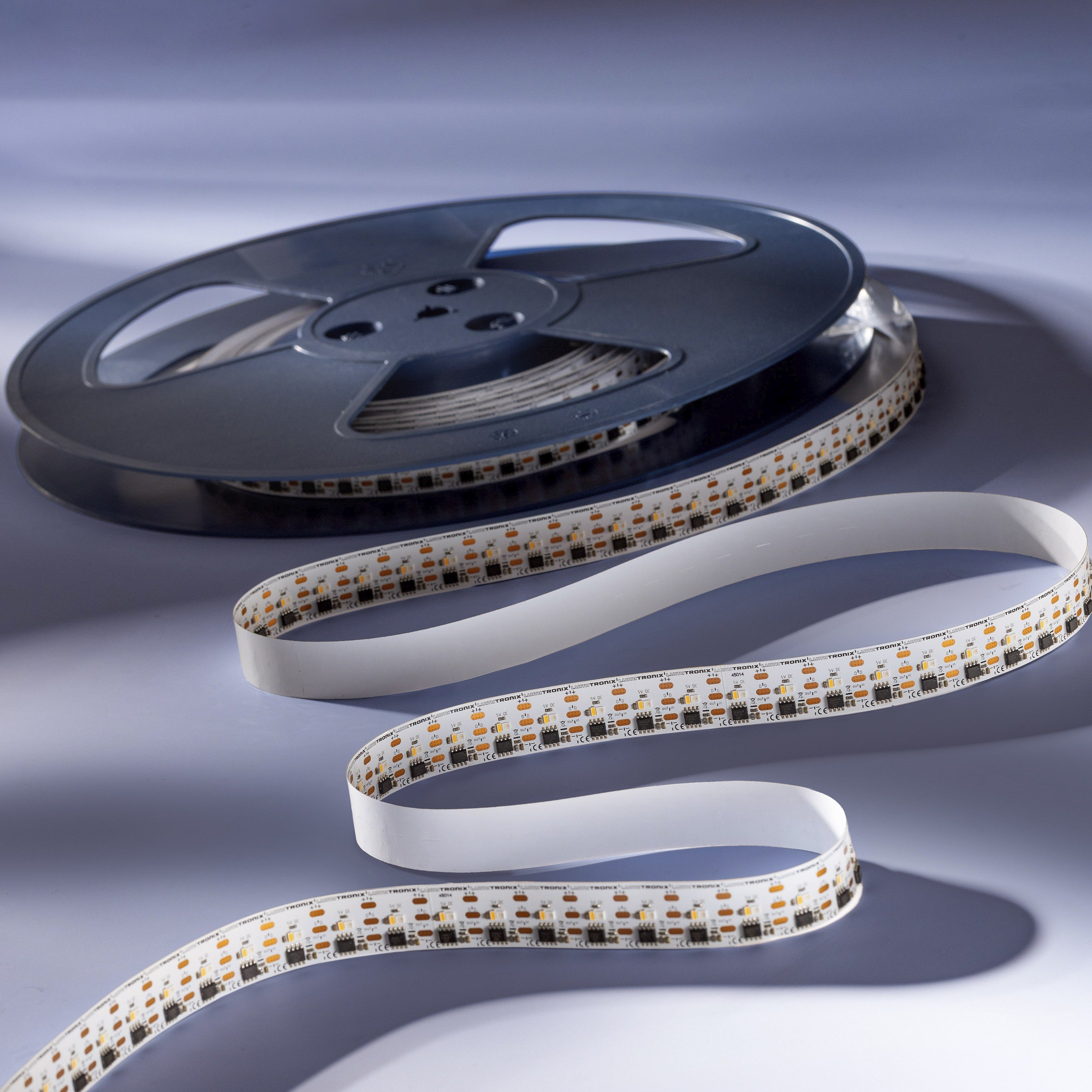

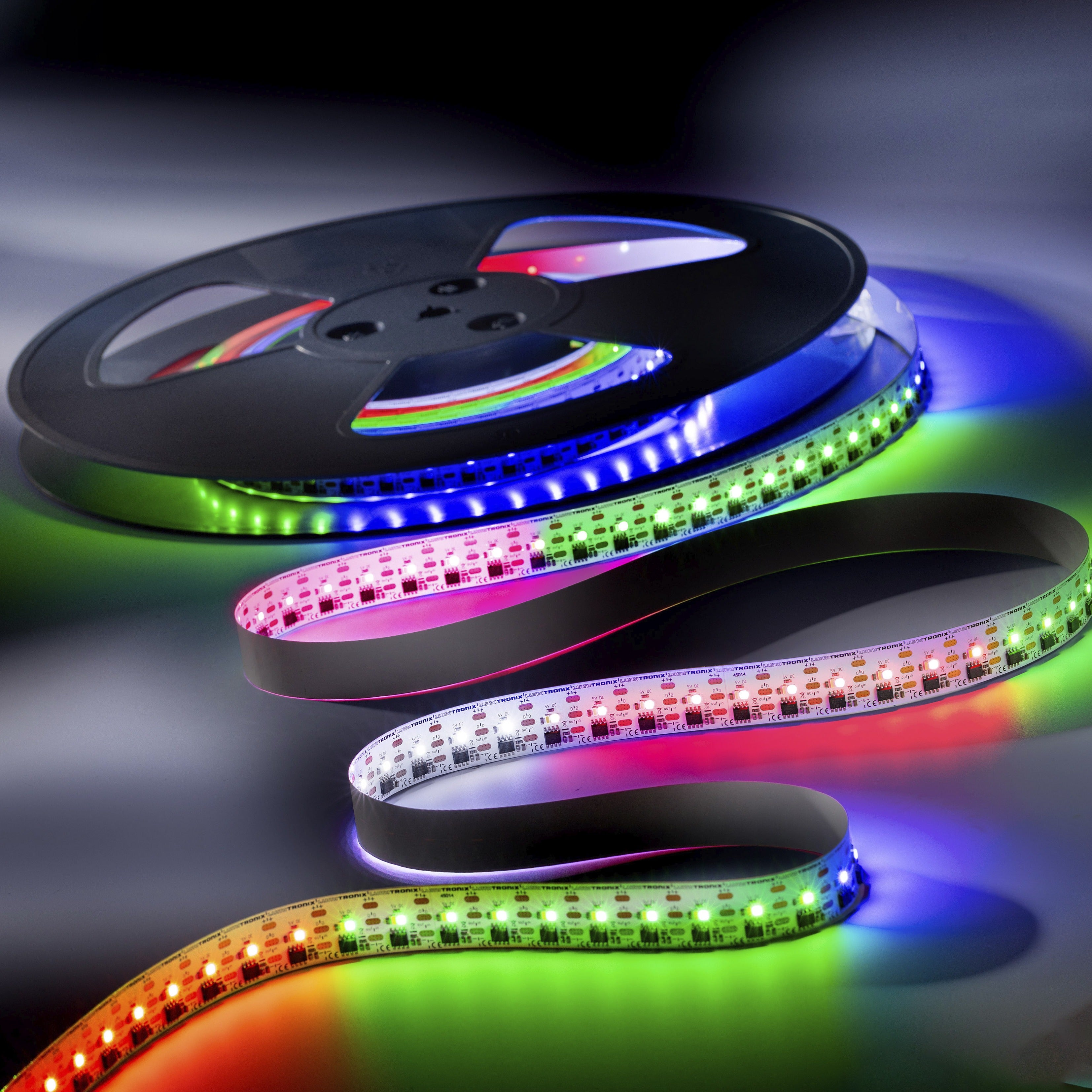

iFlex PRO RGBW LED Strip 5V 0.2W 136 LEDs/m 14.7mm R2R
- Individually addressable professional LED strip for dynamic pixel-controlled lighting
- Individually addressable RGBW modules
- Two RGBW LEDs per 14.71 mm module
- 120° beam angle
- Approximately 136 LEDs per metre equivalent
- 3-Step MacAdam binning on the white channel
- Made in Germany with a 5-year commercial warranty
The iFlex PRO is a professional individually addressable RGBW light engine for dynamic linear lighting, pixel effects, signage and architectural installations. Each 14.71 mm module contains two RGBW LEDs and can be controlled independently, allowing animated gradients, moving colour effects and position-specific white or coloured light along the same flexible chain.
The dedicated white channel is 2700 K with CRI 80+, so the product can provide a usable warm-white scene in addition to RGB effects. At approximately 136 LEDs per metre equivalent, the very fine module pitch supports smooth visual transitions and detailed pixel-mapped effects.
Features of the iFlex PRO RGBW LED strip
- Individually addressable RGBW modules
- Two RGBW LEDs per 14.71 mm module
- Approximately 136 LEDs per metre equivalent
- Dedicated 2700 K white channel with CRI 80+
- 3-Step MacAdam binning on the white channel
- 5 V DC operation
- 14.71 mm cut interval
- 120° beam angle
- Software-adjustable channel current
- Power can be supplied from either side
- Directional data path from the marked “in” side to “out”
- Compatible with Beckhoff EL2574 control
- Suitable for Arduino-based control
- EN 62471 photobiological safety classification: RG0
- CE, RoHS and REACH compliant
- 5-year commercial warranty, subject to current warranty conditions
- Made in Germany using automated Reel-to-Reel production
Pixel-mapped linear and architectural lighting
The iFlex PRO is designed for linear lighting where every short section must be controllable independently. This makes it possible to create travelling light effects, gradients, moving highlights, sequential animations and interactive light lines that cannot be produced with a conventional analogue RGBW strip.
The 14.71 mm segmentation gives designers fine spatial control while retaining the mechanical flexibility needed for curves, custom shapes and continuous architectural features.
Dynamic cove lighting with individual-pixel control
In cove and indirect lighting, individual addressing allows effects to move along the wall or ceiling instead of changing the entire cove simultaneously. Gradients, colour waves and moving white highlights can be programmed along the installation.
The dedicated 2700 K white channel also allows the same system to switch from dynamic colour effects to a warm architectural-white scene without relying on additive RGB white.
Professional RGBW and four-channel effects
The iFlex PRO is suitable for RGBW applications in stage, media, hospitality, entertainment and experiential architecture. Because every module is individually addressable, the four colour channels can be combined with position-specific control rather than only applying one RGBW value to the complete strip.
Signage, displays and animated visual effects
The fine pixel pitch and flexible construction also make the product suitable for signage and display applications, including animated outlines, illuminated lettering, interactive exhibits and programmable decorative elements.
Electrical connection and data direction
The iFlex PRO operates from a stable regulated 5 V DC supply using +5 V, Data and GND connections. Power may be supplied from either side, but the data signal must follow the direction marked on the module chain from “in” to “out”.
Maximum practical operating length depends on the selected per-channel current and the number of power feed points. Additional feeds allow higher total current and longer installations while limiting voltage drop. The module can be separated every 14.71 mm using scissors.
Control integration
The per-channel current is software adjustable, allowing the system designer to balance brightness and total power. The platform is compatible with Beckhoff EL2574 control and can also be integrated into Arduino-based projects, making it suitable for professional automation as well as custom creative-technology systems.
Our manufacturing and quality promise
We develop and manufacture professional LED strips and modules in Germany, combining more than 20 years of LED application experience with automated production and application engineering. Our focus is on repeatable performance, carefully selected components and light engines that can be integrated reliably into professional lighting systems.
For project customers, we can also support custom development, PCB adaptation, LED selection, thermal design, prototyping and series production. This allows the light engine to be matched to the luminaire or architectural application instead of forcing the project around a generic LED tape.
Learn more about Lumistrips and our LED manufacturing capabilities.
| SKU | 45014 |
|---|---|
| Color | RGBW |
| Power (W) | 0.2 |
| Warranty (months) | 36 |
| Product lifetime (h) | 36000 |
| Manufacturer Product Code | 45014 |
| Product Family | iFlex PRO |
| Strip Type | Flexible |
| Strip LEDs per meter | 136 |
| LEDs number per sales unit | 2 |
| Dimensions | 14.7 mm |
| Dimensions: Length (cm) | 1.47 |
| Brand | Lumistrips |
| Forward Voltage Typ (V) | 5 |
