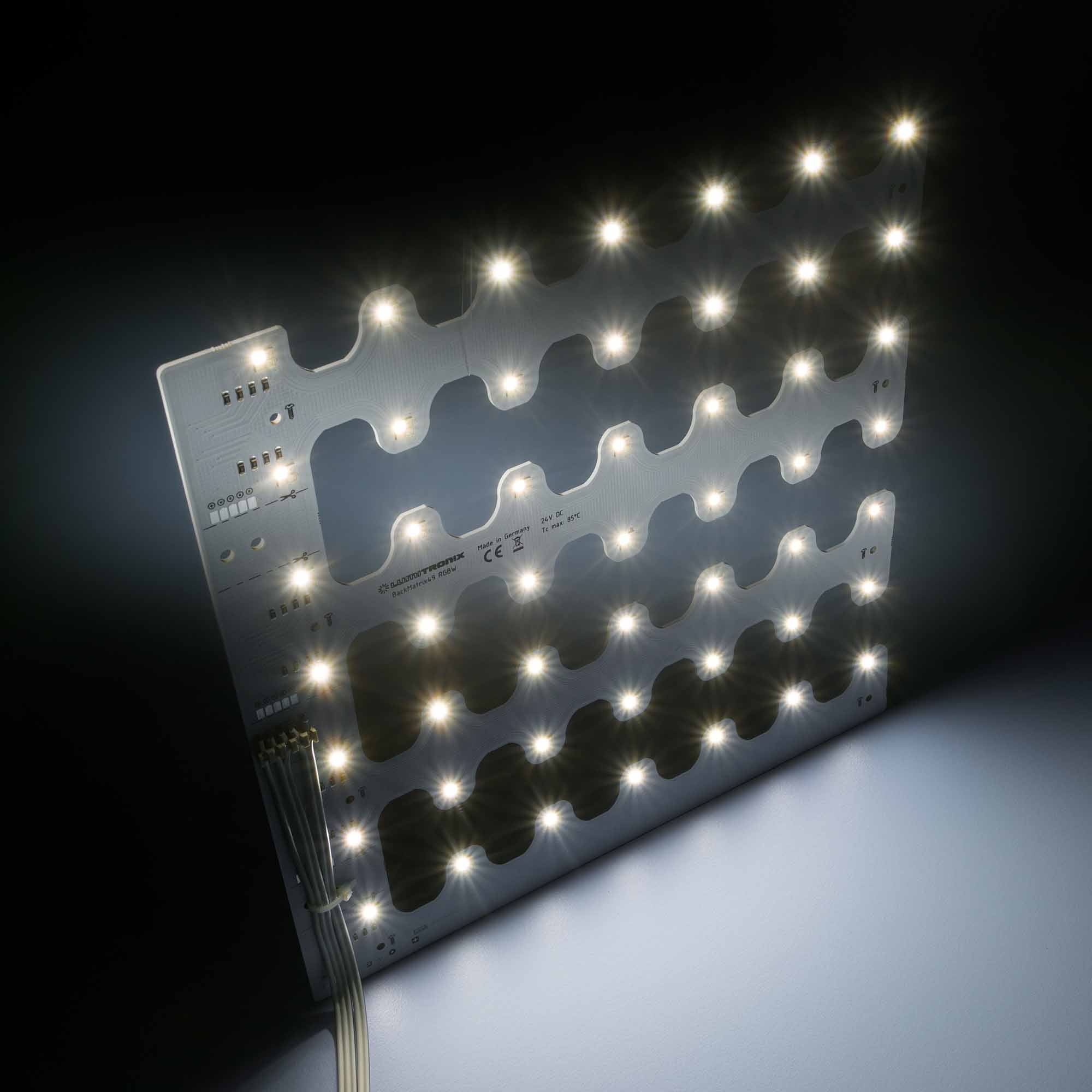

BackMatrix-49-3080 Nichia LED Module RGBW 4000K 4300lm 196 LEDs 24V 58W 120° 28x28cm (54000 lm/sqm)
- Premium large-area LED module platform for high-quality or multi-channel backlighting
- Four independently controllable channels: red, green, blue and 4000 K white
- Independent PWM dimming / RGBW control
- Total luminous flux approximately 4300 lm
- 24 V DC operation for all four channels

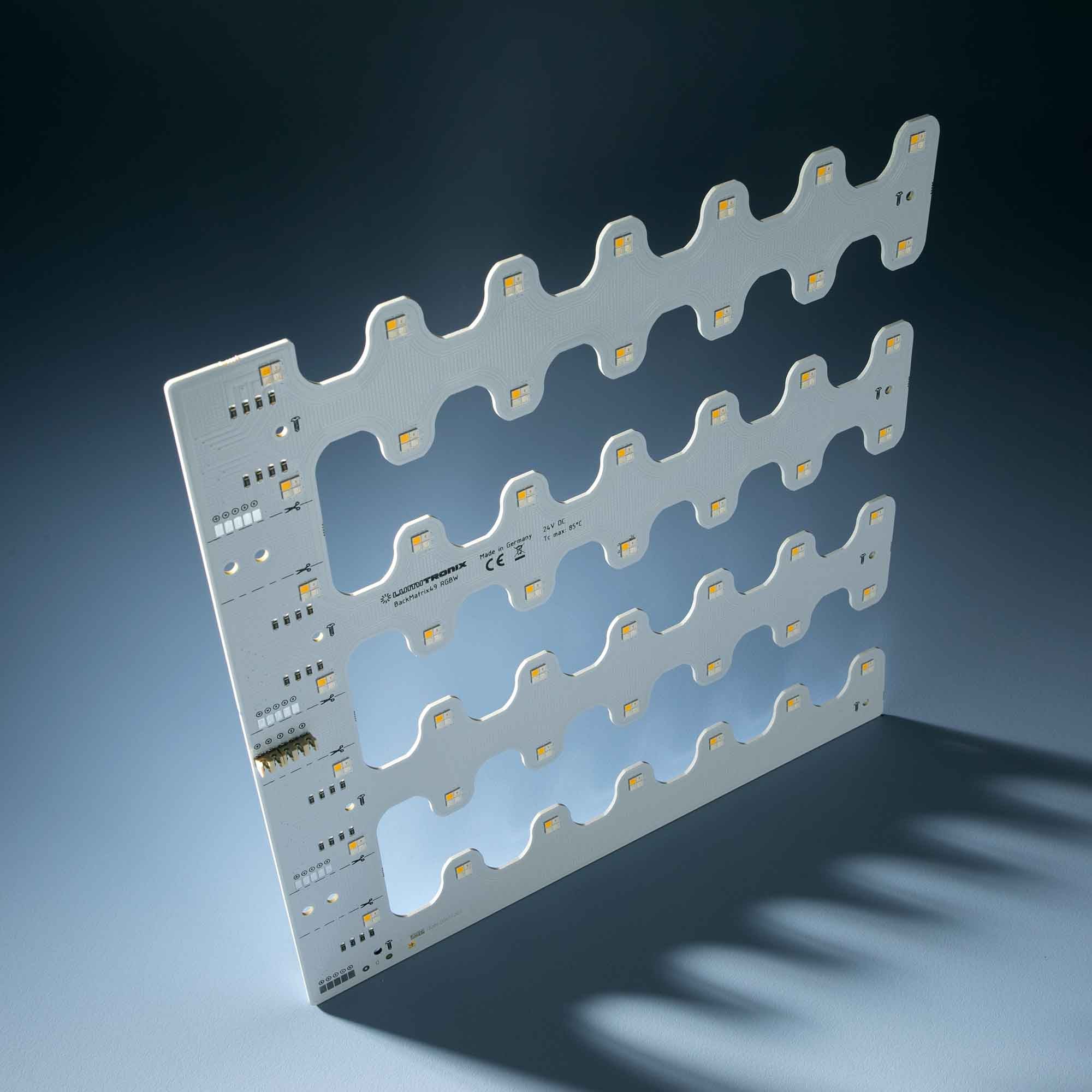

- 196 LEDs on a 280 × 280 mm rigid PCB
- Made in Germany with a 5-year commercial warranty
The BackMatrix-49-3080 RGBW is a four-channel large-area LED module for dynamic backlighting, signage and luminous architectural surfaces. It combines red, green, blue and a dedicated 4000 K white channel on one 280 × 280 mm board, allowing both saturated colour scenes and high-quality neutral-white illumination from the same light engine.
The complete module contains 196 LEDs and delivers approximately 4300 lm with all channels considered, while the dedicated white channel alone provides 2390 lm at CRI 80+.
Features of the BackMatrix-49-3080 RGBW module
- Four independently controllable channels: red, green, blue and 4000 K white
- 196 LEDs on a 280 × 280 mm rigid PCB
- Total luminous flux approximately 4300 lm
- White channel: 2390 lm at CRI 80+

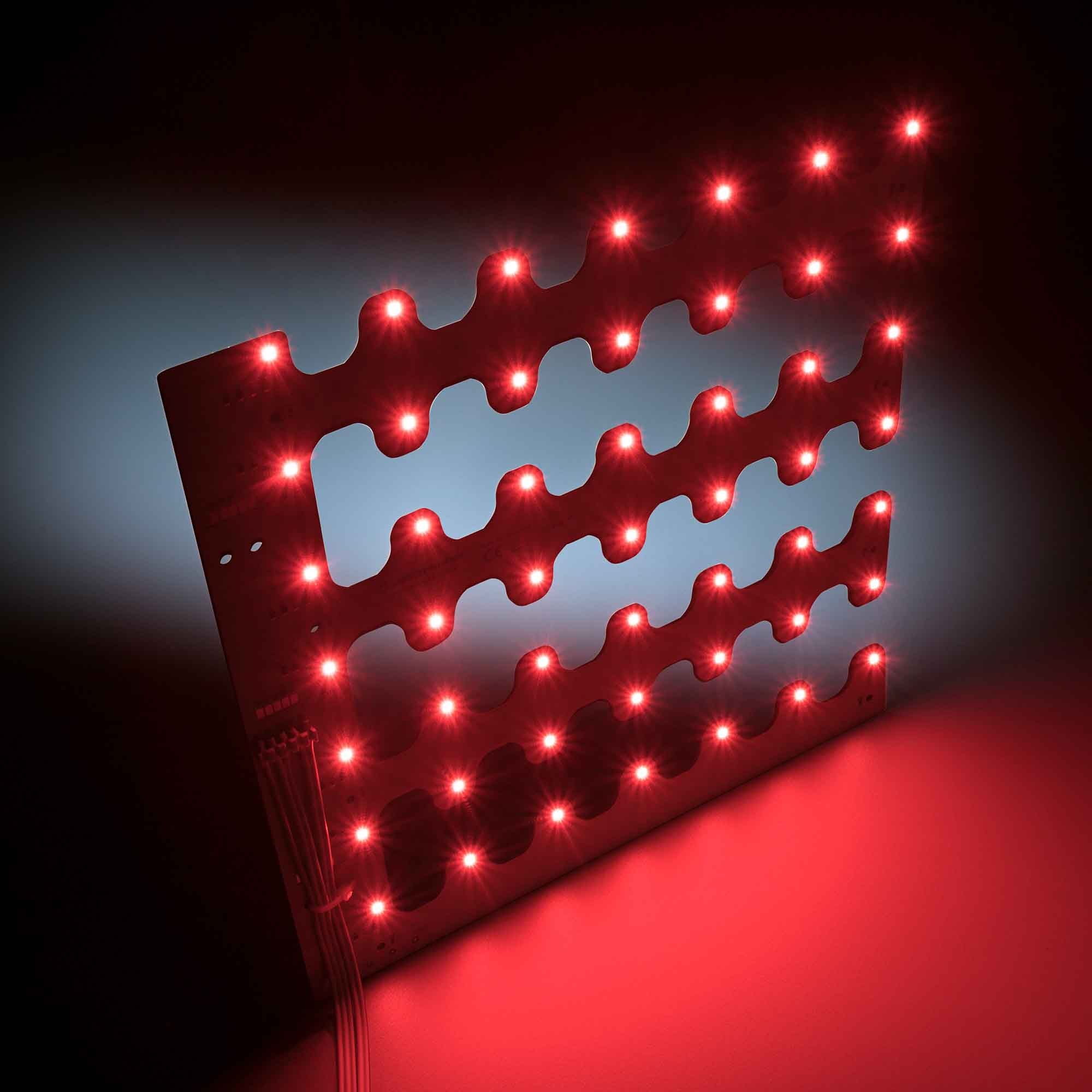

- Red channel: approximately 580 lm at 631 nm

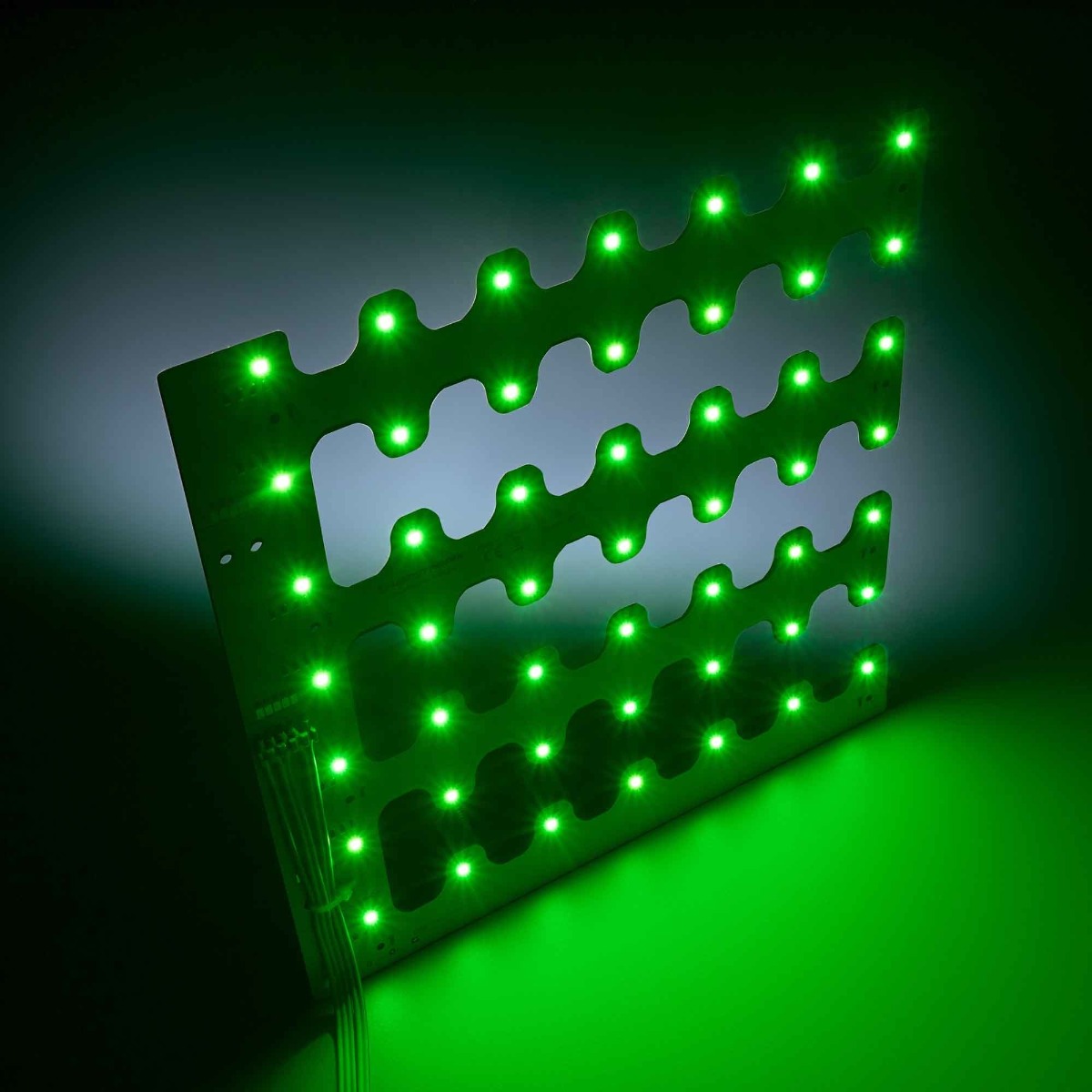

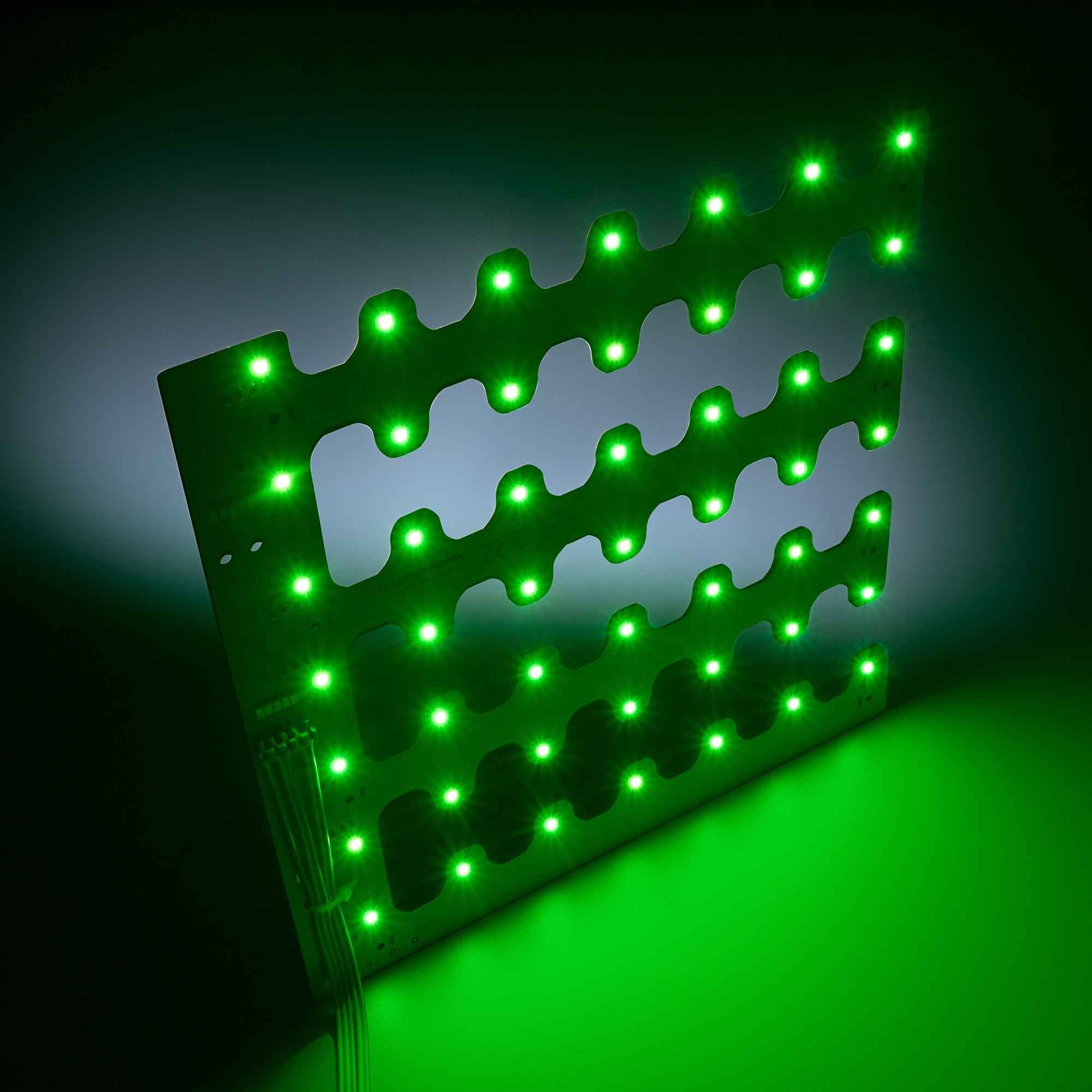

- Green channel: approximately 920 lm at 518 nm
- Blue channel: approximately 410 lm at 466 nm
- 24 V DC operation for all four channels
- Maximum total power approximately 58.8 W
- 120° light distribution
- Independent PWM dimming / RGBW control
- Solder-free insulation-displacement terminal
- Compatible with connection conductors up to approximately 0.75 mm² / AWG18
- White-channel lifetime greater than 60,000 h
- EN 62471 photobiological safety classification: RG0
- CE, RoHS and REACH compliant
- 5-year commercial warranty, subject to current warranty conditions
- Made in Germany
Designed for uniform large-area backlighting
BackMatrix modules are designed for backlighting behind diffusers rather than narrow-beam illumination. The LEDs are distributed across a square rigid PCB so the light can blend over a short optical distance into a broad, visually uniform luminous surface.
RGBW is particularly effective behind diffusers because the translucent surface helps mix the four channels into a continuous luminous field. This is useful for branded environments, experiential retail, hospitality, exhibition stands and dynamic architectural surfaces.
Billboards, signage and illuminated displays
The regular LED layout is well suited to billboard backlighting, signage, light boxes, exhibition displays and other illuminated graphics. Several modules can be arranged behind a translucent face to cover large areas while maintaining repeatable LED spacing.
The final cavity depth and module spacing should be selected according to the diffuser transmission, required brightness and acceptable hotspot visibility.

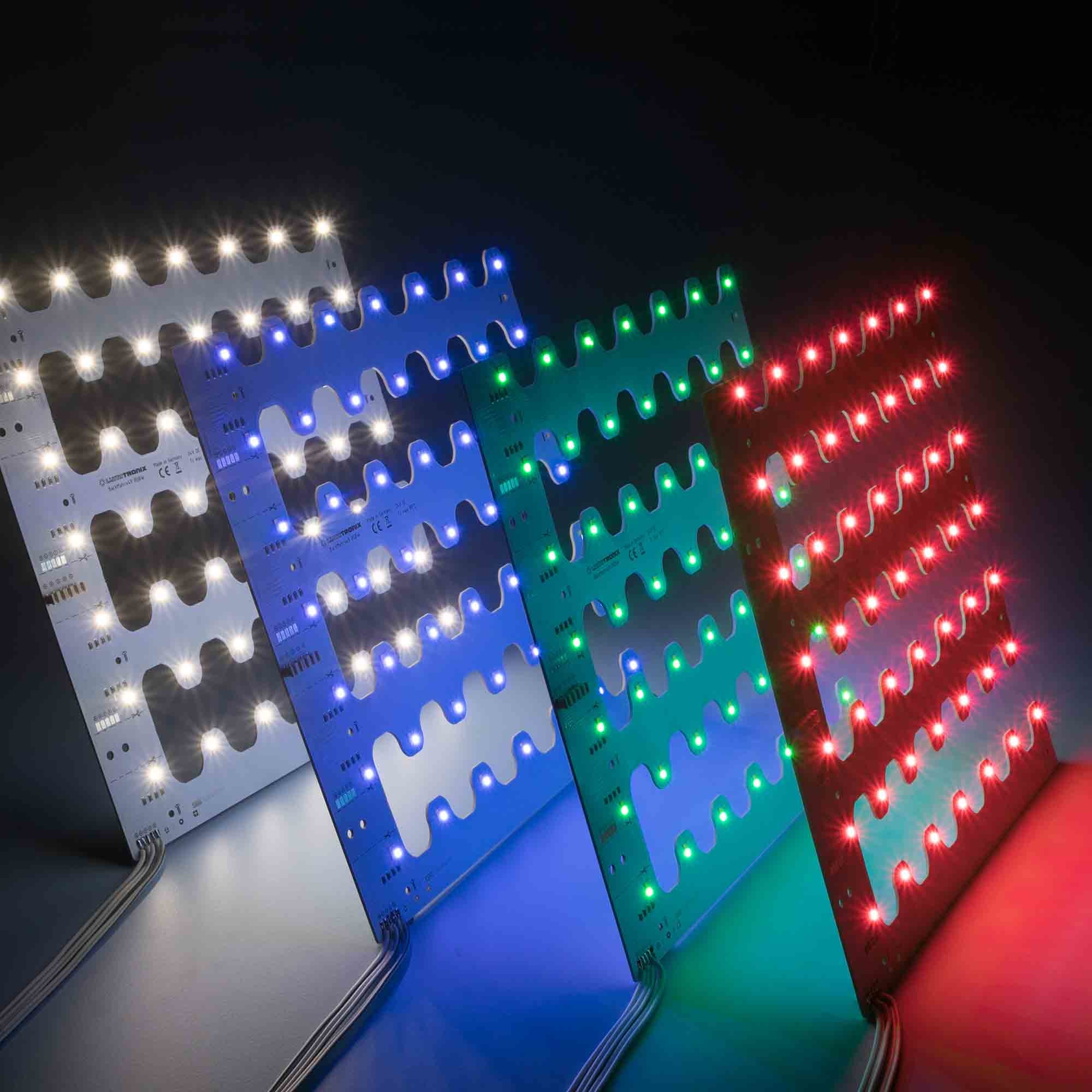

Four-channel RGBW colour control
The red, green, blue and white channels are electrically independent. A compatible RGBW controller can create saturated colours, animated scenes and mixed tones while the dedicated 4000 K white channel provides a more practical neutral-white scene than additive RGB white alone.
This makes the module suitable for installations that need both decorative colour and normal white-light operation from the same luminous surface.
RGBW billboard and signage backlighting
For billboards and signage, the RGBW module can turn the complete illuminated face into a programmable colour surface. The regular square geometry helps keep LED spacing predictable when multiple boards are installed side by side.
24 V control and power architecture
Use a regulated 24 V DC power supply together with an RGBW controller capable of independently switching or PWM-dimming all four channels. At full simultaneous output the module can draw approximately 2.45 A and 58.8 W, so controller, wiring and power supply must be sized for the maximum combined load.
When several modules are used together, preserve separate R, G, B and W control paths and distribute power so voltage drop does not alter colour balance across the surface.
High-quality Nichia LEDs
BackMatrix uses specified Nichia LEDs rather than unidentified generic components. This gives better control over luminous performance, colour consistency and long-term behaviour when many modules are used together in one illuminated surface.
The white-light variants are colour sorted for consistent appearance across multi-module installations. For more background on white-light quality, see our colour temperature guide.
Designed and manufactured in Germany
We develop and manufacture professional rigid LED modules in Germany, combining more than 20 years of LED application experience with controlled SMT production and application engineering. BackMatrix products are designed as repeatable large-area light engines for professional backlighting, signage and custom luminaires.
For OEM and project customers, we can also support LED selection, PCB adaptation, thermal design, optical layout, prototyping and series production. This is especially useful for large illuminated surfaces, where LED pitch, diffuser distance, luminous density and module spacing must work together as one optical system.
This product is covered by a 5-year commercial warranty, subject to current warranty conditions. Learn more about Lumistrips and our LED manufacturing capabilities.
| SKU | 40919 |
|---|---|
| Weight brut (g) | 150.000000 |
| Color | RGBW |
| Bright like (W) | 160 |
| Luminous Flux Typ (lm) | 2390 |
| Efficacy (lm per W) | 142 |
| Energy Class 2022 | D |
| Power (W) | 16.83 |
| Dimmable | Dimmable |
| Viewing Angle | 120° |
| Warranty (months) | 60 |
| Lifetime for residential, 3h daily (yrs) | 55 |
| Product lifetime (h) | 60000 |
| Lifetime for commercial, 12h daily (yrs) | 14 |
| Manufacturer Product Code | 40919 |
| Product Family | BackMatrix3090 |
| Strip Type | Rigid |
| LEDs number per sales unit | 196 |
| Dimensions | 280x280x6.6 |
| Dimensions: Length (cm) | 28 |
| Dimensions: Width (mm) | 280 |
| Dimensions: Height (mm) | 6.6 |
| Brand | Lumistrips |
| Manufacturer Part Number | 4260127452649 |
| Forward Voltage Typ (V) | 24 |
