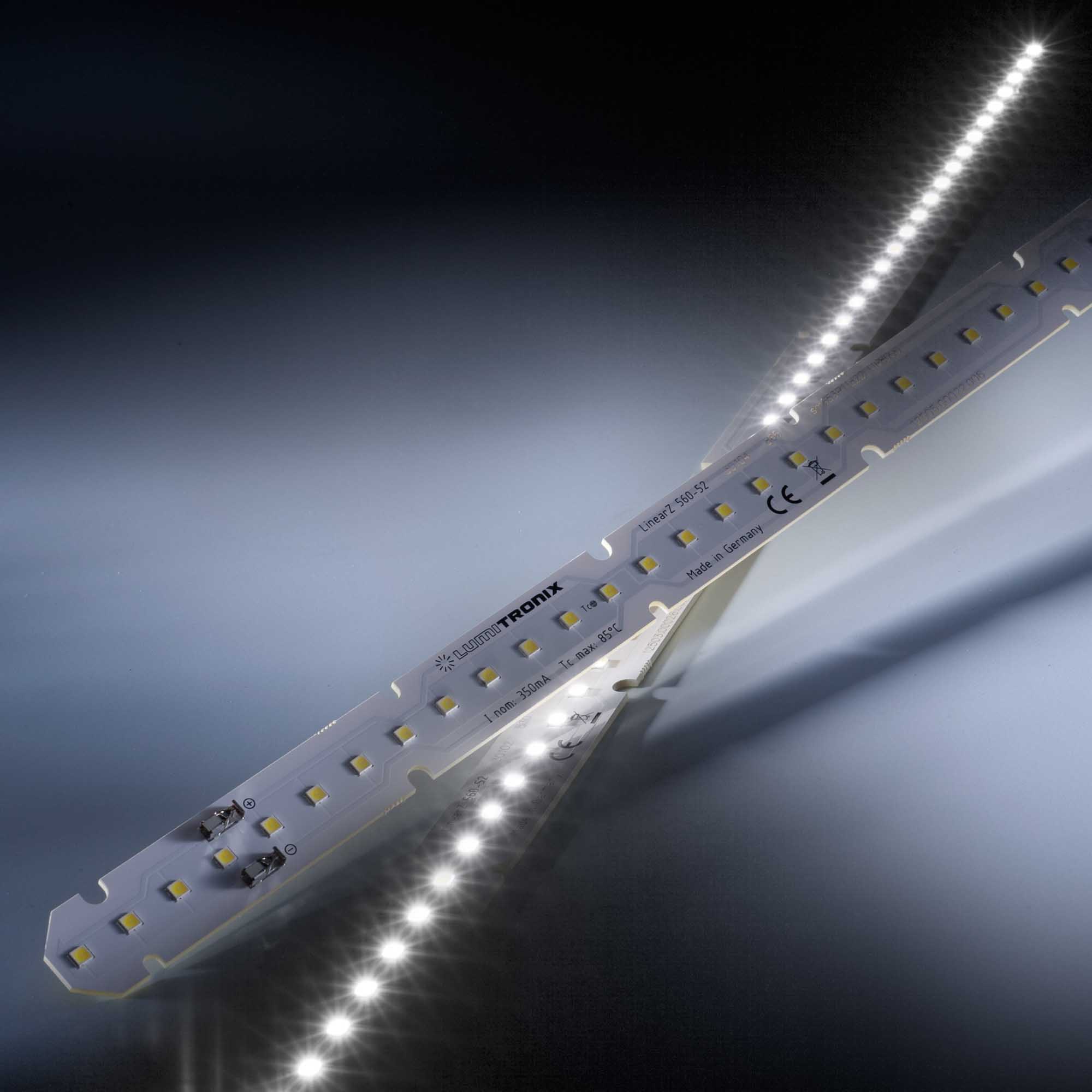

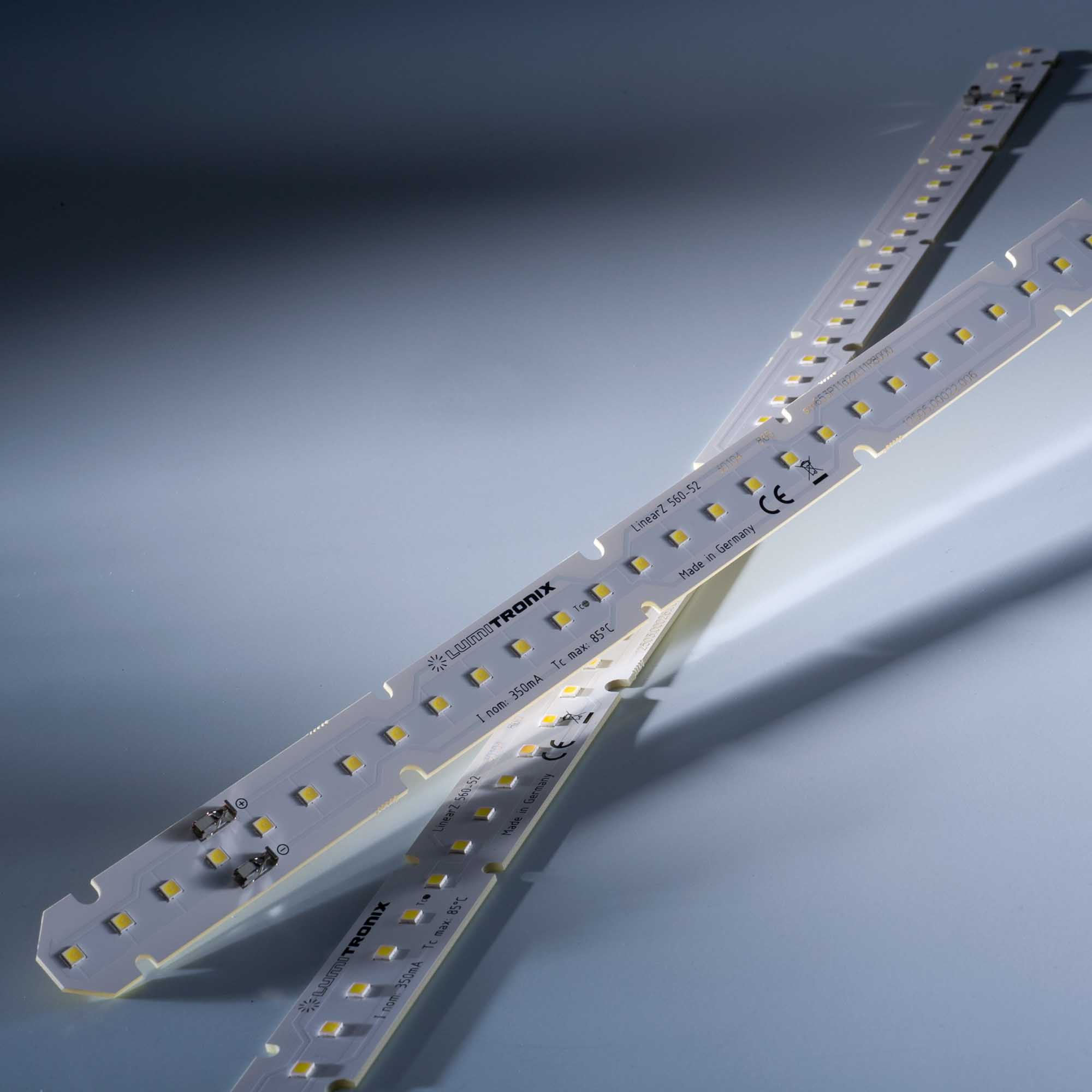

LumiBar-52-3098+ Nichia LED Strip Optisolis CRI99 D50 pure white 5000K 1504lm 28PPF 350mA 37.5V 52 LEDs 56cm module (2686lm/m 24W/m)
- Rigid linear LED module built around Zhaga-style mechanical dimensions for professional luminaires
- 52 Nichia Optisolis LEDs
- CRI 99
- Approximately 28 PPF per module
- 1504 lm per module / approximately 2686 lm per metre
- Constant-current operation at 350 mA
- Made in Germany with a 5-year commercial warranty
The LumiBar-52-3098+ Optisolis is a premium rigid LED module for the most colour-critical linear-lighting applications. It uses 52 Nichia Optisolis LEDs at D50 / 5000 K and CRI 99 to reproduce a spectrum close to daylight while delivering 1504 lm from a 560 mm module.
The module provides approximately 2686 lm/m and about 28 PPF per module. Its very high colour fidelity and minimal UV content make it especially suitable for museums, galleries, printing, proofing, photography, studios and other applications where the illuminated object must be evaluated as naturally as possible.
Features of the LumiBar Optisolis rigid LED module

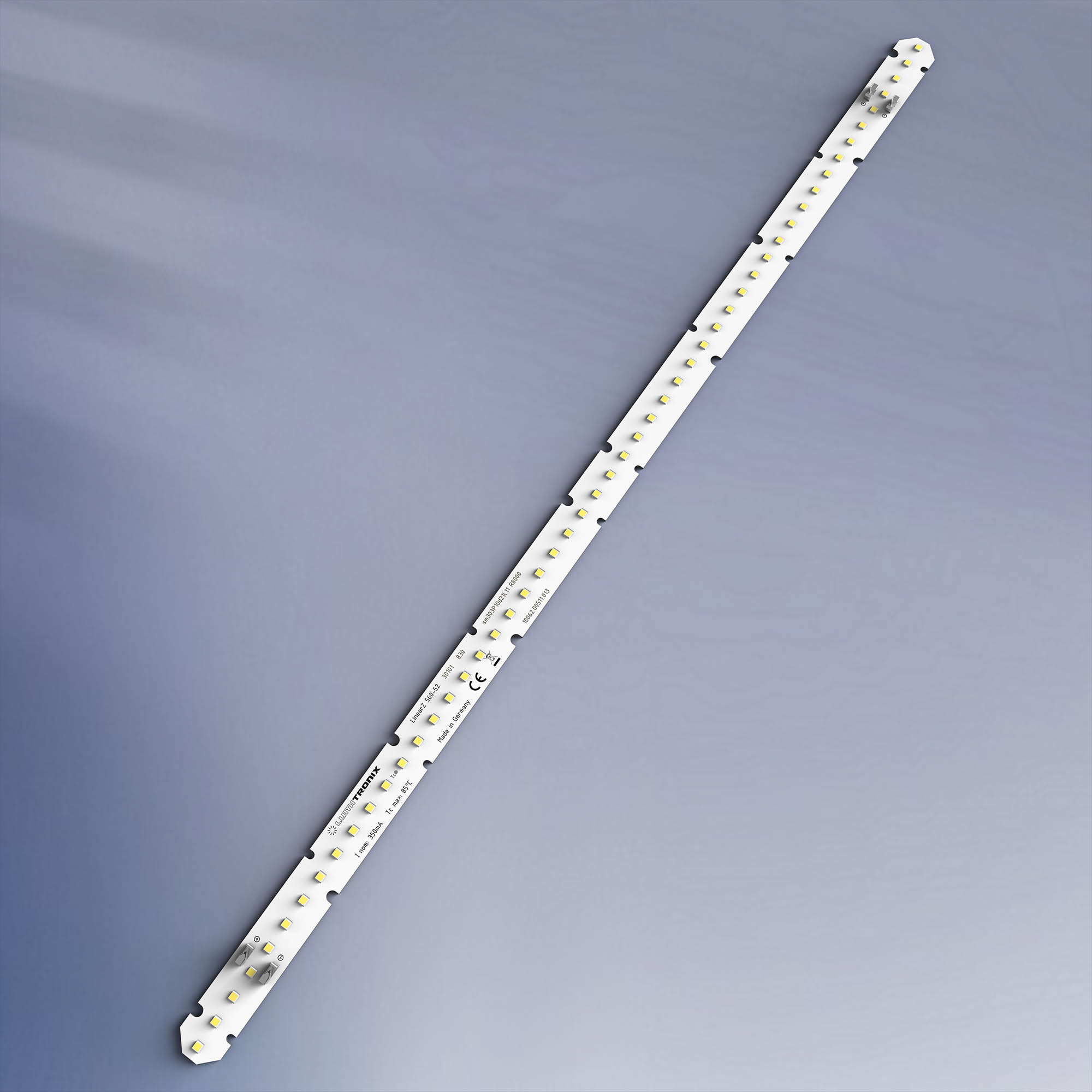

- 560 mm rigid linear LED module
- 52 Nichia Optisolis LEDs
- D50 / 5000 K daylight white
- CRI 99
- 1504 lm per module / approximately 2686 lm per metre
- Approximately 28 PPF per module
- Constant-current operation at 350 mA
- Approximately 37.5 V module voltage
- Approximately 13 W per module
- Very low UV content

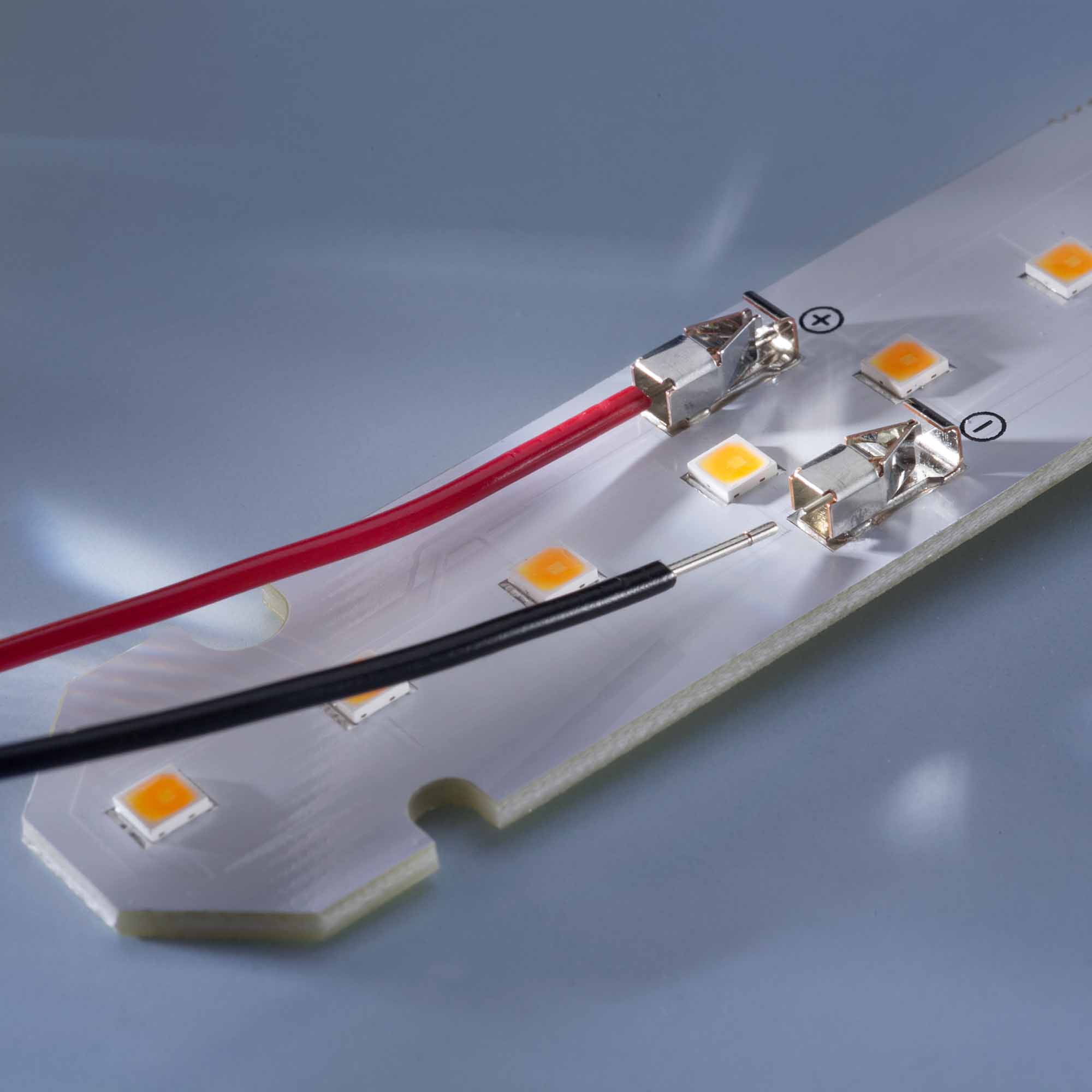

- Solderless connection concept
- Designed to operate without an additional heat sink in the intended configuration
- 5-year commercial warranty, subject to current warranty conditions
- Made in Germany
Reference-quality light for colour evaluation
Optisolis is particularly relevant to museums, art galleries, printing, proofing, photography, textile evaluation and high-end retail where colour differences that are hidden by conventional white LEDs may become important. The D50 5000 K version is especially useful when a daylight-like reference white is desired.
Rigid light engine for professional linear luminaires
The rigid PCB is designed for linear luminaires, continuous light lines and compact commercial fixtures where a straight, mechanically stable LED board is preferable to flexible tape. The defined LED pitch helps create a smooth luminous line behind a suitable diffuser, while the rigid module simplifies repeatable positioning inside an OEM luminaire.
For guidance on profile depth, diffuser distance and LED spacing, see our linear fixture design guide.
Troffers and diffuse commercial luminaires
The module is also suitable for troffers and diffuse ceiling luminaires. Multiple modules can be arranged in rows behind a diffuser to create a broad luminous surface for offices, classrooms, healthcare spaces, retail and other commercial interiors. Final spacing should be selected according to the diffuser, optical distance and required luminance uniformity.
Built around the Zhaga Book 7 linear-module standard
This module is designed around the Zhaga Book 7 L56W2 linear-module form factor. The L56W2 category gives the luminaire designer a recognized mechanical envelope and keep-out area for this class of linear LED module. This can simplify mechanical design, sourcing, servicing and later product revisions when a luminaire family is built around standardized module dimensions.
Zhaga Book 7 supports mechanical interoperability, but it does not make the electrical operating point, luminous flux, efficiency or optical performance identical between modules from different manufacturers. The LED driver current, forward-voltage range, connector arrangement, thermal conditions and photometric performance must therefore still be checked for the specific module and luminaire.
Book 7 has also been published as IEC 63356-2. The modules require a separate LED driver and are intended for professional luminaire integration and servicing.
Constant-current driver integration
The module requires a regulated 350 mA constant-current driver. Driver voltage range and total connected module count must be selected for the actual series or parallel architecture of the luminaire.
Designed and manufactured in Germany
We develop and manufacture professional rigid LED modules and flexible LED light engines in Germany, combining more than 20 years of LED application experience with controlled SMT production and application engineering. Our focus is on predictable optical performance, specified LED components, repeatable electrical characteristics and light engines that can be integrated reliably into professional luminaires.
For OEM and project customers, we can also support LED selection, PCB adaptation, thermal design, prototyping, optical evaluation and series production. This allows the light engine to be matched to the luminaire and application instead of forcing the project around a generic LED board.
Learn more about Lumistrips and our LED manufacturing capabilities.
| SKU | 31332 |
|---|---|
| Weight brut (g) | 1.000000 |
| Color | Neutral White |
| Color Temperature | 5000K |
| Color Rendering Index | 99 |
| Luminous Flux per meter | 2686 |
| Bright like (W) | 224 |
| Luminous Flux Typ (lm) | 1504 |
| Efficacy (lm per W) | 115 |
| Energy Class 2022 | E |
| Power (W) | 6.6 |
| Warranty (months) | 60 |
| Lifetime for residential, 3h daily (yrs) | 92 |
| Product lifetime (h) | 100000 |
| Lifetime for commercial, 12h daily (yrs) | 23 |
| Manufacturer Product Code | 31332 |
| Product Family | Lumibar3098+ |
| Strip Type | Rigid |
| LEDs number per sales unit | 12 |
| Dimensions | 560x20x4.55 |
| Dimensions: Length (cm) | 56 |
| Dimensions: Width (mm) | 20 |
| Dimensions: Height (mm) | 4.55 |
| Brand | Lumistrips |
| Manufacturer Part Number | 4260127452830 |
| Forward Voltage Typ (V) | 37.5 |
| Availability beyond shown stock: | YES |
