Maxline-70-4080 Nichia LED Strip warm white 3000K 2150lm 24V 70 LEDs 28cm module (7679lm/m 60W/m)

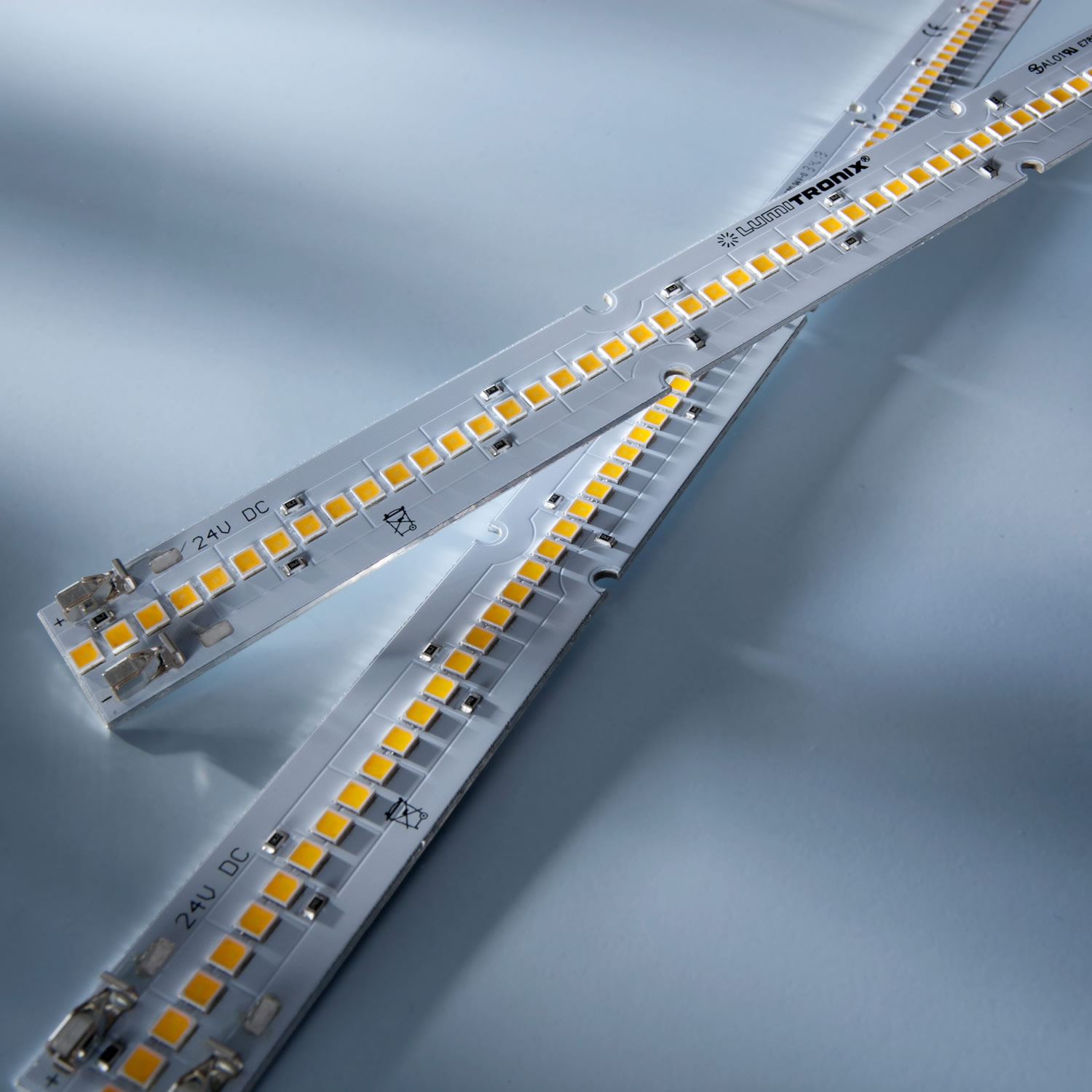

The Maxline4080 is a very high-output rigid Nichia LED module for compact linear luminaires, task lighting and fluorescent-tube replacement. This 280 mm version uses 70 Nichia 757G LEDs on an aluminium-core PCB and delivers 2150 lm, equivalent to approximately 7679 lm/m.

Maxline is designed for applications where a narrow light engine must produce far more light than a conventional decorative LED strip. The 13 mm-wide aluminium PCB provides the thermal path needed for high LED loading, while the 280 mm module format is practical for T8-style luminaires, continuous light lines and compact commercial fixtures.

Features of the Maxline4080 rigid LED module

• 280 mm rigid aluminium-core LED module
• 3000 K white light
• CRI 80+
• 70 Nichia 757G LEDs per module / approximately 250 LEDs per metre
• 2150 lm per module / approximately 7679 lm per metre
• Approximately 16.8 W per module
• 24 V DC constant-voltage operation
• Dimensions approximately 280 × 13 × 4.5 mm
• Recesses for screw mounting
• Aluminium PCB for efficient heat transfer
• Simple plug-and-play connection concept
• Dimmable with a compatible driver or controller
• Designed for compact, high-output linear fixtures and T8-style replacements
• 5-year commercial warranty, subject to current warranty conditions
• Made in Germany

Compact high-output linear lighting

With approximately 7679 lm/m, Maxline can serve as the primary light engine in professional linear luminaires, not only as accent lighting. It is particularly useful for shops, offices, warehouses, studios, clinics, production areas and other spaces where a small fixture must generate high illuminance.

The rigid 280 mm board simplifies repeatable fixture construction and keeps the LED pitch straight behind a diffuser or optical element. For additional integration guidance, see our linear fixture design guide.

Three Maxline density classes for different fixture outputs

The Maxline platform is available with 14, 35 or 70 LEDs on the same basic 280 mm aluminium PCB format. This allows a luminaire designer to choose the required output density without changing the overall mechanical concept of the fixture.

The 70-LED version in this SKU is suited to maximum-output fixtures where the smallest possible linear footprint is required.

24 V constant-voltage system integration

The 24 V version is convenient when several modules must be integrated into a conventional constant-voltage luminaire architecture. The power supply or driver should be selected for the exact operating mode of this SKU rather than assuming all Maxline modules use the same electrical architecture.

The module is designed for plug-and-play luminaire assembly and can also be combined into longer light lines. Cable sizing, connector rating, driver voltage range and total connected load should be verified for the final module count.

Nichia 757G LEDs and aluminium-core thermal design

Nichia 757G mid-power LEDs provide a well-established combination of efficiency, output and long-term reliability. The aluminium-core PCB helps transfer heat away from the LEDs, which is especially important at the high linear power densities used by Maxline.

The 3000 K warm-white version is especially suitable for hospitality, retail, cafés, guest rooms and residential-style commercial interiors where a comfortable atmosphere is preferred. For additional guidance on white-light selection, see our colour temperature guide and CRI guide.

Designed and manufactured in Germany

We develop and manufacture professional LED strips and modules in Germany, combining more than 20 years of LED application experience with controlled production and application engineering. Our focus is on specified LED components, robust thermal design and repeatable electrical and optical performance.

For OEM and project customers, we can also support PCB adaptation, LED selection, optics integration, thermal design, prototyping and series production. This allows the LED engine to be matched to the luminaire rather than forcing the luminaire around a generic light source.
