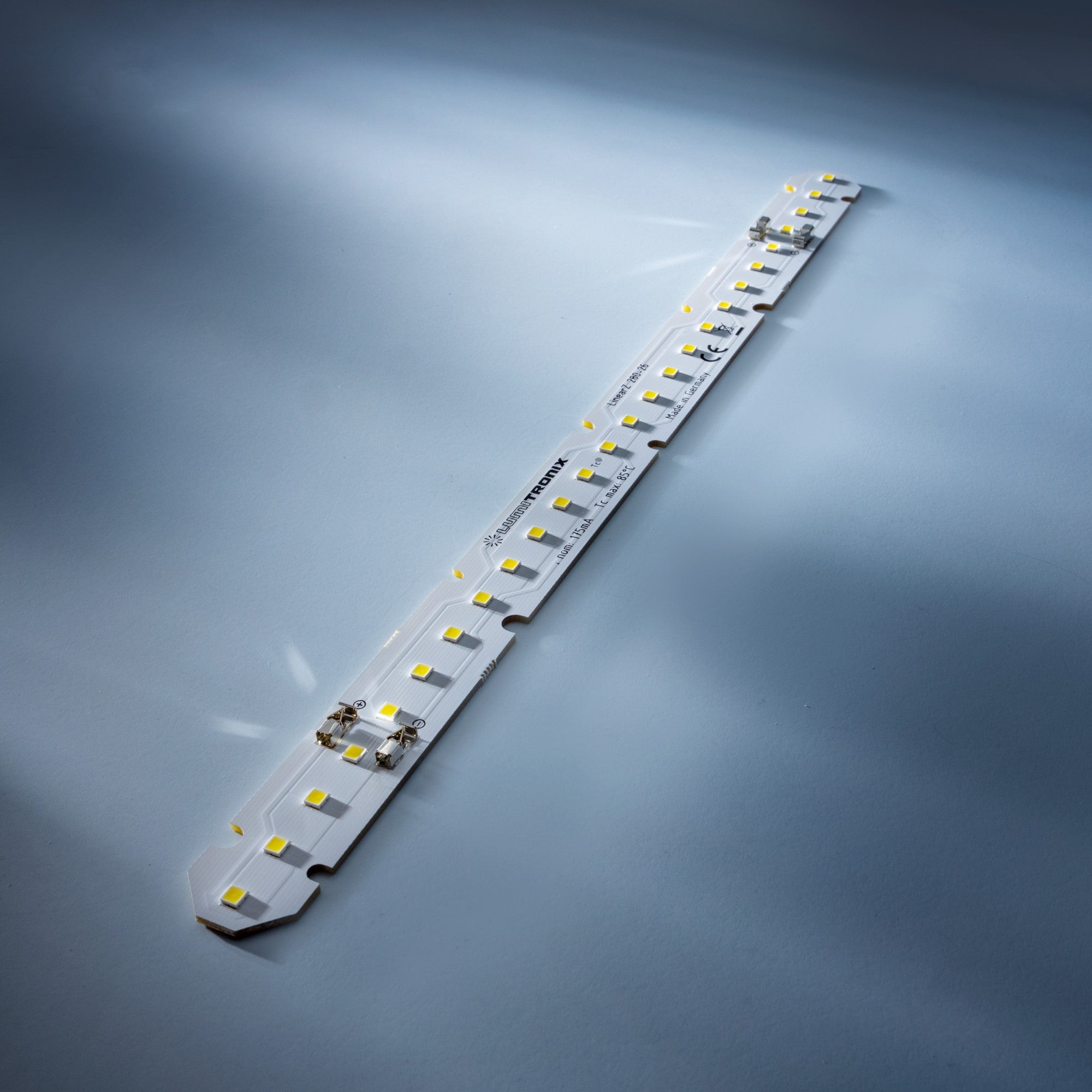

LumiBar-28-3095 Nichia H6 LED Strip warm white CRI95 2700K 880lm 175mA 36V 26 LEDs 28cm module (3100lm/m 22W/m)
- Rigid linear LED module built around Zhaga-style mechanical dimensions for professional luminaires
- High colour rendering: CRI 95
- 880 lm per module / approximately 3100 lm per metre
- 3-Step MacAdam colour consistency
- Constant-current operation at 175 mA
- Solderless connection concept
- Made in Germany with a 5-year commercial warranty
The LumiBar3095 H6 is a premium rigid linear LED module for professional luminaires that need both high colour rendering and strong efficiency. This 280 mm, 2700 K version uses 26 Nichia H6 LEDs and delivers 880 lm at CRI 95, equivalent to approximately 3100 lm/m.
The H6 platform is designed to combine high-CRI light with substantially better efficacy than earlier generations of colour-critical LEDs, making it attractive for retail, hospitality, medical, gallery, studio and architectural lighting where both visual quality and operating efficiency matter.
Features of the LumiBar Nichia H6 rigid LED module
- 280 mm rigid linear module
- 2700 K white light
- High colour rendering: CRI 95
- 26 Nichia H6 LEDs
- 880 lm per module / approximately 3100 lm per metre
- Constant-current operation at 175 mA
- Approximately 36 V module voltage
- Approximately 6.4 W per module
- Wide 120° beam
- Solderless connection concept
- 3-Step MacAdam colour consistency
- 5-year commercial warranty, subject to current warranty conditions
- Made in Germany
High-CRI light for retail, hospitality and professional interiors
CRI 95 helps reproduce saturated colours, skin tones, natural materials and merchandise with high fidelity. The module is therefore well suited to retail displays, restaurants, hotels, galleries, studios, medical interiors and premium architectural lighting.
Rigid light engine for professional linear luminaires
The rigid PCB is designed for linear luminaires, continuous light lines and compact commercial fixtures where a straight, mechanically stable LED board is preferable to flexible tape. The defined LED pitch helps create a smooth luminous line behind a suitable diffuser, while the rigid module simplifies repeatable positioning inside an OEM luminaire.
For guidance on profile depth, diffuser distance and LED spacing, see our linear fixture design guide.
Troffers and diffuse commercial luminaires
The module is also suitable for troffers and diffuse ceiling luminaires. Multiple modules can be arranged in rows behind a diffuser to create a broad luminous surface for offices, classrooms, healthcare spaces, retail and other commercial interiors. Final spacing should be selected according to the diffuser, optical distance and required luminance uniformity.
Application fit for 2700 K white light
The warm white tone is suited to hospitality, residential interiors, restaurants and premium retail.
Built around the Zhaga Book 7 linear-module standard
This module is designed around the Zhaga Book 7 L28W2 linear-module form factor. The L28W2 category gives the luminaire designer a recognized mechanical envelope and keep-out area for this class of linear LED module. This can simplify mechanical design, sourcing, servicing and later product revisions when a luminaire family is built around standardized module dimensions.
Zhaga Book 7 supports mechanical interoperability, but it does not make the electrical operating point, luminous flux, efficiency or optical performance identical between modules from different manufacturers. The LED driver current, forward-voltage range, connector arrangement, thermal conditions and photometric performance must therefore still be checked for the specific module and luminaire.
Book 7 has also been published as IEC 63356-2. The modules require a separate LED driver and are intended for professional luminaire integration and servicing.
Constant-current driver integration
The module requires a regulated constant-current LED driver set to 175 mA. The driver voltage window must accommodate approximately 36 V per module and the total voltage of any series string. Parallel wiring should only be used with a validated current-sharing or branch-regulation strategy.
Designed and manufactured in Germany
We develop and manufacture professional rigid LED modules and flexible LED light engines in Germany, combining more than 20 years of LED application experience with controlled SMT production and application engineering. Our focus is on predictable optical performance, specified LED components, repeatable electrical characteristics and light engines that can be integrated reliably into professional luminaires.
For OEM and project customers, we can also support LED selection, PCB adaptation, thermal design, prototyping, optical evaluation and series production. This allows the light engine to be matched to the luminaire and application instead of forcing the project around a generic LED board.
Learn more about Lumistrips and our LED manufacturing capabilities.
| SKU | 42611 |
|---|---|
| Color | Warm White |
| Color Temperature | 2700K |
| Color Rendering Index | 95 |
| Luminous Flux per meter | 3100 |
| Luminous Flux Typ (lm) | 880 |
| Efficacy (lm per W) | 138 |
| Energy Class 2022 | D |
| Power (W) | 6.4 |
| Viewing Angle | 120° |
| Warranty (months) | 60 |
| Product lifetime (h) | 60000 |
| Forward Current Max | 175 |
| Manufacturer Product Code | 42611 |
| Product Family | Lumibar3098+ |
| Strip Type | Rigid |
| Strip LEDs per meter | 92 |
| LEDs number per sales unit | 26 |
| Dimensions | 280x20 |
| Brand | Lumistrips |
| Manufacturer Part Number | 42611 |
