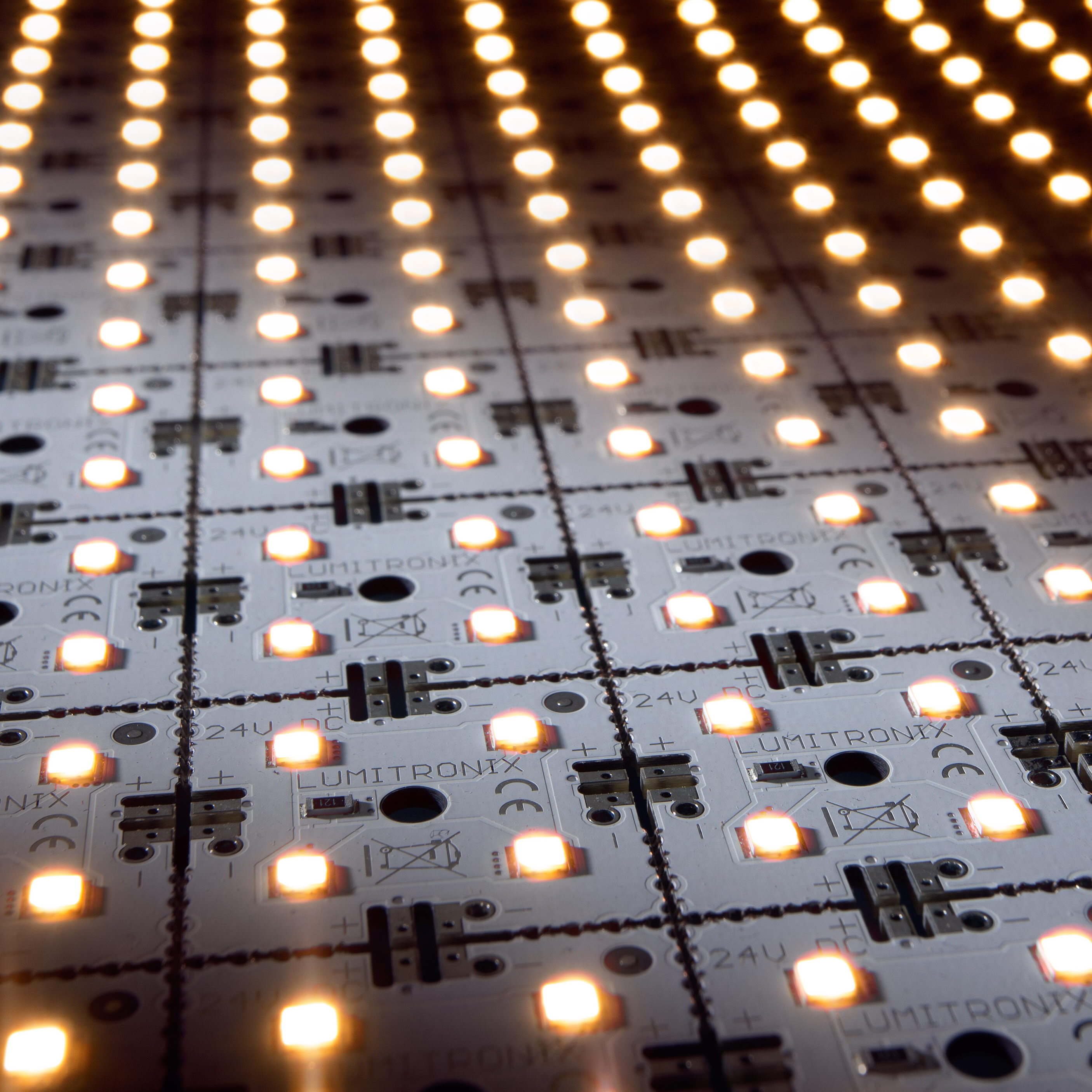

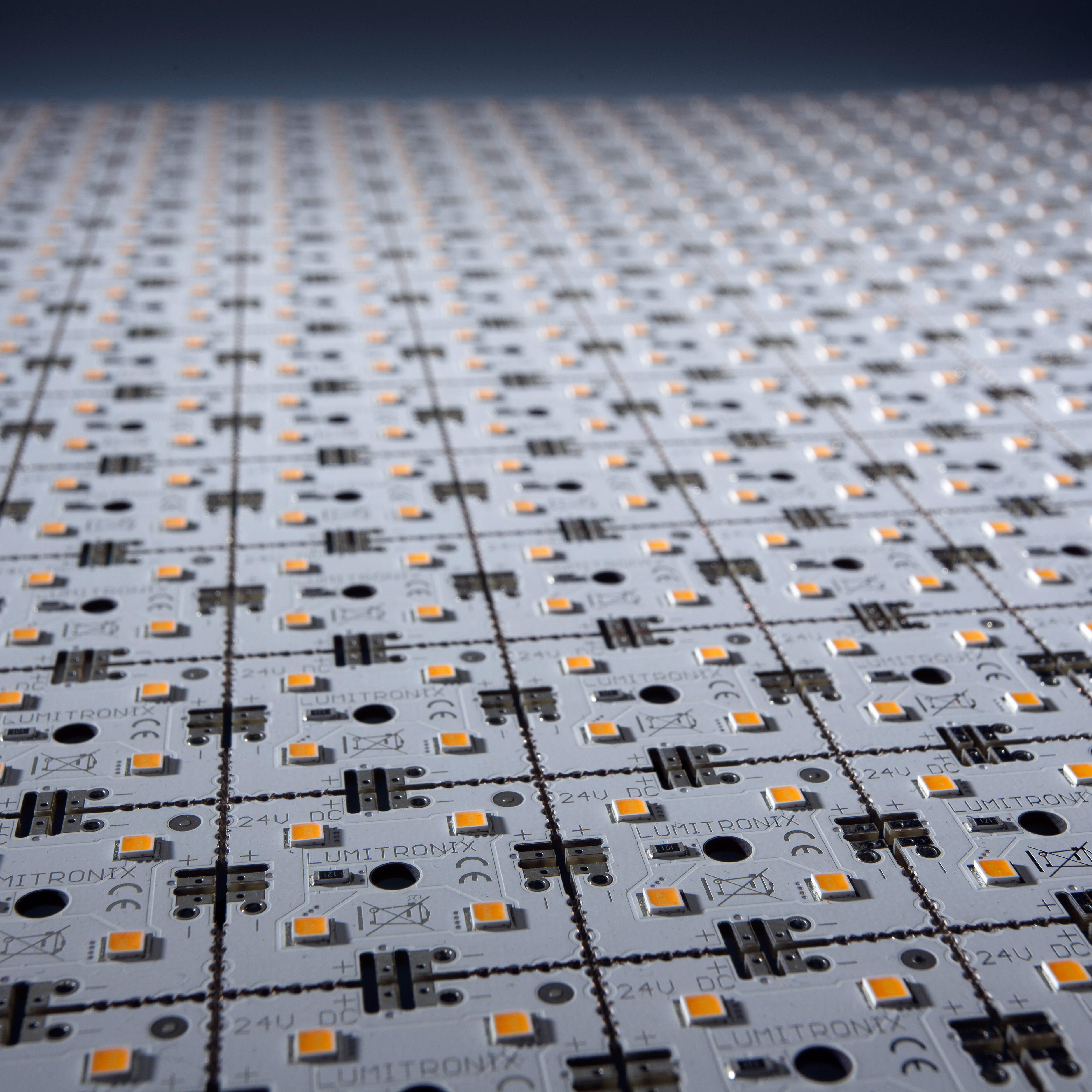

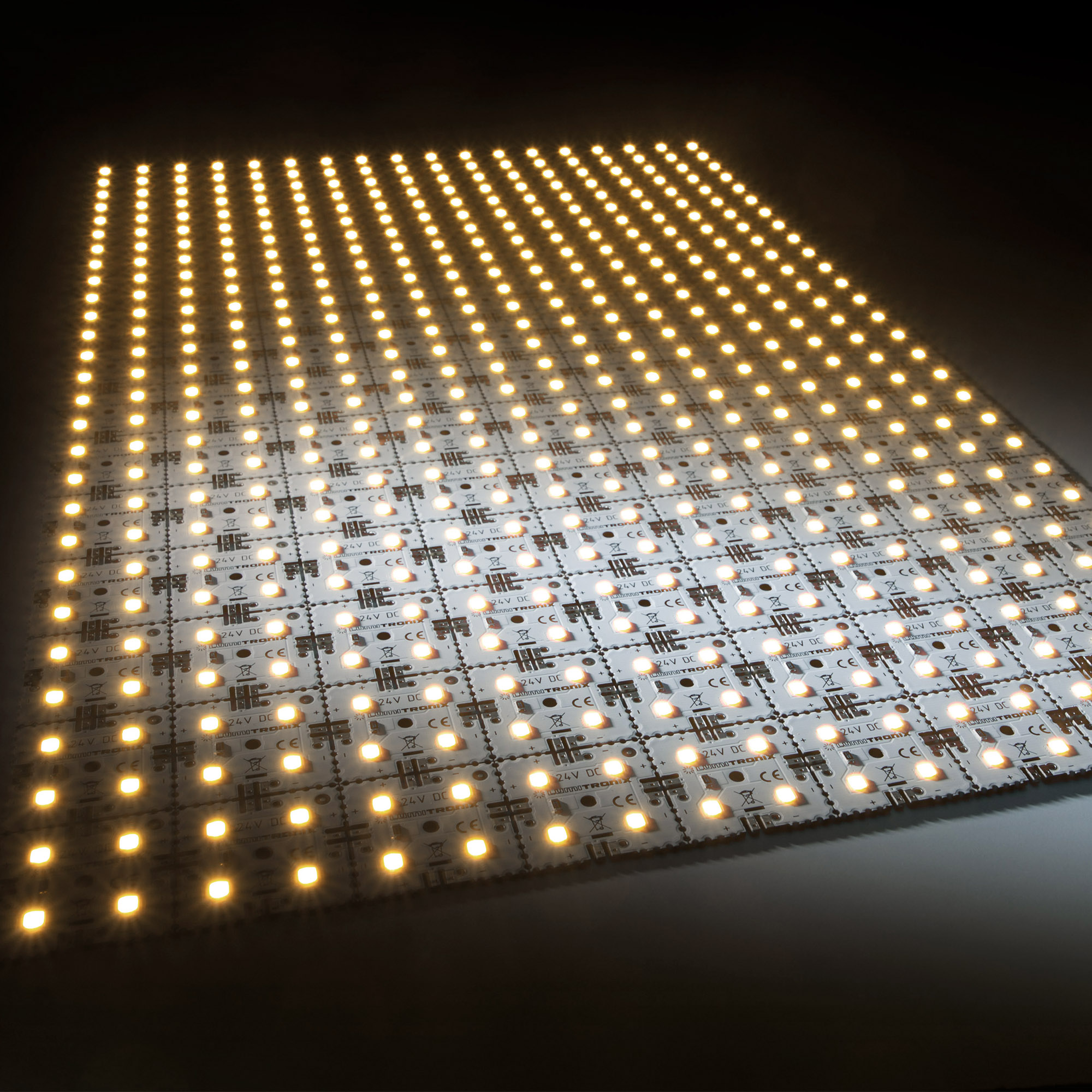

MatrixMini-126-4080 Nichia LED Module (9x14) CRI95 white 5000K 9380lm 504 LEDs 24V 75W 27x42cm (80000 lm/sqm)
- Modular 30 × 30 mm LED building-block system for custom luminous surfaces and shapes
- High colour rendering: CRI 95+
- Approximately 80,000 lm/m² of LED-board area
- 9380 lm total luminous flux
- Plug-and-play direct connection with no soldering required
- 24 V DC constant-voltage operation
- Made in Germany with a 5-year commercial warranty
The MatrixMini4080 is a modular rigid LED system for building luminous surfaces, custom light shapes, backlights, signage and compact panel luminaires. This 9 × 14 version measures 27 × 42 cm and uses 504 Nichia 757G LEDs to produce 9380 lm from a 24 V DC light engine.
The 9 × 14 format creates a large 27 × 42 cm luminous matrix intended for broad-area lighting, ceiling elements, diffuse panels, troffers and large backlit surfaces. Although supplied as one assembled matrix, the system is built from individual 3 × 3 cm cells and can be separated into smaller sections for custom shapes or unusual luminaire geometries. The system shares its plug-and-play connection platform with MultiBar, so modules can be combined without soldering using the compatible direct, cable and power-feed connectors.
Features of the MatrixMini4080 LED module
- 9 × 14 MatrixMini array
- 27 × 42 cm overall module size
- 5000 K white light
- High colour rendering: CRI 95+
- 504 Nichia 757G LEDs
- 9380 lm total luminous flux
- Approximately 80,000 lm/m² of LED-board area
- 24 V DC constant-voltage operation
- Power consumption: approximately 75 W
- Dimmable with a compatible 24 V control system
- 120° light distribution
- 30 × 30 mm cell architecture with four LEDs per cell
- Can be separated into individual 30 × 30 mm MatrixMini cells
- Plug-and-play direct connection with no soldering required
- Compatible with the MultiBar / MatrixMini connector platform
- Mounting holes for mechanical fixing
- 5-year commercial warranty, subject to current warranty conditions
- Made in Germany
Shared MatrixMini and MultiBar plug-and-play system
MatrixMini uses the same modular plug-fit connection concept as MultiBar. Individual MatrixMini cells and larger arrays can be connected without soldering using direct connectors, cable connectors or power-feed connectors from the same accessory platform.
The basic building block is a 30 × 30 mm cell with four LEDs. Larger MatrixMini products are pre-assembled combinations of these cells, so designers can work with ready-made rectangular arrays and still separate them into smaller sections when the project requires a custom outline.
This modular architecture is especially useful for OEM luminaires, prototypes, illuminated furniture and one-off architectural projects because the light engine can be configured as strips, blocks, surfaces, letters or irregular shapes without designing a new PCB for every geometry.
Large luminous surfaces, ceiling lights and troffers
MatrixMini is especially effective when the light source must cover an area rather than form a conventional narrow light line. The 27 × 42 cm array can be used behind diffusers in ceiling lights, troffers and custom LED panels.
At approximately 80,000 lm/m² of LED-board area, the module provides substantial luminous density from a shallow rigid matrix. Uniformity depends on the distance to the diffuser, diffuser transmission and cell spacing; our light-ceiling guidance provides additional background for this type of design.
Backlighting, signage and illuminated materials
MatrixMini is designed for backlighting behind translucent materials such as acrylic, stretched ceilings, translucent stone, marble-look panels and other diffusing surfaces. The regular 30 mm module grid helps designers create predictable LED spacing across the illuminated area.
It is also suitable for signage and illuminated lettering, showcases and custom light forms. The modules can be arranged around the actual contour of the object instead of illuminating a large unused rectangular area.
Choosing 5000 K for the application
The 5000 K white light provides a crisp, daylight-oriented appearance for studios, technical interiors, displays and visual-task applications. The CRI95 version is especially useful in retail, studios, clinics, showcases and other spaces where natural colour reproduction is important.
For more background on white-light appearance, see our colour temperature guide and CRI guide.
24 V electrical and mechanical integration
MatrixMini operates from a regulated 24 V DC constant-voltage supply. The modular connection system simplifies assembly, but the power-feed layout, conductor size and supply capacity still need to be selected for the total connected load and the geometry of the finished matrix.
For large surfaces, distributing power at more than one point can help limit voltage drop. The 30 mm module grid and fixing holes make it possible to mount the cells directly to a supporting plate, luminaire body or other stable surface.
Designed and manufactured in Germany
We develop and manufacture professional LED modules and strips in Germany using high-quality LEDs from established manufacturers such as Nichia. MatrixMini is designed as a professional modular light engine for repeatable OEM integration, custom lighting projects and long-term use.
The system is supplied with a 5-year commercial warranty, subject to current warranty conditions. For custom projects, we can also support module layout, optical distribution, thermal design, prototyping and series production.
Learn more about Lumistrips and our LED manufacturing capabilities.
| SKU | 36384 |
|---|---|
| Weight brut (g) | 270.000000 |
| Color | Neutral White |
| Color Temperature | 5000K |
| Color Rendering Index | 95 |
| Luminous Flux Typ (lm) | 9380 |
| Efficacy (lm per W) | 123 |
| Energy Class 2022 | E |
| Power (W) | 75 |
| Viewing Angle | 120° |
| Warranty (months) | 60 |
| Lifetime for residential, 3h daily (yrs) | 92 |
| Product lifetime (h) | 100000 |
| Lifetime for commercial, 12h daily (yrs) | 23 |
| Forward Current Max | 2520 |
| Manufacturer Product Code | 36384 |
| Product Family | MatrixMini4080 |
| Strip Type | Rigid |
| LEDs number per sales unit | 504 |
| Dimensions | 270x420 |
| Dimensions: Length (cm) | 27 |
| Dimensions: Width (mm) | 42 |
| Brand | Lumistrips |
| Manufacturer Part Number | 4260127453943 |
| Forward Voltage Typ (V) | 24 |
| Availability beyond shown stock: | YES |
