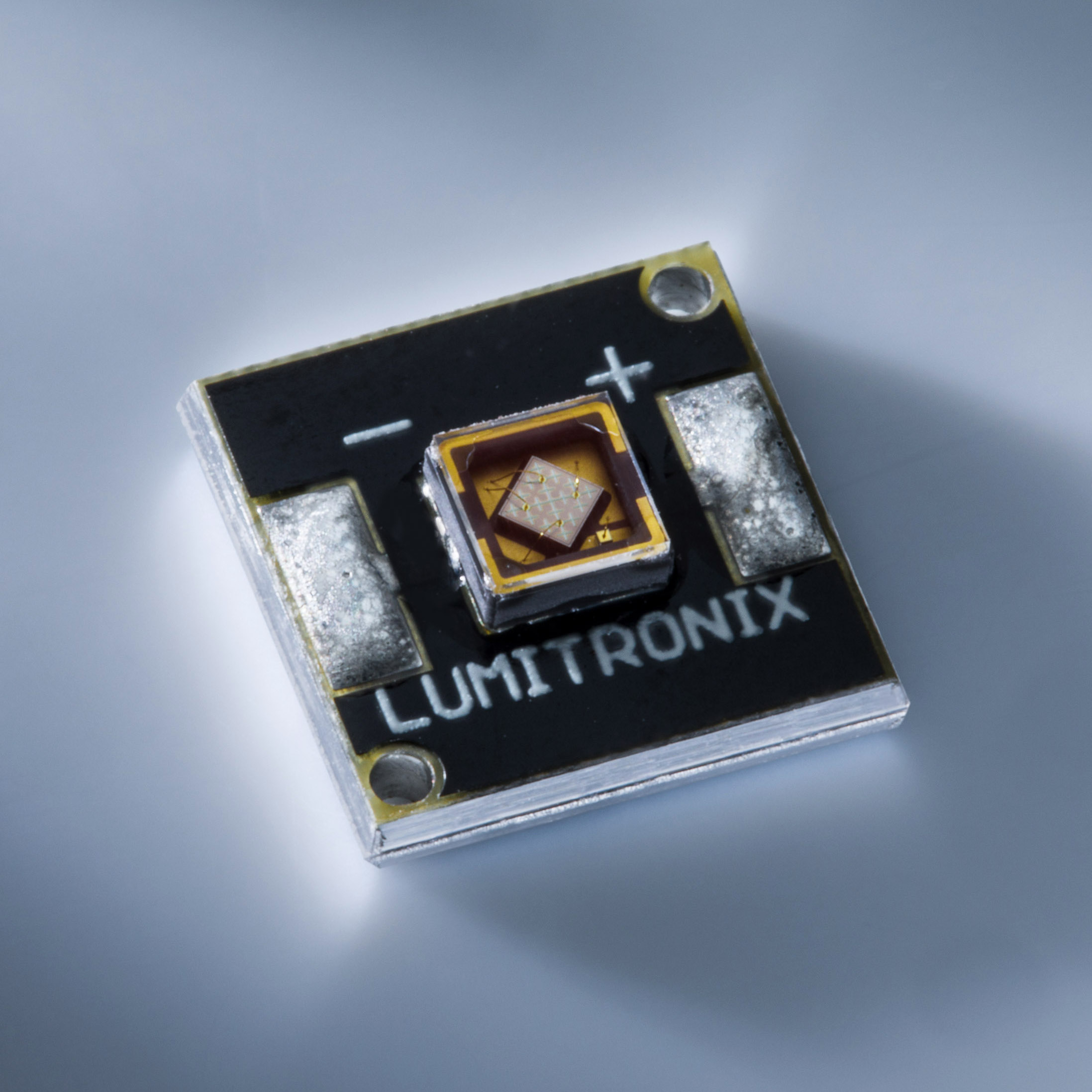

Nichia LED NVSU233B UV with PCB (10x10mm) 1450mW 365nm
Nichia is one of the largest LED manufacturers in the world and inventor of the blue (and thus also white) light emitting diode. The innovative Nichia research department is a pioneer when it comes to efficiency and establishes records on a regular basis.
Durability, brightness and homogeneity are among the major strengths of the Nichia brand. Furthermore, the fine selection allows greater added value for professional processing.
The Nichia SMD LEDs in the range UV light can be used for a wide range of applications. The NVSU233A is available with three different wave lengths.This UV LED is only suitable for use in industrial applications.
Warning: invisible light, the LED constitutes a danger for the eye even at short-term radiation. Please consult our employees for advice on this product before ordering!
Features- SMD LED UV
- 233 Package
- wavelengths: 365nm, 385nm, 395nm and 405nm
- Risk group 3 (EN 62471)
- Dimensions (LxWxH): 3.5x3.5x1,23mm
- medical engineering
- test and sorting machines
- hardening
- cameras with UV light
Ultra violet radiation in the wavelength range of 200-400nm may cause inflammation of the cornea as well as a UV erythema (sunburn) of the skin. The biological effectiveness of the UV radiation varies in the stated wavelength range and is described with the spectral response function (weighting scale) SUV.
UV-A danger for the eyesUltra violet radiation in the wavelength range of 315-400nm (UV-A) is for the most part absorbed by the eye lens and may cause UV cataracts (clouding of the lens of the eye).
SKU | 31715 |
---|---|
Weight brut (g) | 10.000000 |
LED SIZE (mm) | 3.5x3.5 |
LED Family | Nichia UV (New!) |
LED Application | Lithography, Curing |
LED Installation Package | 1x1 cm PCB |
Color | UVA Ultraviolet |
Viewing Angle | 120° |
Forward Current Typ. | 1000ma |
Forward Voltage Typ (V) | 3.85 |
Power (W) | 3.85 |
Product lifetime (h) | 75000 |
Wavelenght | 365 |
Manufacturer Product Code | NVSU233BT Ua365/P7d22-P10d22/LMH1 |
Brand | Lumistrips |
Availability beyond shown stock: | NO |
Dimensions: Length (cm) | 1.00 |
Dimensions: Width (mm) | 1.00 |
Dimensions: Height (mm) | 0.15 |
