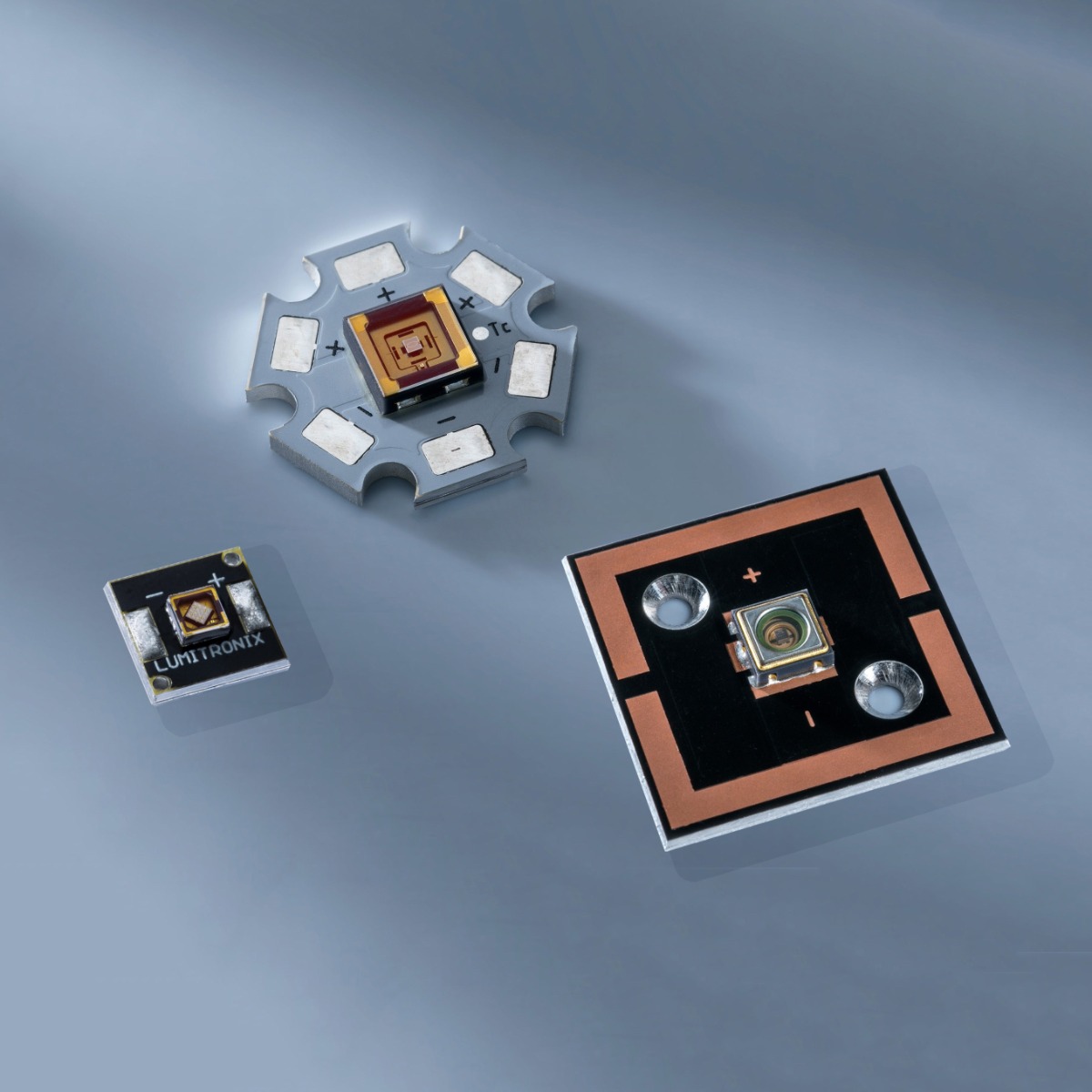

Configurable Star or Square PCB Nichia UVA LED Module 330, 365, 385, 395, 405nm 800-5500mW
Use this specialized form to order your custom PCB Nichia UVA LED modules.
- More details below
- Terms & Conditions apply
- Information with * is required.
Build Your Own Star Or Square PCB Nichia UV LED Module
- Nichia UVA LED Module is equipped with one Nichia 434, 333, 276, 233 or 119 UVA Series LED from Japan
- PCB options: 10x10mm, 21x19mm, 30x30mm
- Wavelength options: 330nm, 365nm, 375nm, 385nm, 395nm, 405nm
- Radiant power: 800-5500mW
- Constant current design: 350-3500mA
Build Your Own Star or Square PCB Nichia UVA LED Module 330, 365, 385, 395 405nm
High-Performance UV LEDs with Exceptional Reliability
The Nichia UV Series represents the pinnacle of ultraviolet LED technology, offering the highest output UV LEDs with long lifespans and high efficiency. Ultraviolet LEDs are known for their complexity due to the high energy of UV radiation, which can make reliability a challenge. However, Nichia overcomes this by maintaining integrated management throughout the entire production process—from wafer manufacturing to product shipment—ensuring unparalleled reliability in their UV LEDs.
Expertise in UV-A Spectrum for Demanding Applications
Covering the wavelength range of 315-405nm, known as UV-A, Nichia's UV LEDs have been trusted by customers for over 20 years in applications where precision and reliability are critical. These include:
- UV Curing: For semiconductor manufacturing processes, printing, and coatings.
- Inspection Equipment: Used in quality control processes where defects cannot be tolerated.
- Counterfeit Detection: Assists in verifying the authenticity of documents and currency.
- Medical Applications: Such as phototherapy and sterilization equipment.
- Forensic Analysis: Helps in detecting biological traces and fingerprints.
Extensive Nichia UVA LED Lineup
Nichia's current UV-A LED lineup includes:
- NCSU434B (330nm): 3535 Glass Package, 3.5×3.5 mm
- NVSU233B (365nm, 385nm): 3535 Glass Package, 3.5×3.5 mm
- NVSU233C (405nm): 3535 Glass Package, 3.5×3.5 mm
- NVSU233C-D4 (365nm, 385nm, 395nm, 405nm): 3535 Narrow Light Distribution Glass Package, 3.5×3.5 mm
- NWSU333B (365nm, 385nm): 6868 Glass Package, 6.8×6.8 mm
- NWSU333B-D4 (365nm): 6868 Narrow Light Distribution Glass Package, 6.8×6.8 mm
- NCSU276C (365nm): 3535 Resin Package, 3.5×3.5 mm
- NVSU119C (375nm, 385nm, 395nm, 405nm): 3535 Resin Package, 3.5×3.5 mm
- NCSU033D / NCSU034D / NCSU035D (365nm, 385nm, 405nm): 6868 Package, 6.8×6.8 mm
These LEDs offer flexibility in design and application, allowing you to select the precise wavelength and package size suited to your project's needs.
Advantages of Nichia UVA LEDs
- High Radiant Flux and Efficiency: Ensures effective performance in applications requiring intense UV light.
- Exceptional Reliability: Nichia's integrated production process guarantees consistent quality and long operational life.
- Precise Wavelength Selection: Offers specific wavelengths from 330 nm to 405 nm to match application requirements.
- Robust Packaging Options: Choose between glass and resin packages in various sizes for durability and design flexibility.
- Narrow Light Distribution Options: Certain models feature narrow light distribution for focused applications.
Applications of Nichia UVA LED Modules
- UV Curing Systems
- Industrial Manufacturing: Speeds up curing of adhesives, inks, and coatings.
- 3D Printing: Enhances the polymerization process in resin-based printers.
- Medical Equipment
- Sterilization: Effective in killing bacteria and viruses for medical devices and surfaces.
- Phototherapy: Used in treatments for skin conditions like psoriasis.
- Inspection and Detection
- Quality Control: Identifies flaws and cracks in materials without damaging them.
- Counterfeit Detection: Validates security features in documents and currency.
- Forensic Science
- Evidence Gathering: Reveals biological traces, fingerprints, and other forensic evidence.
- Agricultural Applications
- Pest Control: Attracts insects for monitoring or eradication purposes.
- Aquarium and Horticulture Lighting
- Coral Growth: Promotes photosynthesis in marine life.
- Plant Growth: Assists in specific stages of plant development.
Why Choose Our Custom LED Modules
- Expert Guidance: Our team provides professional support in LED selection, optical design, and system integration.
- Quality Manufacturing: Produced in Germany with rigorous quality control to ensure superior performance and durability.
- Flexible Design Options: Customizable PCB sizes and configurations to fit seamlessly into your project.
- Comprehensive Support: Assistance with thermal management, electrical integration, and compliance with industry standards.
Customizable PCB Options for Easy Integration
Through our Build Your Own system, you can conveniently order the latest generation of Nichia UVA LEDs mounted on an aluminum PCB, facilitating easy installation across various industrial, medical, and commercial applications. The available PCB options include:
- 10×10 mm Square PCB
- 21×19 mm Star PCB
- 30×30 mm PCB
These options provide flexibility for integration into devices such as UV curing systems, inspection equipment, counterfeit detection devices, and more.
Custom LED Solutions: Tailored Lighting Excellence
Don't settle for generic LED solutions when you can have products precisely matched to your unique requirements. Our customization service eliminates the compromises associated with off-the-shelf products, delivering LED solutions that align perfectly with your vision. With over 20 years of industry expertise, we manufacture innovative, high-quality, and high-performance LED solutions in Germany, tailored to your specifications.
Begin Your Custom LED Project
Ready to transform your ideas into reality with the perfect LED module? Order now and let us illuminate your path to innovation, ensuring your project shines brighter than ever.
Build Your Own Star or Square PCB Nichia UV LED Module Order Process Explained & Technical details:
Build Your Own Star or Square PCB Nichia UV LED Module, Made in Germany.
Step 1: Aluminum PCB size and Shape:
The Aluminum PCB shape and size of the Nichia UVA LED Module can be:
- Square PCB: 10x10mm
- Star PCB: 21x19mm
- Square PCB: 30x30mm
Step 2: Order Quantity (pcs)
How many modules do you need. While there is no MOQ, we recommend at least 100 pcs of Nichia UVA LED module.
Step 3: UVA LED Wavelength (nm)
Select the desired wavelength for the Nichia LED.
The wavelength range of 315-405nm is called UV-A. Customers have been utilizing Nichia's wide range of UV-A LEDs, ranging from 330-405nm, for over 20 years, including applications where defects are not tolerated, such as UV curing for semiconductor manufacturing processes, inspection equipment and processes (i.e. counterfeit detection), and more.
Step 4: Nichia UVA LED
The LED module will be built with the latest generation Nichia UVA LED series, the industry-leading UVA High-power LEDs.
Click here to see the current Nichia UVA LED line-up.
Nichia UVA Color LEDs include*:
- NCSU434B (330nm): 3535 Glass Package
- NVSU233B (365nm, 385nm): 3535 Glass Package
- NVSU233C (405nm): 3535 Glass Package
- NVSU233C-D4 (365nm, 385nm, 395nm, 405nm): 3535 Narrow light distribution Glass Package
- NWSU333B (365nm, 385nm): 6868 Glass Package
- NWSU333B-D4 (365nm): 6868 Narrow light distribution Glass Package
- NCSU276C (365nm): 3535 Resin Package
- NVSU119C (375nm, 385nm, 395nm, 405nm): 3535 Resin Package
- NCSU033D / NCSU034D / NCSU035D (365nm, 385nm, 405nm): 6868 package, 6.8×6.8mm
*See image table for Nichia LED radiant flux and power.
Datasheet will specify Nichia LED part number.
Step 4: Samples Required?
You may request to receive samples, when you order or receive the datasheet. This option has an extra cost and adds to the total delivery time of your order. Details will be provided at the time we receive your request. Maximum number of samples is 5 pcs.
Nichia UVA LED Technical Specifications:
- Nichia UVA LED 3535 or 6868 package
- 3.5x3.5mm or 6.8x6.8mm
- 330nm to 405nm
- 1.9W to 13.5W power
- 800mW to 5500mW radiant flux
- 350mA to 1000mA typical current
- Aluminum rigid PCB
- Constant current design
- Optimized for applications such as semiconductor manufacturing processes, printing, paints, lithography, curing, photocatalyst
- Dimmable
- 3-step MacAdam ellipse
- Made in Germany
- LEDs Made in Japan
- CE, ROSH, REACH
| SKU | nichia_uva_pcb |
|---|---|
| Brand | Lumistrips |
Custom LED Module Order Terms & Conditions
When your order is confirmed, we will manufacture the custom LED strip or module at our factory in Germany, based on the specifications you provided. Payment is required for order confirmation. Orders with successful online payments are considered confirmed.
Here’s how the timeline looks once we confirm your order:
- Design validation: we will check your order details and additionally supplied information (uploaded file), within 5 working days.
- Design Draft: You'll see the first drawing of your custom LED strip or module within 2 weeks.
- Datasheet: After the drawing gets your approval, we'll create for you the custom LED strip datasheet, within 2–4 weeks.
- Samples: You may request to receive samples, when you order or receive the datasheet. This option has an extra cost and adds to the total delivery time of your order. Details will be provided at the time we receive your request.
- Mass Production: Once you approve the datasheet and/or samples, we'll start the full production, which will take 6–10 weeks.
With us, your investment in custom LED technology is transparent, with clear steps and predictable timelines.
Custom order changes, cancelation, refunds, returns:
1. Changes to the specifications of the module can be made during the Design Draft process. These changes can be caused by incorrect data supplied to the online order system, such as technical specifications that are impossible to produce or wrong data.
For LED modules with custom dimensions, the decimal separator is the dot (.)
Changes that lead to additional costs will result in the recalculation of the order value.
2. The custom LED module order can be canceled:
- Within 5 working days for a 5% cancelation fee
- After receiving the design draft for a 15% cancelation fee
- After receiving the datasheet for a 25% cancelation fee
- After receiving the samples for a 25% cancelation fee + samples cost.
Once the datasheet and/or samples are approved, and mass production is initiated, the order cannot be canceled. Custom-made LED products cannot be returned. We reserve the right to cancel orders at any time, up to the point of delivery. Orders canceled by our decision will be refunded in full. We will not be responsible for any costs or associated damages caused by order cancelation or delays in delivery.
Custom LED Module warranty:
We provide a 5-year warranty for all custom LED modules, based on our standard warranty terms.
The operating temperature is a crucial facture in LED module lifetime. The maximum operation temperature (TC) will be specified in the design stage and written on the product and datasheet. It is important that you use thermal management to prevent exceeding of the maximum value. If it is not possible, you have to inform us during the design stage.
Shipping Methods and Cost:
We also accept shipping via your express account with DHL, TNT, UPS or FedEx. After we receive your order please contact us via email with this choice.
For bulky parcels with custom LED products and accessories, the standard shipping costs added via the online order process might not fully cover the safe and timely delivery of your order. If we discover, before shipping your order, that the shipping cost is greater than already paid or what we can cover for free shipping, we may ask you to cover the extra cost. In case of orders the orders free shipping, the maximum ship cost covered by us is 40€.
Custom LED Module certifications:
Built in Germany, the custom LED modules have the following certifications:
- CE
- ROSH
- REACH
On demand, other certifications ca be provided (for a price):
- UL
- CSA
