€1.35
Stock >500 pcs
SKU
60388

The versatile range of products by Carclo offers you the suitable lens for every lighting application. Select the lens in due consideration of its radiation parameters and compatibility with LEDs.

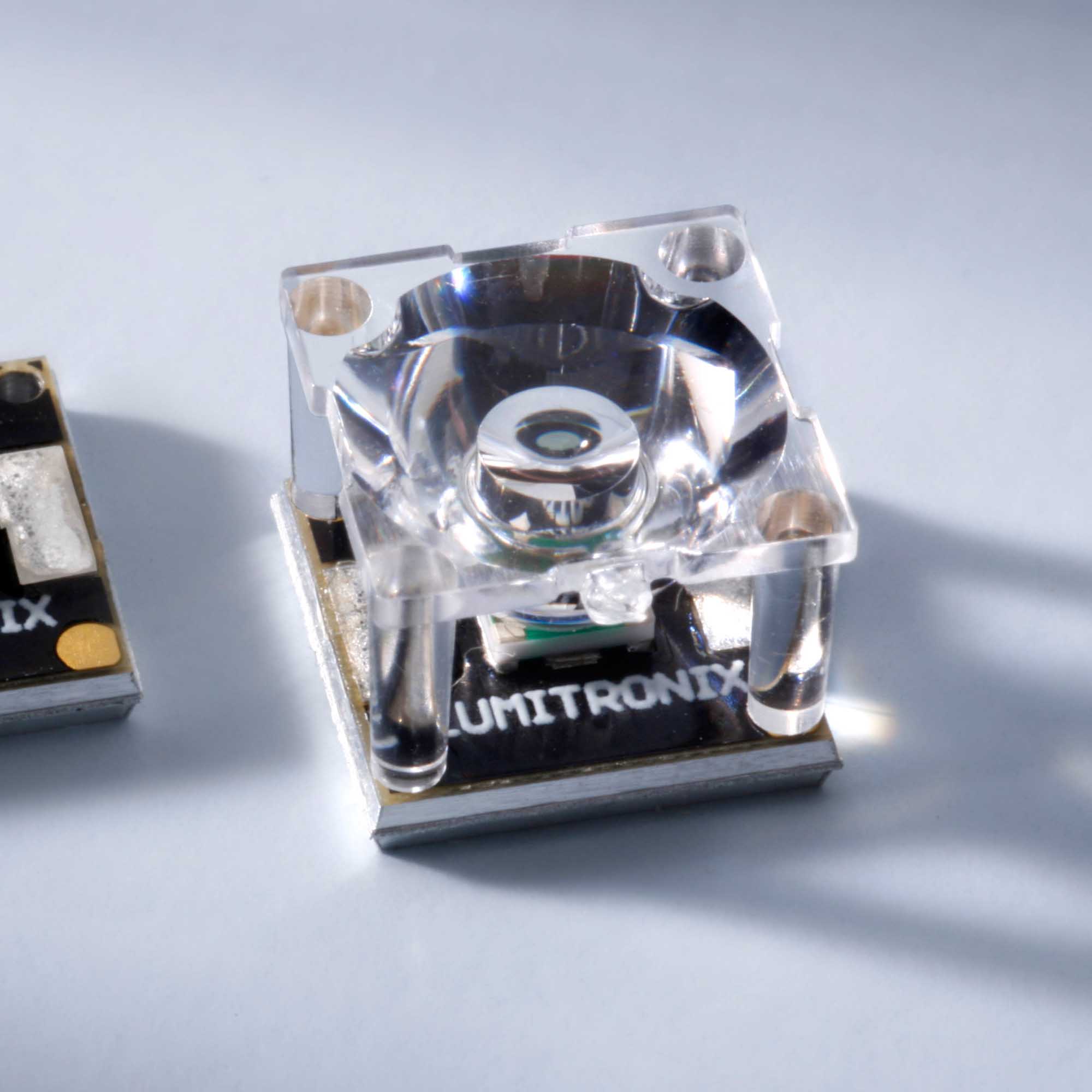

The lenses can be directly adhered to the respective LEDs or fixed with the Carclo lens holder. Always use an appropriate adhesive! The lens must not be applied to the LED with high pressure.

Features

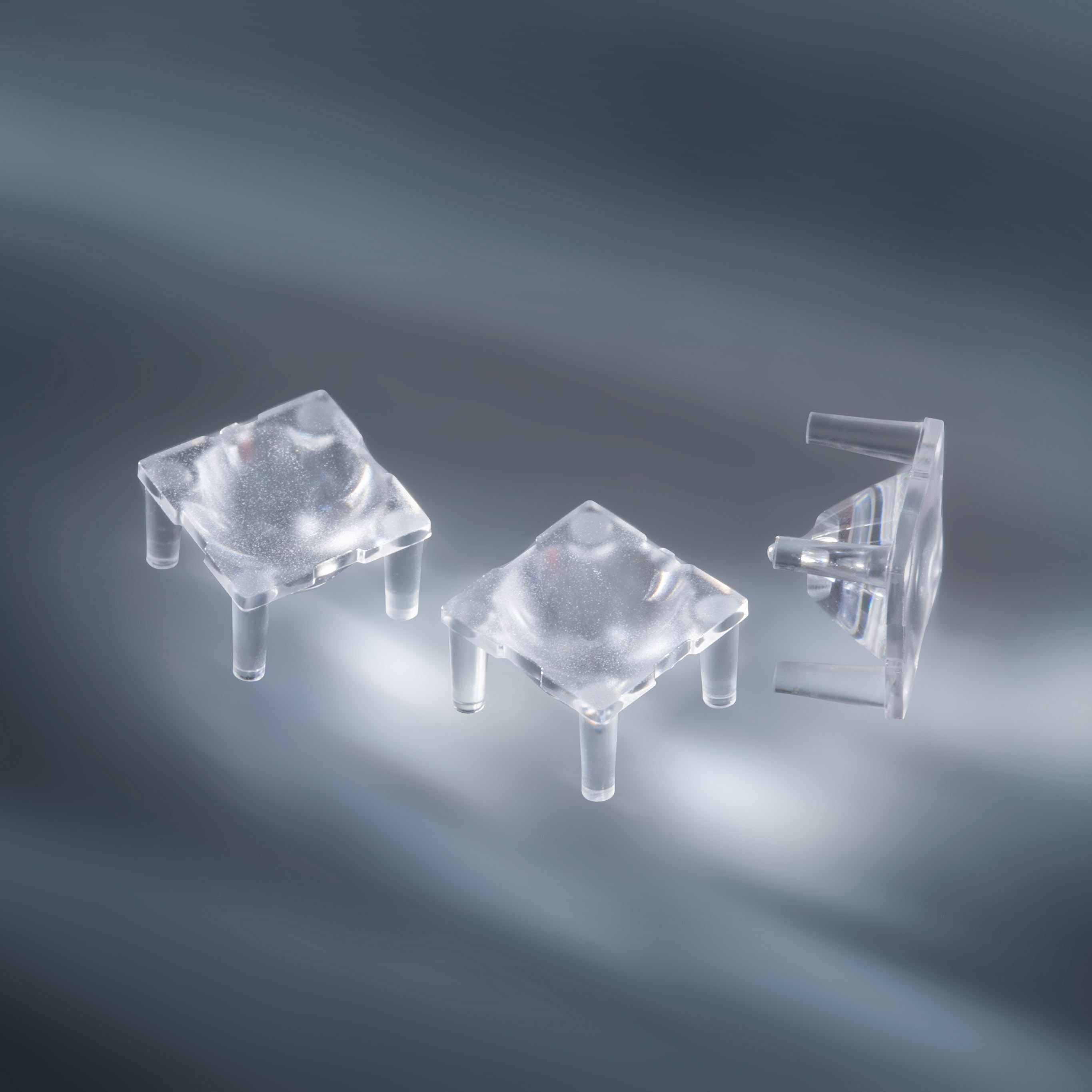

  • 60386: Plain Tight, for long distances, very narrow radiation angle
  • 60387: Frosted Medium, for short distances, narrow radiation angle
  • 60388: Elliptical, elliptical light, particularly suited for the illumination of surfaces
  • Diameter: 10mm
Suited for the following LEDs
  • Cree: XP-E, XP-G
  • Osram: Oslon SSL
  • Nichia: 119, 219, E21A
  • Lumileds: Luxeon Rebel, Luxeon C, Luxeon ES Rebel
  • Seoul: Z5
Radiation angle
  Cree Osram Nichia
  XP-E XP-G Oslon SSL 119
Plain tight 16.5 24.0 18.8 16.2
Frosted medium 25.9 30.0 30.0 28.8
Elliptical 43.0×16.0 43.6×23.3 44.8×19.7 44.7×21.7
  Luxeon Seoul
  Lumileds Rebel Lumileds C Lumileds ES Rebel Z5
Plain tight 18.4 14.2 23.7 16.1
Frosted medium 29.8 22.8 30.4 26.0
Elliptical 46.0×16.0 46.3×13.6 43.9×23.8 44.5×16.2

Further technical details can be found in the data sheet.

Ledrise is official Carclo distributor

Technical Data
SKU 60388
Weight brut (g) 1.000000
Availability beyond shown stock: YES
Lens Compatibility Cree XP-G2
Lens Viewing Angle 43x23
Brand Carclo
Manufacturer Product Code 10415
