ConextPlay male module green 1 LED 2.5x2.5cm 5V 9lm 0.1W
- Patented puzzle-like ConextPlay system for tool-free, connectorless illuminated shapes
- 25 × 25 mm ConextPlay puzzle module
- Patented connectorless Conext interface between adjacent modules
- Approximately 9 lm luminous flux
- 5 V DC constant-voltage operation
- Made in Germany with a 5-year commercial warranty
This ConextPlay male module is a 25 × 25 mm illuminated building block for the patented Conext puzzle-lighting system. It operates from 5 V DC and contains one green LED, producing approximately 9 lm from only about 0.1 W.
The male geometry has two projecting connection noses and two recesses, making it useful as the directional building piece that continues or turns a ConextPlay pattern.
Features of this ConextPlay module
- 25 × 25 mm ConextPlay puzzle module
- Male connection geometry
- green light
- Approximately 9 lm luminous flux
- Approximately 0.1 W power consumption
- 5 V DC constant-voltage operation
- Patented connectorless Conext interface between adjacent modules
- Compatible with all ConextPlay male, female and supply modules
- Up to 150 modules per ConextPlay supply module
- Very low-profile modular construction
- 5-year commercial warranty, subject to current warranty conditions
- Made in Germany
Patented puzzle-like Conext connection system

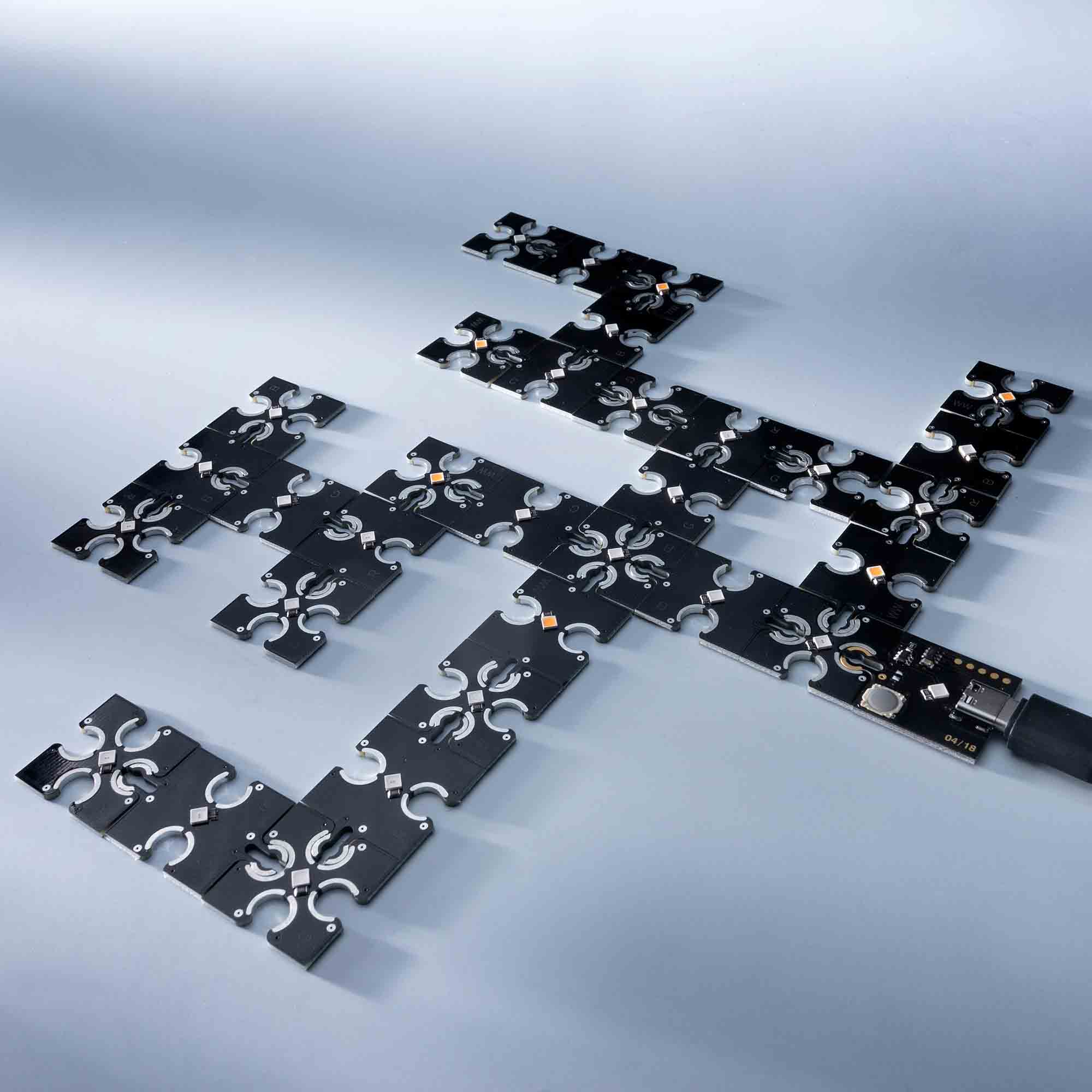

ConextPlay uses the patented Conext connection principle: adjacent modules plug directly into each other like puzzle pieces. Protruding connection noses and matching recesses carry the electrical contacts as well as locating the modules mechanically, so no separate connector is required between neighbouring boards.
This makes the system self-explanatory and very flat. Modules can be assembled into custom shapes without soldering or loose inter-module cables, while still remaining easy to rearrange or extend. The complete system operates from 5 V DC; power enters through the dedicated supply module for the relevant Conext family.
ConextPlay system architecture

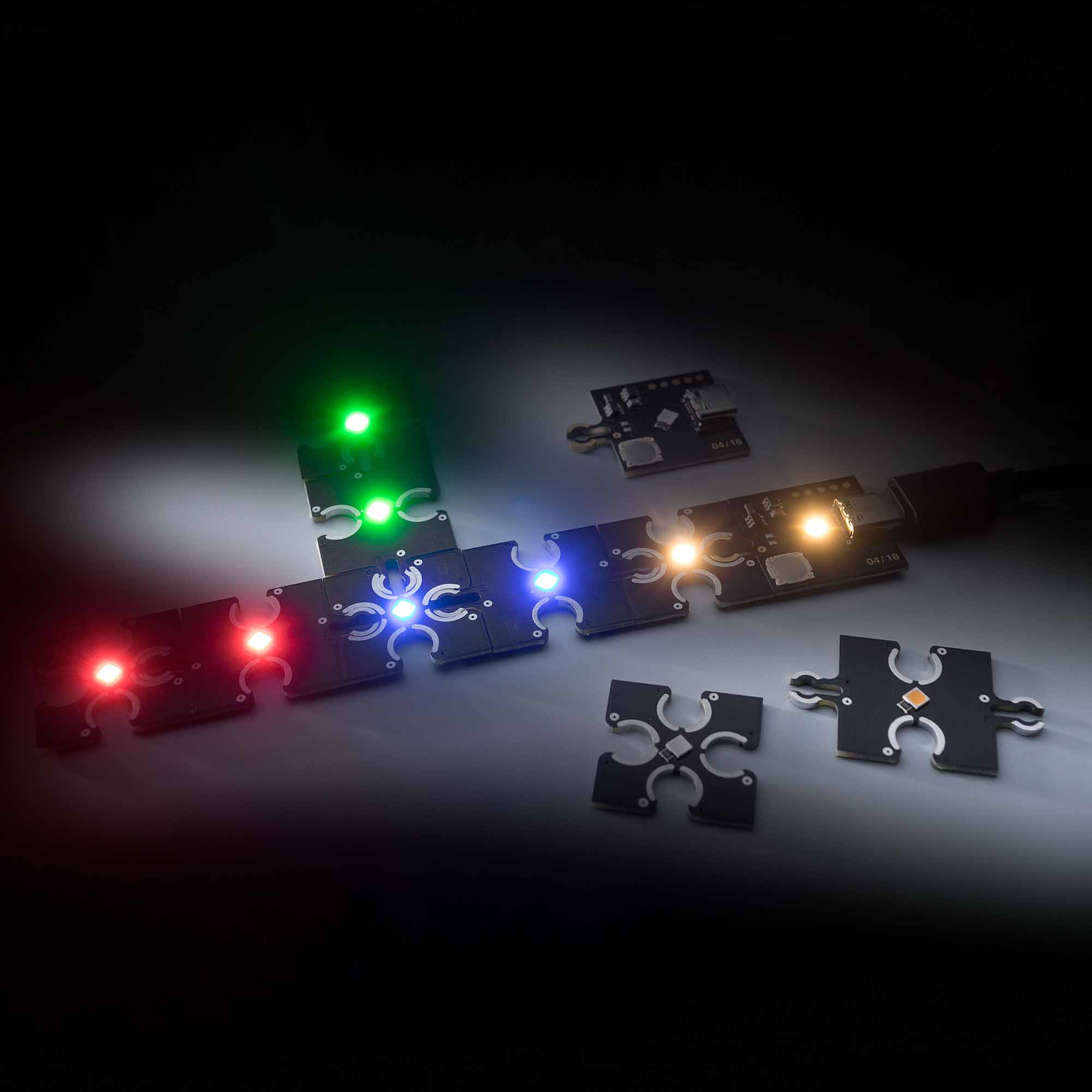

ConextPlay is the smallest and most playful Conext format. The 25 × 25 mm modules operate from 5 V DC and can be mixed within the same installation. Male modules use two connection noses and two recesses, while female modules use four recesses so male pieces can approach from several directions.

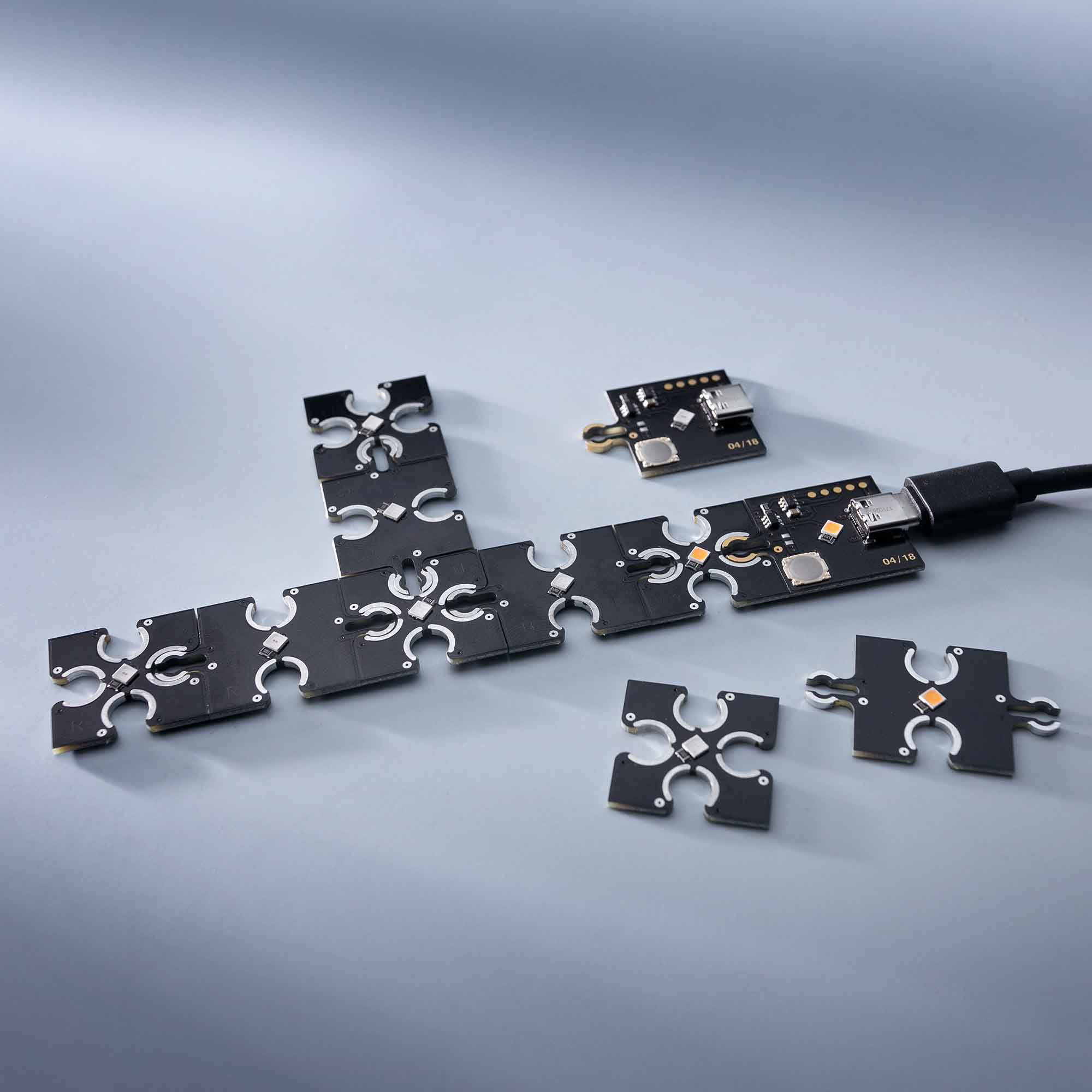

The dedicated supply module adds USB-C power input and a pushbutton for simple on/off, dimming and fade functions. One supply module can operate up to 150 ConextPlay modules, allowing small decorative objects to scale into substantially larger illuminated patterns.
Signage, displays and custom illuminated shapes
The modular geometry is particularly useful for signage and illuminated displays, where the light source often needs to follow letters, symbols, contours or irregular product shapes rather than one conventional straight line.

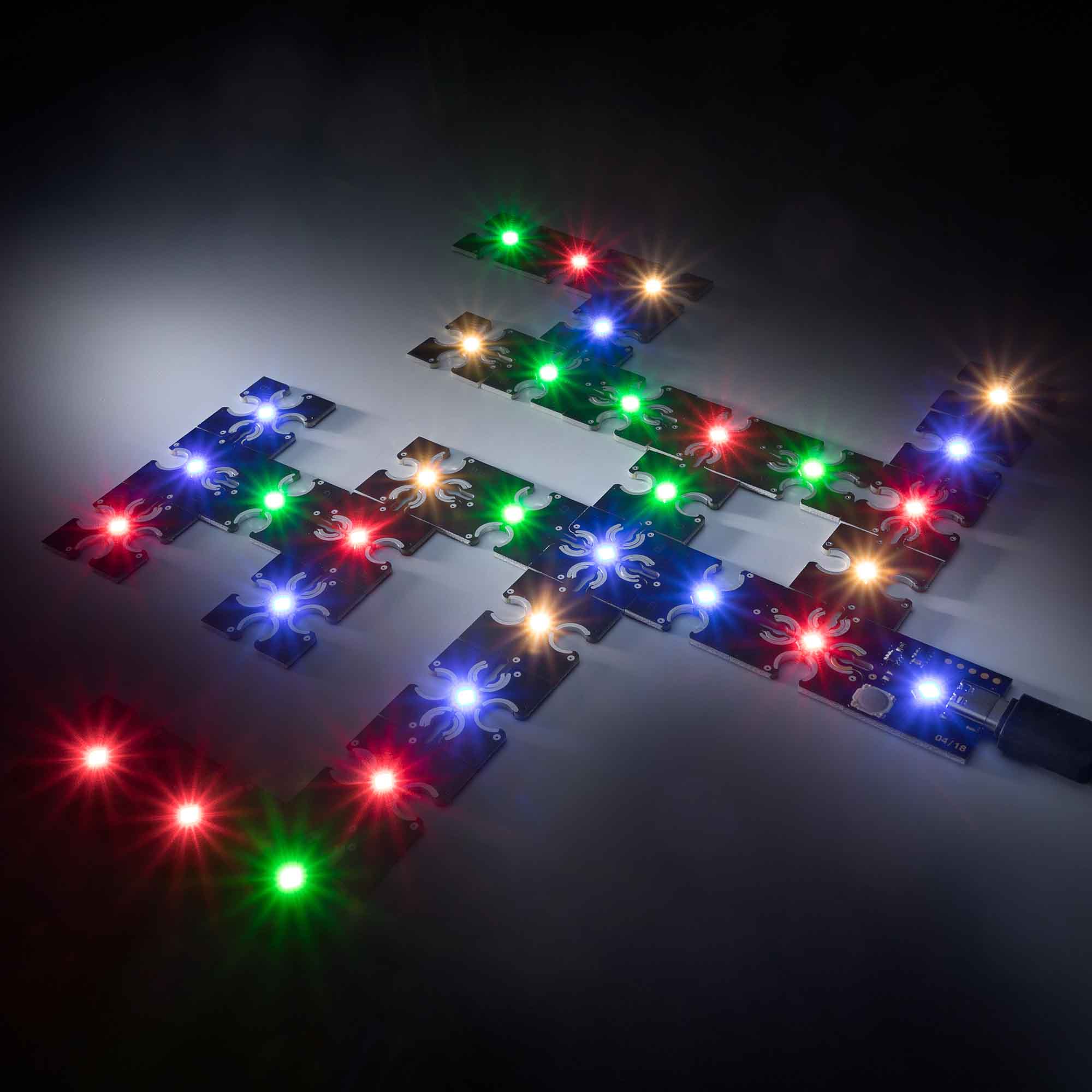

Different colours and connection geometries can be combined to build luminous lettering, icons, decorative panels, interactive displays and one-off design objects. The 25 mm grid makes it easy to sketch a pattern and then reproduce it physically with the modules.
5 V USB-powered integration
Use the dedicated ConextPlay supply module to feed the connected pattern from a suitable 5 V USB power source. Total module count and power should remain within the supply-module limit, especially when several colours are mixed in one installation.
Designed and manufactured in Germany
We develop and manufacture professional LED modules in Germany, combining more than 20 years of LED application experience with controlled production and application engineering. The Conext platform is unusual because the mechanical connection, electrical contact and lighting function are integrated into the module geometry itself.
For OEM and project customers, we can also support custom module layouts, LED selection, control concepts, mechanical integration, prototyping and series production. This makes Conext particularly useful when the illuminated shape is part of the product design rather than just a straight LED strip hidden inside a profile.
Learn more about Lumistrips and our LED manufacturing capabilities.
| SKU | 31867 |
|---|---|
| Weight brut (g) | 1.000000 |
| Color | Green |
| Luminous Flux Typ (lm) | 9 |
| Efficacy (lm per W) | 90 |
| Energy Class 2022 | F |
| Warranty (months) | 60 |
| Lifetime for residential, 3h daily (yrs) | 92 |
| Product lifetime (h) | 100000 |
| Lifetime for commercial, 12h daily (yrs) | 23 |
| Manufacturer Product Code | 31867 |
| Product Family | ConextPlay Nichia LED Module |
| Strip Type | Rigid |
| LEDs number per sales unit | 4 |
| Dimensions | 40.9x24.5x2.3 |
| Brand | Lumistrips |
| Manufacturer Part Number | 4260127452922 |
| Forward Voltage Typ (V) | 5 |
| Availability beyond shown stock: | YES |
