Nichia NVSWE21AT SMD LED Neutral White 5000K CRI80 297lm 700mA 2.1W with PCB (10x10mm)
- High-quality SMD LED for professional lighting
- Luminous flux 297 lm at 5000K, CRI 80
- Power consumption 2.1 W at an efficacy of 142 lm/W
- Original Nichia LED package
- Dimensions 10 x 10 x 2 mm
Nichia NVSWE21AT SMD LED Neutral White 5000K CRI80 297lm 700mA 2.1W with PCB (10x10mm)
This product is a high-quality SMD LED delivering 297 lm at 5000K with CRI 80, 2.1 W of power consumption and an efficacy of 142 lm/W.

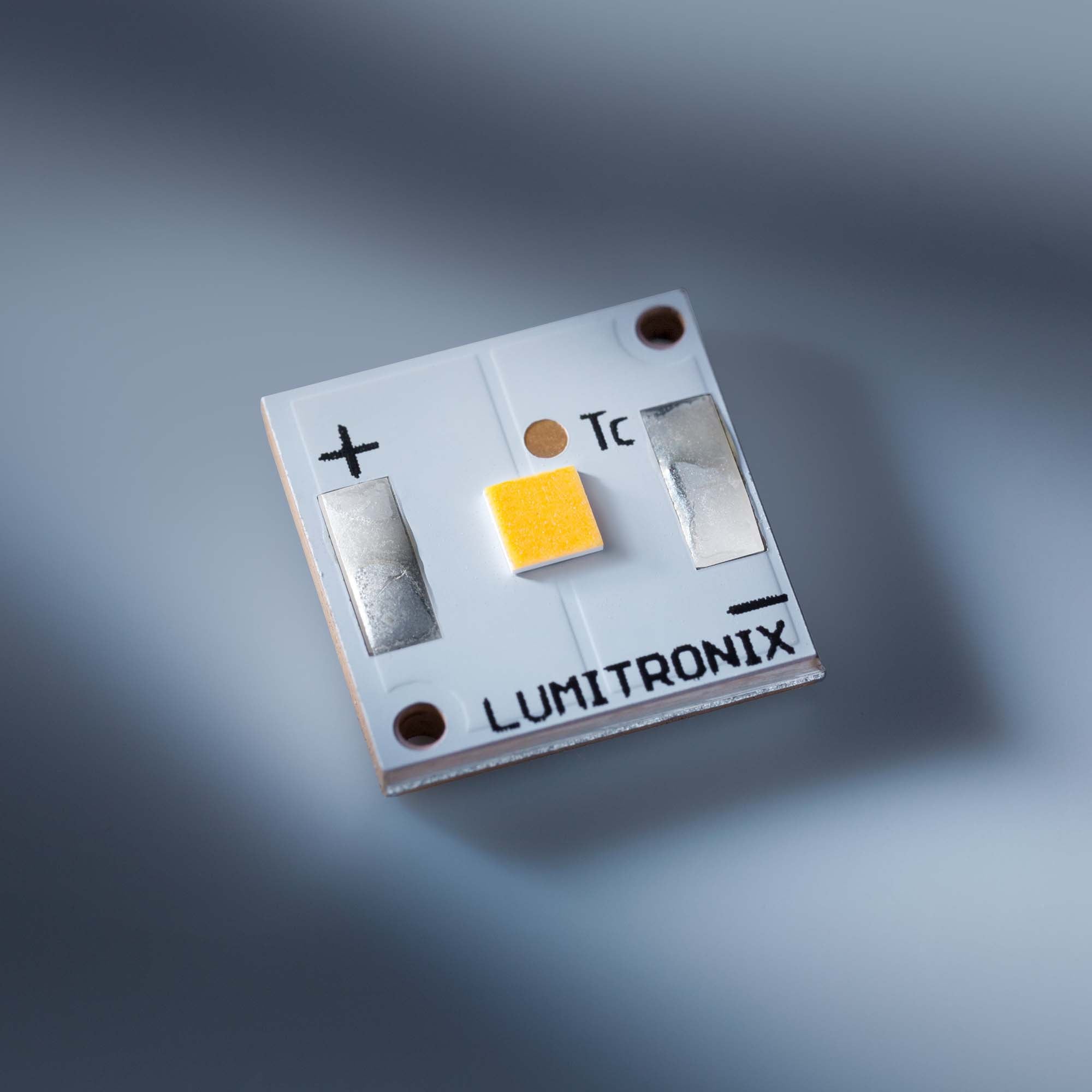

The LED is supplied ready-mounted on a 10 x 10 mm metal-core board. This saves the reflow soldering step, which on a modern high-power package is not something that can reliably be done by hand, and the metal core conducts the heat straight into the heat sink. For prototyping, small series and repairs, the pre-mounted version is by far the fastest route from component to working light source.
The LED is operated with constant current and must be mounted on an adequate heat sink. Junction temperature is the single most important factor for both light output and lifetime: run within specification, a brand LED of this class holds its luminous flux and its colour point for tens of thousands of hours.
Why we build with Nichia LEDs
Nichia is a major Japanese LED manufacturer and one of the companies closely associated with the development and commercialisation of high-brightness blue and white LED technology. Its professional lighting LEDs are selected for well-documented optical and electrical characteristics, tight binning options and long-term characterisation. For a luminaire maker, that means the PCB, driver and thermal design can be built around defined forward-voltage, flux, colour and temperature limits instead of anonymous components whose behaviour may change from one batch to the next.
Technical features
- Nichia NVSWE21AT LED package
- Colour temperature: 5000K (Neutral White)
- Colour rendering index: CRI 80
- Luminous flux: 297 lm (typical)
- Power consumption: 2.1 W
- Luminous efficacy: 142 lm/W
- Operating point: 700 mA at 3 V
- Dimensions: 10 x 10 x 2 mm
- Weight: 0 g
- Manufacturer part number: NVSWE21AT
Applications
- Spotlights and downlights
- Industrial and machine lighting
- Shop and accent lighting
- Architectural lighting
- Custom luminaire development
| SKU | 65504 |
|---|---|
| Weight brut (g) | 0.000000 |
| Pack Quantity | 1 |
| LEDs number per sales unit | 1 |
| LED SIZE (mm) | 2.1x2.1 |
| LED Family | Nichia E21A Series |
| LED Installation Package | 1x1 cm PCB |
| Color Rendering Index | 80 |
| Color | Neutral White |
| Color Temperature | 5000K |
| Luminous Flux Typ (lm) | 297 |
| Forward Current Typ. | 700ma |
| Forward Voltage Typ (V) | 3 |
| LED Power (W) | 2.1 |
| Power Consumption Max. | 4.48 |
| Efficacy (lm per W) | 142 |
| Manufacturer Product Code | NVSWE21AT |
| Brand | Nichia (Japan) |
| Availability beyond shown stock: | YES |
| Dimensions: Length (cm) | 1 |
| Dimensions: Width (mm) | 10 |
| Dimensions: Height (mm) | 2 |
