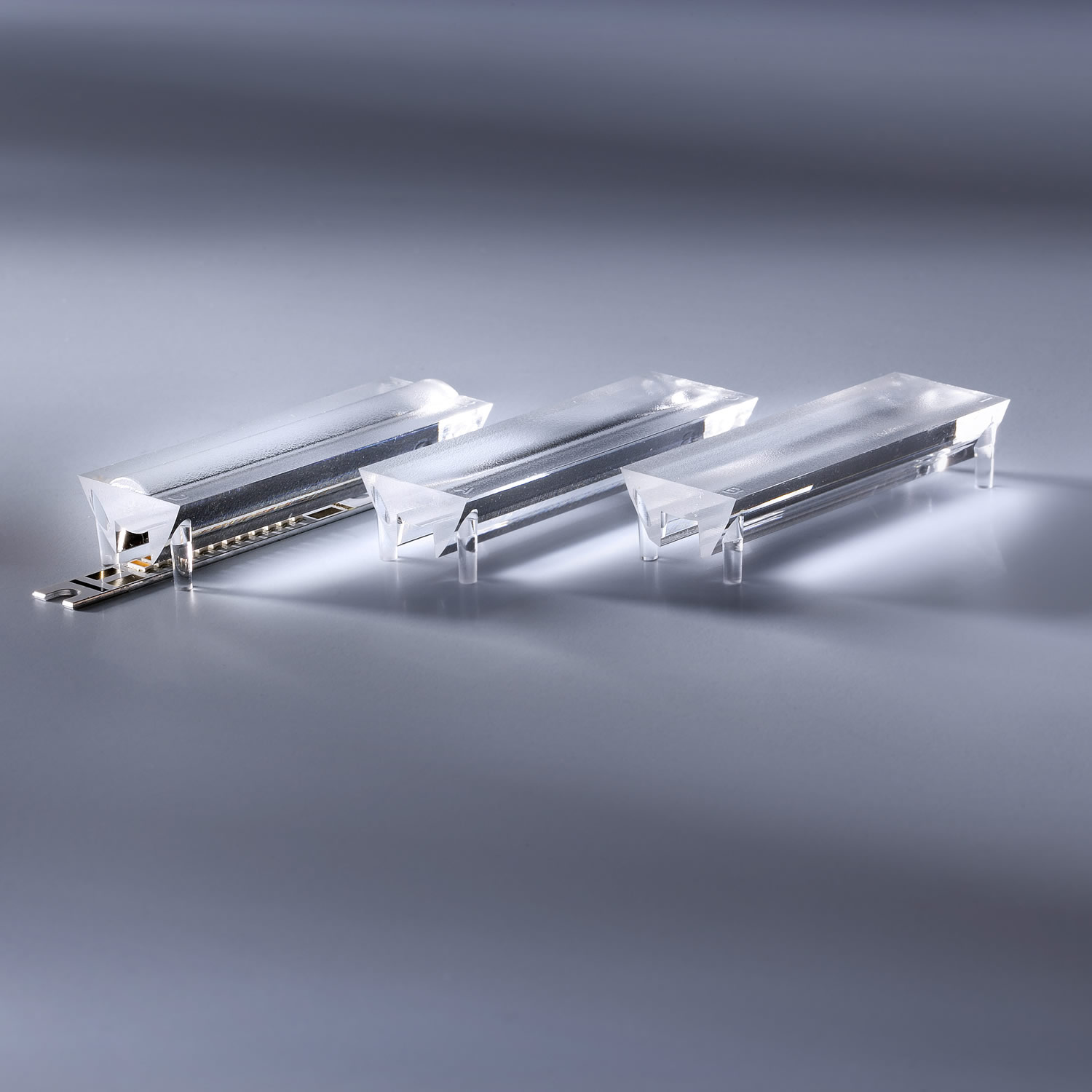

Plastic lens for Citizen L103 series and SmartArray 30 deg

Plastic lens for Citizen L103 series and SmartArray 30 deg

Plastic lens for Citizen L103 series and SmartArray 30 deg
Plastic lens for Citizen L103 series and SmartArray 30 deg Plastic lens for Citizen L103 series and SmartArray 30 deg

Plastic lens for Citizen L103 series and SmartArray 30 deg

€10.59
Stock >100 pcs
SKU
60396

LED lens perfectly suited for the application on our Ledrise SmartArrays and the Citizen L103 LED modules. The lenses provide a focussed and bundled light. In combination with our cooling element item no. 6009 a perfect completion to our SmartArray range of products.

Features
  • operating temperature: -40°C + 110°C
  • lens material: PMMA HT

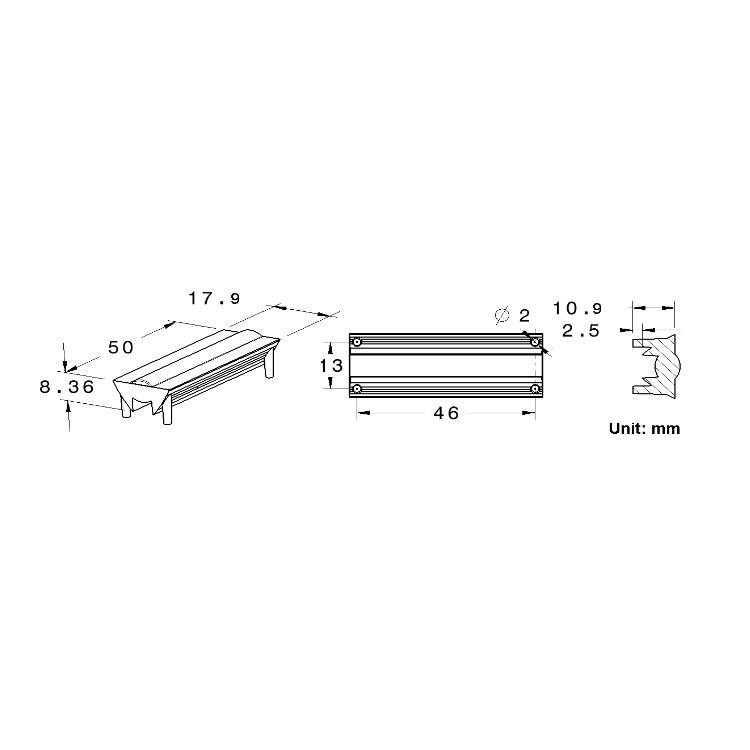

  • dimensions (LxWxH): 50.0x17.9x11.0mm
radiation angle
  • 60395: radiation angle 12°
  • 60396: radiation angle 30°
  • 60397: radiation angle 60°
Technical Data
SKU 60396
Weight brut (g) 1.000000
Availability beyond shown stock: YES
Lens Compatibility Smart Array
Lens Viewing Angle 30
Brand Lumistrips
Manufacturer Product Code C-003
Dimensions: Height (mm) 1.79
Dimensions: Width (mm) 0.84
Dimensions: Length (cm) 5.00
