PowerBar-4090-V3 LED Module Aluminium warm white 3000K 2838lm 700mA 12x Osram Oslon LEDs 29cm (9927lm/m)
- Superior brightness of 9923 lumens per meter
- Warm white light with a calming color temperature of 3000K
- Can be used for task lighting or luminaire construction in industrial, commercial, and architectural settings
- Easy plug-and-play operation with constant current
- Divisible into 12 segments, each of which can be used individually
- NTC resistor for temperature monitoring and better heat management
- Can be divided at each 23.85mm segment to suit many fixture designs
- Compatible with a variety of lenses from Ledil and Carclo, making it easy to customize your lighting setup for your specific needs.
Our PowerBar V3 is the ultimate LED light strip for industrial, commercial, and architectural lighting applications. With its compact design and superior brightness, the PowerBar V3 can be used in a variety of settings where high-quality lighting is essential.

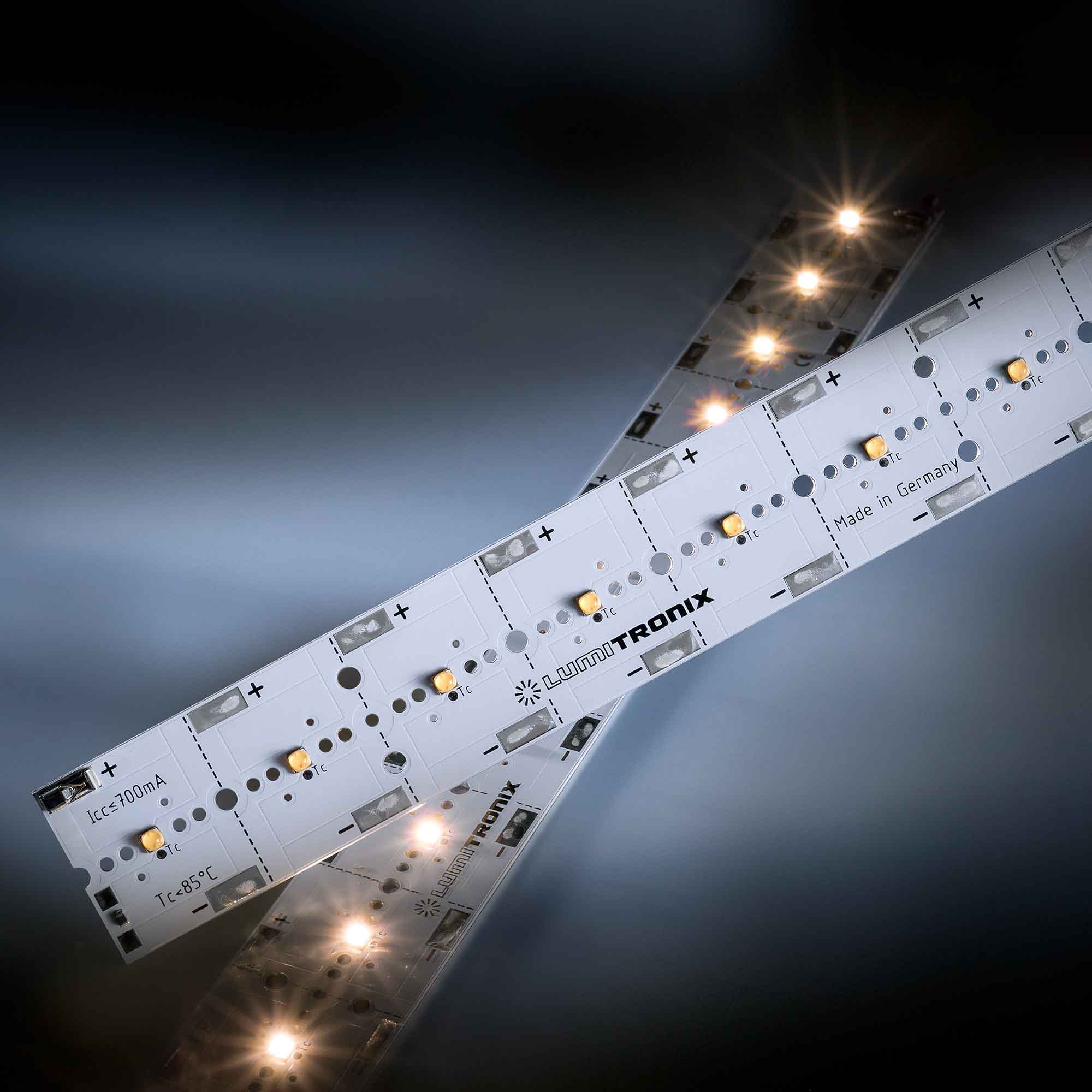

Featuring 12 powerful, long-lasting white LEDs from the Osram Oslon SSL series, each strip is equipped with an NTC resistor for temperature monitoring and better heat management, thanks to its aluminum circuit board. The PowerBar V3 is also designed for easy plug-and-play operation and constant current operation.
The PowerBar V3 also boasts an extremely high brightness of 9923 lumens per meter, making it perfect for task lighting or luminaire construction. The strip can be divided into 12 segments, each of which can be used individually, allowing for a variety of lighting setups.
The PowerBar V3 aluminum LED bars are compatible with a variety of lenses from Ledil and Carclo, making it easy to customize your lighting setup for your specific needs. And with a 5-year warranty and German craftsmanship, you can trust that the PowerBar V3 will provide reliable, long-lasting performance for all your lighting needs.

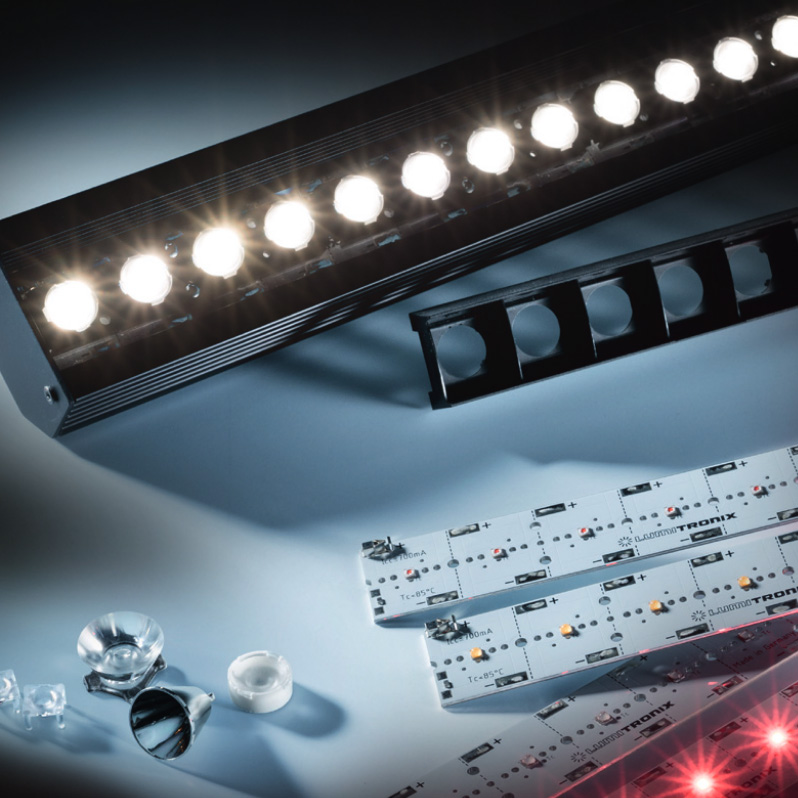

With our matching accessories, it's easy to assemble your own custom luminaire using the PowerBar V3 system. Simply choose from one of our three options, each of which includes the necessary heat sink, adhesive pad, and mounting clip. Option one also includes a Florentina rod lens with different beam angles, a shade, and a plug-in module, while option two includes a plastic cover (not recommended for use with PowerBar bars with UV LEDs). Option three allows for individual lens customization.
With a color temperature of 3000K, the warm white light creates a relaxing atmosphere that is ideal for use in kitchens, bathrooms, guest rooms, cafes, and clothing stores. Compared to 2700K, warm light at 3000K is ideal for completing tasks in residential areas, as it creates a cozy yet clear environment.
Overall, the PowerBar V3 is an exceptional choice for anyone looking for a high-quality LED light strip with outstanding brightness and performance.
Features PowerBar-4090-V3
- You will receive a PowerBar V3 LED module equipped with 12 powerful 3000K white LEDs from the Osram Oslon SSL series
- Long-life LEDs from Osram
- 700mA LED module, at 35.2V
- Simple plug-and-play system
- 5 years warranty
- Divisible by each segment
- Better heat management thanks to aluminium circuit board
- Dimmable
- Constant current operation
- Optimized for lens systems
- NTC for temperature monitoring via external control unit
- Dimensions: 286 x 28.5 x 4.5 mm
- Mage in Germany

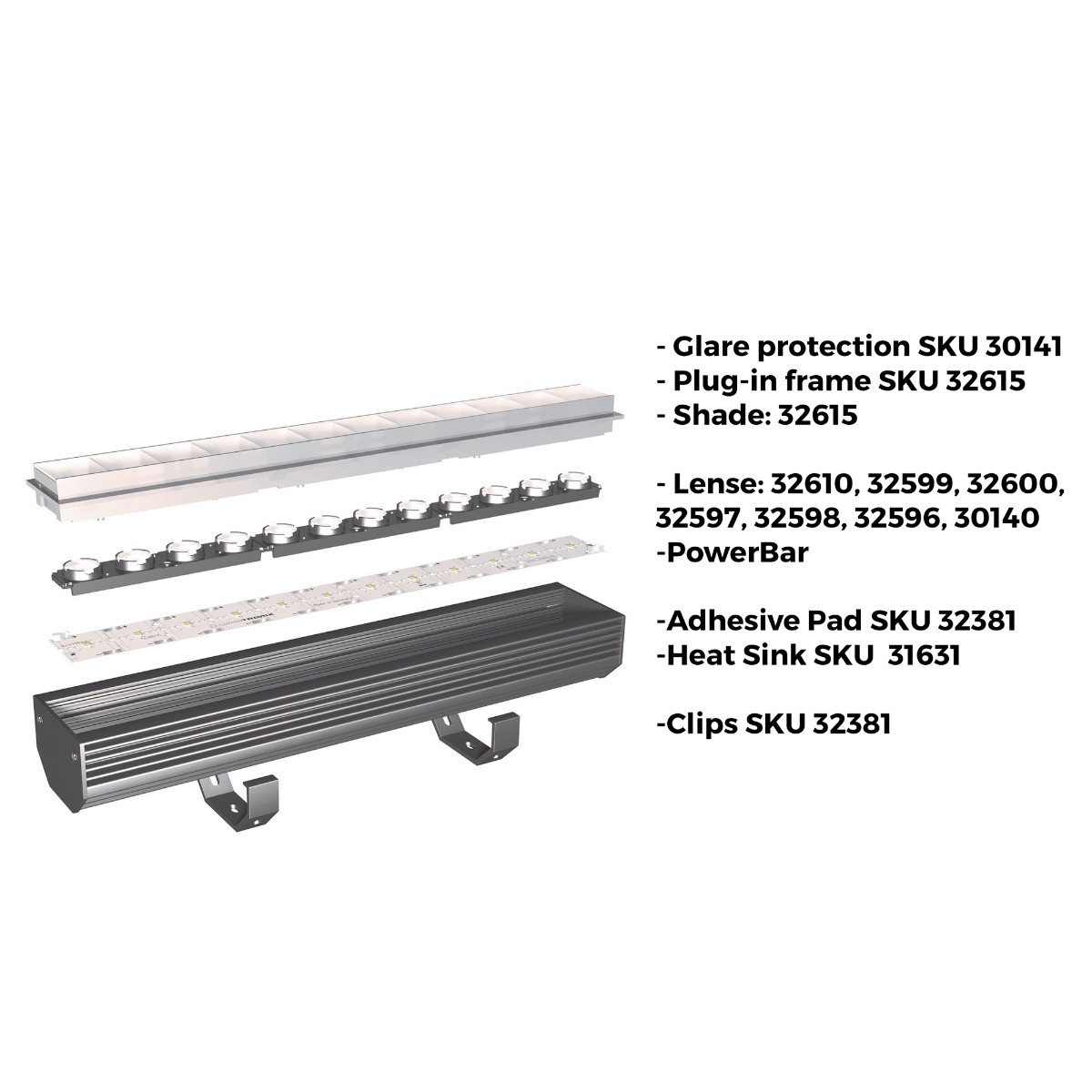

With the matching accessories of our PowerBar V3 system, it is possible to assemble a complete luminaire. You have several options:
Option 1
- Powerbar V3 Heat sink 31631
- Heat conductive adhesive pad 31623
- Mounting clip 32381
- Florentina rod lens with different beam angles 32610, 32599, 32600, 32597, 32598, 32596, 30140
- Shade 30141 and Plug-in module 32615
Option 2
- Powerbar V3 Heat sink 31631
- Heat conductive adhesive pad 31623
- -Mounting clip 32381
- Plastic cover (do not use on PowerBar bars with UV LEDs) 32176
Option 3
- Powerbar V3 Heat sink 31631
- Heat conductive adhesive pad 31623
- Mounting clip 32381
- Individual lenses
| SKU | 31612 |
|---|---|
| Weight brut (g) | 1.000000 |
| Color | Warm White |
| Color Temperature | 3000K |
| Color Rendering Index | 90 |
| Luminous Flux per meter | 9923 |
| Bright like (W) | 827 |
| Luminous Flux Typ (lm) | 2838 |
| Efficacy (lm per W) | 115 |
| Energy Class 2022 | E |
| Power (W) | 24.64 |
| Viewing Angle | 120° |
| Warranty (months) | 60 |
| Lifetime for residential, 3h daily (yrs) | 92 |
| Product lifetime (h) | 100000 |
| Lifetime for commercial, 12h daily (yrs) | 23 |
| Forward Current Max | 700 |
| Manufacturer Product Code | 31612 |
| Product Family | PowerBar V3 LED Strip |
| Strip Type | Rigid |
| LEDs number per sales unit | 12 |
| Dimensions | 286x28.5x4.55 |
| Dimensions: Length (cm) | 28.6 |
| Dimensions: Width (mm) | 28.5 |
| Dimensions: Height (mm) | 4.5 |
| Brand | Lumistrips |
| Manufacturer Part Number | 4260127453547 |
| Forward Voltage Typ (V) | 35.2 |
| Availability beyond shown stock: | YES |
