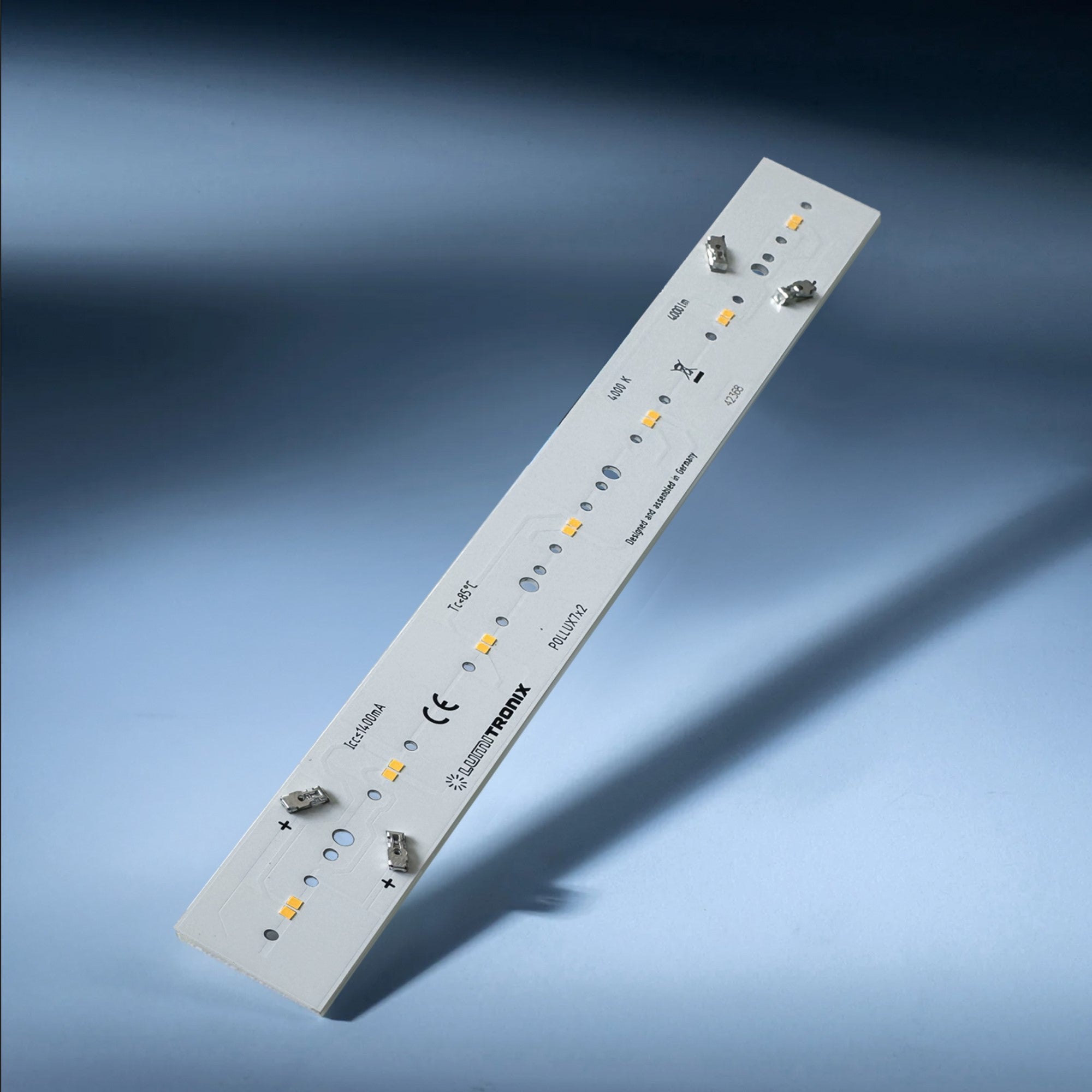

Pollux 7x2 Nichia E21 CSP LED Module Neutral White 4000K CRI80 4000lm 1400mA 28.5W 27.4cm
- Professional optical platform designed around Gaggione POLLUX7X1 secondary optics
- Approximately 142 lm/W module efficacy
- 4000 lm luminous flux
- 3-Step MacAdam colour consistency
- 1400 mA constant-current operation
- 14 Nichia E21 CSP LEDs
- Made in Germany with a 5-year commercial warranty
The Pollux 7 × 2 is a professional rigid linear LED module built specifically around the Gaggione POLLUX7X1 optical platform. This version uses 14 Nichia E21 CSP LEDs and delivers approximately 4000 lm at 4000 K with CRI 80+.
The module combines a compact 274 × 28 mm PCB with a 120° native LED distribution and a defined LED pitch for secondary optics. With a suitable Gaggione lens, the same LED engine can be configured as a wide flood, very-wide flood, elliptical wall washer or narrow wall grazer.
Features of this Pollux LED module
- Pollux 7 × 2 rigid linear module
- 14 Nichia E21 CSP LEDs
- 4000 K neutral white light
- CRI 80+
- 4000 lm luminous flux
- Approximately 142 lm/W module efficacy
- 1400 mA constant-current operation
- Reference forward voltage approximately 20.4 V
- Power consumption approximately 28.5 W
- 120° native LED beam before secondary optics
- 3-Step MacAdam colour consistency
- Rated lifetime greater than 60,000 h L80B10C1
- EN 62471 photobiological safety classification: RG0
- CE, RoHS and REACH compliant
- PCB footprint approximately 274 × 28 mm
- 5-year commercial warranty, subject to current warranty conditions
- Made in Germany
Designed around Gaggione POLLUX7X1 optics
The Pollux PCB uses a defined LED pitch and mechanical layout matched to the Gaggione POLLUX7X1 linear-optics family. This means the optical distribution can be changed without redesigning the LED board.
Available Gaggione variants include approximately 55° and 63° wide beams, an 80° very-wide beam, a 20° × 75° elliptical distribution and a 20° wall-grazer optic. A matching POLLUX7X1 holder is also available to position the optic correctly over the LED row and provide a clean mechanical interface.
Because each optical element is moulded to the LED pitch, the lens works as one continuous linear optic rather than as a set of unrelated spot lenses. This is especially useful for wall washing, wall grazing, floodlighting, shop lighting, machine illumination and other applications where beam shape must be controlled along the full length of the module.
Linear and floodlight applications
Pollux is suited to professional linear luminaires and floodlights that need a compact rigid light engine with a selectable beam distribution. This is the highest-output Pollux variant in the current range, delivering approximately 4000 lm from a single 27.4 cm module. It is intended for demanding floodlights, high-output wall washers and compact luminaires where maximum flux is required from the Pollux optical footprint.
With the appropriate Gaggione optic, the same mechanical platform can also be configured for wall grazing, elliptical wall washing, accent lighting, machine lighting or wider area illumination.
Choosing the Pollux output class
This is the highest-output Pollux variant in the current range, delivering approximately 4000 lm from a single 27.4 cm module. It is intended for demanding floodlights, high-output wall washers and compact luminaires where maximum flux is required from the Pollux optical footprint.
The Pollux family uses the same general optical concept across several LED technologies and power levels, allowing a luminaire range to share optics and mechanical architecture while offering different lumen packages, efficiencies and colour-rendering levels.
4000 K white light for professional luminaires
Neutral white 4000 K is a versatile choice for retail, offices, architectural lighting, machine illumination and other professional environments. CRI 80+ provides a practical balance of efficiency and colour quality for general professional lighting.
For more background, see our colour temperature guide.
Constant-current driver integration
This Pollux module requires a regulated 1400 mA constant-current LED driver with an output-voltage range that accommodates approximately 20.4 V per module. It must not be connected directly to a constant-voltage supply.
Several compatible modules can be connected in series when the driver's output-voltage range accommodates the sum of the module forward voltages. Parallel operation should only be used with validated current sharing or separately regulated branches.
Designed and manufactured in Germany
We develop and manufacture professional LED modules in Germany, combining more than 20 years of LED application experience with controlled SMT production and application engineering. Pollux is designed as an optical platform: PCB geometry, LED pitch, driver requirements and secondary optics are considered together so luminaire manufacturers can build repeatable products around a defined light engine.
For OEM and project customers, we can also support LED selection, PCB adaptation, optical simulation, thermal design, prototyping and series production. This allows the beam distribution, light level and mechanical integration to be matched to the finished luminaire.
Learn more about Lumistrips and our LED manufacturing capabilities.
| SKU | 42368 |
|---|---|
| Weight brut (g) | 32.000000 |
| Color | Neutral White |
| Color Temperature | 4000K |
| Color Rendering Index | 80 |
| Luminous Flux per meter | 14600 |
| Bright like (W) | 267 |
| Luminous Flux Typ (lm) | 4000 |
| Efficacy (lm per W) | 142 |
| Energy Class 2022 | D |
| Power (W) | 28.5 |
| Dimmable | Dimmable |
| Viewing Angle | 120° |
| Warranty (months) | 60 |
| Lifetime for residential, 3h daily (yrs) | 55 |
| Product lifetime (h) | 60000 |
| Lifetime for commercial, 12h daily (yrs) | 14 |
| Manufacturer Product Code | 42368 |
| Product Family | Pollux |
| Strip Type | Rigid |
| LEDs number per sales unit | 14 |
| Dimensions | 274 x 28 x 1.5 mm |
| Dimensions: Length (cm) | 27.4 |
| Dimensions: Width (mm) | 28 |
| Dimensions: Height (mm) | 1.5 |
| Brand | Lumistrips |
| Forward Voltage Typ (V) | 20.4 |
