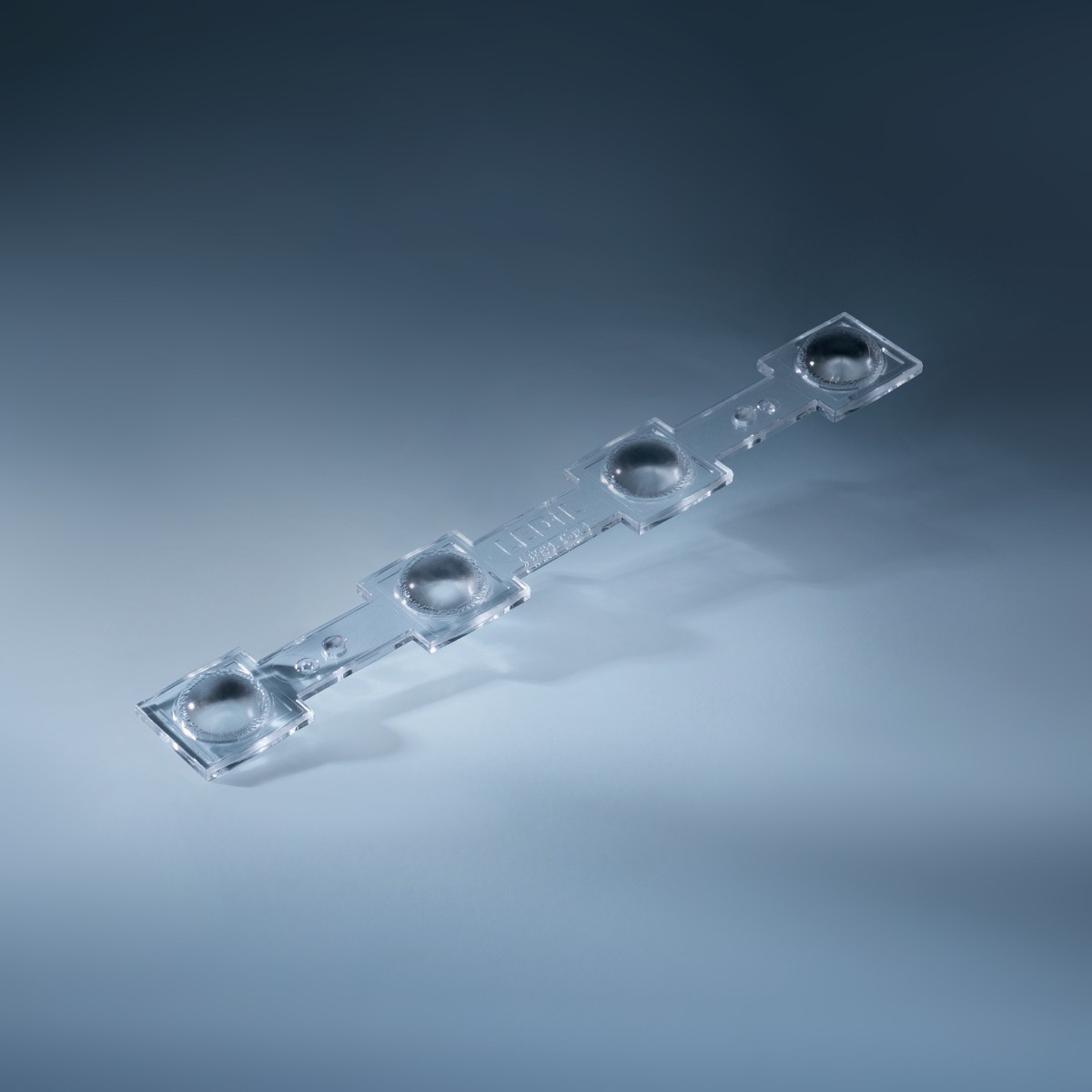

LEDiL Rod 4 Lens CN16584_DAISY-4X1-WW ~80° for Daisy 16 and 56 TW modules

Linear rod lens with 4 single lenses

The CN16584 rod lens from LEDiL's DAISY series is equipped with 4 individual lenses and can be mounted directly on LED modules specially produced for this series. This is ensured by drill holes in the aluminium circuit board of the LED strips. The individual lenses each have a beam angle of ~80°. The matching lens holder, which also serves as an anti-glare shield, is also available in our online shop in two colour versions. It can be conveniently clicked directly onto the lenses.

In combination with the LED modules from LUMITRONIX®, the linear lens series DAISY is particularly suitable for workplace and office luminaires. It can also be used in public spaces and halls.

LEDiL - the world's leading optics manufacturer

Founded in 2002, LEDiL Oy from Finland has become the world market leader in optics and lenses for LEDs. More than 4000 products as well as production facilities and warehouses on 3 continents speak for themselves. In addition to secondary optics, LEDiL also offers a whole range of reflectors and accessories. We also respond to customer-specific requests with the greatest competence and quality.

Features of the DAISY rod lens

• Dimensions: 182 x 40 x 20.2 mm
• 4 single lenses
• Lenses and glare protection connected by click system (glare protection sold separately)
• Fastening with screws, adhesive or clips
• For Daisy LED modules (SKU: 34550, 34552)
• Beam angle: ~80°

We are an official LEDiL distributor.
