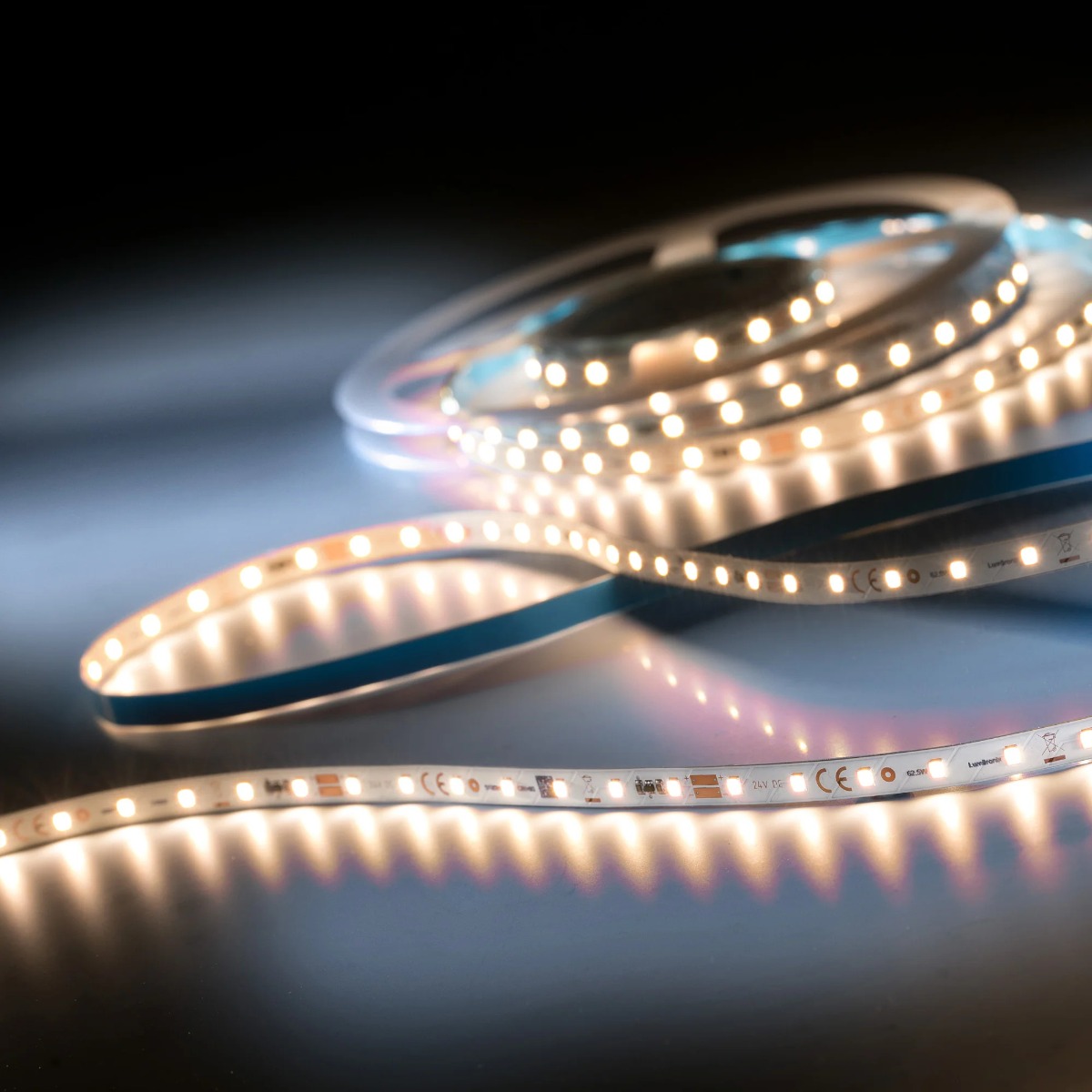

LumiFlex3090 Cree LED Strip warm white CRI90 3000K 9100lm 24V 70 LEDs/m 5m reel (1820lm/m 12.5W/m)
- High-quality Cree JB2835 LEDs with 60,000-hour rated lifetime (L80B10C1)
- CRI >90 with 3-Step MacAdam binning for consistent, accurate colour reproduction
- High brightness: 1820 lm/m at 3000K warm white — ideal for cove, general and architectural lighting
- 146 lm/W efficacy at operating temperature (159 lm/W at mains input)
- Dimmable at 24 VDC constant voltage — compatible with standard 0/1–10V, DALI and PWM dimmers
- Cuttable every 100 mm; easy installation with thermally conductive double-sided adhesive tape
- 5-year commercial warranty
- Made in Germany — Reel-to-Reel (R2R) Flex manufacturing
LumiFlex3090 Cree LED Strip 3000K CRI90 – SKU 43846
- High-quality Cree JB2835 LEDs with 60,000-hour rated lifetime (L80B10C1)
- CRI >90 with 3-Step MacAdam binning for consistent, accurate colour reproduction
- High brightness: 1820 lm/m at 3000K warm white — ideal for cove, general and architectural lighting
- 146 lm/W efficacy at operating temperature (159 lm/W at mains input)
- Dimmable at 24 VDC constant voltage — compatible with standard 0/1–10V, DALI and PWM dimmers
- Cuttable every 100 mm; easy installation with thermally conductive double-sided adhesive tape
- 5-year commercial warranty
- Made in Germany — Reel-to-Reel (R2R) Flex manufacturing
The LumiFlex3090 is a high-output flexible LED strip engineered for professional general and architectural lighting in commercial, hospitality, and residential settings. It is built around the Cree JB2835 — 350 LEDs per reel, 70 per metre — a mid-power package from the world's #2 LED manufacturer, selected for its proven performance in high-volume general lighting deployments.
This 3000K variant delivers 1820 lm/m at 12.5 W/m — slightly higher output than the 2700K version owing to the efficiency advantage of a cooler white point — reaching 159 lm/W at mains input. The neutral warm white 3000K CCT with CRI >90 and 3-Step MacAdam binning is a widely specified choice for retail, office, and commercial environments where colour accuracy is required but a cooler, crisper white is preferred over the warmth of 2700K.
The strip is manufactured in Germany on Lumistrips' Reel-to-Reel (R2R) Flex line — a fully automated, continuous-feed production process that eliminates manual handling between stages. This reduces interconnects, tightens placement tolerances, and produces consistent solder joint quality across every metre, reel after reel. For specifiers sourcing larger quantities, this translates directly to lower batch-to-batch variation and predictable field performance.
The LumiFlex3090 runs on a single unbroken 5-metre PCB — no soldered sections — and is cuttable every 100 mm at marked cut points. The reverse side carries a thermally conductive double-sided adhesive for direct surface or profile mounting. No additional heatsinking is required in typical architectural profile installations.
Features:
- Cree JB2835 LEDs — 350 pcs per 5m reel (70/m) — rated lifetime >60,000 h (L80B10C1)
- CRI >90, 3-Step MacAdam binning, 3000K warm white
- 1820 lm/m luminous flux; 9100 lm total per reel
- 146 lm/W at TJ 65°C / 159 lm/W at mains input (energy class D)
- 120° beam angle (FWHM)
- 24 VDC constant voltage, dimmable
- 12.5 W/m power draw; 62.5 W per reel
- Cuttable every 100 mm
- Thermally conductive double-sided adhesive tape included
- Operating temperature: −40°C to +85°C (Tc); ambient to +50°C
- CE, RoHS, REACH certified; EN 62471 Risk Group 0
- 5-year commercial warranty
- Made in Germany (R2R Flex manufacturing)
Applications:
- Cove and indirect lighting
- General illumination in commercial and retail spaces
- Architectural and decorative linear lighting
- Hospitality and restaurant lighting
- Office and task lighting
- Residential ceiling, cabinet and feature lighting
- Luminaire integration
Quality Difference of Our LED Strips Made in Germany
LED Quality:
The LumiFlex3090 uses Cree JB2835 LEDs exclusively — sourced through the Cree LED Branding Partner Programme, which means the components are traceable within Cree's authenticated supply chain. Cree publishes full component datasheets with tested and certified photometric data; the performance figures in our datasheet correspond to those certified values, measured at TJ = 65°C, not at cold-start conditions.
Low-cost strips frequently use LEDs of undisclosed origin, packaged without certified performance documentation. Bin-to-bin variation between batches is common and often undetectable until strips are installed side by side.
PCB Design and Materials Quality:
The LumiFlex3090 is built on a continuous flexible PCB — no soldered joints along the strip length. The integrated linear control circuit ensures stable current across the full 5m run, avoiding the brightness roll-off seen at the far end of under-engineered constant-voltage strips. Thermally conductive adhesive is included as standard.
Made in Germany — Reel-to-Reel Manufacturing:
Every LumiFlex3090 reel is produced on Lumistrips' automated R2R Flex line in Germany. Reel-to-Reel is a continuous production method — the flexible substrate moves through placement, reflow and inspection stages without interruption — which eliminates the handling errors and interconnect failures common in batch assembly. The result is uniform LED placement, consistent forward voltage across the reel, and a finished strip that performs to spec in the field as reliably as it does in the lab.
Need a Custom Specification?
The LumiFlex3090 standard range is available at lumistrips.com. If your project requires a different CCT, CRI target, LED density, reel length, PCB width, IP rating, or electrical parameter, Lumistrips engineers custom LED strips and modules to specification through lumistrips.eu — drawing on over 20 years of LED manufacturing experience and components from Nichia, Cree, Seoul Semiconductor, Osram, and LumiLeds.
| SKU | 43846 |
|---|---|
| Color | Warm White |
| Color Temperature | 3000K |
| Color Rendering Index | 90 |
| Luminous Flux per meter | 1820 |
| Bright like (W) | 100 |
| Luminous Flux Typ (lm) | 9100 |
| Efficacy (lm per W) | 146 |
| Energy Class 2022 | D |
| Power (W) | 12.5 |
| Dimmable | Dimmable |
| Viewing Angle | 120° |
| Warranty (months) | 60 |
| Lifetime for residential, 3h daily (yrs) | 55 |
| Product lifetime (h) | 60000 |
| Lifetime for commercial, 12h daily (yrs) | 14 |
| Manufacturer Product Code | 43846 |
| Product Family | LumiFlex3090 |
| Strip Type | Flexible |
| Strip LEDs per meter | 70 |
| LEDs number per sales unit | 350 |
| Dimensions | 5000x8x1.2 |
| Dimensions: Length (cm) | 500 |
| Dimensions: Width (mm) | 1.2 |
| Dimensions: Height (mm) | 8 |
| Can be cut at (mm) | 100 |
| Brand | Lumistrips |
| Manufacturer Part Number | LM-43846 |
| Forward Voltage Typ (V) | 24 |
