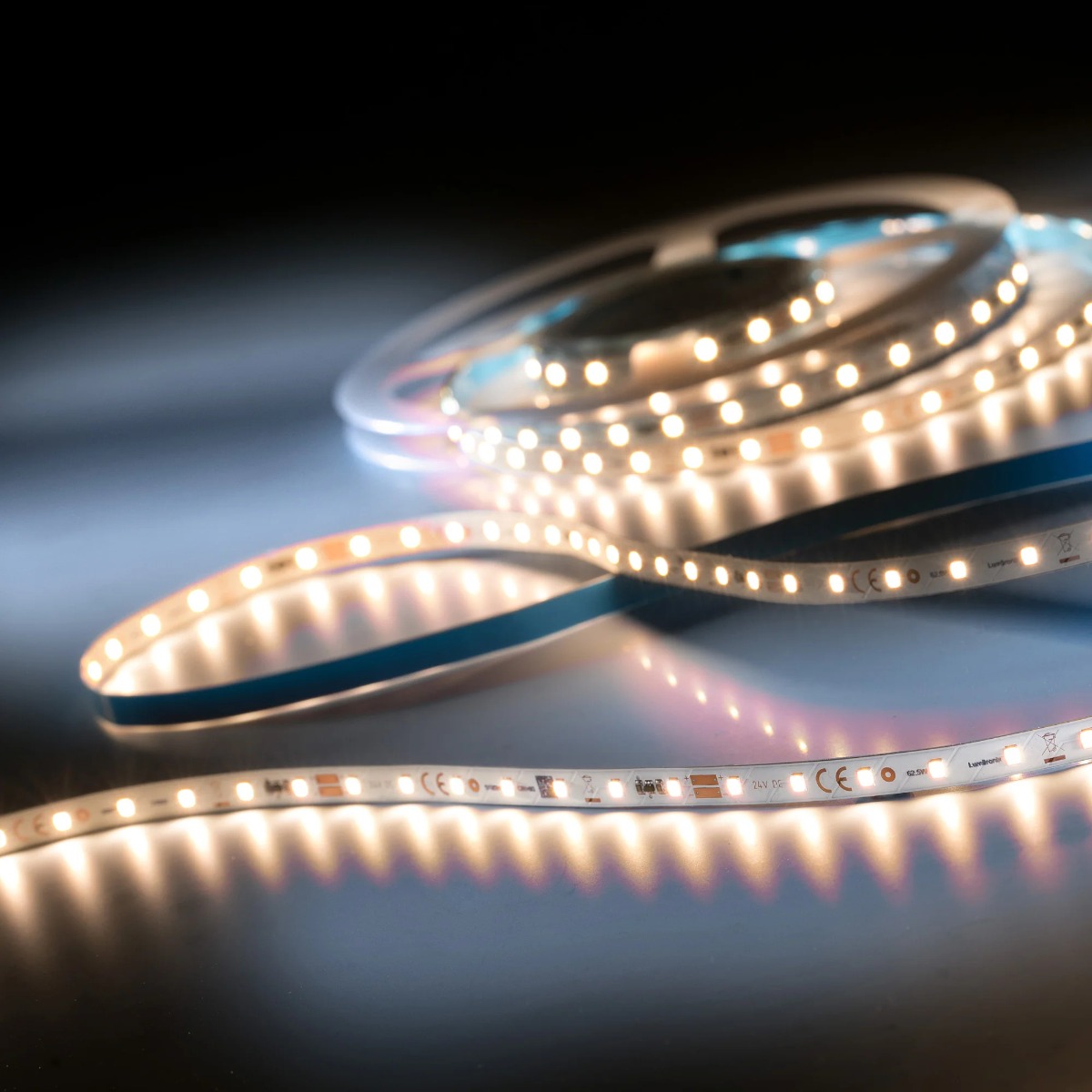

LumiFlex3090 Cree LED Strip pure white CRI90 4000K 9450lm 24V 70 LEDs/m 5m reel (1890lm/m 12.5W/m)
- High-quality Cree JB2835 LEDs with 60,000-hour rated lifetime (L80B10C1)
- CRI >90 with 3-Step MacAdam binning for consistent, accurate colour reproduction
- High brightness: 1890 lm/m at 4000K pure white — the highest-efficacy variant in the LumiFlex3090 range
- 152 lm/W efficacy at operating temperature (164 lm/W at mains input)
- Dimmable at 24 VDC constant voltage — compatible with standard 0/1–10V, DALI and PWM dimmers
- Cuttable every 100 mm; easy installation with thermally conductive double-sided adhesive tape
- 5-year commercial warranty
- Made in Germany — Reel-to-Reel (R2R) Flex manufacturing

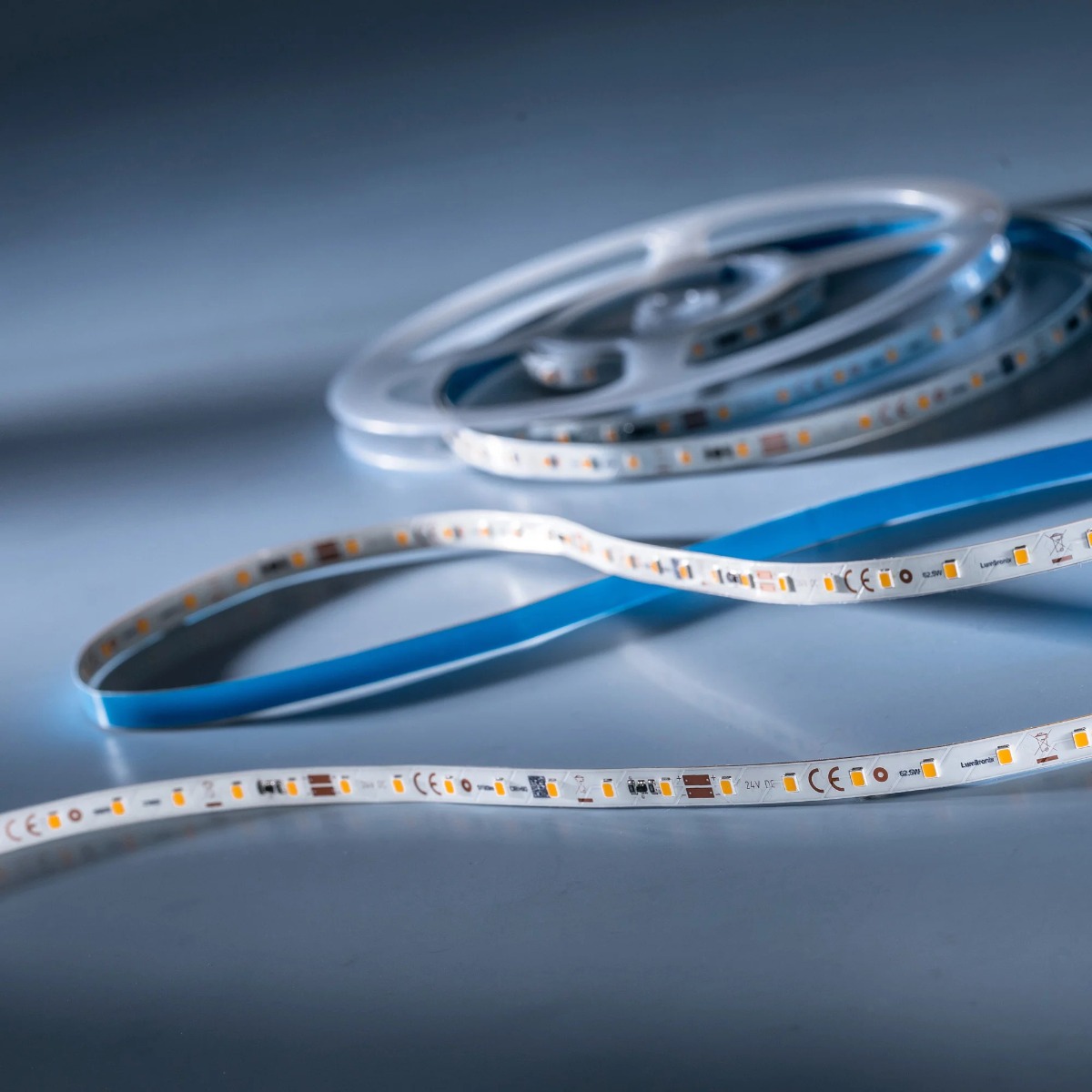

LumiFlex3090 Cree LED Strip 4000K CRI90 – SKU 43875
The LumiFlex3090 is a high-output flexible LED strip engineered for professional general and architectural lighting in commercial, office, and retail settings. It is built around the Cree JB2835 — 350 LEDs per reel, 70 per metre — a mid-power package from the world's #2 LED manufacturer, selected for its proven performance in high-volume general lighting deployments.
This 4000K pure white variant is the highest-performing CCT option in the LumiFlex3090 range, reaching 1890 lm/m at 12.5 W/m and 164 lm/W at mains input. The cooler white point of 4000K delivers a crisp, neutral light that supports visual acuity and alertness — making it the natural choice for task-intensive environments such as offices, workshops, retail display, and healthcare spaces. CRI >90 with 3-Step MacAdam binning ensures colour-accurate, visually uniform output across multiple strips installed in the same space.
The strip is manufactured in Germany on Lumistrips' Reel-to-Reel (R2R) Flex line — a fully automated, continuous-feed production process that eliminates manual handling between stages. This reduces interconnects, tightens placement tolerances, and produces consistent solder joint quality across every metre, reel after reel. For specifiers sourcing larger quantities, this translates directly to lower batch-to-batch variation and predictable field performance.
The LumiFlex3090 runs on a single unbroken 5-metre PCB — no soldered sections — and is cuttable every 100 mm at marked cut points. The reverse side carries a thermally conductive double-sided adhesive for direct surface or profile mounting. No additional heatsinking is required in typical architectural profile installations.
Features:
- Cree JB2835 LEDs — 350 pcs per 5m reel (70/m) — rated lifetime >60,000 h (L80B10C1)
- CRI >90, 3-Step MacAdam binning, 4000K pure white
- 1890 lm/m luminous flux; 9450 lm total per reel
- 152 lm/W at TJ 65°C / 164 lm/W at mains input (energy class D)
- 120° beam angle (FWHM)
- 24 VDC constant voltage, dimmable
- 12.5 W/m power draw; 62.5 W per reel
- Cuttable every 100 mm
- Thermally conductive double-sided adhesive tape included
- Operating temperature: −40°C to +85°C (Tc); ambient to +50°C
- CE, RoHS, REACH certified; EN 62471 Risk Group 0
- 5-year commercial warranty
- Made in Germany (R2R Flex manufacturing)
Applications:
- Office and task lighting
- Retail display and showcase lighting
- General illumination in commercial spaces
- Architectural and decorative linear lighting
- Healthcare and clinical environments
- Workshop and industrial ambient lighting
- Luminaire integration
Quality Difference of Our LED Strips Made in Germany
LED Quality:
The LumiFlex3090 uses Cree JB2835 LEDs exclusively — sourced through the Cree LED Branding Partner Programme, which means the components are traceable within Cree's authenticated supply chain. Cree publishes full component datasheets with tested and certified photometric data; the performance figures in our datasheet correspond to those certified values, measured at TJ = 65°C, not at cold-start conditions.
Low-cost strips frequently use LEDs of undisclosed origin, packaged without certified performance documentation. Bin-to-bin variation between batches is common and often undetectable until strips are installed side by side.
PCB Design and Materials Quality:
The LumiFlex3090 is built on a continuous flexible PCB — no soldered joints along the strip length. The integrated linear control circuit ensures stable current across the full 5m run, avoiding the brightness roll-off seen at the far end of under-engineered constant-voltage strips. Thermally conductive adhesive is included as standard.
Made in Germany — Reel-to-Reel Manufacturing:
Every LumiFlex3090 reel is produced on Lumistrips' automated R2R Flex line in Germany. Reel-to-Reel is a continuous production method — the flexible substrate moves through placement, reflow and inspection stages without interruption — which eliminates the handling errors and interconnect failures common in batch assembly. The result is uniform LED placement, consistent forward voltage across the reel, and a finished strip that performs to spec in the field as reliably as it does in the lab.
Need a Custom Specification?
The LumiFlex3090 standard range is available at lumistrips.com. If your project requires a different CCT, CRI target, LED density, reel length, PCB width, IP rating, or electrical parameter, Lumistrips engineers custom LED strips and modules to specification through lumistrips.eu — drawing on over 20 years of LED manufacturing experience and components from Nichia, Cree, Seoul Semiconductor, Osram, and LumiLeds.
| SKU | 43875 |
|---|---|
| Color | Neutral White |
| Color Temperature | 4000K |
| Color Rendering Index | 90 |
| Luminous Flux per meter | 1890 |
| Bright like (W) | 110 |
| Luminous Flux Typ (lm) | 9450 |
| Efficacy (lm per W) | 152 |
| Energy Class 2022 | D |
| Power (W) | 12.5 |
| Dimmable | Dimmable |
| Viewing Angle | 120° |
| Warranty (months) | 60 |
| Lifetime for residential, 3h daily (yrs) | 55 |
| Product lifetime (h) | 60000 |
| Lifetime for commercial, 12h daily (yrs) | 14 |
| Manufacturer Product Code | 43875 |
| Product Family | LumiFlex3090 |
| Strip Type | Flexible |
| Strip LEDs per meter | 70 |
| LEDs number per sales unit | 350 |
| Dimensions | 5000x8x1.2 |
| Dimensions: Length (cm) | 500 |
| Dimensions: Width (mm) | 1.2 |
| Dimensions: Height (mm) | 8 |
| Can be cut at (mm) | 100 |
| Brand | Lumistrips |
| Manufacturer Part Number | LM-43875 |
| Forward Voltage Typ (V) | 24 |
