PaperFlex-20-1080 Osram LED module 1.05m length 0.36 sqm 147 LEDs warm white 2700K 24V 35cm wide (2900lm/sqm)
- Wide flexible LED light engine built on a paper substrate for very large luminous surfaces
- Approximate luminous flux: 1155 lm
- 24 V DC operation
- Osram Duris LEDs
- Seven LEDs across each 50 × 350 mm row
- 147 LEDs across 21 repeating rows
- Made in Germany with a 5-year commercial warranty

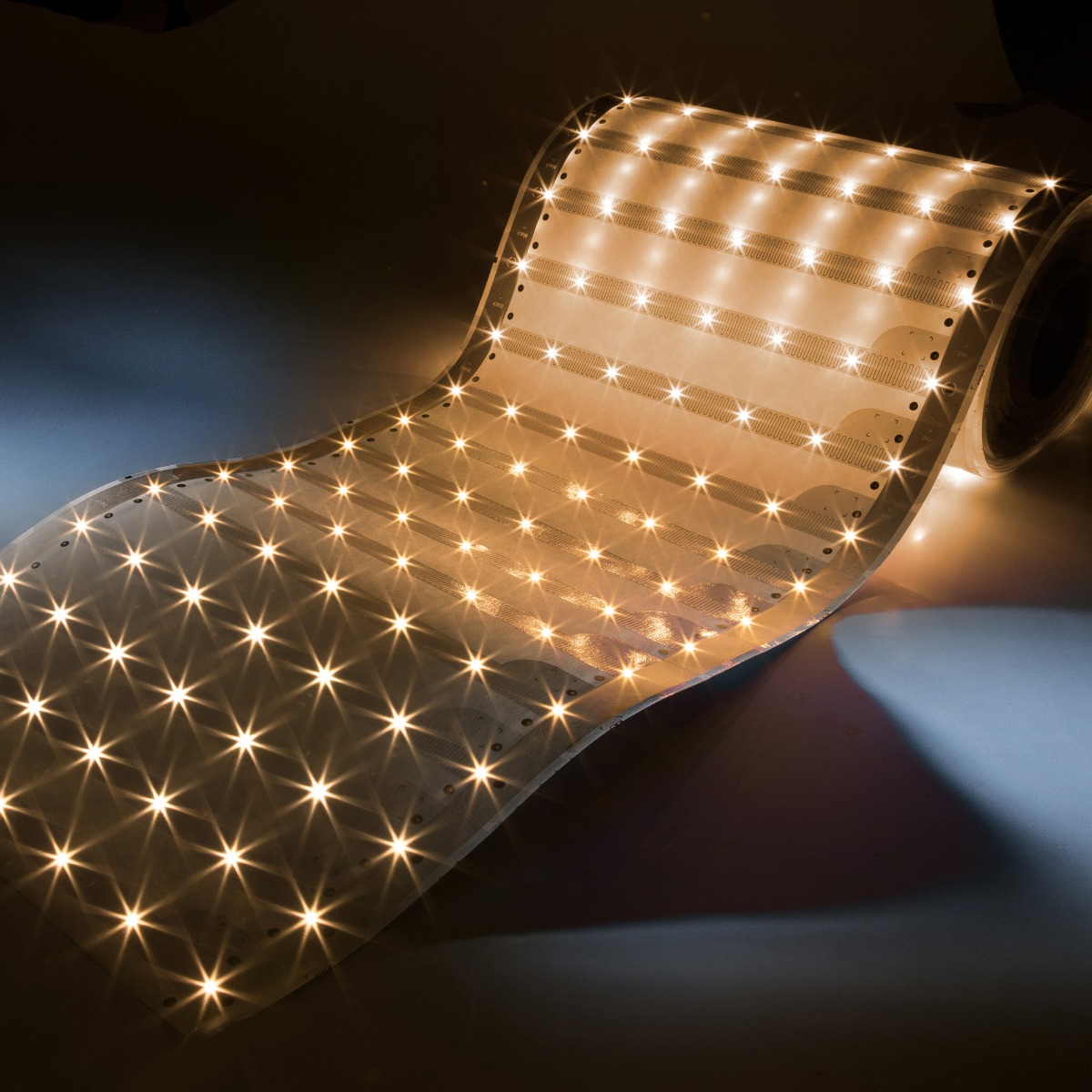

This PaperFlex1080 version provides a 1050 × 350 mm section of the wide paper-based LED light engine. It contains 147 LEDs and delivers approximately 1155 lm at 2700 K, creating a very thin luminous sheet for backlighting, wallpaper-style illumination and custom large-area light surfaces.

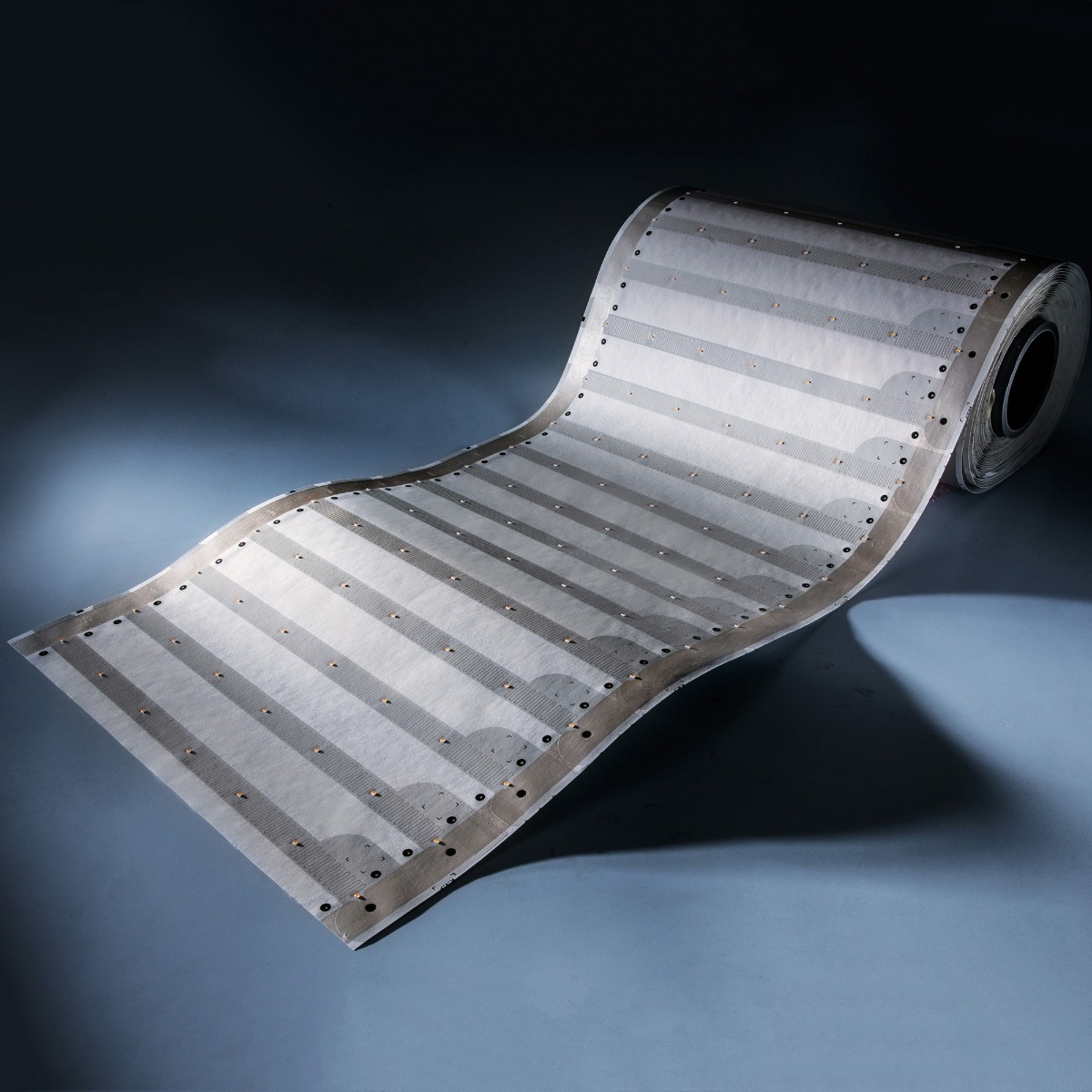

The 1.05 m length contains 21 repeating 50 mm PaperFlex rows. When several sales units are ordered, they can be supplied as one continuous piece rather than as separate strips, allowing the lighting surface to extend smoothly across larger walls, ceilings or display structures.
PaperFlex system features
- Flexible LED light engine on a paper substrate
- 35 cm-wide continuous sheet format
- 2700 K warm white light
- CRI above 80
- Osram Duris LEDs
- 24 V DC operation

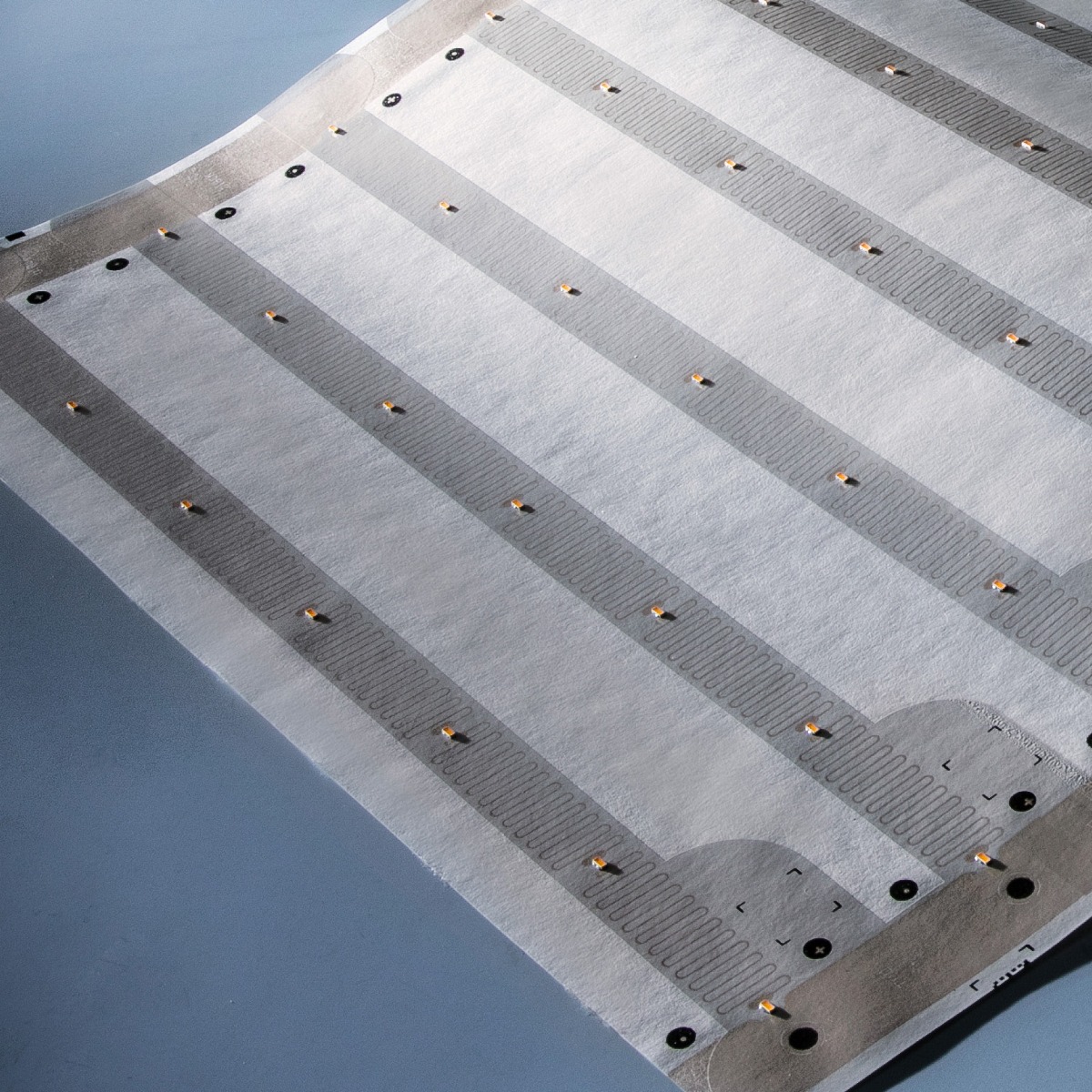

- Seven LEDs across each 50 × 350 mm row
- Approximately 55 lm and 0.36 W per 50 mm row
- Regular 50 mm row pitch for modular length adjustment
- Very low mass and extremely flat construction
- Produced using a Reel-to-Reel manufacturing process
- Suitable for large-area and curved backlighting concepts
- Supplied size: 1050 × 350 mm
- 147 LEDs across 21 repeating rows
- Approximate luminous flux: 1155 lm
- Multiple ordered units can be supplied as one continuous PaperFlex length
- For long installations, additional power feeds are required beyond approximately 2.5 m
- 5-year commercial warranty, subject to current warranty conditions
- Made in Germany
Wallpaper lighting and very large luminous surfaces
PaperFlex is particularly well suited to applications where the LED source must cover a very large area while remaining extremely thin and lightweight. The 35 cm-wide sheet can be installed behind translucent wall coverings, stretched ceilings, exhibition surfaces, furniture and other elements where conventional narrow LED strips would require many separate parallel runs.
The paper substrate follows broad curves more easily than rigid lighting boards and allows continuous illuminated surfaces to be planned almost like a technical wallpaper. This makes it useful for custom interiors, stage and exhibition construction, decorative walls and large-area luminaire concepts.
Billboard, signage and backlighting applications

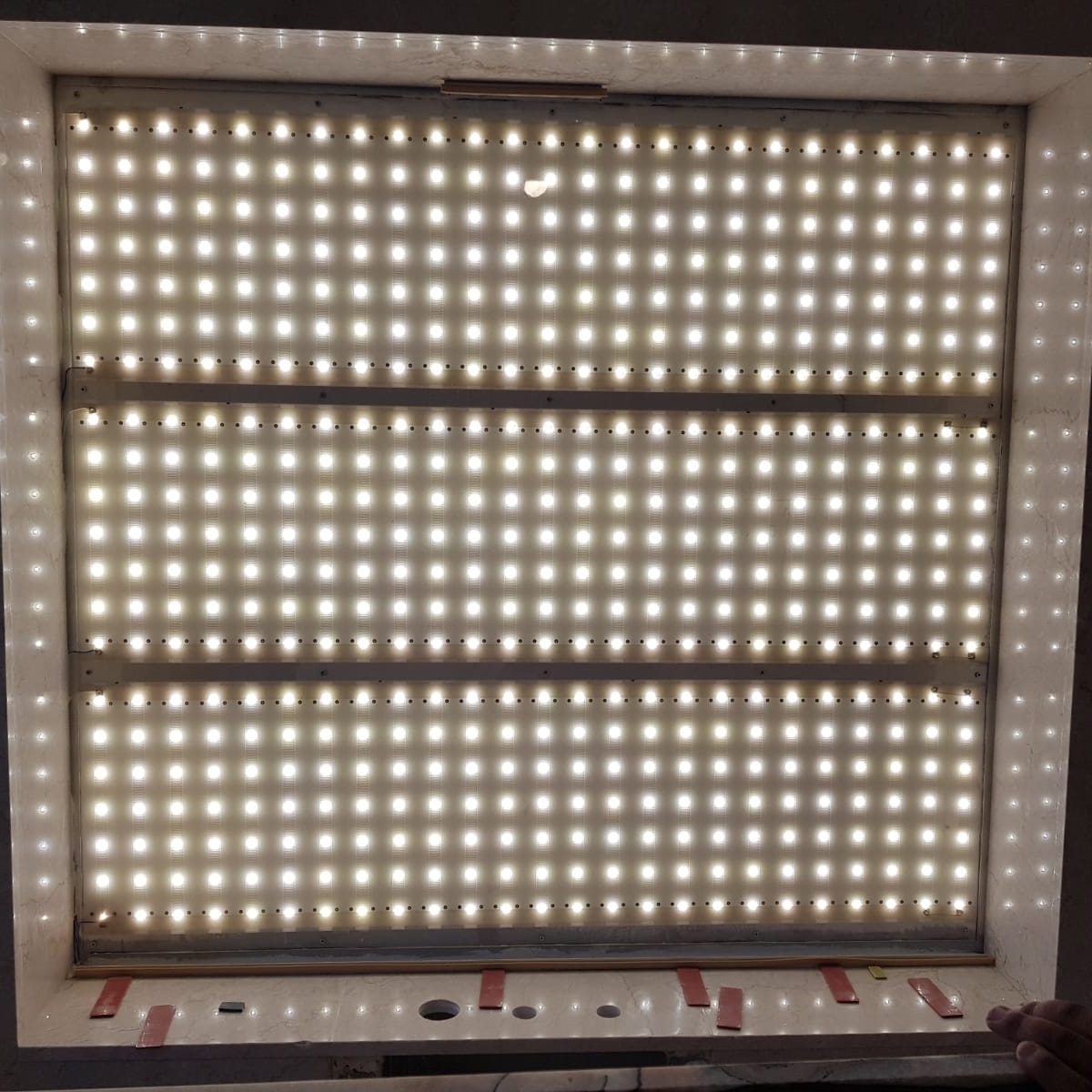

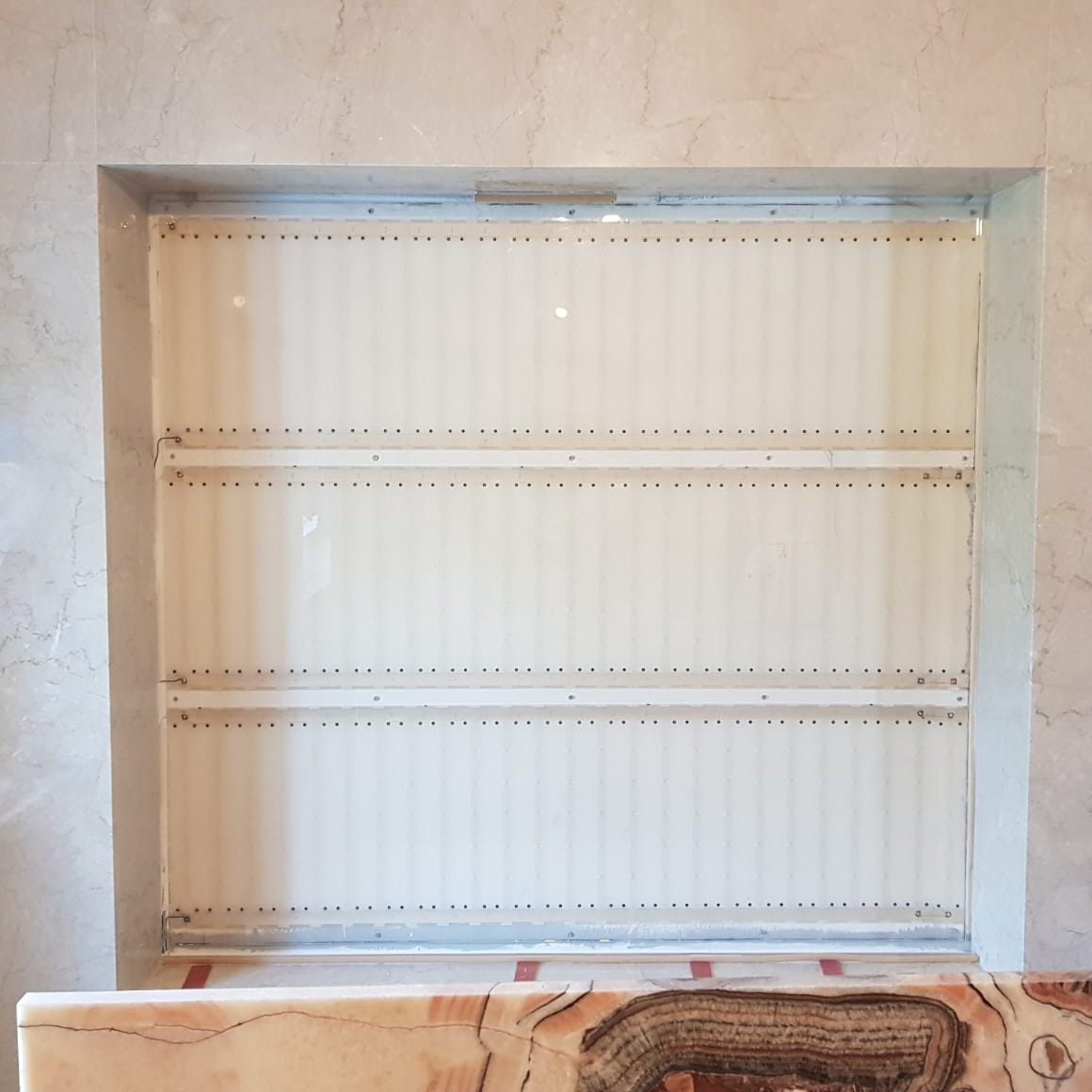

The wide continuous format is also well suited to billboard backlighting, signage and other large backlit surfaces. Instead of distributing many small LED boards across the rear of a display, PaperFlex can cover substantial areas with a regular LED grid on one continuous carrier.
Final distance to the diffuser should be selected according to the required uniformity, surface transmission and LED spacing. The regular row structure makes the optical layout predictable across long installations.
Continuous illumination for walls, ceilings and exhibitions
The 1.05 m format is useful when a project needs substantially more coverage than a single row but does not require a complete 24.85 m reel. The broad 35 cm width reduces the number of parallel light sources needed behind a large diffuser compared with conventional narrow LED tape.
Electrical integration for long lengths
PaperFlex operates from a regulated 24 V DC constant-voltage supply. For continuous installations, power-feed spacing should be planned to limit voltage drop; the existing product configuration specifies an additional feed for lengths beyond approximately 2.5 m.
Developed and manufactured in Germany
We develop and manufacture professional LED strips and modules in Germany, combining more than 20 years of LED application experience with automated production and application engineering. Our capabilities include Reel-to-Reel manufacturing for flexible substrates as well as controlled SMT assembly for rigid and flexible LED modules.
For project customers, we can also support custom dimensions, LED selection, thermal design, optical layout, prototyping and series production. This allows the light engine to be adapted to the illuminated surface instead of forcing the project around a standard LED-strip geometry.
Learn more about Lumistrips and our LED manufacturing capabilities.
| SKU | 37669 |
|---|---|
| Weight brut (g) | 1.000000 |
| Color | Warm White |
| Color Temperature | 2700K |
| Color Rendering Index | 80 |
| Luminous Flux per meter | 1100 |
| Bright like (W) | 92 |
| Luminous Flux Typ (lm) | 1079 |
| Efficacy (lm per W) | 139 |
| Energy Class 2022 | D |
| Power (W) | 8 |
| Viewing Angle | 120° |
| Warranty (months) | 60 |
| Lifetime for residential, 3h daily (yrs) | 54 |
| Product lifetime (h) | 60000 |
| Lifetime for commercial, 12h daily (yrs) | 13 |
| Forward Current Max | 30 |
| Manufacturer Product Code | 37669 |
| Product Family | PaperFlex1080 |
| Strip Type | Flexible |
| Strip LEDs per meter | 140 |
| LEDs number per sales unit | 147 |
| Dimensions | 1050x350x0.7 |
| Dimensions: Length (cm) | 1050 |
| Dimensions: Width (mm) | 350 |
| Dimensions: Height (mm) | 0.7 |
| Can be cut at (mm) | 50 |
| Brand | Lumistrips |
| Manufacturer Part Number | 4062986002153 |
