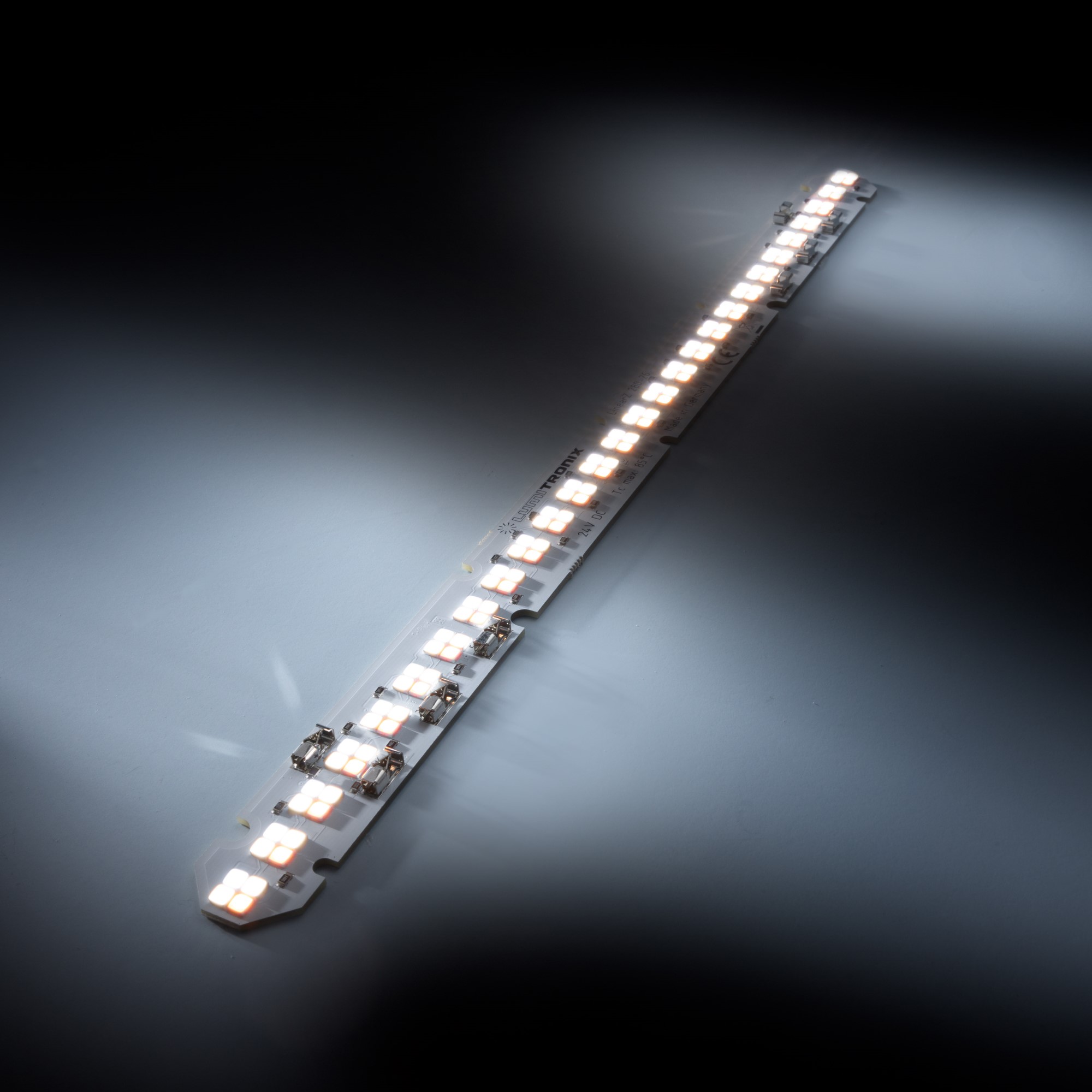

LumiBarTW-112-4090+ Nichia H6 Series TW LED Strip Zhaga CRI92 TriGain white 2000+4000+6500K 1140lm 24V 112 LEDs 28cm module
- Rigid linear LED module built around Zhaga-style mechanical dimensions for professional luminaires
- 3-Step MacAdam colour consistency
- 24 V DC constant-voltage operation
- Solderless connection
- 112 Nichia LEDs
- Dimmable with a compatible multi-channel controller
- Made in Germany with a 5-year commercial warranty
The LumiBarTW-112-4090+ is a three-channel rigid LED module for circadian-oriented and scene-based white lighting. It combines 2000 K, 4000 K and 6500 K Nichia LEDs on one 279.5 mm board, with CRI 92+ TriGain light quality and 24 V DC operation.
Features of the LumiBarTW-112-4090+ module
- Three white-light channels: 2000 K, 4000 K and 6500 K
- 112 Nichia LEDs
- CRI 92+ with TriGain phosphor technology
- Up to 1140 lm at 4000 K, approximately 520 lm at 6500 K and 510 lm at 2000 K
- 24 V DC constant-voltage operation
- Dimmable with a compatible multi-channel controller
- Solderless connection
- 3-Step MacAdam colour consistency
- 279.5 × 20 × 4.57 mm rigid module
- Designed to operate without an additional heat sink in the intended configuration
- 5-year commercial warranty, subject to current warranty conditions
- Made in Germany
Wide-range circadian-oriented white-light scenes
The combination of very warm 2000 K, neutral 4000 K and daylight 6500 K channels allows the luminaire to create a wide range of white-light scenes. It is well suited to workplaces, healthcare interiors, classrooms, hospitality and other spaces where lighting should support different activities and times of day. See our human-centric lighting guide.
Rigid light engine for professional linear luminaires
The rigid PCB is designed for linear luminaires, continuous light lines and compact commercial fixtures where a straight, mechanically stable LED board is preferable to flexible tape. The defined LED pitch helps create a smooth luminous line behind a suitable diffuser, while the rigid module simplifies repeatable positioning inside an OEM luminaire.
For guidance on profile depth, diffuser distance and LED spacing, see our linear fixture design guide.
The module is also suitable for troffers and diffuse ceiling luminaires. Multiple modules can be arranged in rows behind a diffuser to create a broad luminous surface for offices, classrooms, healthcare spaces, retail and other commercial interiors. Final spacing should be selected according to the diffuser, optical distance and required luminance uniformity.
Adjustable cove and architectural lighting
The module can also be integrated into cove lighting where the reflected wall or ceiling should change from warm ambience to neutral or cool functional light.
Built around the Zhaga Book 7 linear-module standard
This module is designed around the Zhaga Book 7 L28W2 linear-module form factor. The L28W2 category gives the luminaire designer a recognized mechanical envelope and keep-out area for this class of linear LED module. This can simplify mechanical design, sourcing, servicing and later product revisions when a luminaire family is built around standardized module dimensions.
Zhaga Book 7 supports mechanical interoperability, but it does not make the electrical operating point, luminous flux, efficiency or optical performance identical between modules from different manufacturers. The LED driver current, forward-voltage range, connector arrangement, thermal conditions and photometric performance must therefore still be checked for the specific module and luminaire.
Book 7 has also been published as IEC 63356-2. The modules require a separate LED driver and are intended for professional luminaire integration and servicing.
Multi-channel 24 V integration
The three colour-temperature groups are controlled independently. Use a compatible multi-channel constant-voltage controller and size the power supply for the maximum simultaneous channel load required by the intended lighting scenes.
Designed and manufactured in Germany
We develop and manufacture professional rigid LED modules and flexible LED light engines in Germany, combining more than 20 years of LED application experience with controlled SMT production and application engineering. Our focus is on predictable optical performance, specified LED components, repeatable electrical characteristics and light engines that can be integrated reliably into professional luminaires.
For OEM and project customers, we can also support LED selection, PCB adaptation, thermal design, prototyping, optical evaluation and series production. This allows the light engine to be matched to the luminaire and application instead of forcing the project around a generic LED board.
Learn more about Lumistrips and our LED manufacturing capabilities.
| SKU | 38562 |
|---|---|
| Weight brut (g) | 20.000000 |
| Color | Tunable White |
| Color Rendering Index | 92 |
| Luminous Flux per meter | 4000 |
| Bright like (W) | 334 |
| Luminous Flux Typ (lm) | 1140 |
| Efficacy (lm per W) | 171 |
| Energy Class 2022 | B |
| Power (W) | 6.7 |
| Dimmable | Tunable White, Dimmable |
| Viewing Angle | 120° |
| Warranty (months) | 60 |
| Lifetime for residential, 3h daily (yrs) | 60 |
| Product lifetime (h) | 60000 |
| Lifetime for commercial, 12h daily (yrs) | 18 |
| Manufacturer Product Code | 38562 |
| Product Family | LumiBarTW |
| Strip Type | Rigid |
| LEDs number per sales unit | 112 |
| Dimensions | 280x20x4.57 |
| Dimensions: Length (cm) | 28 |
| Dimensions: Width (mm) | 20 |
| Dimensions: Height (mm) | 4.57 |
| Brand | Lumistrips |
| Manufacturer Part Number | 4062986002498 |
| Forward Voltage Typ (V) | 24 |
