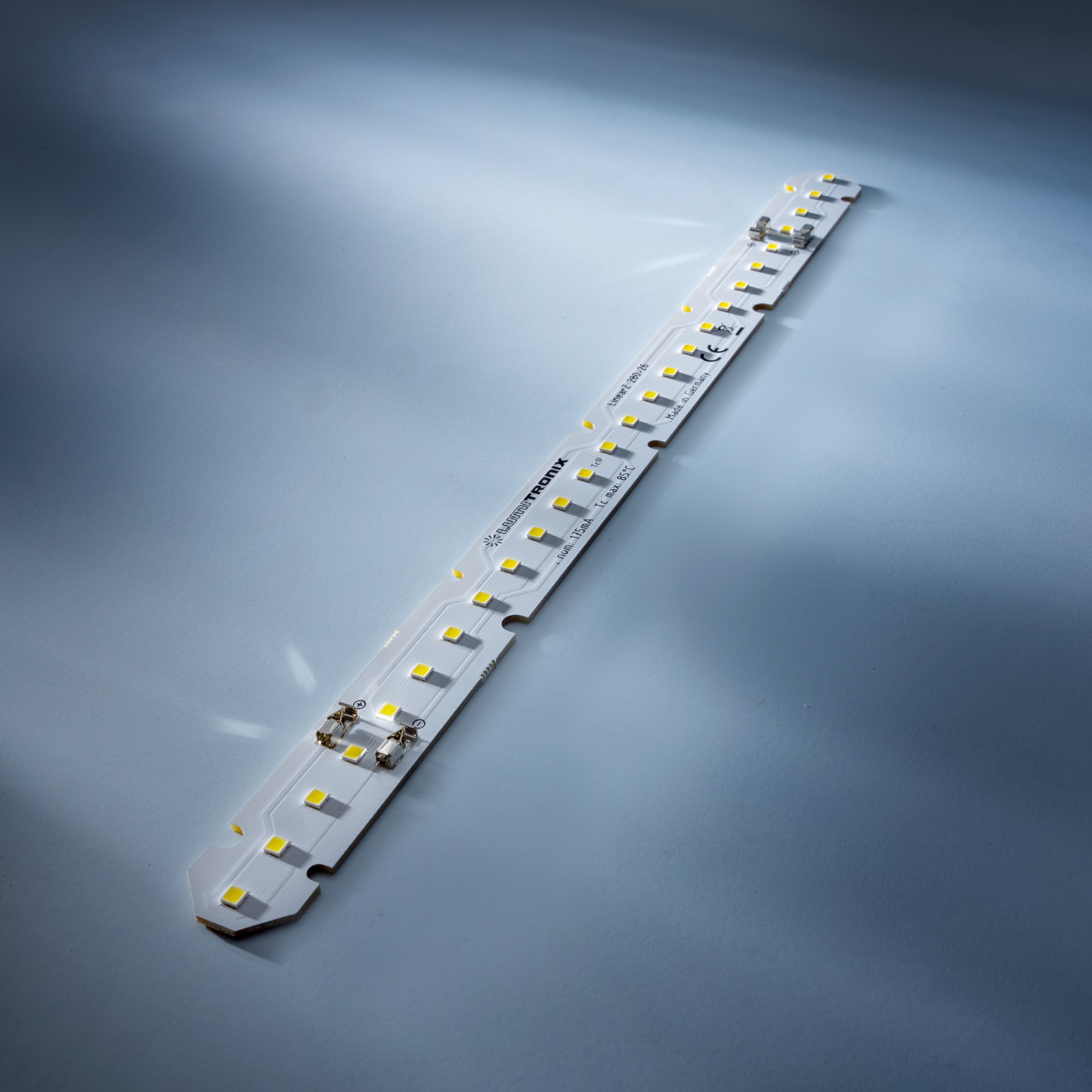

LumiBar-26-3090-H6 Nichia LED Module 4000K CRI90 TriGain 1160lm
- Rigid linear LED module built around Zhaga-style mechanical dimensions for professional luminaires
- Approximately 193 lm/W luminous efficacy
- Up to 1160 lm luminous flux
- 3-Step MacAdam colour consistency
- Constant-current operation
- Solderless electrical connection
- Made in Germany with a 5-year commercial warranty
The LumiBar-26-3090-H6 is a high-efficiency rigid LED module developed for professional linear luminaires in commercial, medical and other quality-critical interiors. It uses 26 Nichia H6 LEDs with TriGain phosphor technology to combine CRI 90 colour quality with luminous efficacy of approximately 193 lm/W.
The 279.5 mm module produces up to 1160 lm from only 6 W at 4000 K. Its rigid Zhaga-compatible form factor, constant-current architecture and solderless connection make it well suited to efficient OEM luminaires and refurbishment projects where a compact, serviceable light engine is preferred.
Features of the LumiBar-26-3090-H6 rigid LED module
- 26 Nichia H6 series LEDs
- 4000 K neutral white light
- High colour rendering: CRI 90+
- TriGain phosphor technology
- Up to 1160 lm luminous flux
- Approximately 193 lm/W luminous efficacy
- 6 W module power
- Constant-current operation
- Mechanical form factor designed around Zhaga Book 7 L28W2
- Solderless electrical connection
- 3-Step MacAdam colour consistency
- Short LED pitch for a uniform light line
- No additional heat sink required in the intended operating configuration
- Dimensions: 279.5 × 20 × 4.57 mm
- 5-year commercial warranty, subject to current warranty conditions
- Made in Germany
Efficient linear lighting for commercial and medical luminaires
The combination of high efficacy and CRI 90 makes this module well suited to linear luminaires used in offices, retail, medical facilities and other spaces where energy efficiency cannot come at the expense of white-light quality.
The rigid 280 mm class form factor is practical for repeatable luminaire construction and can also be used when replacing or modernising compatible linear LED light engines.
Troffers and diffuse ceiling luminaires
The module can be arranged in repeated rows for troffers and diffuse ceiling luminaires. The short LED pitch supports a uniform appearance behind a diffuser, while the high efficacy helps reduce electrical load for a given luminaire output.
White-light horticulture applications
The 4000 K spectrum and efficient rigid format also make the module suitable for lettuce lighting and microgreens where white light is required for both plant illumination and natural visual inspection.
Grow-light systems should be dimensioned from PPFD, uniformity, mounting distance and thermal conditions rather than lumen values alone.
Built around the Zhaga Book 7 linear-module standard
The mechanical format of this LumiBar is designed around the Zhaga Book 7 standard for linear and square LED modules, using the L28W2 form-factor category for a approximately 280 mm class, 20 mm-wide linear module. Zhaga Book 7 defines standardized module categories and the corresponding mechanical envelope and keep-out space that a luminaire designer can reserve for the LED module.
For luminaire manufacturers, this is valuable because the housing, mounting points and internal space can be developed around a recognized industry form factor instead of a completely proprietary PCB size. It can simplify platform design, later product revisions, sourcing and professional servicing, especially when several luminaire lengths are built around the related L14W2, L28W2 and L56W2 module classes.
Zhaga Book 7 modules use a separate LED driver and are intended for professional luminaire integration and replacement. The standard supports mechanical interoperability, but it does not make the electrical operating point, luminous flux or efficiency identical between products from different manufacturers. When replacing or combining modules, the constant-current value, forward-voltage range, connector arrangement, thermal conditions and optical performance must still be checked against the luminaire and driver.
Zhaga Book 7 has also been published internationally as IEC 63356-2, reinforcing the form factor as an established basis for serviceable and interoperable linear LED-module designs.
TriGain light quality
TriGain phosphor technology is used to achieve a high CRI while maintaining very high luminous efficacy. This is valuable in professional interiors where colours, skin tones and materials should remain natural-looking without sacrificing energy performance.
Constant-current luminaire integration
The LumiBar-26-3090-H6 requires a suitable constant-current LED driver. Its solderless connection simplifies assembly and service, while the rigid PCB makes mechanical positioning inside the luminaire predictable and repeatable.
Designed and manufactured in Germany
We develop and manufacture professional LED strips and rigid LED modules in Germany, combining more than 20 years of LED application experience with application engineering and controlled series production. Our focus is on predictable optical performance, reliable component selection and light engines that can be integrated efficiently into professional luminaires.
For OEM and project customers, we can also support LED selection, PCB adaptation, thermal design, prototyping and series production. This allows the LED module to be matched to the luminaire, optical system and target application instead of treating the light engine as a generic component.
Learn more about Lumistrips and our LED manufacturing capabilities.
| SKU | 38558 |
|---|---|
| Weight brut (g) | 30.000000 |
| Color | Neutral White |
| Color Temperature | 4000K |
| Color Rendering Index | 90 |
| Luminous Flux per meter | 4100 |
| Bright like (W) | 342 |
| Luminous Flux Typ (lm) | 1160 |
| Energy Class 2022 | A |
| Viewing Angle | 120° |
| Warranty (months) | 36 |
| Manufacturer Product Code | 38558 |
| Product Family | Lumibar3090 |
| Strip Type | Rigid |
| LEDs number per sales unit | 26 |
| Dimensions: Length (cm) | 28 |
| Dimensions: Width (mm) | 20 |
| Dimensions: Height (mm) | 1.55 |
| Brand | Lumistrips |
| Manufacturer Part Number | 4062986002474 |
| Forward Voltage Typ (V) | 37.58 |
