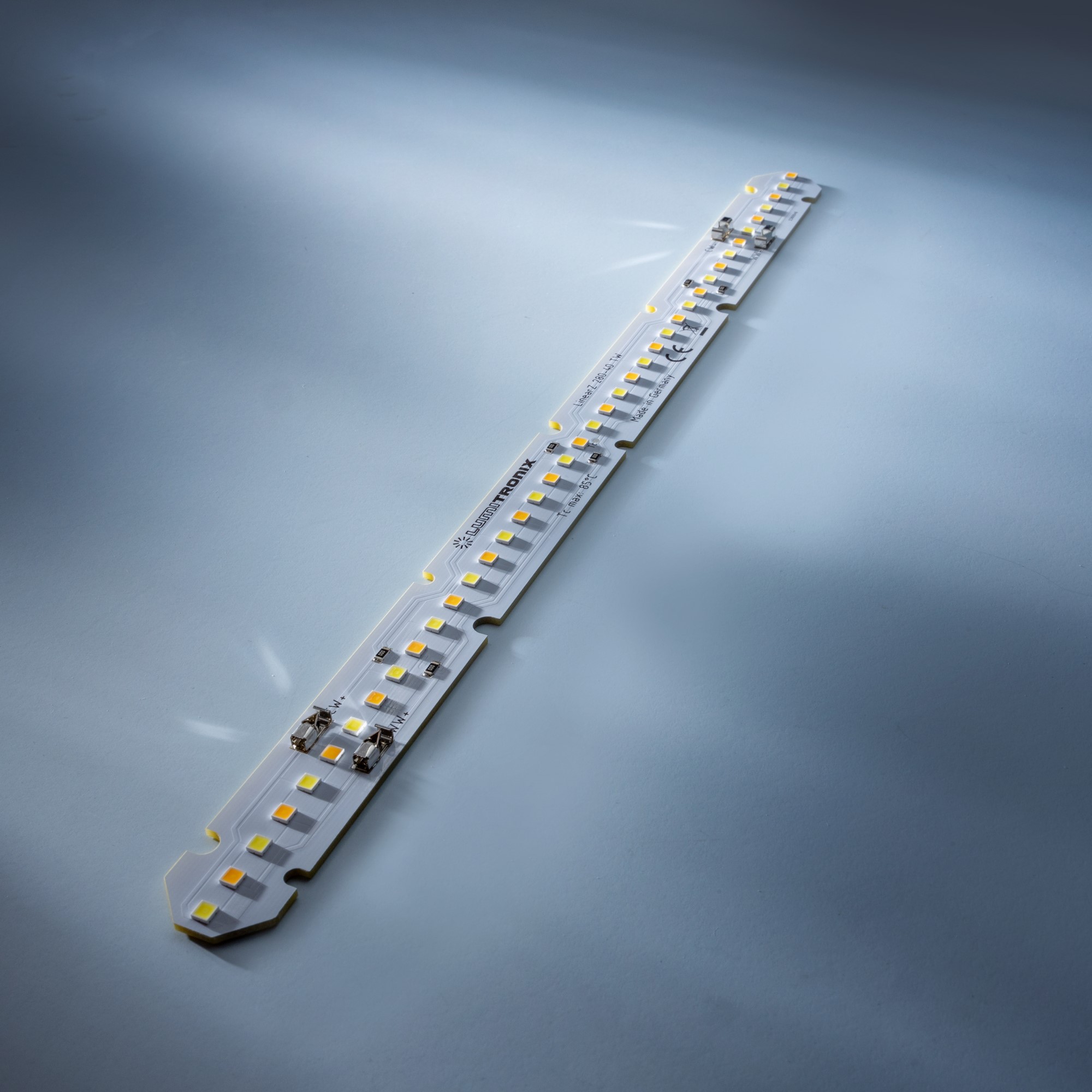

LumiBarTW-40-4090 Nichia H6 Series LED Module 2700K-5000K Tunable White CRI90 TriGain 953lm
- Rigid linear LED module built around Zhaga-style mechanical dimensions for professional luminaires
- Tunable white from 2700 K to 5000 K
- Up to approximately 193 lm/W at 5000 K and 175 lm/W at 2700 K
- 3-Step MacAdam colour consistency
- Constant-current operation at 350 mA
- Solderless connection
- Made in Germany with a 5-year commercial warranty
The LumiBarTW-40-4090 is a high-efficiency tunable-white rigid module for commercial, medical and professional interior lighting. It combines Nichia H6 LEDs at 2700 K and 5000 K with TriGain phosphor technology and CRI 90+, allowing one luminaire to shift between warm and cooler white scenes while maintaining strong colour quality.
Features of the LumiBarTW-40-4090 module
- Tunable white from 2700 K to 5000 K
- 40 Nichia H6 LEDs with TriGain phosphor technology
- CRI 90+
- Up to 953 lm at 5000 K and approximately 864 lm at 2700 K
- Up to approximately 193 lm/W at 5000 K and 175 lm/W at 2700 K
- Constant-current operation at 350 mA
- Approximately 14.5 V operating voltage
- Solderless connection
- 3-Step MacAdam colour consistency
- 279.5 × 20 × 4.57 mm rigid module
- Designed to operate without an additional heat sink in the intended configuration
- 5-year commercial warranty, subject to current warranty conditions
- Made in Germany
Tunable white for commercial and medical luminaires
The 2700–5000 K range allows one luminaire to support a warmer, more relaxed scene as well as a cooler and more task-oriented white light. This is useful in commercial interiors, treatment areas, reception spaces and multi-purpose rooms where the visual atmosphere changes during the day.
Rigid light engine for professional linear luminaires
The rigid PCB is designed for linear luminaires, continuous light lines and compact commercial fixtures where a straight, mechanically stable LED board is preferable to flexible tape. The defined LED pitch helps create a smooth luminous line behind a suitable diffuser, while the rigid module simplifies repeatable positioning inside an OEM luminaire.
For guidance on profile depth, diffuser distance and LED spacing, see our linear fixture design guide.
The module is also suitable for troffers and diffuse ceiling luminaires. Multiple modules can be arranged in rows behind a diffuser to create a broad luminous surface for offices, classrooms, healthcare spaces, retail and other commercial interiors. Final spacing should be selected according to the diffuser, optical distance and required luminance uniformity.
Cove and indirect lighting with adjustable CCT
The module can also be integrated into cove lighting where different white-light scenes are required from the same concealed light line.
Built around the Zhaga Book 7 linear-module standard
This module is designed around the Zhaga Book 7 L28W2 linear-module form factor. The L28W2 category gives the luminaire designer a recognized mechanical envelope and keep-out area for this class of linear LED module. This can simplify mechanical design, sourcing, servicing and later product revisions when a luminaire family is built around standardized module dimensions.
Zhaga Book 7 supports mechanical interoperability, but it does not make the electrical operating point, luminous flux, efficiency or optical performance identical between modules from different manufacturers. The LED driver current, forward-voltage range, connector arrangement, thermal conditions and photometric performance must therefore still be checked for the specific module and luminaire.
Book 7 has also been published as IEC 63356-2. The modules require a separate LED driver and are intended for professional luminaire integration and servicing.
Two-channel constant-current integration
The warm and cool LED channels require suitable regulated constant-current control. Driver selection must accommodate the module current and the forward-voltage range of each channel.
Designed and manufactured in Germany
We develop and manufacture professional rigid LED modules and flexible LED light engines in Germany, combining more than 20 years of LED application experience with controlled SMT production and application engineering. Our focus is on predictable optical performance, specified LED components, repeatable electrical characteristics and light engines that can be integrated reliably into professional luminaires.
For OEM and project customers, we can also support LED selection, PCB adaptation, thermal design, prototyping, optical evaluation and series production. This allows the light engine to be matched to the luminaire and application instead of forcing the project around a generic LED board.
Learn more about Lumistrips and our LED manufacturing capabilities.
| SKU | 38560 |
|---|---|
| Weight brut (g) | 20.000000 |
| Color | Tunable White |
| Color Rendering Index | 90 |
| Luminous Flux per meter | 3400 |
| Bright like (W) | 284 |
| Luminous Flux Typ (lm) | 953 |
| Energy Class 2022 | A |
| Viewing Angle | 120° |
| Warranty (months) | 36 |
| Manufacturer Product Code | 38560 |
| Product Family | LumiBarTW |
| Strip Type | Rigid |
| LEDs number per sales unit | 40 |
| Dimensions: Length (cm) | 28 |
| Dimensions: Width (mm) | 20 |
| Dimensions: Height (mm) | 1.55 |
| Brand | Lumistrips |
| Manufacturer Part Number | 4062986002481 |
| Forward Voltage Typ (V) | 14.53 |
